Maximizing commercial solar revenue with 33 kVA continuous throughput.
GoodWe GW30K-ET is a 30 kW commercial three-phase hybrid inverter delivering up to 33 kVA maximum apparent power and 45 kWp solar intake, engineered to maximize grid feed-in revenue and full facility emergency backup.
33,000 VA Maximum Apparent Power
Delivers maximum allowable continuous export to maximize commercial self-consumption and revenue.
45,000 W Solar PV Input (3 MPPTs), 150% DC oversizing handles large warehouse and agricultural arrays across 6 DC strings.
Dual 50 A High-Voltage Battery Ports
Connects two independent battery stacks directly without external DC combiner switchgear (100 A total).
Full 30 kVA Whole-Facility Backup
Sustains continuous three-phase power to heavy commercial machinery and refrigeration during blackouts.
More product details
Built for commercial facilities with large daytime electrical baselines, the GW30K-ET delivers 30,000 W continuous AC power (33,000 VA max, 47.8 A). Its 3 independent 30 A MPPT trackers accommodate modern 600W+ bifacial panels across 6 strings with zero clipping.
- Delivers up to 47.8 A continuous output current per phase to handle heavy machine starts and high export volume.
- 3 MPPT channels allow dedicated tracking for East, South, and West warehouse pitches with zero inter-string mismatch.
- 98.0% peak conversion efficiency (97.5% European efficiency) minimizes thermal heat generation under full load.
GoodWe
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
30 kW
20 kW
25 kW
29.9 kW
Phase
Three-phase
Three-phase
Three-phase
Three-phase
MPPT trackers
3
2
3
3
Max. efficiency
98.0 %
98.0 %
98.0 %
98.0 %
Battery voltage
200 ~ 800 V
200 ~ 800 V
200 ~ 800 V
200 ~ 800 V
Ingress protection
IP66
IP66
IP66
IP66
Weight
54 kg
48 kg
54 kg
54 kg
Dimensions
520 × 660 × 220 mm
520 × 660 × 220 mm
520 × 660 × 220 mm
520 × 660 × 220 mm
100 A dual battery interface with 30 kVA facility emergency power.
With dual 50 A high-voltage battery ports (200–800 V), the GW30K-ET charges and discharges two independent battery banks at full speed, delivering up to 30 kVA continuous power during utility outages. Two independent 50 A battery ports deliver up to 30 kW continuous DC throughput without external combiner boxes. 30 kVA continuous three-phase backup sustains commercial workshops and critical facility sub-panels in under 10 ms. 100% phase-unbalanced load balancing shifts power dynamically to heavily loaded single-phase tools.
Runs 30000 W AC on three independent MPPTs
Three MPP trackers manage multi-angle commercial solar arrays up to 1000 V DC. The power stage supplies 30000 W continuous three-phase power.
Pairs dual 50 A battery circuits from 200 to 800 V
Two separate 50 A lines connect high-voltage lithium storage. Dual paths distribute current to minimize heat and maximize battery lifespan.
Stands in a 54 kg IP66 commercial enclosure
The 520 x 660 x 220 mm housing protects power components in outdoor conditions. Multi-channel comms include WiFi, 4G, RS485, and CAN.
Technical data
The highest continuous power throughput in GoodWe's compact commercial wall-mount range.
33 kVA maximum AC power throughput paired with 45 kWp DC solar intake.
Engineered for commercial facilities connected to private transformers or in regions without low-voltage feed-in caps, the GW30K-ET pushes up to 33,000 VA of apparent power onto the grid. Its 3 independent 30 A MPPT trackers accommodate modern 600W+ bifacial modules across 6 strings, while dual high-voltage battery ports deliver up to 30 kW continuous storage charging.
- Max. Apparent Power
- 33,000 VA
- 150% Solar DC Intake
- 45,000 Wp
- Dual 50 A Battery Ports
- 100 A
- High String Current
- 30 A / MPPT
Power & Phase
- AC output power
- 30 kW
- Phase
- 3
PV Input
- MPPTs
- 3
- MPPT voltage range
- 200 to 850 V
- Max. PV input voltage
- 1000 V
Battery Interface
- Battery type
- Lithium (HV)
- Battery voltage range
- 200 to 800 V
- Max. charge / discharge current
- 50 x 2 A
Efficiency & Protection
- Max. efficiency
- 98.0 %
- Protection rating
- IP66
Physical & Comms
- Dimensions (W x H x D)
- 520 x 660 x 220 mm
- Weight
- 54 kg
- Communication
- WiFi / 4G, RS485 / CAN
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW30K-ET belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

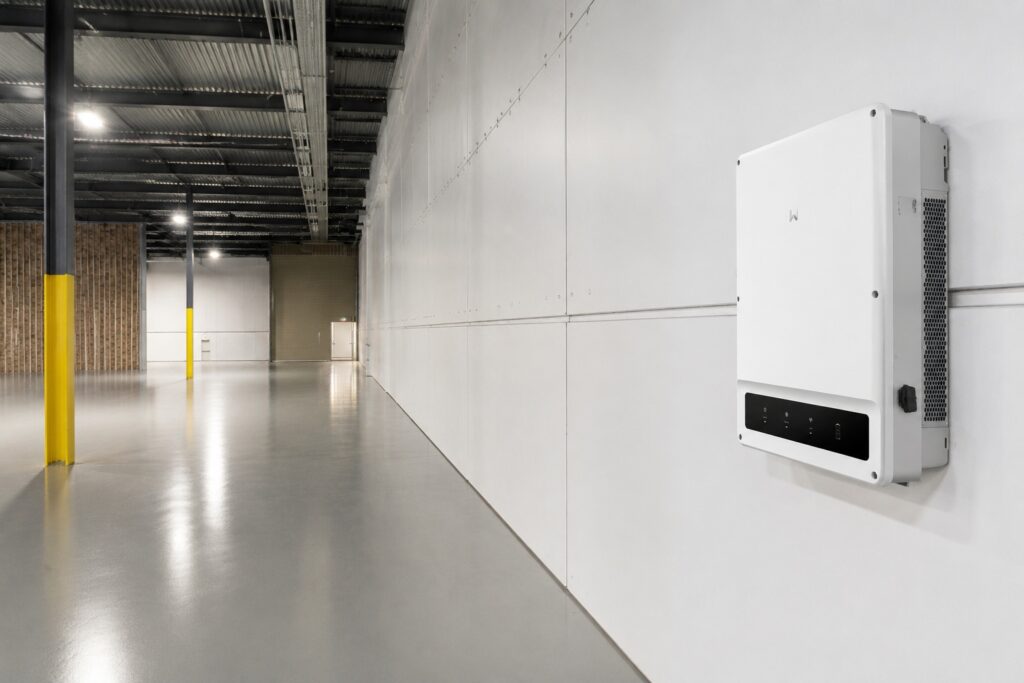

Commercial & Agricultural Sites with High Grid Capacity (>30 kVA Permitted)
Commercial facilities in jurisdictions (or sites with dedicated private transformers) where grid export above 30 kVA is permitted without auxiliary protection penalties.
Delivers full 33.0 kVA peak output (approx. 47.8 A per phase), providing roughly 10% higher continuous power capacity and export revenue than the 29.9 kVA capped model.
- BoundaryIf the project is installed on a German low-voltage grid connection subject to VDE-AR-N 4105 where exceeding 30.0 kVA triggers a mandatory, costly external central NA-Schutz relay cabinet.
What Linker confirms with you
- If the project is installed on a German low-voltage grid connection subject to VDE-AR-N 4105 where exceeding 30.0 kVA triggers a mandatory, costly external central NA-Schutz relay cabinet.
Project scenario

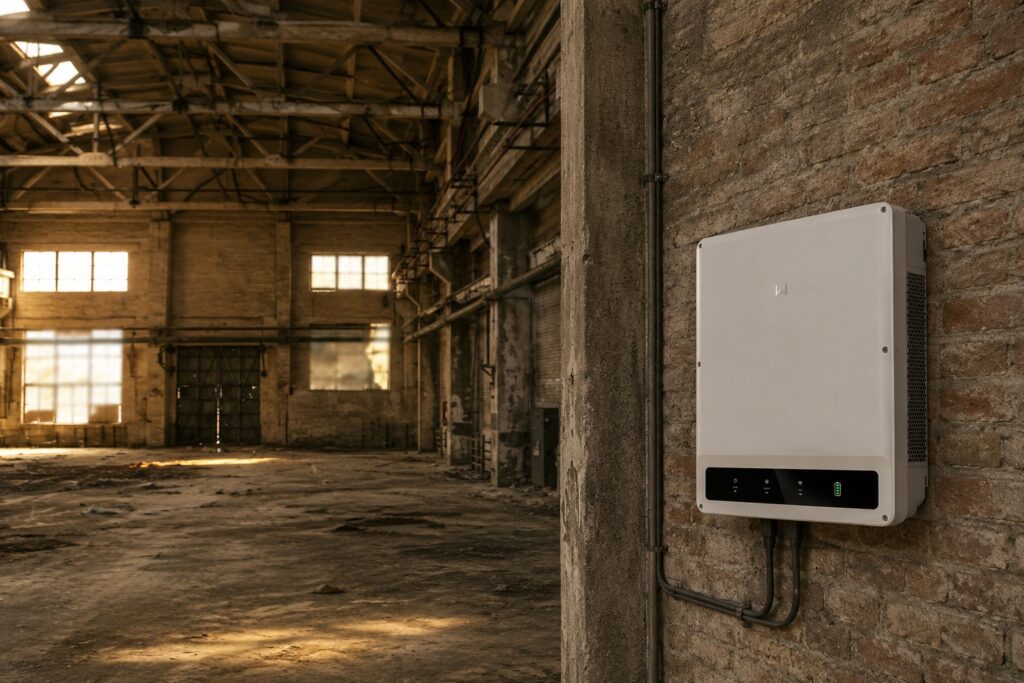

Commercial Workshops & Warehouses with 35–45 kWp Solar & 40–60 kWh Storage
Logistics warehouses and manufacturing facilities operating multi-shift machinery and seeking high daytime solar self-consumption.
3 MPPTs handle multiple roof slopes, while dual 50 A battery ports allow direct connection of two Lynx D or commercial battery columns without external combiner switchgear.
What Linker confirms with you
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe ET 15-30kW datasheet (EN) GoodWe ET Series 15-30kW Datasheet (EN)Product questions
In what specific scenario should an installer choose the GW30K-ET over the GW29.9K-ET?
When connecting to a private transformer or in regions without the 30 kVA NA-Schutz cutoff. Choose the GW30K-ET when the installation site has an existing central grid protection cabinet, connects to a dedicated private transformer station, or is located in European markets (such as parts of Southern or Eastern Europe) where the 30 kVA NA-Schutz regulation does not apply. The GW30K-ET provides up to 33,000 VA maximum apparent power (approx. 47.8 A per phase), delivering roughly 10% higher continuous power capacity than the 29.9 kVA model.
What size AC breaker and cable cross-section are required for the GW30K-ET?
63 A 3-pole industrial circuit breaker; 16 mm² to 25 mm² copper cable. With a maximum continuous AC output current of 47.8 A per phase, a 3-pole 63 A industrial circuit breaker (MCB/MCCB) is standard. For cable runs up to 30 meters, copper conductors of at least 16 mm² (or 25 mm² for longer runs to minimize voltage drop) are recommended.
Can this model operate in full off-grid backup mode indefinitely if utility power fails?
Yes. Delivers 30,000 VA continuous backup with automated solar black-start. The GW30K-ET provides full 30,000 VA continuous three-phase power on its backup port (with 100% phase-unbalanced load support). When paired with adequate solar PV (up to 45 kWp) and high-capacity battery storage (40–60 kWh+), it will continuously power the facility, automatically black-starting each morning when sunlight returns.
System components
Required components
GoodWe GM330 CT meter
Item number: DLK-GOODWE-GM330
Export limiting / self-consumption metering for grid-tied operation.
Recommended components
GoodWe LX D5.0-10 / Lynx D battery bank
Item number: DLK-GOODWE-LXD5010
Listed by GoodWe against the ET 15-30 kW range (ARM 28 / DSP 12 firmware or higher).
GoodWe GW61.4 / GW112.6-BAT-AC-G10 battery cabinet
Item number: DLK-GOODWE-GW614BATACG10
Listed by GoodWe against the ET 15-30 kW range, ARM 13 or higher required on the inverter.
Optional components
GoodWe GW60KWH-D-10 (60 kWh pack-based unit)
Item number: DLK-GOODWE-GW60KWHD10
This specific model of the Lynx C family is the one GoodWe clears for the ET 15-30 kW tier (the LX C101-10 to LX C156-10 cabinets are cleared for ET 40-50 and ETC/BTC instead).
GoodWe EzManager3000
Item number: DLK-GOODWE-EZMANAGER3000
Single-site home EMS for one hybrid inverter plus EV charger / heat pump / Shelly device control.
Approved pairings
GoodWe GW112.6-BAT-AC-G10Item number DLK-GOODWE-GW1126BATACG10GoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW61.4-BAT-AC-G10Item number DLK-GOODWE-GW614BATACG10GoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW60KWH-D-10Item number DLK-GOODWE-GW60KWHD10GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C101-10Item number DLK-GOODWE-LXC10110GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C120-10Item number DLK-GOODWE-LXC12010GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C138-10Item number DLK-GOODWE-LXC13810GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C156-10Item number DLK-GOODWE-LXC15610GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX D5.0-10Item number DLK-GOODWE-LXD5010GoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 10 kWh (2 x LX D5.0-10)Item number DLK-GOODWE-LYNXD10KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 15 kWh (3 x LX D5.0-10)Item number DLK-GOODWE-LYNXD15KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 20 kWh (4 x LX D5.0-10)Item number DLK-GOODWE-LYNXD20KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 25 kWh (5 x LX D5.0-10)Item number DLK-GOODWE-LYNXD25KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx Home F 13.10 kWh (PCU base + 4 x LX F3.3-H)Item number DLK-GOODWE-LXF131HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 16.38 kWh (PCU base + 5 x LX F3.3-H)Item number DLK-GOODWE-LXF164HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe LX F3.3-H (Lynx Home F battery module, 3.27 kWh)Item number DLK-GOODWE-LXF33HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 6.55 kWh (PCU base + 2 x LX F3.3-H)Item number DLK-GOODWE-LXF66HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 9.83 kWh (PCU base + 3 x LX F3.3-H)Item number DLK-GOODWE-LXF98HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F PCU base (master BMS)Item number DLK-GOODWE-LXFPCUGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
Pylontech FH10050Item number DLK-PYLONTECH-FH10050Pylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
