Description
Independent module-level power control without aging bottlenecks.

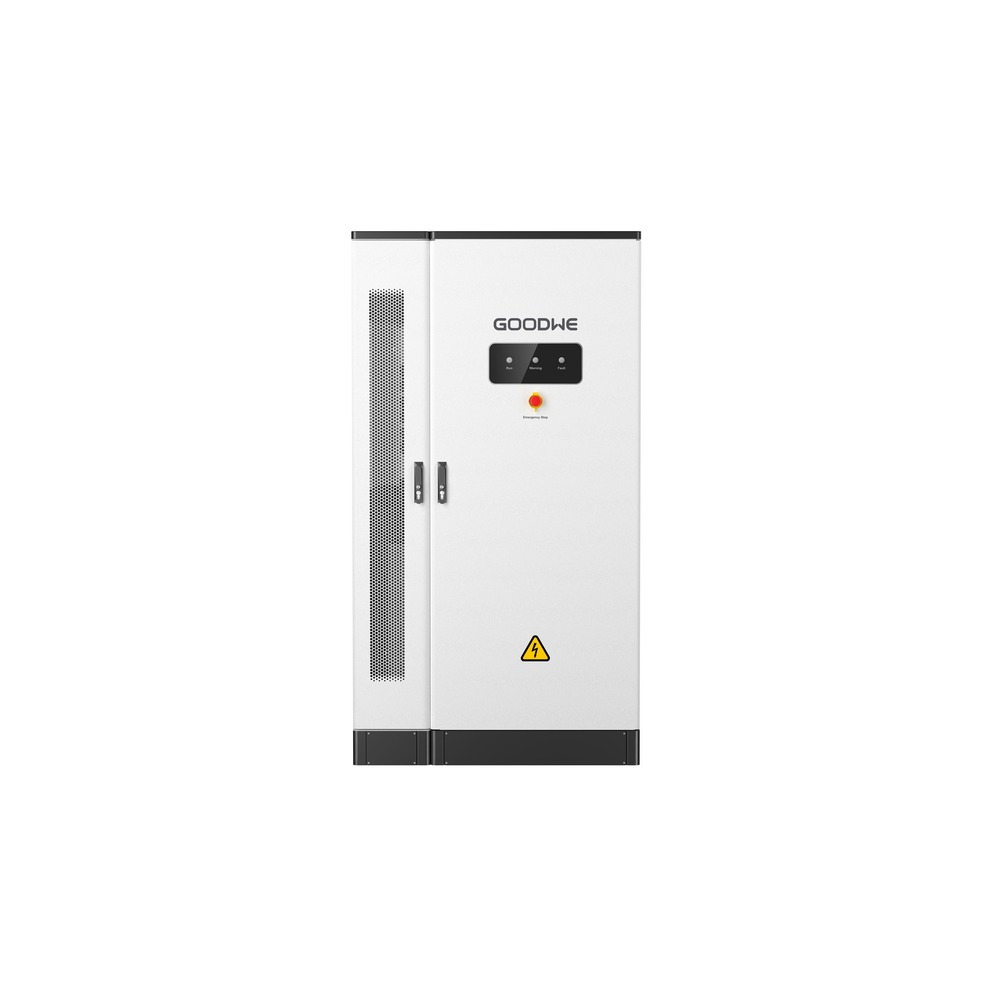

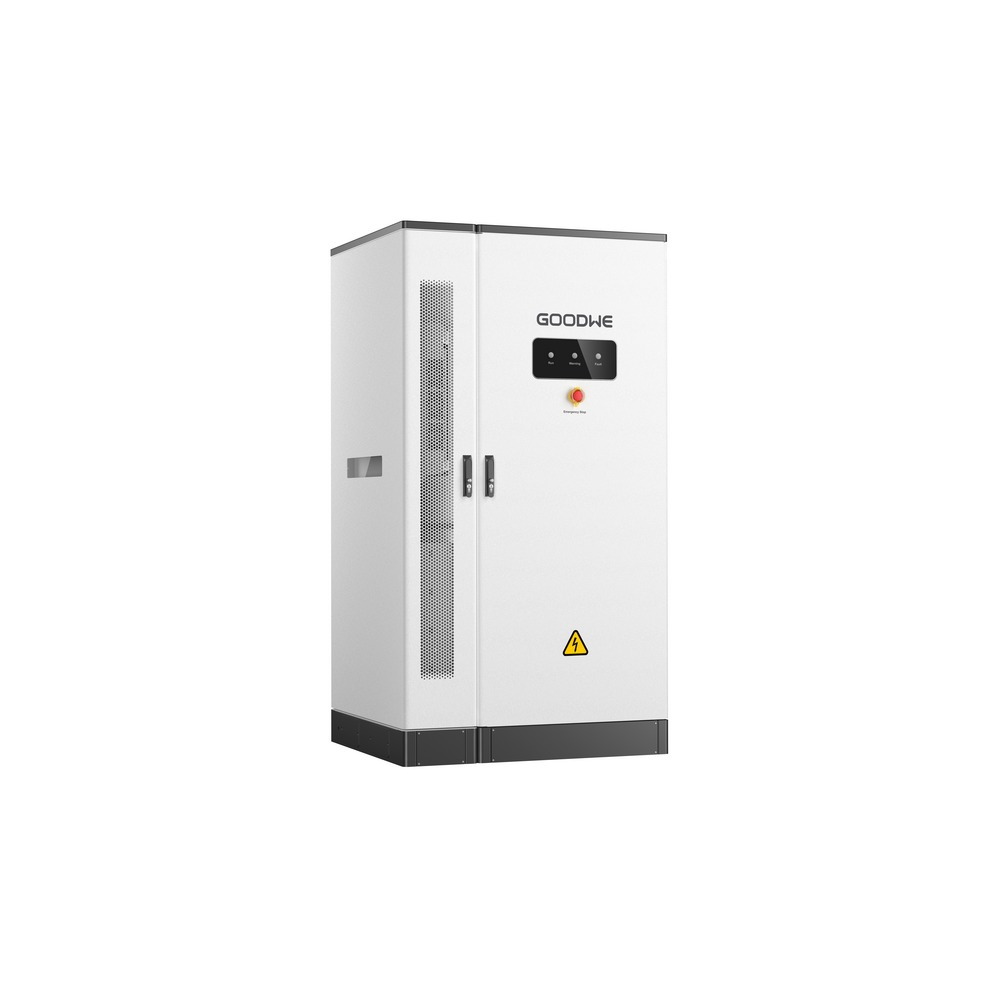

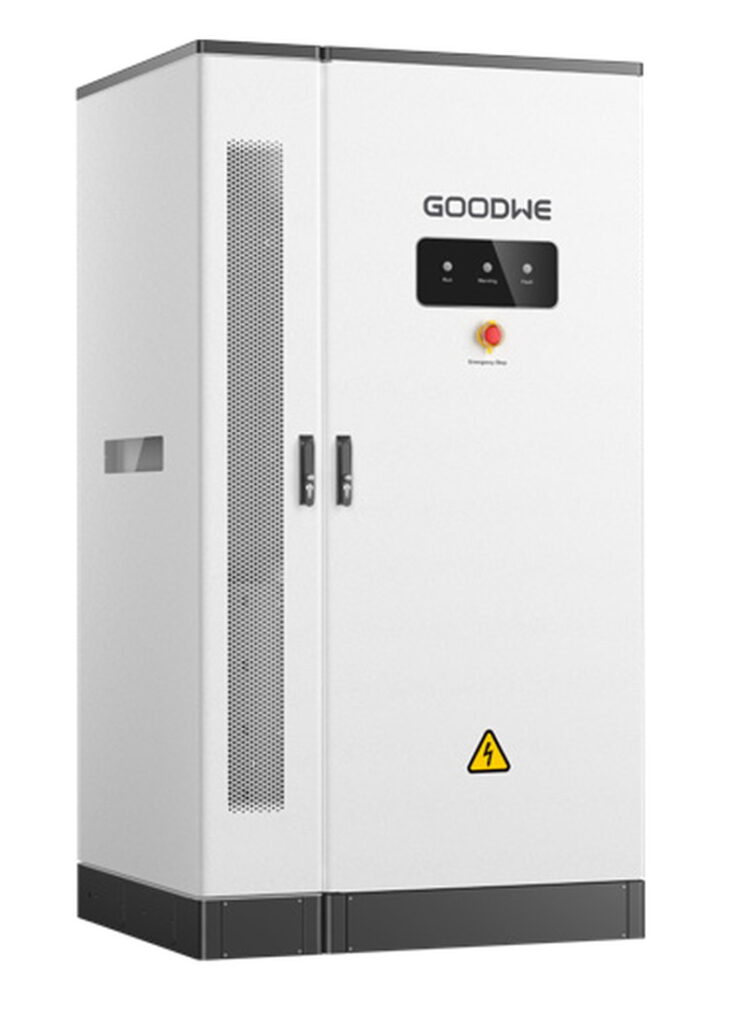

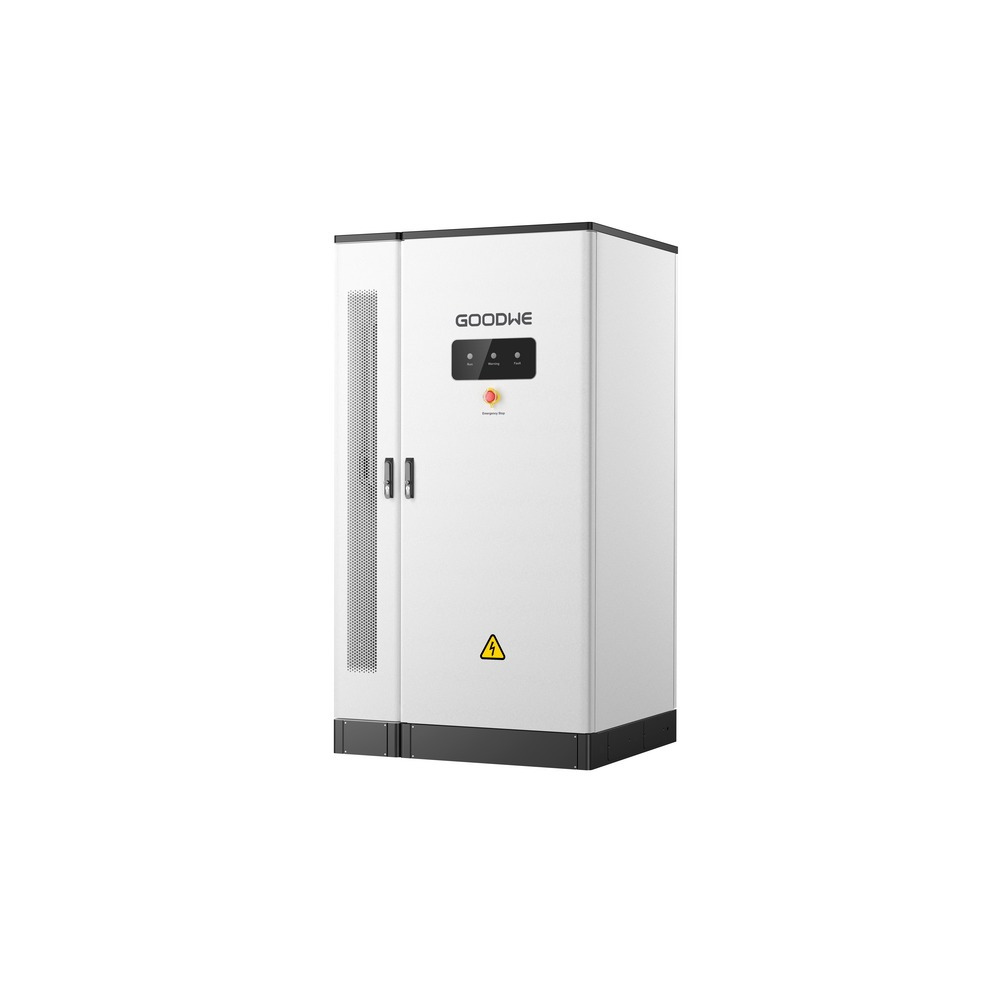

GoodWe GW60KWH-D-10 is a 60 kWh decentralized commercial outdoor storage cabinet housing twelve 5 kWh Lynx D modules with individual DC-DC power regulation, engineered for flexible commercial peak shaving and seamless capacity expansion without master BMS bottlenecks.
Decentralized Modular DC-DC Architecture
Each 5 kWh battery pack operates with independent power regulation, preventing older packs from dragging down new expansion modules.
60 kWh Commercial Storage Capacity
Sized to provide substantial daily energy buffering and peak shaving for small manufacturing workshops and commercial offices.
Turnkey Outdoor Enclosure (IP55)
All-weather housing includes pre-wired high-voltage DC busbars, master safety disconnects, and ventilation.
Effortless Modular Scalability
Scale system capacity smoothly by adding standard Lynx D extension cabinets without system re-addressing.
More product details
In traditional series commercial battery cabinets, the weakest cell determines the capacity of the entire rack. The GW60KWH-D-10 features active DC-DC converters inside each 5 kWh module, isolating packs from cell-mismatch degradation.
- Twelve parallel power stages distribute commercial current draw evenly across all 60 kWh of LFP storage.
- Eliminates stack-level single points of failure. If one pack is offline, the remaining eleven continue operating.
- Allows mixing of different battery manufacturing batches and ages in future expansions without capacity loss.
GoodWe
Compare different models
Scroll sideways to compare every model.
Turnkey outdoor enclosure with plug-and-play extension support.
Eliminating the need to construct dedicated indoor battery rooms, this IP55 outdoor enclosure arrives pre-wired with internal high-voltage DC busbars and ventilation. Weatherproof sealed enclosure protects power electronics from rain, dust, and direct sunlight (-10 to +50 °C). Direct plug-and-play linking to secondary extension cabinets (GW60KWH-D-10 Extension) doubles capacity to 120 kWh. Integrated motorized DC circuit breaker provides sub-second short-circuit and overcurrent isolation.
Runs 96 A charge and discharge current
The 633.6 V bus operates between 554.4 and 712.8 V. Charge and discharge currents reach 96 A across eleven 5.76 kWh packs.
Holds C4 corrosion protection outdoors
Anti-corrosion is C4, with C5 optional. Charge is 0 to 55 C. Discharge is minus 25 to 55 C.
Fits an 1108 x 1111.5 mm base footprint
The enclosure measures 1108 x 2050 x 1111.5 mm and weighs approximately 1029.5 kg. Up to three cabinets sit on one inverter.
Technical data
Modular high-voltage commercial storage delivering 12-channel redundancy and multi-year scalability.

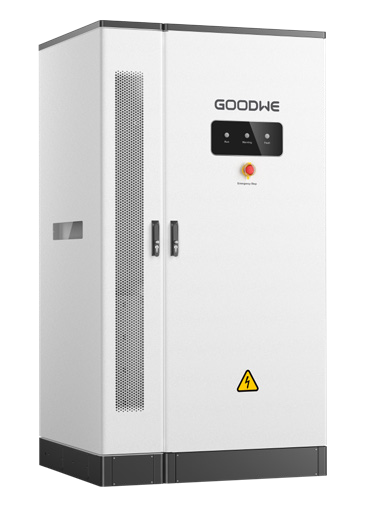

60 kWh decentralized commercial storage cabinet with individual module DC-DC regulation.
Packaging twelve decentralized 5 kWh Lynx D battery modules into a rugged outdoor cabinet, the GW60KWH-D-10 delivers 60 kWh of high-voltage LFP storage. Because each module possesses its own internal DC-DC converter, the system eliminates master BMS bottlenecks and allows seamless future capacity expansion without aging-mismatch penalties.
- Nominal Storage
- 60.0 kWh
- High-Voltage Bus
- 320–480 V
- Redundancy
- 12-Channel DC-DC
- Outdoor Enclosure
- IP55
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Pack nominal energy (kWh)
- 5.76
- Usable energy (kWh)
- 60
- Nominal voltage (V)
- 633.6
- Operating voltage range (V)
- 554.4 ~ 712.8
- Max. charge / discharge current (A)
- 96
- Depth of discharge
- 100%
- Cycle life
- >=5000
- Round-trip efficiency
- 95%
Scalability
- Number of packs
- 11
- Cabinets per inverter
- Up to 3
Environment
- Anti-corrosion
- C4 (optional upgrade to C5)
- Operating temperature range (C)
- Charge 0 ~ +55, discharge -25 ~ +55
- Max. operating altitude (m)
- 3000
Mechanical & Comms
- Communication interface
- CAN
- Dimension (W x H x D mm)
- 1108 x 2050 x 1111.5
- Weight (kg)
- approx. 1029.5
- Ingress protection rating
- IP55
- Ingress protection
- IP55 (Battery cabinet)
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW60KWH-D-10 belongs in, what to verify before quoting, and when another model is the better pick.

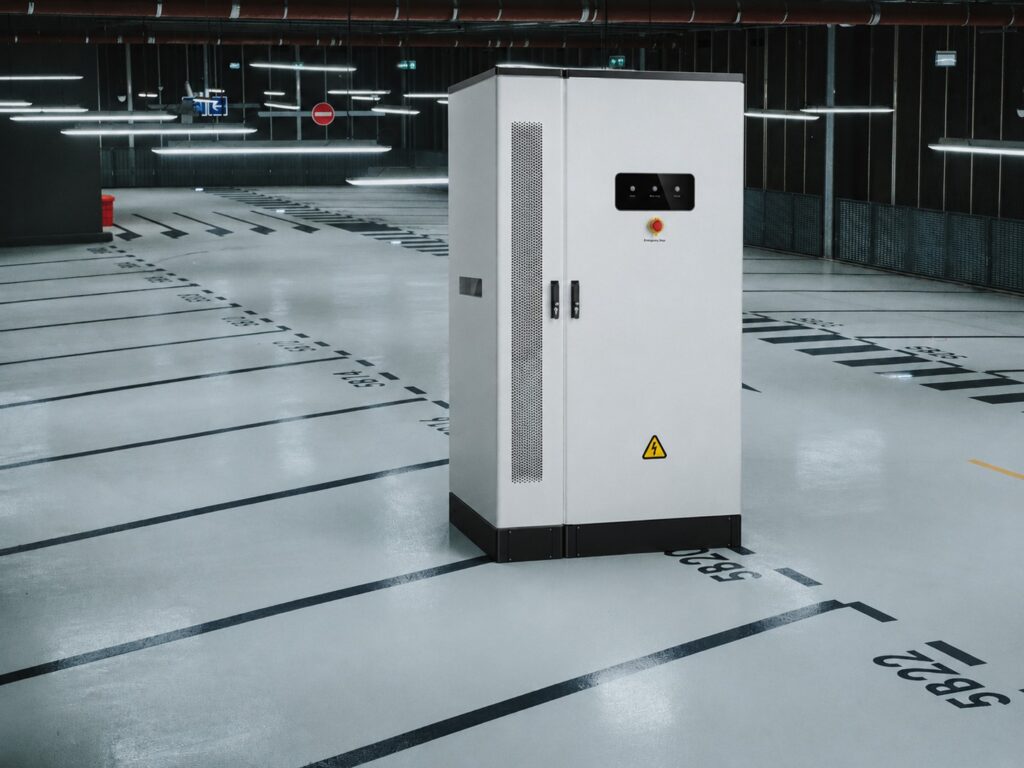

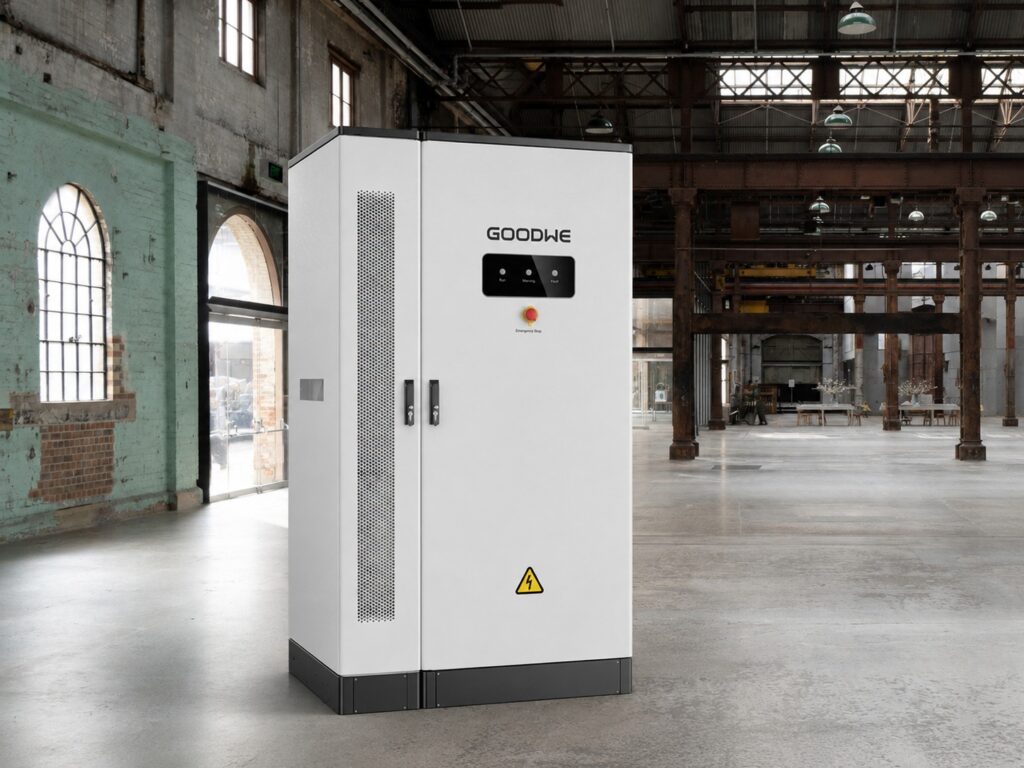

Commercial Workshops & Agricultural Barns (40–60 kWp Solar)
Commercial sites with outdoor pad space seeking 60 kWh of storage to offset midday demand charges and power evening operations.
Pre-wired outdoor cabinet saves interior building space while providing 12-channel decentralized DC-DC redundancy.
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe Lynx C 60 kWh datasheet (EMEA, EN)Product questions
How does this decentralized cabinet differ from traditional commercial battery racks?
Each 5 kWh module has its own built-in DC-DC converter. Traditional racks connect modules in a single rigid series string, meaning one weak cell degrades the entire rack. In the GW60KWH-D-10, all 12 modules operate in parallel with independent DC-DC regulation, ensuring maximum usable energy and full capacity retention when adding new packs years later.
What is the maximum storage capacity possible with extension cabinets?
Up to 120 kWh by adding one secondary extension cabinet. The primary cabinet connects seamlessly via pre-engineered linking cables to the GW60KWH-D-10 Extension cabinet, creating a unified 120 kWh commercial storage bank.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for C&I export control.
Recommended components
GoodWe GW50K07-ETC hybrid inverter (ETC/BTC range)
Item number: DLK-GOODWE-GW50K07ETC
GoodWe's C&I compatibility table lists the full LX C101-10 to LX C156-10 range against the ETC/BTC pair.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
This pairing applies to the GW60KWH-D-10 SKU specifically, not the LX C101-10 to LX C156-10 cabinets, which GoodWe does not list against the ET 15-30 kW range.
Approved pairings
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW100K07-BTCItem number DLK-GOODWE-GW100K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW100K07-ETCItem number DLK-GOODWE-GW100K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-BTCItem number DLK-GOODWE-GW50K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-ETCItem number DLK-GOODWE-GW50K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
