Unlocking high-current solar compatibility and 50 A battery throughput.

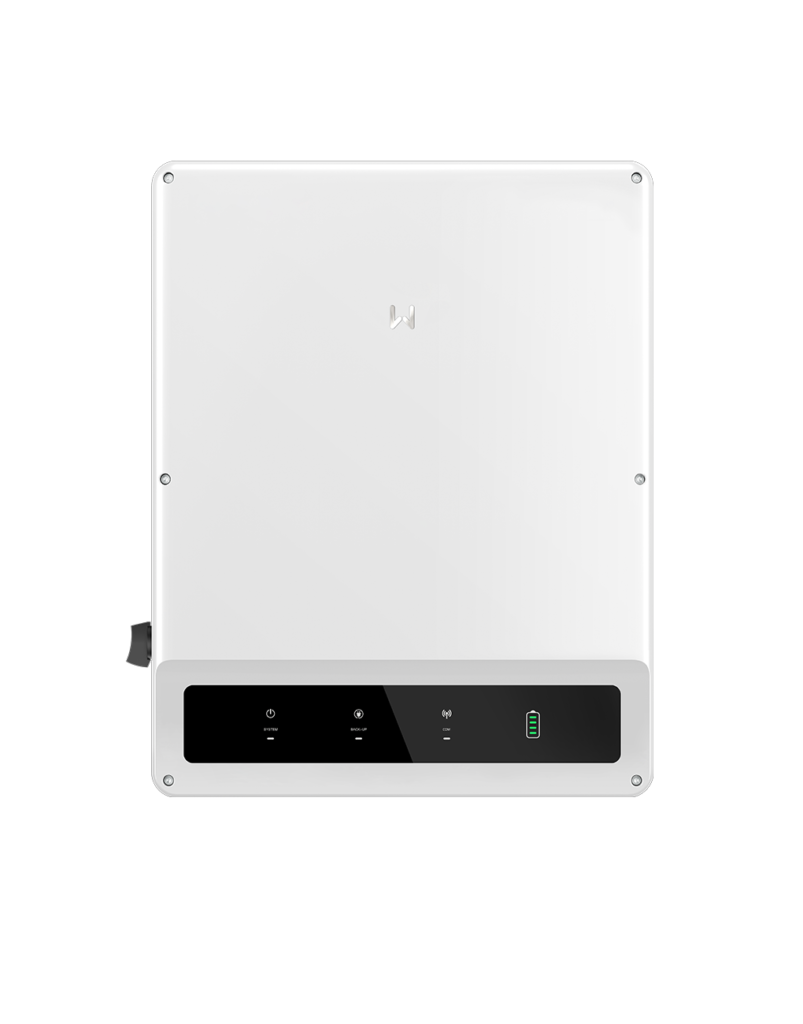

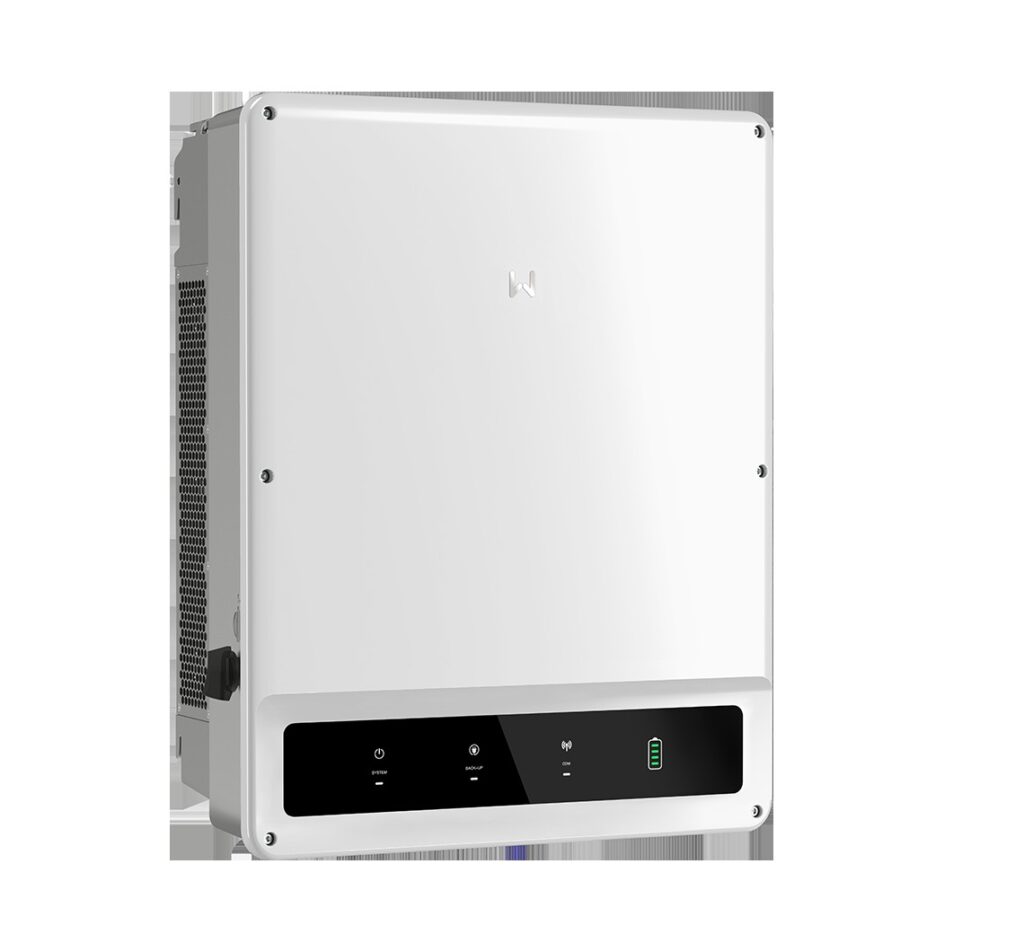

GoodWe GW15K-ET is a 15 kW commercial-grade three-phase hybrid inverter with dual 30 A MPPT channels and a 50 A high-rate battery port, engineered to harvest modern 600W+ bifacial solar modules and power heavy workshop loads.
30 A High-Current Dual MPPTs
Fully compatible with modern 182 mm and 210 mm high-power bifacial panels across 4 DC strings.
50 A Direct High-Voltage Battery Port
Delivers up to 15 kW continuous DC charging to cut storage recharge times in half.
15 kVA Continuous Three-Phase Backup
Drives commercial workshops, multi-zone HVAC, and dedicated emergency sub-panels during outages.
100% Phase Unbalanced Output
Dynamically diverts power to heavily loaded single-phase machinery without drawing expensive grid electricity.
More product details
Modern 550W–700W+ solar modules operate at 13–17 A, causing standard residential 12.5 A inverters to clip peak midday power. The GW15K-ET features 30 A MPPT channels (38 A Isc) to accept two parallel high-current strings per tracker with zero clipping.
- Dual 30 A MPPT channels (4 DC inputs total) accommodate high-power bifacial arrays up to 22,500 Wp.
- 50 A high-voltage battery port pushes up to 15 kW directly into storage (200–800 V window).
- Smart forced-air cooling maintains full continuous 15 kW throughput under heavy industrial cycling (-35 to +60 °C).
GoodWe
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
15 kW
20 kW
25 kW
29.9 kW
Phase
Three-phase
Three-phase
Three-phase
Three-phase
MPPT trackers
2
2
3
3
Max. efficiency
98.0 %
98.0 %
98.0 %
98.0 %
Battery voltage
200 ~ 800 V
200 ~ 800 V
200 ~ 800 V
200 ~ 800 V
Ingress protection
IP66
IP66
IP66
IP66
Weight
48 kg
48 kg
54 kg
54 kg
Dimensions
520 × 660 × 220 mm
520 × 660 × 220 mm
520 × 660 × 220 mm
520 × 660 × 220 mm
Dynamic phase balancing with 15 kVA whole-facility emergency power.
Commercial workshops and estates frequently run asymmetric single-phase equipment. The GW15K-ET dynamically shifts power to supply up to 100% of capacity onto a single heavily loaded phase, preventing costly grid import fees. 100% phase-unbalanced capability shifts power dynamically to loaded phases to eliminate peak demand charges. 15 kVA continuous three-phase backup sustains critical commercial sub-panels within 10 ms of grid failure. IP66 heavy-duty cast-aluminum casing provides complete dust and high-pressure water protection.
Takes two MPPTs up to 1000 V maximum input
Two independent trackers operate across a 200 to 850 V window. Continuous 15000 W three-phase output powers demanding facilities.
Pairs 200 to 800 V storage at 50 A current
A 50 A battery interface handles rapid storage charging and discharging. High-voltage architecture achieves 98.0 percent peak efficiency.
Fits commercial walls in an IP66 chassis
The 54 kg enclosure measures 520 x 660 x 220 mm with IP66 ingress protection. Built-in WiFi, 4G, RS485, and CAN simplify plant integration.
Technical data
The high-power hybrid bridge between large residential estates and commercial workshops.
30 A string current built to harvest 600W+ high-power bifacial modules.
Transitioning onto GoodWe's heavy-duty commercial platform, the GW15K-ET eliminates current bottlenecks when pairing with modern large-wafer solar panels. It upgrades MPPT inputs to 30 A (Isc 38 A) and doubles battery throughput to 50 A across a wide 200–800 V window, delivering 15 kW of continuous hybrid throughput backed by intelligent forced-air cooling.
- Continuous 3-Phase Power
- 15,000 VA
- 150% Solar DC Intake
- 22,500 Wp
- High-Rate Battery Port
- 50 A
- High String Current
- 30 A / MPPT
Power & Phase
- AC output power
- 15 kW
- Phase
- 3
PV Input
- MPPTs
- 2
- MPPT voltage range
- 200 to 850 V
- Max. PV input voltage
- 1000 V
Battery Interface
- Battery type
- Lithium (HV)
- Battery voltage range
- 200 to 800 V
- Max. charge / discharge current
- 50 A
Efficiency & Protection
- Max. efficiency
- 98.0 %
- Protection rating
- IP66
Physical & Comms
- Dimensions (W x H x D)
- 520 x 660 x 220 mm
- Weight
- 54 kg
- Communication
- WiFi / 4G, RS485 / CAN
Logistics
- Packaging (VPE)
- 1 per carton, 4 per pallet
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW15K-ET belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

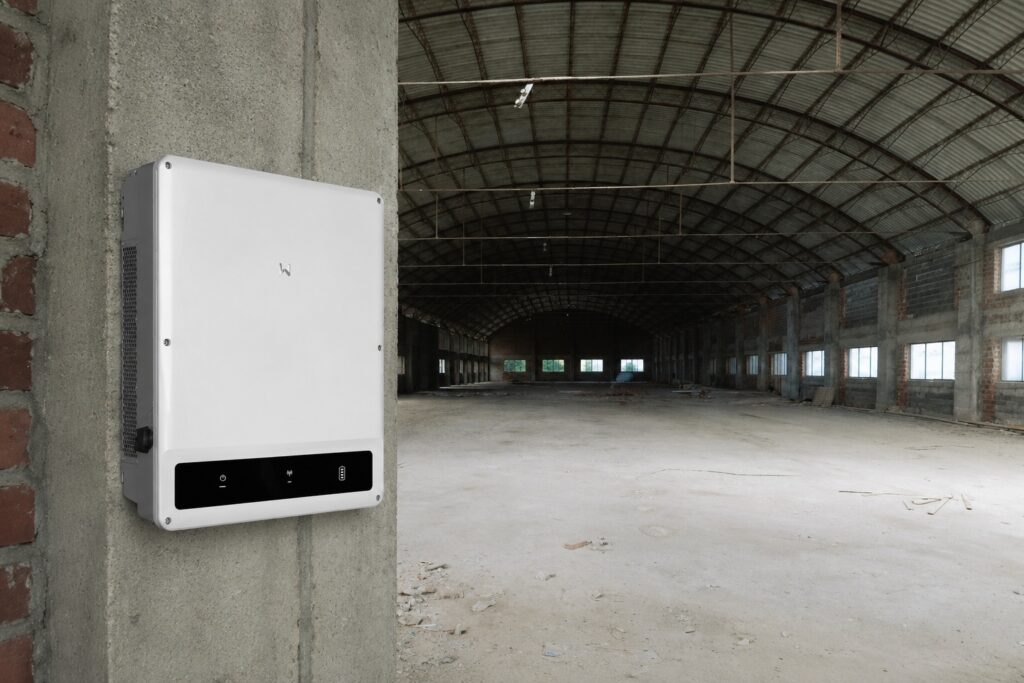

Large Estates & Multi-Family Properties (18–25 kWp PV) Using High-Power Panels
Large residential properties with multi-pitch roofs utilizing modern 550W+ large-wafer solar modules.
High-power modules exceed the 12.5 A limit of standard residential inverters. The GW15K-ET’s 30 A per MPPT allows parallel stringing without clipping, while 50 A battery charging cuts recharge times for 20+ kWh battery banks in half.
- BoundaryIf total array capacity is under 15 kWp, panels are standard 400W–450W (Imp < 12 A), and the unit must be installed in an indoor area where fan noise is unacceptable (the 10K is 100% fanless and silent).
What Linker confirms with you
- If total array capacity is under 15 kWp, panels are standard 400W–450W (Imp < 12 A), and the unit must be installed in an indoor area where fan noise is unacceptable (the 10K is 100% fanless and silent).
Project scenario

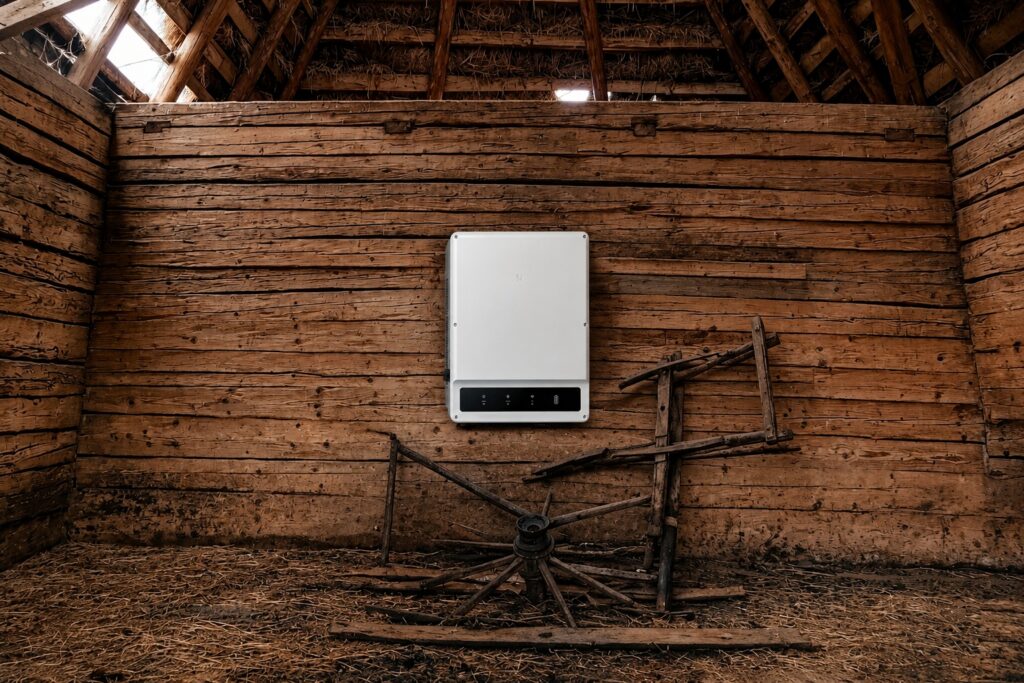

Commercial Workshops & Agricultural Barns with Asymmetric Single-Phase Machinery
Facilities operating single-phase heavy equipment (welders, hoists, compressors) alongside three-phase baseline loads.
Dynamically channels internal inverter power onto the loaded phase (e.g. L1), keeping net grid electricity draw at zero and avoiding peak-tariff penalties.
What Linker confirms with you
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe ET 15-30kW datasheet (EN) GoodWe ET Series 15-30kW Datasheet (EN)Product questions
How does the GW15K-ET differ fundamentally from the residential GW10K-ET?
Commercial-grade 30 A MPPTs, 50 A battery throughput, and smart fan cooling. The GW15K-ET upgrades maximum MPPT input current from 12.5 A to 30 A (accepting 4 DC strings instead of 2), doubles maximum battery charge/discharge current from 25 A to 50 A (allowing 15 kW DC battery charging instead of 10 kW), and transitions to intelligent forced-air cooling to manage the higher 15 kW continuous thermal dissipation.
Why is the 30 A MPPT rating critical when using modern 550W+ solar panels?
Prevents DC current clipping on high-amperage bifacial modules. Modern 182 mm and 210 mm bifacial panels produce operating currents ($I_{\text{mp}}$) of 13 A to 17 A+, with short-circuit currents ($I_{\text{sc}}$) reaching 18 A to 20 A+. Older residential inverters with 12.5 A inputs cap the DC current, clipping peak generation during bright midday hours. The GW15K-ET’s 30 A / 38 A Isc rating allows parallel connection of two high-current strings per MPPT without clipping.
How does the 100% phase-unbalanced capability work in a multi-family or workshop setting?
Shifts power dynamically to single-phase loads to eliminate grid purchases. If an agricultural workshop draws 6 kW on Phase L1 (e.g., heavy single-phase air compressor) and only 1 kW each on L2 and L3, a standard grid-tied inverter exports power evenly (~2.6 kW per line), forcing the facility to buy 3.4 kW of expensive peak electricity from the grid for L1. The GW15K-ET dynamically shifts internal power to deliver 6 kW directly on L1, keeping net grid electricity import at zero.
What battery systems can take full advantage of the 50 A battery charge rate?
Battery stacks rated for 50 A continuous C-rates (e.g., SAJ B2-HV5 or Pylontech Force-H3). To utilize the full 50 A charging current (up to 15 kW DC power), pair the inverter with high-capacity battery stacks that support 50 A continuous rates. When paired with GoodWe Lynx Home F (rated at 25 A), the inverter will automatically limit current to 25 A (approx. 7.5 kW to 10 kW depending on stack voltage).
Can this model be installed indoors in residential living quarters?
Not recommended for living areas due to active cooling fan noise ( 45 dB).** Because the GW15K-ET utilizes intelligent forced-air cooling fans to dissipate heat from its 15 kW power stage, fan noise is noticeable during full-power midday charging and discharging (< 45 dB). For residential projects, mount the unit in a dedicated basement mechanical room, garage, or on an exterior sheltered wall.
System components
Required components
GoodWe GM330 CT meter
Item number: DLK-GOODWE-GM330
Export limiting / self-consumption metering for grid-tied operation.
Recommended components
GoodWe LX D5.0-10 / Lynx D battery bank
Item number: DLK-GOODWE-LXD5010
Listed by GoodWe against the ET 15-30 kW range (ARM 28 / DSP 12 firmware or higher).
GoodWe GW61.4 / GW112.6-BAT-AC-G10 battery cabinet
Item number: DLK-GOODWE-GW614BATACG10
Listed by GoodWe against the ET 15-30 kW range, ARM 13 or higher required on the inverter.
Optional components
GoodWe GW60KWH-D-10 (60 kWh pack-based unit)
Item number: DLK-GOODWE-GW60KWHD10
This specific model of the Lynx C family is the one GoodWe clears for the ET 15-30 kW tier (the LX C101-10 to LX C156-10 cabinets are cleared for ET 40-50 and ETC/BTC instead).
GoodWe EzManager3000
Item number: DLK-GOODWE-EZMANAGER3000
Single-site home EMS for one hybrid inverter plus EV charger / heat pump / Shelly device control.
Approved pairings

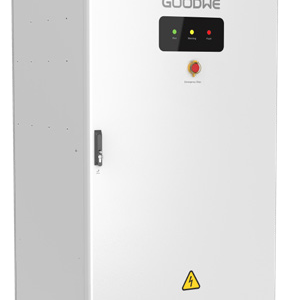

GoodWe GW112.6-BAT-AC-G10Item number DLK-GOODWE-GW1126BATACG10GoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW61.4-BAT-AC-G10Item number DLK-GOODWE-GW614BATACG10GoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW60KWH-D-10Item number DLK-GOODWE-GW60KWHD10GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C101-10Item number DLK-GOODWE-LXC10110GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.

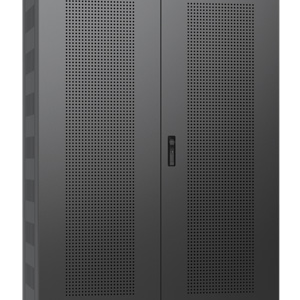

GoodWe LX C120-10Item number DLK-GOODWE-LXC12010GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C138-10Item number DLK-GOODWE-LXC13810GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX C156-10Item number DLK-GOODWE-LXC15610GW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe LX D5.0-10Item number DLK-GOODWE-LXD5010GoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 10 kWh (2 x LX D5.0-10)Item number DLK-GOODWE-LYNXD10KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 15 kWh (3 x LX D5.0-10)Item number DLK-GOODWE-LYNXD15KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 20 kWh (4 x LX D5.0-10)Item number DLK-GOODWE-LYNXD20KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 25 kWh (5 x LX D5.0-10)Item number DLK-GOODWE-LYNXD25KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx Home F 13.10 kWh (PCU base + 4 x LX F3.3-H)Item number DLK-GOODWE-LXF131HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 16.38 kWh (PCU base + 5 x LX F3.3-H)Item number DLK-GOODWE-LXF164HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe LX F3.3-H (Lynx Home F battery module, 3.27 kWh)Item number DLK-GOODWE-LXF33HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 6.55 kWh (PCU base + 2 x LX F3.3-H)Item number DLK-GOODWE-LXF66HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F 9.83 kWh (PCU base + 3 x LX F3.3-H)Item number DLK-GOODWE-LXF98HGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx Home F PCU base (master BMS)Item number DLK-GOODWE-LXFPCUGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
Pylontech FH10050Item number DLK-PYLONTECH-FH10050Pylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.

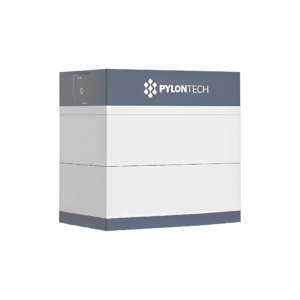

Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.

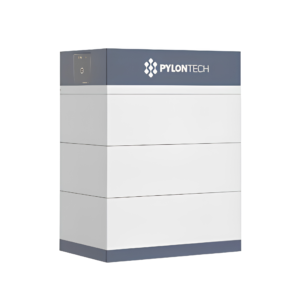

Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.

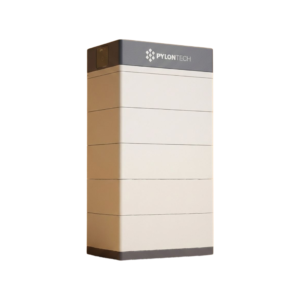

Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.

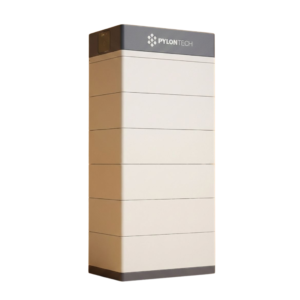

Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHPylontech Ver. 2.43 lists a Force-H3 stack of 3 to 7 modules, and footnote e restricts this inverter to Force-H3 or Powercube-M1C. Our Force-H3 10.24 kWh is 2 modules and is below the minimum.
