Description
Ultra-high current capability for aggressive industrial peak shaving.

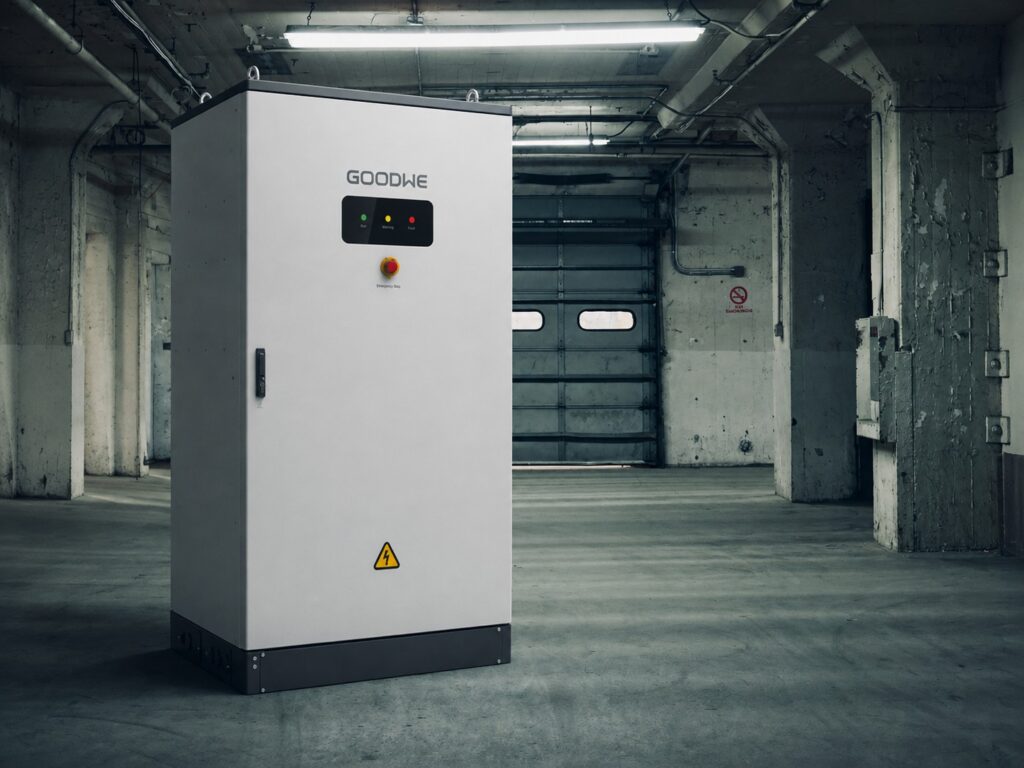

GoodWe GW61.4-BAT-AC-G10 is a 61.4 kWh commercial outdoor high-voltage storage cabinet with an ultra-high 180 A charge and 220 A discharge rating, engineered for aggressive factory peak shaving and external pad mounting without indoor switchroom space.
180 A / 220 A High-Rate Industrial Throughput
Rapidly absorbs high-power solar spikes and discharges heavily to shave sudden industrial motor surges.
Pre-Integrated IP55 Outdoor Enclosure
Eliminates indoor battery room construction, installing cleanly on external concrete pads with active ventilation.
61.4 kWh Heavy Commercial Capacity
Sized to provide reliable daily tariff arbitrage and critical emergency backup for commercial workshops.
Multi-Cabinet Parallel Scaling (Up to 4 Units)
Connect up to 4 cabinets in parallel to build scalable 245+ kWh storage banks without external combiner boxes.
More product details
Standard commercial battery cabinets limit charge rates to 0.5C or 100 A. The GW61.4-BAT-AC-G10 features high-capacity 200 Ah cells and heavy internal copper busbars to support 180 A continuous charge and 220 A discharge.
- Delivers up to 60+ kW of instantaneous DC power from a single 61.4 kWh cabinet to flatten extreme factory demand spikes.
- 96S series cell string provides 307.2 V nominal, matching commercial inverters directly.
- Active forced-air cooling maintains uniform cell temperatures under intensive multi-cycle daily operation.
GoodWe
Compare different models
Scroll sideways to compare every model.

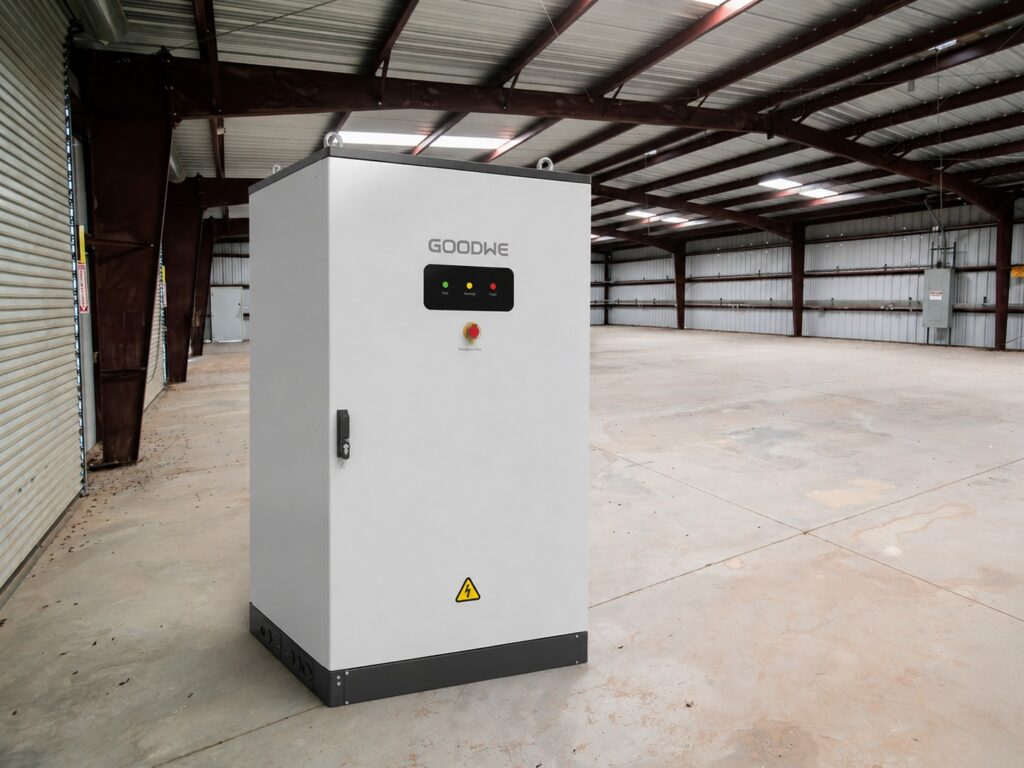

Outdoor pad mounting with zero indoor space requirements.
Building fire-rated indoor battery rooms is expensive and time-consuming. The GW61.4-BAT-AC-G10 arrives as a fully assembled IP55 outdoor cabinet ready to bolt onto an external concrete pad. Weatherproof sealed enclosure protects power electronics from rain, dust, and direct sunlight (-20 to +55 °C). Multi-cabinet parallel architecture allows linking up to 4 units (245.7 kWh total) on a shared DC bus. Integrated motorized DC circuit breaker provides sub-second short-circuit and overcurrent isolation.
Runs 55.2 kW charge and 67.5 kW discharge
Charge current reaches 180 A while discharge delivers 220 A. The 307.2 V nominal bus operates from 275.52 to 346.56 V.
Holds cell climate with an air conditioner
Operating temperature spans minus 20 to 55 C across altitudes up to 4000 m. Aerosol extinguishers sit in every module bay.
Fits a 1055 mm square pad
Cabinet dimensions measure 1055 x 2000 x 1055 mm with total mass under 950 kg. CAN communication links the internal BMS to the inverter.
Technical data
High-rate outdoor storage engineered for heavy industrial peak shaving and dynamic energy arbitrage.
61.4 kWh outdoor commercial storage cabinet with 180 A charge rate.
Pre-engineered for commercial peak shaving and solar retrofit projects, the GW61.4-BAT-AC-G10 integrates six 10.24 kWh LFP packs to deliver 61.4 kWh at 307.2 V nominal. Encased in an IP55 outdoor enclosure, it supports up to 180 A continuous charging and 220 A discharging to handle heavy industrial load swings and rapid multi-cycle daily arbitrage.
- Nominal Storage
- 61.4 kWh
- High-Rate Throughput
- 180 A / 220 A
- High-Voltage Bus
- 307.2 V
- Outdoor Enclosure
- IP55
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Rated capacity (Ah)
- 200
- Nominal energy (kWh)
- 61.4
- Usable energy (kWh)
- 60
- Nominal voltage (V)
- 307.2
- Operating voltage range (V)
- 275.52 ~ 346.56
- Max. charge / discharge current (A)
- 180 / 220
- Max. charge / discharge rate
- 0.9C / 1.1C
- Max. charge / discharge power (kW)
- 55.2 / 67.5
- Cycle life
- 6000 (25 ± 2°C, 0.5C, 90% DOD, 70% EOL)
- Round-trip efficiency
- 96% @100% DOD, 0.2C, 25 ± 2°C
Scalability
- Number of packs
- 6
- Clusters in parallel
- Up to 4 (450.4 kWh)
Environment
- Anti-corrosion class
- C4 (C5-M optional)
- Cooling method
- Air conditioner
- Operating temperature range (C)
- -20 ~ +55
- Max. operating altitude (m)
- 4000
- Fire safety equipment
- Aerosol at pack and cabinet level
Mechanical & Comms
- Communication
- CAN (RS485 optional)
- Dimension (W x H x D mm)
- 1055 x 2000 x 1055
- Weight (kg)
- <950
- Ingress protection rating
- IP55
- Ingress protection
- IP55
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW61.4-BAT-AC-G10 belongs in, what to verify before quoting, and when another model is the better pick.
Industrial Workshops with Limited Indoor Switchroom Space (40–60 kWp Solar)
Metal fabrication plants, auto body shops, or distribution hubs needing 60 kWh of storage where indoor switchrooms have no floor space.
Installs directly on an exterior concrete pad beside the building, saving indoor floor area while providing heavy 180 A/220 A current throughput.
- BoundaryIf the facility connects to an 80–100 kW solar array and requires >100 kWh of storage in a single enclosure, step up to the GW112.6-BAT-AC-G10 (112.6 kWh) cabinet. ---
- If the facility connects to an 80–100 kW solar array and requires >100 kWh of storage in a single enclosure, step up to the GW112.6-BAT-AC-G10 (112.6 kWh) cabinet. ---
Documents
GoodWe BAT-C 61.4-112.6 kWh datasheet (EMEA, EN)Product questions
What is the maximum continuous charge and discharge power of this 61.4 kWh cabinet?
Approx. 55 kW continuous charging / approx. 67 kW continuous discharging. At nominal 307.2 V: * Max. Charge Power: $307.2\text{ V} \times 180\text{ A} \approx \mathbf{55.3\text{ kW}}$. * Max. Discharge Power: $307.2\text{ V} \times 220\text{ A} \approx \mathbf{67.5\text{ kW}}$. This allows the cabinet to absorb high solar spikes or deliver heavy peak shaving power to factory machinery.
How many cabinets can be connected in parallel?
Up to 4 cabinets in parallel (approx. 245.7 kWh total). The internal BMS and master control system support direct parallel linking of up to 4 identical cabinets, scaling commercial storage capacity from 61.4 kWh up to 245.76 kWh without requiring external master communication hubs.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for export control on the larger ET tiers this battery pairs with.
Recommended components
GoodWe GW80K-ET-G10 hybrid inverter (ET 80-100 kW range)
Item number: DLK-GOODWE-GW80KETG10
Confirmed by GoodWe's signed compatibility statement (2025-04-07) for the full 4-unit / 450 kWh stack.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
Also listed by GoodWe (ARM 13+ firmware required on the inverter).
Approved pairings
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe requires ARM 10 or higher, and prints: 'The BAT series GW61.4-BAT-AC-G10 model paired with ET (40-50kW) cannot achieve full power output from the inverter.'
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe requires ARM 10 or higher, and prints: 'The BAT series GW61.4-BAT-AC-G10 model paired with ET (40-50kW) cannot achieve full power output from the inverter.'
GoodWe GW100K-ET-G10Item number DLK-GOODWE-GW100KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
GoodWe GW80K-ET-G10Item number DLK-GOODWE-GW80KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
GoodWe GW99.99K-ET-G10Item number DLK-GOODWE-GW9999KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
