Description
GoodWe GW80K-ET-G10 combines an 80 kW nominal rating with eight PV trackers and 160 kW maximum PV input. The manual lists two pairs of battery terminals; that physical layout needs to be planned against the selected battery system.

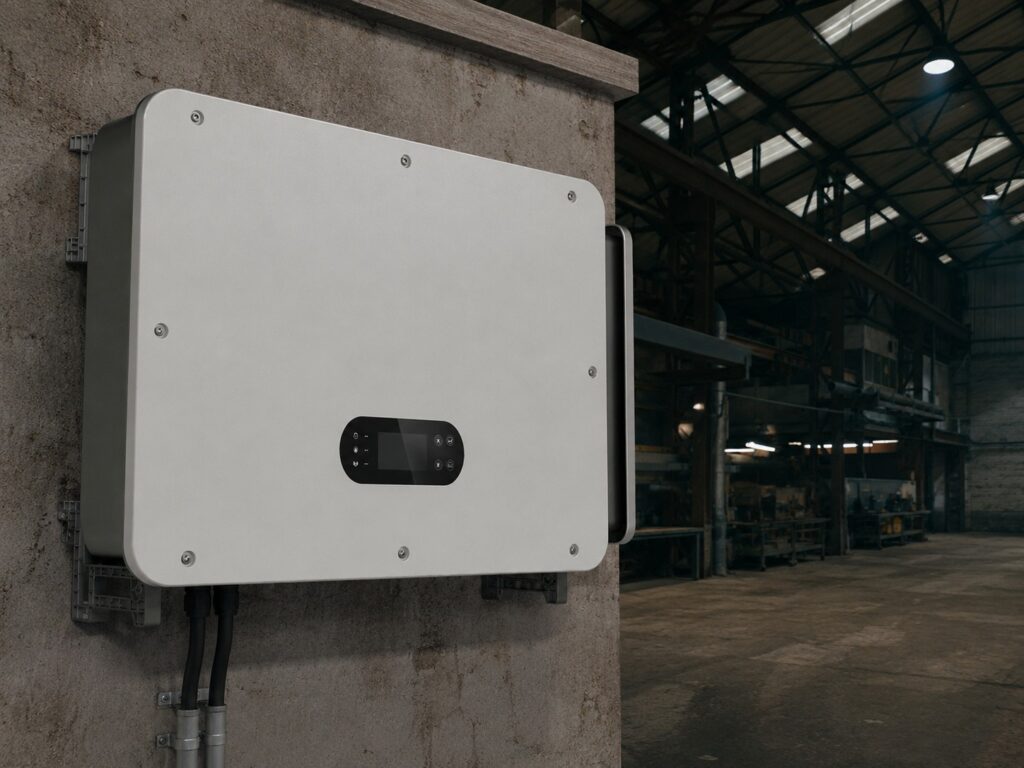

GoodWe GW80K-ET-G10
ET Series
Eight MPPTs, two strings each
The 80 kW model has two battery inputs; GoodWe's battery compatibility overview lists the BAT-C 61.4–112.6 kWh cabinets for the ET 80–100 kW series.
Technical data
Power & Phase
- Phase
- 3
- Nominal power
- 80 kW
- Max. apparent power to / from grid
- 88 kVA
- Power factor
- 0.8 leading ~ 0.8 lagging
PV Input
- Max. input power
- 160 kW
- Max. input voltage
- 1,000 VFrom 950 V to 1,000 V the inverter enters standby and returns to operation at 950 V.
- MPPT operating voltage range
- 160–950 V
- Nominal input voltage
- 620 V
- Max. MPPT current
- 8 × 42 A
- Number of MPPTs
- 8
- Number of strings per MPPT
- 2
Battery Interface
- Battery type
- Li-Ion
- Nominal battery voltage
- 600 V
- Battery voltage range
- 300–800 V
- Number of battery inputs
- 2
Efficiency & Protection
- Max. efficiency
- 98.1%
- European efficiency
- 97.7%
- Max. battery to AC efficiency
- 98.2%
- MPPT efficiency
- 99.9%
- Ingress protection rating
- IP66
- Cooling method
- Smart fan cooling
Physical & Comms
- Dimensions (W × H × D)
- 995 × 758 × 358 mm
- Weight
- 97 kg
- Operating temperature range
- -35 to +60 °C
- Communication with BMS
- CAN
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW80K-ET-G10 belongs in, and the limits behind our engineers' recommendation.
Eight PV trackers at the 80 kW step
The roof is split into separately tracked PV groups.
Eight MPPTs and two battery inputs are listed for this exact G10 model.
- PV side: eight trackers, two strings each.
- Battery side: two terminal pairs.
Documents
Compatibility records
GoodWe GW61.4-BAT-AC-G10Item number DLK-GOODWE-GW614BATACG10GoodWe GW112.6-BAT-AC-G10Item number DLK-GOODWE-GW1126BATACG10
GoodWe GW208.9-BAT-LC-G10Item number DLK-GOODWE-GW2089BATLCG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (80–100 kW) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (80–100 kW) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10. The Battery Compatibility Overview (p. 6) states that GW61.4-BAT-AC-G10 paired with ET (80–100 kW) cannot reach the inverter's full power output. GoodWe's BAT-C datasheet (p. 2) gives the GW61.4-BAT-AC-G10 an operating voltage range of 275.52 to 346.56 V (nominal 307.2 V); the ET 75–100 kW datasheet (p. 2) gives a battery voltage range of 300 to 800 V and a start-up voltage of 300 V.
GoodWe's Battery Compatibility Overview (p. 6) lists GW208.9-BAT-LC-G10 in its ET (80–100 kW) column.
