Description

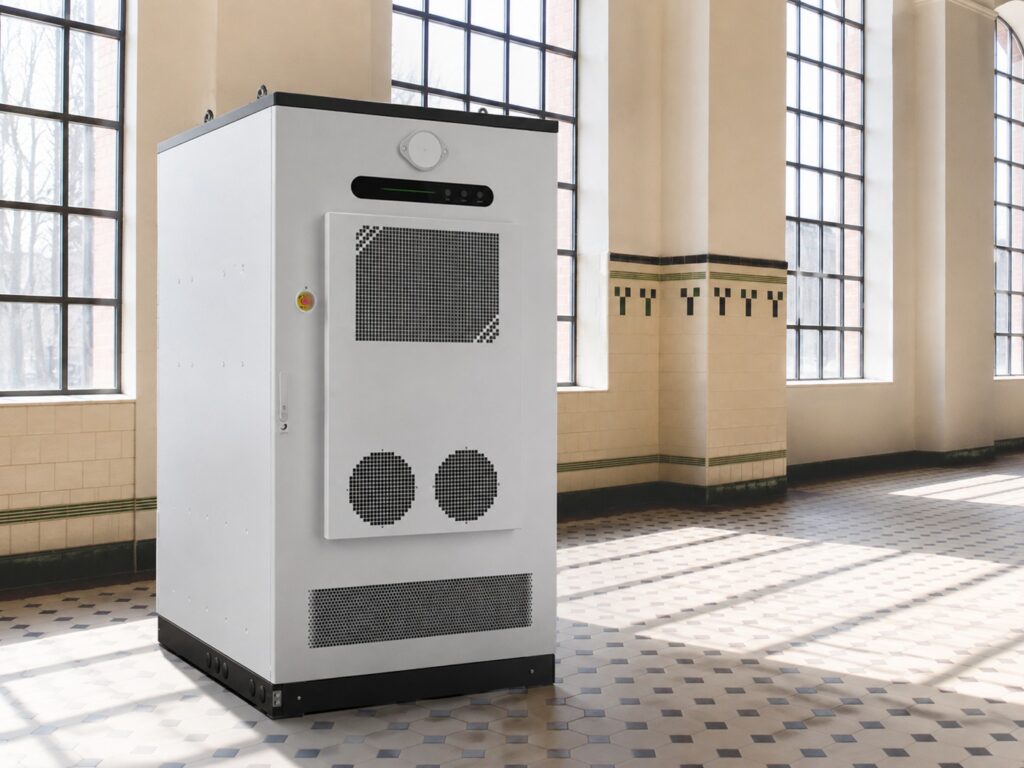

GoodWe GW208.9-BAT-LC-G10 is a 208.9 kWh rated-energy liquid-cooled cabinet. Its LC electrical window and cabinet size shape inverter selection and site access.

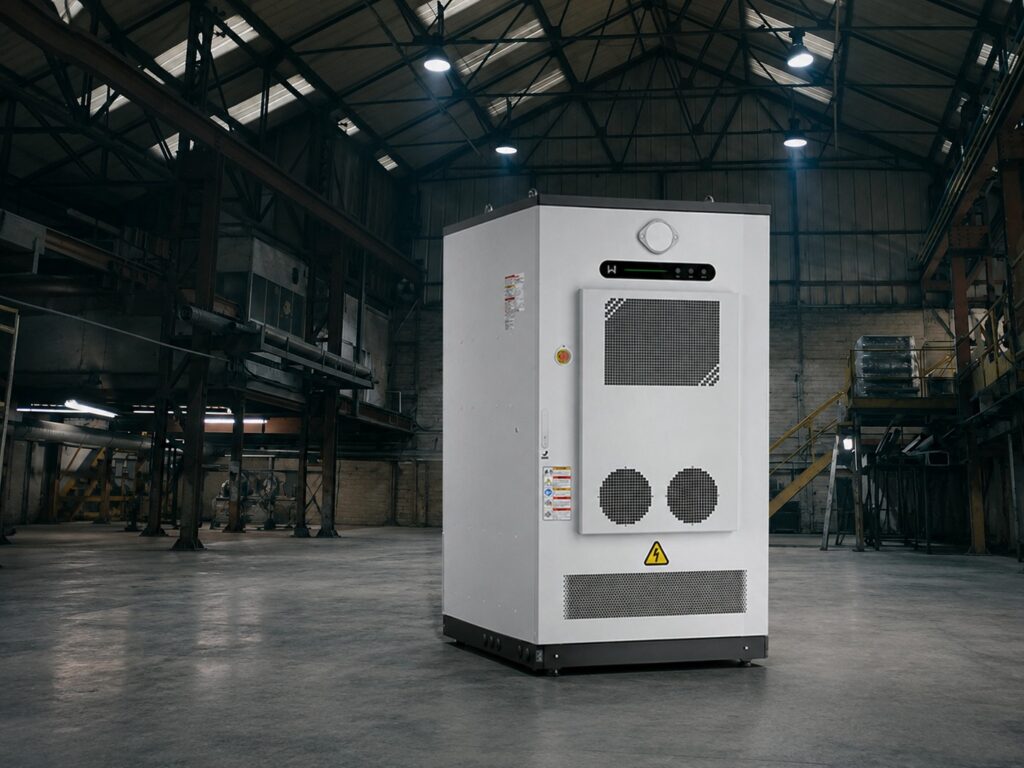

GoodWe GW208.9-BAT-LC-G10
The Battery Compatibility Overview lists this LC cabinet for ET 80–100 kW; the system operating-voltage range and current limit still belong in the selected inverter design.
GoodWe BAT-C
The LC system operating range
This model operates at 596.96–750.88 V with a maximum 188.4/188.4 A charging/discharging current. Cell temperature and state of charge can reduce the current actually available.
GoodWe BAT-C
The route into position
At 1050 × 2025 × 1565 mm and a listed maximum mass of 2095 kg, the complete cabinet needs a workable access route and final location.
Technical data
Model-specific cabinet figures
About these specifications
208.9 kWh · 4 packs
Cabinet configuration
- Rated energy
- 208.9 kWh
- Number of packs
- 4
- System operating voltage range
- 596.96 ~ 750.88 V
- Max. charging / discharging current
- 188.4 / 188.4 A (actual current may derate with cell temperature and state of charge)
Installation
- Cooling
- Liquid cooling
- Dimensions W × H × D
- 1050 × 2025 × 1565 mm
- Maximum cabinet mass
- ≤2095 kg
- Ingress protection
- IP55
- Communication
- CAN
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW208.9-BAT-LC-G10 belongs in, and the limits behind our engineers' recommendation.
The LC system's operating limits
A C&I storage design needs the 208.9 kWh LC cabinet, while the system operating limits and route into the plant area are being fixed.
The Battery Compatibility Overview (EMEA) marks this LC model for ET 80–100 kW. Its 596.96–750.88 V operating range and listed maximum 188.4/188.4 A current set the electrical envelope; the 1050 × 2025 × 1565 mm enclosure and 2095 kg maximum mass set the physical one.
- The selected inverter design accommodates 596.96–750.88 V and the LC current limit, including the temperature/SOC derating note.
- The cabinet route and final position can accommodate 1050 × 2025 × 1565 mm and up to 2095 kg.
- The Battery Compatibility Overview lists this exact LC model for ET 80–100 kW; it is not listed for ETR inverters.
Documents
Product questions
Which LC system voltage and current limits matter for the inverter design?
For the GW208.9-BAT-LC-G10, the system operating voltage range is 596.96–750.88 V, with a nominal voltage of 655.6 V. The maximum charging/discharging current is 188.4 A, and the rated charging/discharging current is 157 A.
Is this LC cabinet listed for GoodWe ETR inverters?
Yes — the manual pairs this cabinet with the ETR125 boost converter: the pairing diagram on the cited page carries reference BATC10ELC0007, and the PV side voltage must be higher than 650 V when paired.
Compatibility records
GoodWe GW80K-ET-G10Item number DLK-GOODWE-GW80KETG10GoodWe GW99.99K-ET-G10Item number DLK-GOODWE-GW9999KETG10GoodWe GW100K-ET-G10Item number DLK-GOODWE-GW100KETG10GoodWe's Battery Compatibility Overview (p. 6) lists GW208.9-BAT-LC-G10 in its ET (80–100 kW) column.
