Description
Low-current long-string transmission for heavy industrial cycling.

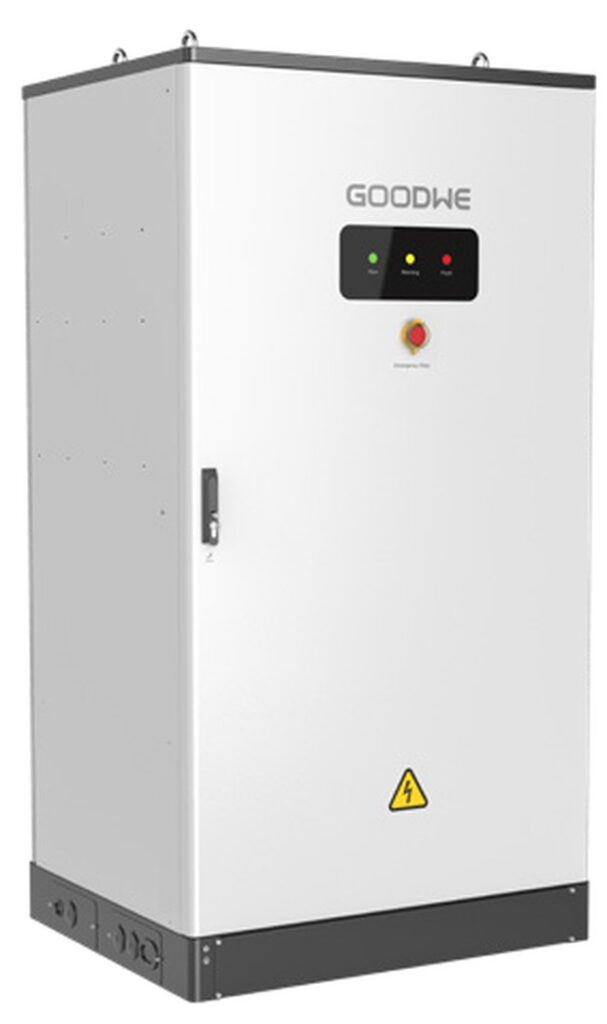

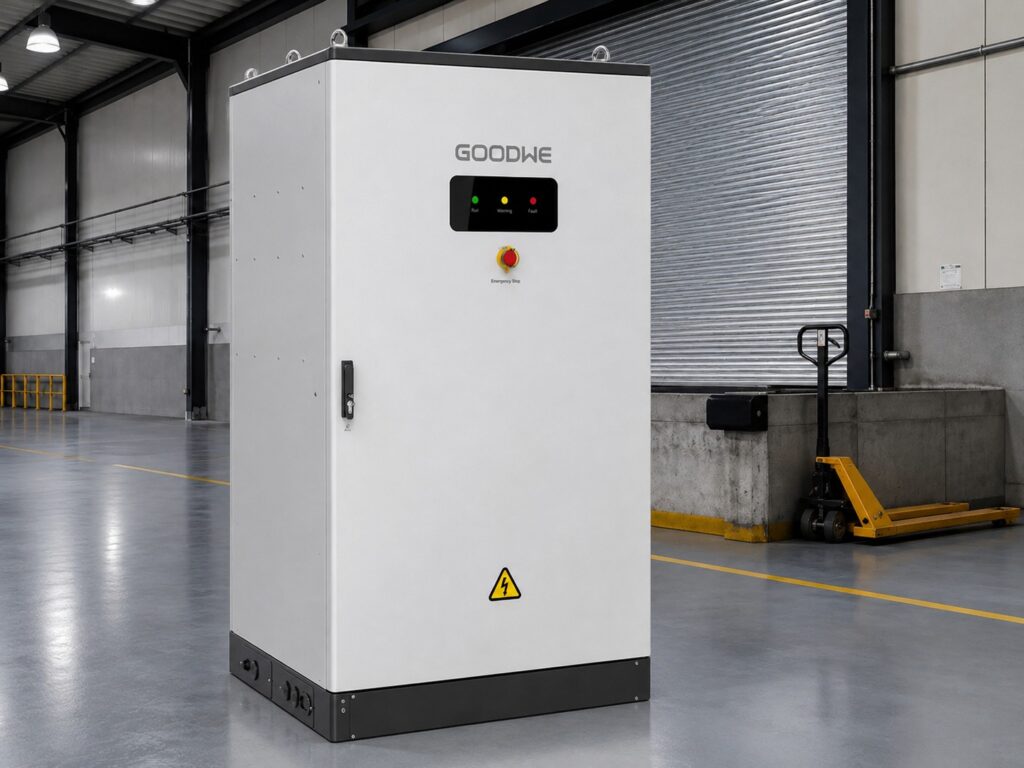

GoodWe GW112.6-BAT-AC-G10 is a 112.6 kWh commercial outdoor high-voltage storage cabinet delivering 563.2 V nominal operating voltage and 180 A/220 A high-rate throughput, engineered for heavy industrial peak shaving and multi-cabinet parallel scaling.
112.6 kWh High-Density Outdoor Cabinet
Consolidates substantial commercial energy storage into a single 1.3 m × 1.0 m pad-mounted footprint.
563.2 V High Operating Voltage (176S String)
Elevates string voltage to reduce internal transmission current and minimize heat loss during heavy cycling.
180 A Charge / 220 A Discharge Rating
Sustains massive continuous DC power throughput to flatten extreme factory demand spikes.
Multi-Cabinet Parallel Scaling (Up to 4 Units)
Connect up to 4 cabinets in parallel to build scalable 450+ kWh commercial storage systems.
More product details
Operating high-capacity storage at 563.2 V nominal reduces internal resistive current stress, keeping operating temperatures low and conversion efficiency high during continuous heavy industrial cycling.
- 176S series cell string provides 563.2 V nominal (492.8–633.6 V operating range).
- Heavy-duty internal copper busbars handle continuous 180 A/220 A current flow with minimal thermal dissipation.
- Direct high-voltage pairing cuts internal conversion steps, delivering peak round-trip efficiency.
GoodWe
Compare different models
Scroll sideways to compare every model.
Outdoor pad mounting with zero indoor space requirements.
Building fire-rated indoor battery rooms is expensive and time-consuming. The GW112.6-BAT-AC-G10 arrives as a fully assembled IP55 outdoor cabinet ready to bolt onto an external concrete pad. Weatherproof sealed enclosure protects power electronics from rain, dust, and direct sunlight (-20 to +55 °C). Multi-cabinet parallel architecture allows linking up to 4 units (450.5 kWh total) on a shared DC bus. Integrated motorized DC circuit breaker provides sub-second short-circuit and overcurrent isolation.
Runs 101.3 kW charge and 123.9 kW discharge
Charge current reaches 180 A while discharge draws up to 220 A. Operating DC voltage spans 505.12 to 635.36 V across the eleven packs.
Holds climate with an air conditioner
The thermal unit regulates cell temperatures between minus 20 and 55 C up to 4000 m. Aerosol extinguishers protect individual module tiers.
Fits a 1055 mm square footprint
Cabinet dimensions measure 1055 x 2000 x 1055 mm with mass under 1400 kg. High-speed CAN connects the internal BMS to the plant inverter.
Technical data
High-voltage outdoor storage engineered for energy-intensive industrial manufacturing facilities.
112.6 kWh / 563.2 V commercial storage cabinet delivering 100% depth of discharge.
Populated with eleven 10.24 kWh LFP packs in an IP55 outdoor cabinet, the GW112.6-BAT-AC-G10 delivers 112.6 kWh of storage at 563.2 V nominal. Engineered for energy-intensive manufacturing plants, it supports up to 180 A charging and 220 A discharging to handle heavy industrial peak shaving, demand charge reduction, and rapid multi-cycle energy arbitrage.
- Nominal Storage
- 112.6 kWh
- High-Voltage Bus
- 563.2 V
- High-Rate Throughput
- 180 A / 220 A
- Outdoor Enclosure
- IP55
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Rated capacity (Ah)
- 200
- Nominal energy (kWh)
- 112.6
- Usable energy (kWh)
- 110
- Nominal voltage (V)
- 563.2
- Operating voltage range (V)
- 505.12 ~ 635.36
- Max. charge / discharge current (A)
- 180 / 220
- Max. charge / discharge rate
- 0.9C / 1.1C
- Max. charge / discharge power (kW)
- 101.3 / 123.9
- Cycle life
- 6000 (25 ± 2°C, 0.5C, 90% DOD, 70% EOL)
- Round-trip efficiency
- 96% @100% DOD, 0.2C, 25 ± 2°C
Scalability
- Number of packs
- 11
- Clusters in parallel
- Up to 4 (450.4 kWh)
Environment
- Anti-corrosion class
- C4 (C5-M optional)
- Cooling method
- Air conditioner
- Operating temperature range (C)
- -20 ~ +55
- Max. operating altitude (m)
- 4000
- Fire safety equipment
- Aerosol at pack and cabinet level
Mechanical & Comms
- Communication
- CAN (RS485 optional)
- Dimension (W x H x D mm)
- 1055 x 2000 x 1055
- Weight (kg)
- <1400
- Ingress protection rating
- IP55
- Ingress protection
- IP55
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW112.6-BAT-AC-G10 belongs in, what to verify before quoting, and when another model is the better pick.
Industrial Facilities with 80–120 kWp Solar & Outdoor Pad Space
Manufacturing facilities running automated production lines, heavy CNC machinery, or cold storage seeking ~110 kWh of outdoor storage.
Pre-engineered IP55 outdoor cabinet saves interior factory space while delivering 563.2 V high-voltage efficiency and 180 A/220 A high-rate cycling.
- BoundaryIf total solar capacity is under 60 kWp and the facility only requires ~60 kWh of storage, step down to the GW61.4-BAT-AC-G10 to save capital expenditure. ---
- If total solar capacity is under 60 kWp and the facility only requires ~60 kWh of storage, step down to the GW61.4-BAT-AC-G10 to save capital expenditure. ---
Documents
GoodWe BAT-C 61.4-112.6 kWh datasheet (EMEA, EN)Product questions
What is the maximum continuous discharge power of this 112.6 kWh cabinet?
Approximately 100 kW to 120 kW continuous DC discharge power. At nominal 563.2 V and 220 A maximum continuous discharge current ($P = V \times I$), the cabinet delivers approx. 123 kW peak/continuous DC discharge power, allowing a 100 kW commercial inverter to operate at 100% capacity during peak utility demand windows.
What are the physical dimensions and weight of this cabinet?
Approx. 1300 × 1000 × 2100 mm; ~1,450 kg total weight. The cabinet measures 1,300 mm wide × 1,000 mm deep × 2,100 mm high and weighs approx. 1,450 kg. It is rated IP55 for outdoor use and requires an external concrete foundation pad with bottom cable entry.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for export control on the larger ET tiers this battery pairs with.
Recommended components
GoodWe GW80K-ET-G10 hybrid inverter (ET 80-100 kW range)
Item number: DLK-GOODWE-GW80KETG10
Confirmed by GoodWe's signed compatibility statement (2025-04-07) for the full 4-unit / 450 kWh stack.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
Also listed by GoodWe (ARM 13+ firmware required on the inverter).
Approved pairings
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGoodWe requires ARM 13 or higher on the ET 15-30 for the BAT series.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe requires ARM 10 or higher, and prints: 'The BAT series GW61.4-BAT-AC-G10 model paired with ET (40-50kW) cannot achieve full power output from the inverter.'
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe requires ARM 10 or higher, and prints: 'The BAT series GW61.4-BAT-AC-G10 model paired with ET (40-50kW) cannot achieve full power output from the inverter.'
GoodWe GW100K-ET-G10Item number DLK-GOODWE-GW100KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
GoodWe GW80K-ET-G10Item number DLK-GOODWE-GW80KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
GoodWe GW99.99K-ET-G10Item number DLK-GOODWE-GW9999KETG10Two GoodWe documents carry this pair: the Battery Compatibility Overview, ET (75-100K) column, and a signed Compatibility Statement of 2025-04-07 naming GW80K-ET-G10, GW99.99K-ET-G10 and GW100K-ET-G10 against GW61.4 to GW112.6-BAT-AC-G10.
