Pylontech FH10050
Pylontech FH10050 is the 5.12 kWh battery module of the Force-H3 high-voltage stack: 102.4 V, 50 Ah, LFP cells, 39 kg.
- IP65 enclosure, -10 to 55°C charge range, 95% depth of discharge, >8,000-cycle rated life.
- Modbus RTU/CAN comms; 55A max charge/discharge per string, up to 6 parallel groups.
- Certified to IEC 62040-1/62477-1/62619/63056, UL1973/9540A/9540B, VDE-AR-E 2510-50, UN38.3.
- 5.12 kWh
- Nominal energy
- 102.4 V
- Nominal voltage
- 55 A (Max@15MIN)
- Max. charge current
- 55 A (Max@15MIN)
- Max. discharge current
- Manufacturer
- Pylontech
- Model code
- FH10050
- Item no.
- DLK-PYLONTECH-FH10050
- Delivery
- Germany delivery estimate: EUR 85–205 · The final delivery charge is included in your Proforma.
Plan with FH10050
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Size it to the load. Grow it later.
5.12 kWh per stack today; add modules when the load grows instead of guessing on day one.
Module electrical
5.12 kWh and 102.4 V nominal from 32 LFP cells at 3.2 V / 50 Ah.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.

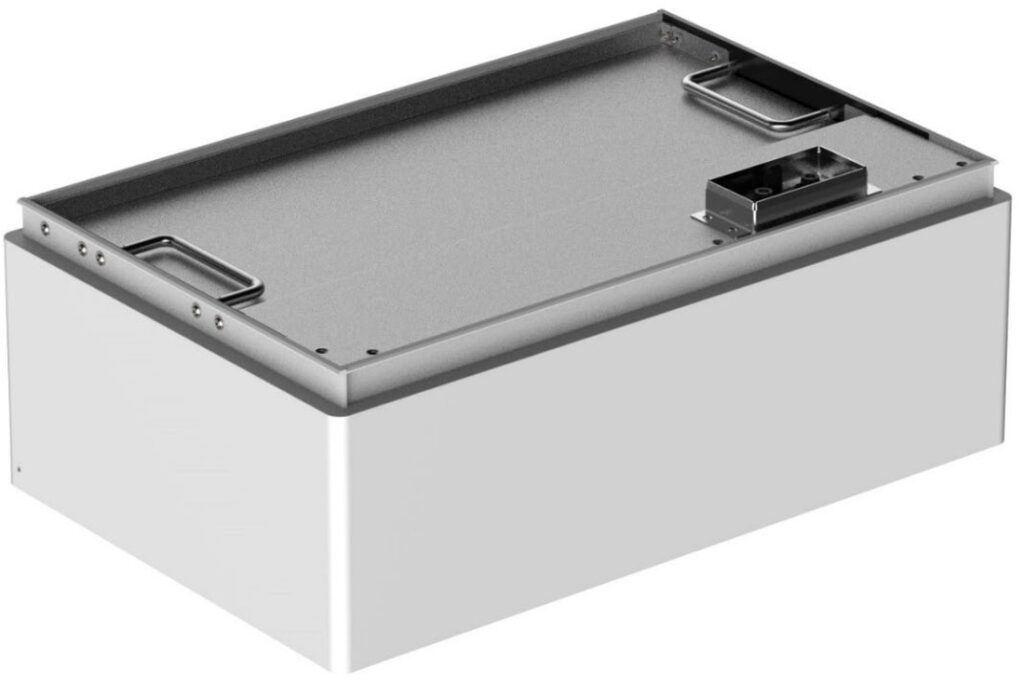

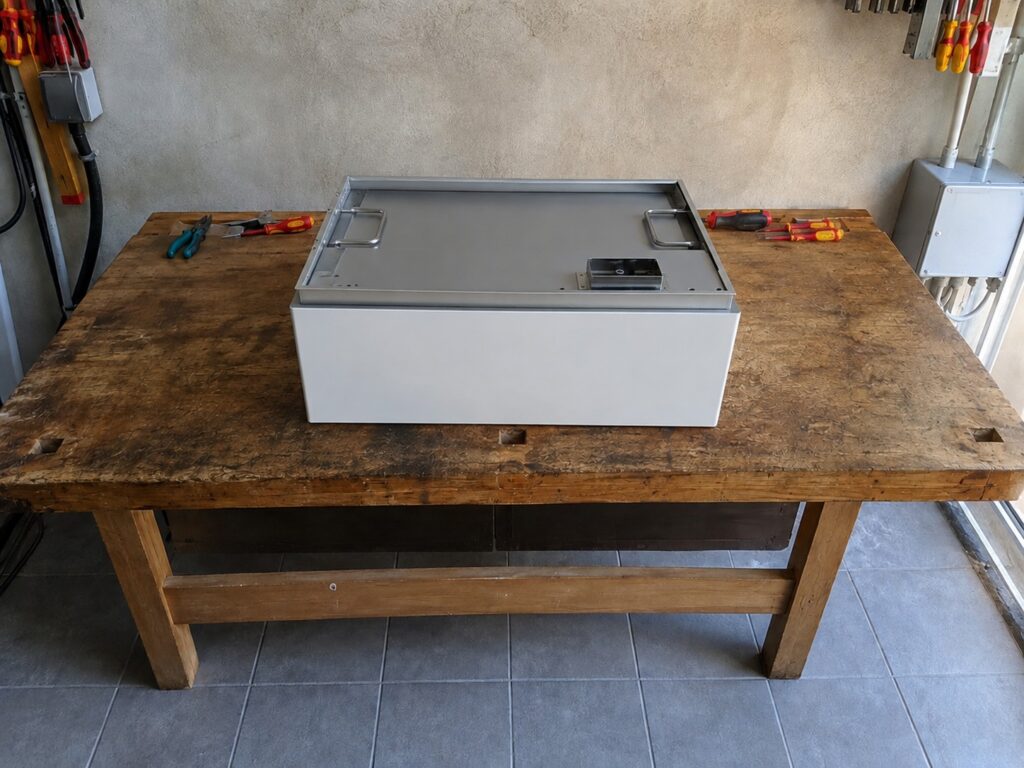

Official Pylontech render (datasheet / installation manual).

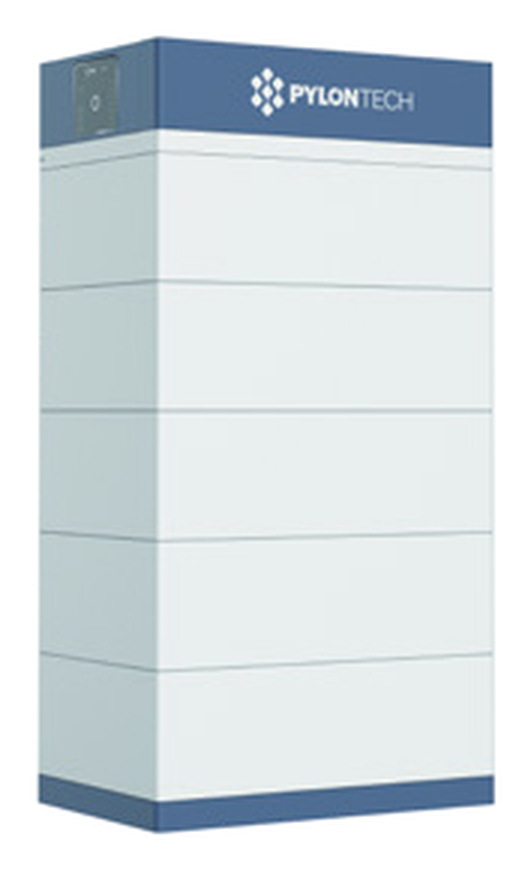

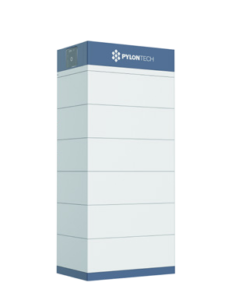

Pylontech Force-H3 tower with five FH10050 modules, official render

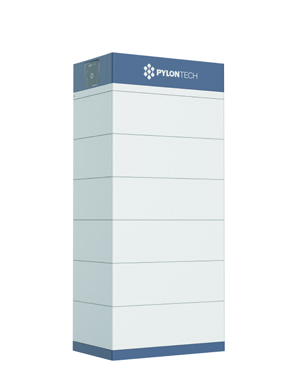

Pylontech Force-H3 tower installed in a corner, photo from the official datasheet
Specifications
Every value exactly as published in the official FH10050 documentation.
Documents
Complete the system
Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.
Pylontech FC1000
Chint DTSU666 smart meter
- [1]Pylontech FC1000
- [2]Chint DTSU666 smart meter
MBS KBU58 600/5A CT
- [1]MBS KBU58 600/5A CT
Pylontech FH10050 module
- [1]Pylontech FH10050 module
What this unit is approved to run with.
Every pairing below traces to a manufacturer compatibility list, by document version and date. A pairing only one maker lists is marked; we quote it, an engineer confirms it.
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only
GoodWe GW5K-BT
Item no. DLK-GOODWE-GW5KBT Listed by GoodWe only
Pick the rating
Pylontech family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 2
One FC1000 controller runs a stack of two to seven FH10050 modules, so capacity moves in 5.12 kWh steps from 10.24 to 35.84 kWh.
- Usable energy: Pylontech applies 95 percent depth of discharge; the 4-module tower is 4 x 5.12 kWh = 20.48 kWh rated and 19.48 kWh usable per the datasheet.
- String voltage: 102.4 V per module gives 204.8 to 716.8 V across the range, inside the FC1000's 172.8 to 921.6 V system operation window.
- Beyond one stack: up to six groups run in parallel, each behind its own FC1000.
- Later growth: a partly filled stack accepts further modules in 5.12 kWh steps up to seven.
No. The FH10050 pairs only with the FC1000 controller in Force-H3 systems.
- Force-H2: that generation uses the FH9637M module with the FC0500M-40S controller; the FH10050 belongs to Force-H3 and pairs with the FC1000.
- Controller count: one FC1000 per stack manages two to seven FH10050 modules.
- Included base: the Force-H3 base ships inside the FC1000 carton per the Pylontech packing list, so no separate floor stand is required.
Installation & wiring 2
The stack itself is complete with the modules and one FC1000, but the paired hybrid inverter typically requires a grid-side meter for export limiting.
- Meter: de-linker pairs this family with the Chint DTSU666 smart meter as the grid-side measurement point.
- Current transformer: the MBS KBU58 600/5A CT suits the DTSU666; size the CT to the service current at the installation, not to the battery current.
- Battery communication: the FC1000 offers CANBUS and Modbus RTU as its communication protocols.
The tower stands on the Force-H3 base with an IP65 enclosure rating; keep it inside Pylontech's stated climate window.
- Climate: charging from -10 to 55 C, 5 to 95 percent humidity without condensation, up to 4000 m altitude.
- Footprint: every tower is 540 x 350 mm; height runs from 530 mm with 2 modules to 1380 mm with 7.
- Handling: 39 kg per FH10050 module and 12 kg for the FC1000; assembled towers span 92 to 287 kg and go up module by module.
- Storage: keep assembled systems between -20 and 45 C before commissioning.
Availability & compliance 1
Pylontech prints a system-level certification list for the Force-H3 covering safety and transport standards.
- Safety: IEC 62040-1, IEC 62477-1, IEC 62619 and IEC 63056, plus UL 1973, UL 9540A and UL 9540B.
- VDE: VDE-AR-E 2510-50 is on the printed system-level list.
- Transport: UN 38.3 covers the lithium modules for shipping.
- Grid connection: the battery documents list no grid-connection code of their own, so confirm the complete certificate set your grid operator requires with the quote.
Operation & warranty 1
Pylontech rates the platform at more than 8000 cycles and a design life of 15 or more years at 25 C.
- Depth of discharge: 95 percent, which turns 20.48 kWh rated into 19.48 kWh usable on the 4-module tower.
- Current limits: 50 A normal charge and discharge per string, 55 A for up to 15 minutes.
- Standby draw: the FC1000 consumes below 16 W in operation.
- Warranty terms: the datasheet prints life figures, not a commercial warranty period; confirm the written warranty conditions with the quote.
