Description
Furniture-grade single-column integration with internal busbars.

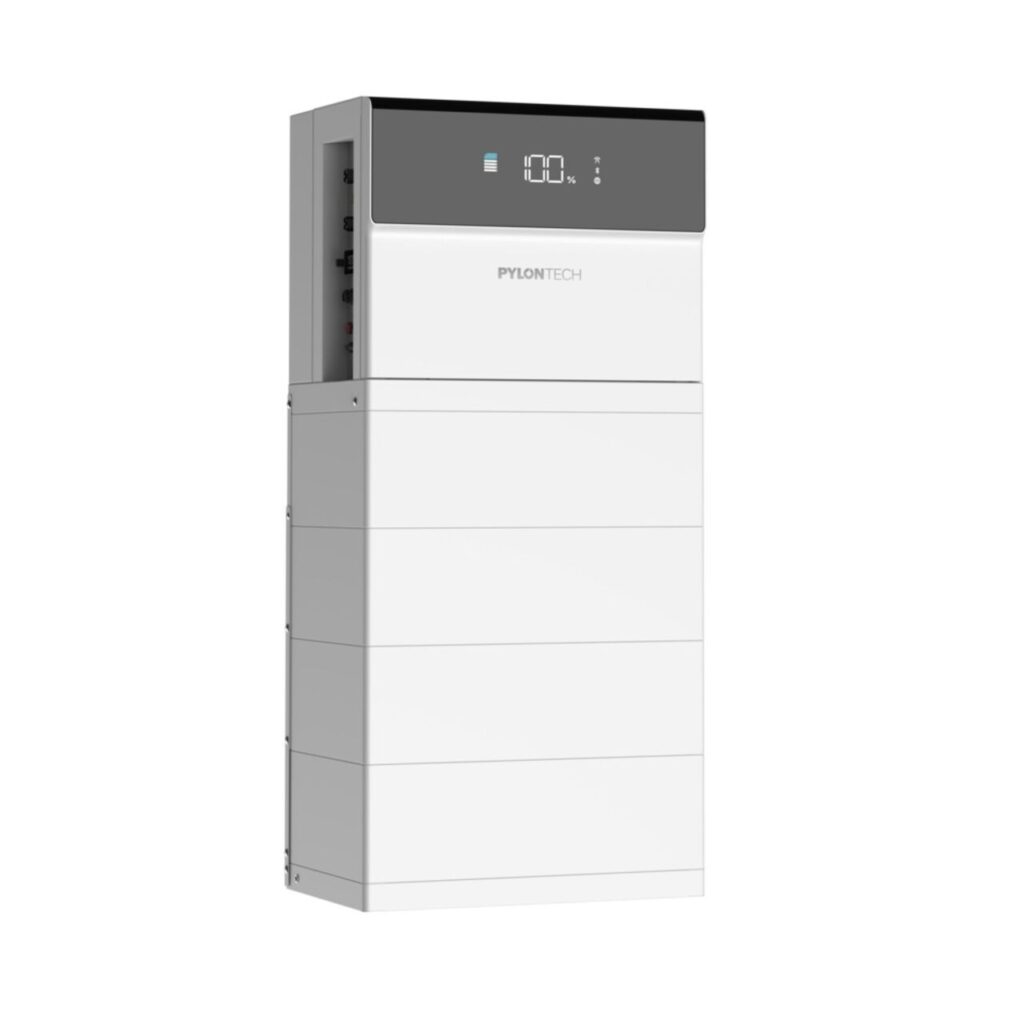

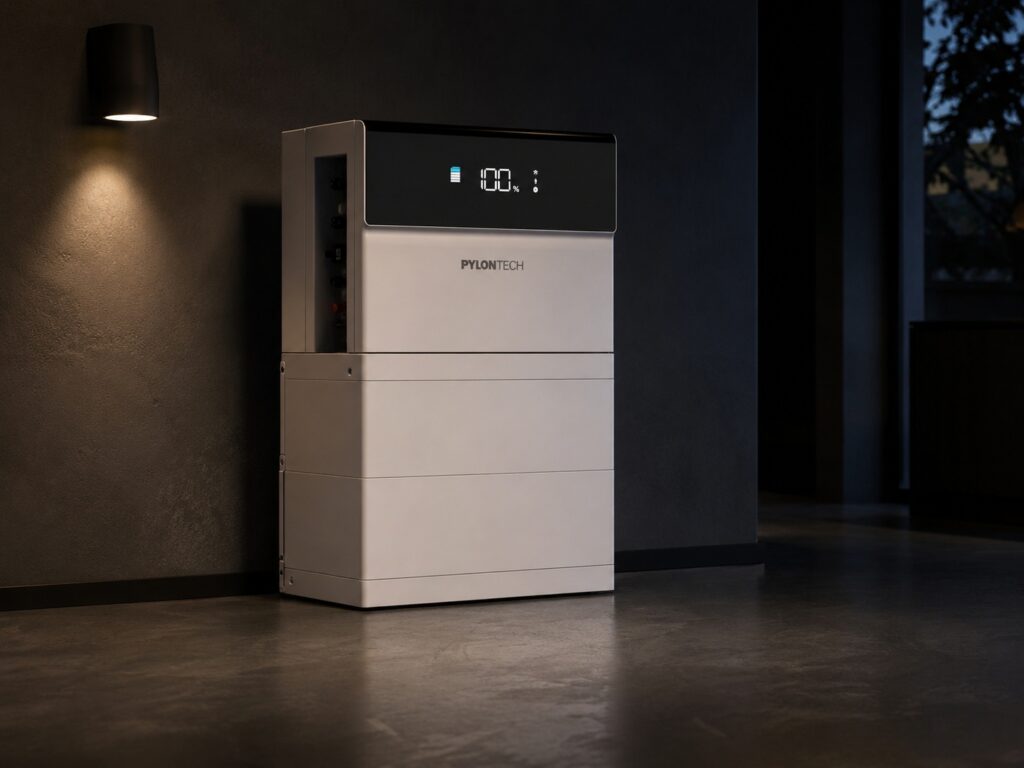

Pylontech Force H3X FH3X-6K-HY-1P is a 6 kW single-phase All-in-One modular hybrid inverter unit delivering 6,000 VA continuous AC output and 9.6 kWp solar intake across dual 16 A MPPT channels, engineered to stack cable-free atop Force-H3 battery bricks.

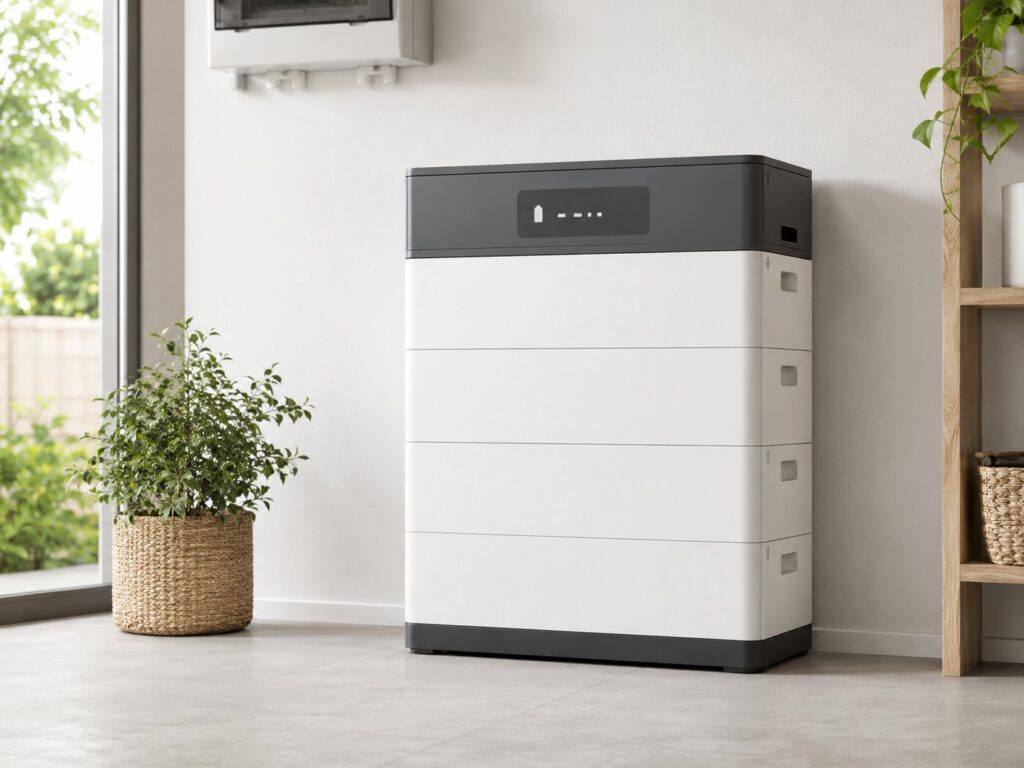

Cable-Free Modular Column Stacking
Mounts directly on top of Force-H3 battery bricks with internal busbars, eliminating wall brackets and exposed high-voltage DC conduits.
6,000 W Continuous AC Output (27.3 A)
Maximum single-phase residential throughput to power domestic heat pumps, EV chargers, and heavy household appliances.
9,600 Wp Solar PV Intake (160% Oversizing)
Channels abundant daytime solar power into daytime home loads and rapid high-voltage battery charging.
Integrated Sub-10 ms UPS Emergency Transfer
Protects sensitive domestic computers, smart home servers, and routers from rebooting during unexpected grid outages.
More product details
Traditional hybrid installations require wall-mounting an inverter, floor-standing a battery, and running multiple high-voltage DC conduits between them. The Force H3X integrates everything into a single vertical column.
- Internal push-in busbars pass high-voltage power and communication directly between inverter and battery modules.
- Eliminates exposed high-voltage DC wiring on garage and utility room walls, maximizing residential safety.
- Compact 540 × 350 mm floor footprint preserves floor space in domestic basements and garages.
Force H3X
Compare different models
Scroll sideways to compare every model.
16 A high-current tracking with instantaneous emergency backup.
Modern large-format solar panels produce operating currents exceeding 13 A. The FH3X-6K features dual 16 A MPPT channels (Isc 25 A) to capture 100% of solar generation across 9.6 kWp arrays. Dual independent MPPT channels optimize multi-pitch residential stringing without current clipping. Sub-10 ms automatic UPS transfer keeps domestic IT, routers, and heating controls live during utility outages. IP65 cast-aluminum casing certified for clean indoor utility rooms or sheltered outdoor walls (-25 to +60 °C).
Takes 9.6 kW of PV
Two trackers take 9.6 kW on this head. The window runs 80 to 550 V. Start sits at 80 V.

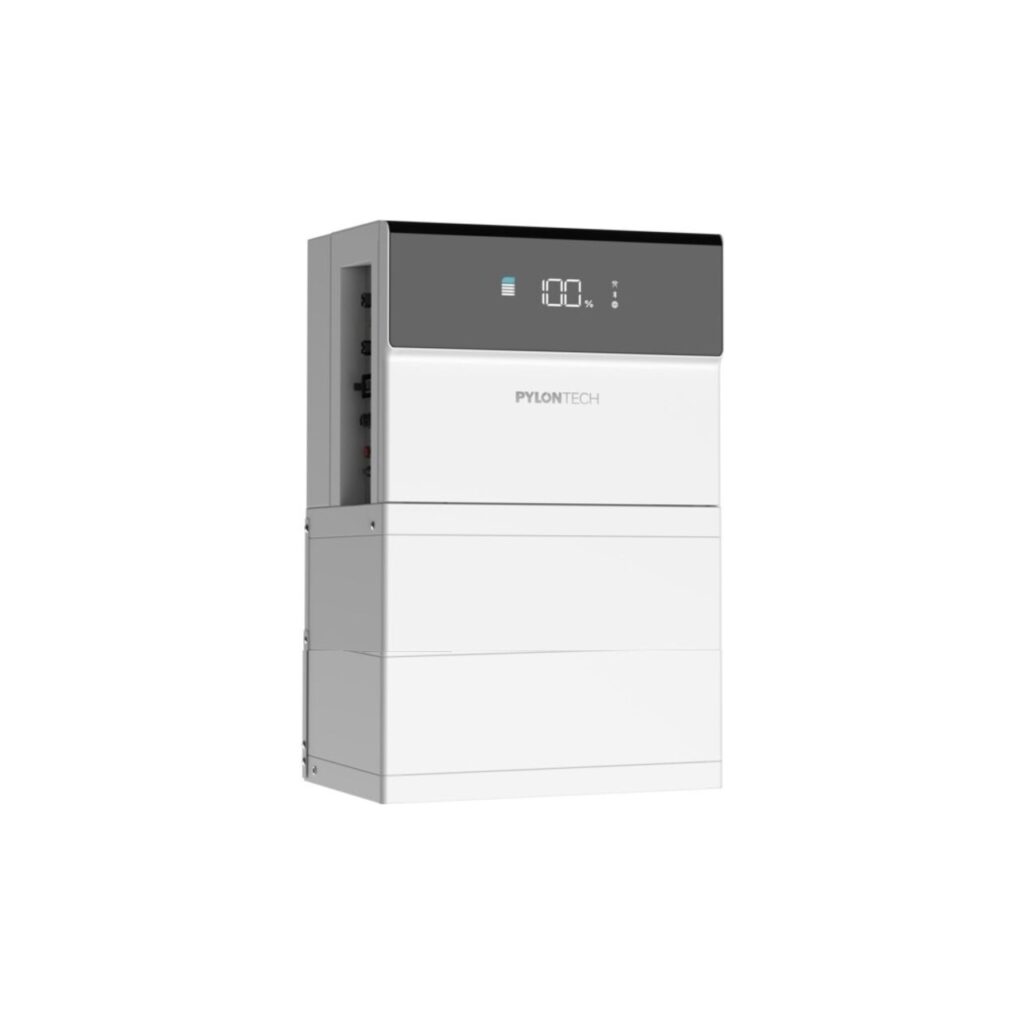

Fits a 665 mm first stack
One module stands 665 mm and 77 kg. Four modules stand 1175 mm and 194 kg. The plate stays 540 by 350 millimetres.
Talks over WiFi, WLAN and Bluetooth
WiFi, WLAN and Bluetooth sit on this head. LAN and EMS ports sit beside them.
Technical data
Furniture-grade residential energy management combining high-capacity solar harvesting with cable-free battery integration.
6 kW single-phase All-in-One hybrid inverter stacking natively on Force-H3 batteries.
Serving as the top PCS unit for Pylontech's single-phase Force H3X series, the FH3X-6K-HY-1P delivers 6,000 W continuous AC output (27.3 A max) and processes up to 9,600 Wp of solar input across dual 16 A MPPT channels. It stacks directly onto FH10050 high-voltage battery modules, creating a cable-free single-phase residential energy column with full UPS emergency backup.
- Single-Phase Power
- 6,000 VA
- 160% Solar DC Intake
- 9,600 Wp
- High String Current
- 16 A / MPPT
- External DC Conduits
- Zero
System
- System architecture
- Power controller (hybrid inverter + BMS + EMS) stacked on 1-4 FH10050 battery modulesblind-mate vertical tower, floor installation (wall-mount optional for smaller stacks per 2024 datasheet)
- System nominal power
- 6 kW (FH3X-6K-HY-1P).Single-phase family: 3.6 / 5 / 6 / 8 kW
- System rated capacity
- 5.12 / 10.24 / 15.36 / 20.48 kWh (1-4 x FH10050)
- Ingress protection
- IP65 per the documentation on file (the earlier 2024 datasheet revision states IP55)
- Dimensions (W/D, height by module count)
- 540 x 350 mm footprintheight 665/835/1005/1175 mm with 1-4 modules
- Weight
- 77/116/155/194 kg with 1-4 modules
PV Input
- Maximum PV power
- 9.6 kW (6K). Single-phase family: 5.7 / 8 / 9.6 / 12.8 kW
- Maximum DC input voltage
- 600 V
- Start-up voltage
- 80 V
- MPPT voltage range
- 80-550 V (full-load range 190-520 V)
- MPP trackers / strings
- 2 MPPTs on the 3.6-6 kW models (3 on the 8 kW), 1 string per MPPT
- Max. input current / short-circuit current per MPPT
- 16 A / 25 A
- Surge protection
- Type II (DC and AC)
AC Output & Backup
- Grid connection
- 1/N/PE a.c. 230 V, 50/60 Hz (single-phase)
- Nominal active power to grid
- 6 kW (6K). Single-phase family: 3600 / 5000 / 6000 / 8 kW
- Max. grid charging input power
- 9.6 kW (6K). Family: 5.7 / 7.5 / 9.6 / 12 kW
- Backup (off-grid) rated apparent power
- 6 kVA (6K); max. continuous backup current 26.1 A
- Peak off-grid power (60 s)
- 6.2 kVA per the documentation on file (the 2024 datasheet stated 7.2 kVA)
- On/off-grid switching time
- <= 10 ms
- THDi
- < 3%
Battery (FH10050 modules)
- Cell chemistry
- LiFePO4 (LFP)
- Module capacity
- 5.12 kWh per FH10050 module
- Depth of discharge
- 95%
- Max. continuous charge/discharge current
- 40 A (single-phase table)
- Max. charging power
- 2.5 kW with 1 module; 8 kW with 2-4 modules
- Max. discharging power
- 2.5 kW with 1 module6 kW (rated) with 2-4 modules on the 6K
- Cycle life
- > 8000 cycles @ 25 C
Efficiency, Environment & Communication
- Maximum / European efficiency
- 98% / 97.5%
- Operating temperature range
- -10 to +55 C
- Humidity / altitude
- 0-100% RH / < 4000 m
- Noise / standby consumption / cooling
- < 29 dB @ 1 m; < 15 W standby (night); natural cooling
- Communication
- WiFi / WLAN / BluetoothLAN and EMS ports on the power controller
- Protection features
- EPO installedType II surge protection · standard-compliance list includes AFCI to IEC 63027
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech Force H3X FH3X-6K-HY-1P belongs in, what to verify before quoting, and when another model is the better pick.
Single-Phase Residences with 6–10 kWp Solar Seeking Clean Single-Column Integration
Single-family homes with standard 230 V single-phase grid connections demanding a clean, furniture-grade energy tower in their garage.
6 kW AC power delivers the extra electrical throughput needed for EV charging and heat pump cycles, stacking neatly atop 2 to 4 FH10050 battery bricks (10.24 to 20.48 kWh).
- Confirm this model against the adjacent rating in the same family
Documents
Pylontech Force H3X Hybrid Datasheet (EN)Product questions
What battery modules are compatible with the FH3X-6K-HY-1P?
Exclusively compatible with Pylontech FH10050 (5.12 kWh) battery modules. The FH3X series is an integrated All-in-One architecture that stacks directly onto 2 to 4 Pylontech FH10050 (5.12 kWh) battery modules (scaling from 10.24 kWh up to 20.48 kWh) using internal slide-and-lock busbars.
What size AC circuit breaker is required for this 6 kW model?
32 A 1-pole MCB; 3 × 6 mm² copper cable. The FH3X-6K-HY-1P delivers a maximum continuous output current of 27.3 A @ 230 V. A 1-pole 32 A miniature circuit breaker (MCB) is standard on the AC distribution board.
System components
Required components
Pylontech FH10050 battery module (5.12 kWh)
Item number: DLK-PYLONTECH-FH10050
The H3X power controller only operates on a stack of FH10050 modules - the single-phase system starts from 1 module (5.12 kWh); battery charging power reaches 8 kW from 2 modules upward.
Recommended components
Additional FH10050 modules (up to 4 per tower)
Item number: DLK-PYLONTECH-FH10050
Storage grows by adding modules to the same blind-mate stack - up to 20.48 kWh rated on the single-phase tower (Pylontech's newer warranty document lists up to 5 modules; confirm before ordering).
Approved pairings
Pylontech FH10050Item number DLK-PYLONTECH-FH10050The FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
