Description
24,000 W solar intake with heavy continuous three-phase power.
Pylontech Force H3X FH3X-15K-HY-3P is the flagship 15 kW three-phase All-in-One commercial modular hybrid inverter unit delivering 16,500 VA maximum apparent power and 24 kWp solar intake across 3 independent 20 A MPPT channels, engineered to stack cable-free atop Force-H3 battery bricks.
15,000 VA Continuous Three-Phase Power (23.9 A Max)
Commercial-grade continuous output drives heavy machinery, multi-zone HVAC, and dedicated emergency sub-panels.
3 Independent 20 A MPPT Trackers (Isc 30 A)
Eliminates string mismatch across sprawling multi-pitch roofs, accepting 600W+ bifacial modules.
24,000 W Solar PV Input (160% Oversizing)
Massive solar absorption channels daytime generation into facility loads and high-voltage storage.
Direct Cable-Free Battery Interlocking
Stacks seamlessly onto Force-H3 battery modules with internal busbars, eliminating wall clutter.
More product details
Built for commercial manufacturing plants, agricultural facilities, and large luxury estates, the FH3X-15K delivers 23.9 A maximum continuous current across L1, L2, and L3, powering heavy machinery without utility grid purchases.
- 3 MPPT channels allow dedicated tracking for diverse warehouse roof slopes with zero inter-string mismatch.
- Absorbs up to 24,000 W of solar generation, routing daytime power directly into facility loads and storage.
- Sub-10 ms automatic transfer ensures zero computer reboots or smart home controller resets.
Force H3X
Compare different models
Scroll sideways to compare every model.
Furniture-grade single-column integration with internal busbars.

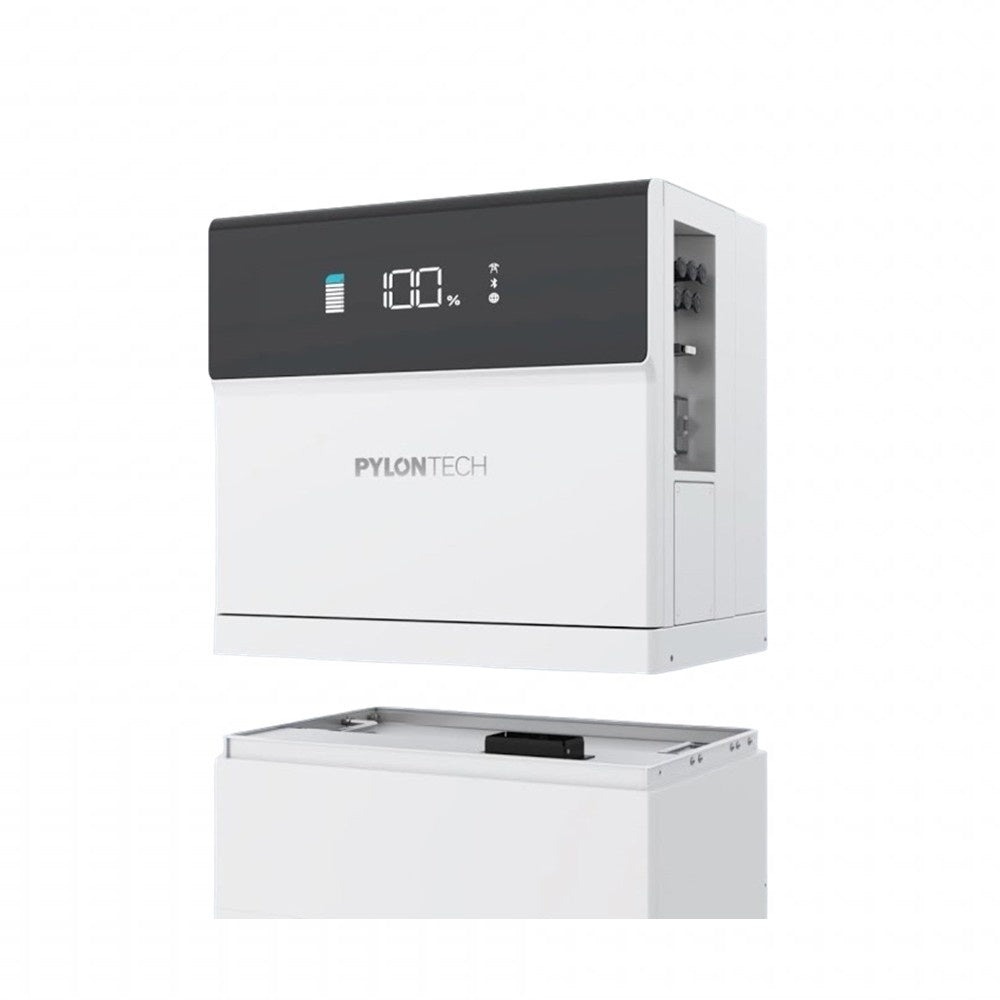

Stacking directly on top of FH10050 battery modules eliminates external high-voltage conduits, junction boxes, and messy communication patch leads. Internal push-in busbars pass high-voltage power and communication directly between inverter and battery modules. Eliminates exposed high-voltage DC wiring on garage and utility room walls, maximizing residential safety. IP65 cast-aluminum casing certified for clean indoor utility rooms or sheltered outdoor walls (-25 to +60 °C).
Takes 24 kW of PV
24 kW of PV lands on this 15 kW head. Three trackers take 20 A each. Short-circuit sits at 30 A per tracker.
Holds seven modules under this head

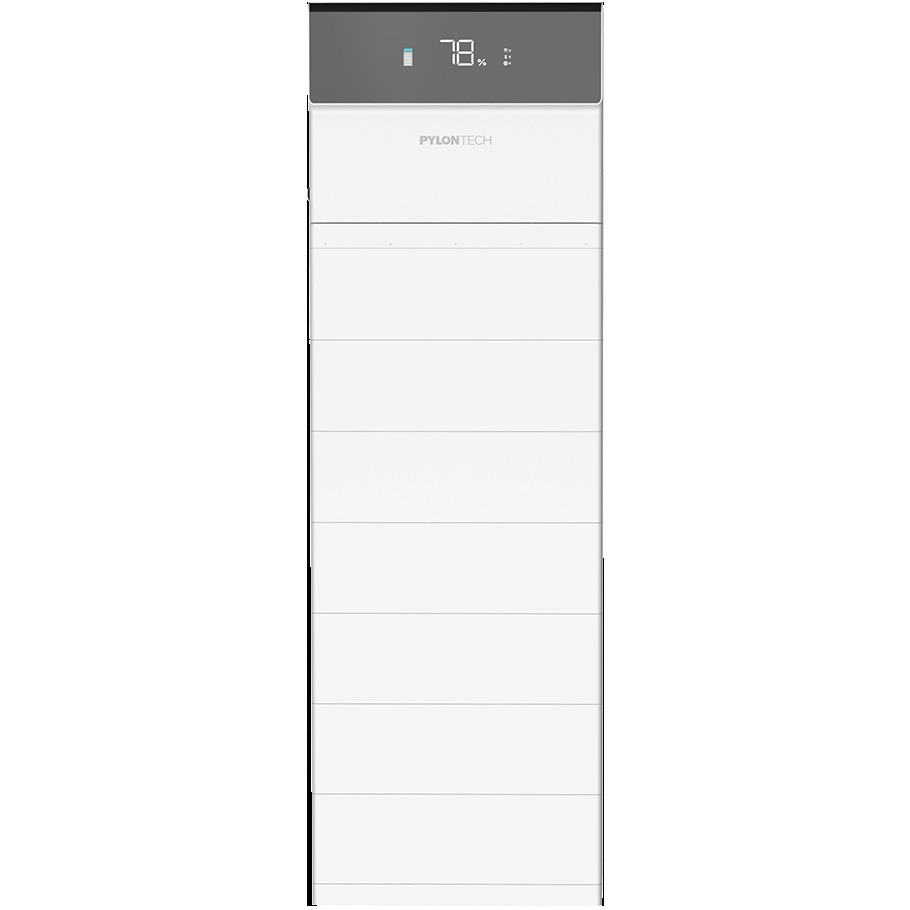

The full column stands 1685 mm under this head. 316 kg rest on a 540 x 350 mm plate. Two modules start at 121 kg and 835 mm.
Pairs towers on a larger site
Current German documentation states up to 3 systems in parallel, about 102 kWh usable. Confirm the parallel limit with the quote.
Technical data
The apex commercial All-in-One energy hub engineered for heavy residential electrification and workshops.
24 kWp solar intake with 3 MPPTs and 15 kW continuous output in a modular tower.
Maxing out Pylontech's Force H3X All-in-One lineup, the FH3X-15K-HY-3P delivers 15,000 W continuous AC output (16,500 VA max) across 3 balanced phases. It processes up to 24,000 Wp of solar input across 3 independent 20 A MPPT channels, stacking directly on FH10050 high-voltage battery modules (10.24 to 35.84 kWh) to provide high-power commercial heating, fleet charging, and whole-facility backup in a single vertical column.
- Continuous 3-Phase Power
- 15,000 VA
- 160% Solar DC Intake
- 24,000 Wp
- High String Current
- 20 A / MPPT
- External DC Conduits
- Zero
System
- System architecture
- Power controller (hybrid inverter + BMS + EMS) stacked on 2-7 FH10050 battery modulesblind-mate vertical tower, floor installation
- System nominal power
- 15 kW (FH3X-15K-HY-3P).Three-phase family: 8 / 10 / 12 / 15 kW
- System nominal capacity
- 10.24-35.84 kWh (2-7 x FH10050, 5.12 kWh per module)
- Ingress protection
- IP65 per Pylontech's current product page (the earlier 2024 datasheet revision states IP55)
- Dimensions (W/D, height by module count)
- 540 x 350 mm footprintheight 835/1005/1175/1345/1515/1685 mm with 2-7 modules (excluding base)
- Weight
- 121/160/199/238/277/316 kg with 2-7 modules (excluding base)
PV Input
- Maximum PV power
- 24 kW (15K). Family: 8K=12.8, 10K=16, 12K=19.2, 15K=24 kW
- Maximum DC input voltage
- 1000 V
- Start-up voltage
- 200 V
- MPPT voltage range
- 200-850 V (full-load range 280-850 V)
- MPP trackers / strings
- 3 MPPTs, 1 string per MPPT
- Max. input current / short-circuit current per MPPT
- 20 A / 30 A
- Surge protection
- Type II (DC and AC)
AC Output & Backup
- Grid connection
- 3/N/PE a.c. 400 V, 50/60 Hz
- Nominal active power to grid
- 15 kW (15K). Family: 8000 / 10000 / 12000 / 15 kW
- Max. continuous current to grid
- 21.7 A (15K). Family: 11.4 / 14.5 / 17.4 / 21.7 A
- Max. charging power from grid
- 22.5 kW (15K). Family: 12 / 15 / 18 / 22.5 kW
- Backup (off-grid) rated apparent power
- 15 kVA (15K). Family: 8000 / 10000 / 12000 / 15 kVA
- Peak off-grid power (60 s)
- 22.5 kVA (15K). Family: 12000 / 15000 / 18000 / 22.5 kVA
- On/off-grid switching time
- <= 10 ms
- Three-phase load unbalance
- 100% load unbalance supported
- THDi
- < 3%
Battery (FH10050 modules)
- Cell chemistry
- LiFePO4 (LFP)
- Module capacity
- 5.12 kWh per FH10050 module
- Depth of discharge
- 95%
- Max. continuous charge/discharge current
- 50 A
- Max. charging power
- 10 kW with 2 modules; 15 kW with 3-7 modules
- Max. discharging power
- 15 kW with 3-7 modules (the table lists 8/10 kW for 2-module operation, so full rated power requires at least 3 modules)
- Battery voltage window
- 120-850 V (charging voltage)
- Cycle life
- > 8000 cycles @ 25 C
Efficiency, Environment & Communication
- Maximum / European efficiency
- 98% / 97.5%
- Operating temperature range
- -10 to +55 C (per Pylontech's single-phase tablethe three-phase page prints 10~55 C)
- Humidity / altitude
- 0-100% RH / < 4000 m
- Noise / standby consumption / cooling
- < 29 dB @ 1 m; < 15 W standby (night); natural cooling
- Communication
- WiFi / WLAN / BluetoothLAN and EMS ports on the power controller
- Included metering
- Energy meter + 3 x 120 A CTs (40 mA secondary) included in the scope of delivery
- Protection features
- AFCI 2.0 @ IEC 63027, anti-islanding, insulation-resistance detection, RCMU, DC switch, DC reverse-polarity protection, output over-current/short/over-voltage protection, EPO installed
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech Force H3X 15 kW three-phase hybrid belongs in, what to verify before quoting, and when another model is the better pick.

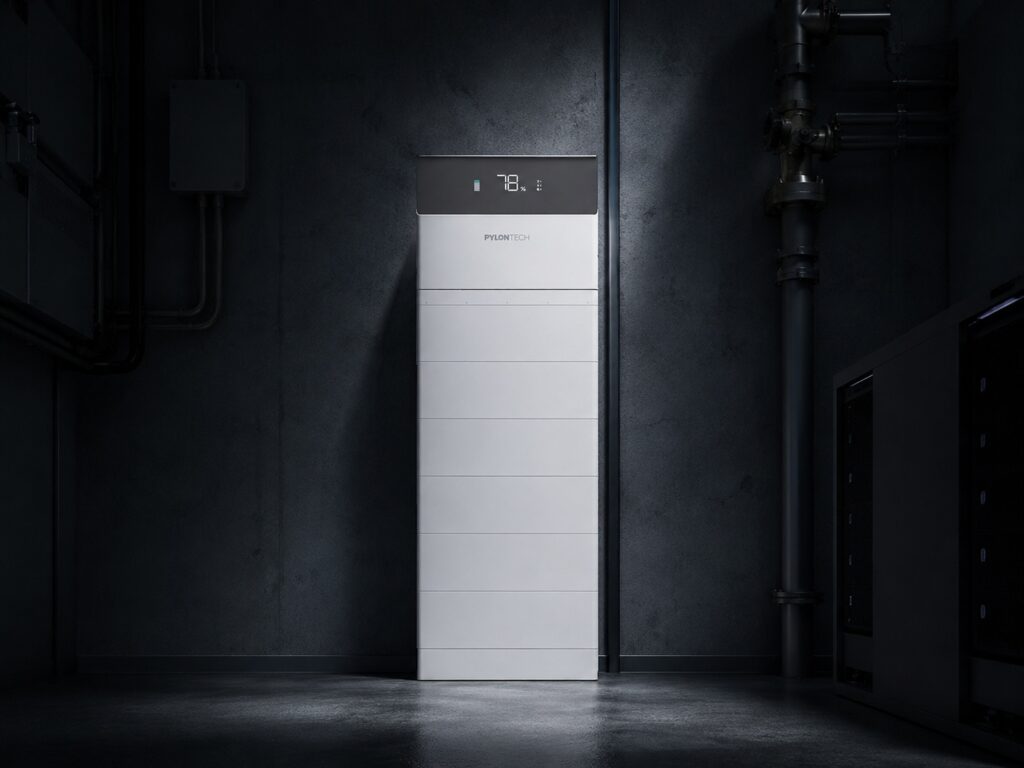

Large Commercial Workshops & High-Demand Agricultural Plants (20–30 kWp PV)
Metal fabrication workshops, grain drying facilities, or luxury multi-family complexes running three-phase tools and multi-split heat pumps.
15 kW continuous AC output provides the extra capacity needed to run machinery without grid draw, while 24 kWp solar intake ensures rapid battery charging.
- BoundaryIf total commercial solar capacity is under 20 kWp and continuous building load stays under 10–12 kW, step down to the FH3X-10K or FH3X-12K. ---
- If total commercial solar capacity is under 20 kWp and continuous building load stays under 10–12 kW, step down to the FH3X-10K or FH3X-12K. ---
Documents
Pylontech Force H3X Hybrid Datasheet (EN)Product questions
What size AC circuit breaker is required for the FH3X-15K-HY-3P?
3-pole 32 A or 40 A industrial MCB; 5 × 6 mm² to 5 × 10 mm² copper cable. The FH3X-15K-HY-3P delivers a nominal continuous output current of 21.7 A per phase (max output current 23.9 A @ 400 V). A 3-pole 32 A or 40 A industrial circuit breaker (MCB) is standard on the AC distribution board.
System components
Required components
Pylontech FH10050 battery module (5.12 kWh)
Item number: DLK-PYLONTECH-FH10050
The H3X power controller only operates on a stack of FH10050 modules - three-phase systems need at least 2 modules, and the 15K needs 3+ modules (15.36 kWh) for full 15 kW battery discharge.
Recommended components
Additional FH10050 modules (up to 7 per tower)
Item number: DLK-PYLONTECH-FH10050
Storage grows by adding modules to the same blind-mate stack - up to 7 modules (35.84 kWh) per tower, and full 15 kW battery charging power unlocks from 3 modules upward.
Approved pairings
Pylontech FH10050Item number DLK-PYLONTECH-FH10050The FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHThe FH10050 module is the ONLY battery either document names. Power derates hard at one module: charge and discharge fall to 2.5 kW, so a single-module design is electrically valid but commercially poor.
