Description
Delivering whole-home energy independence and commercial-grade backup.

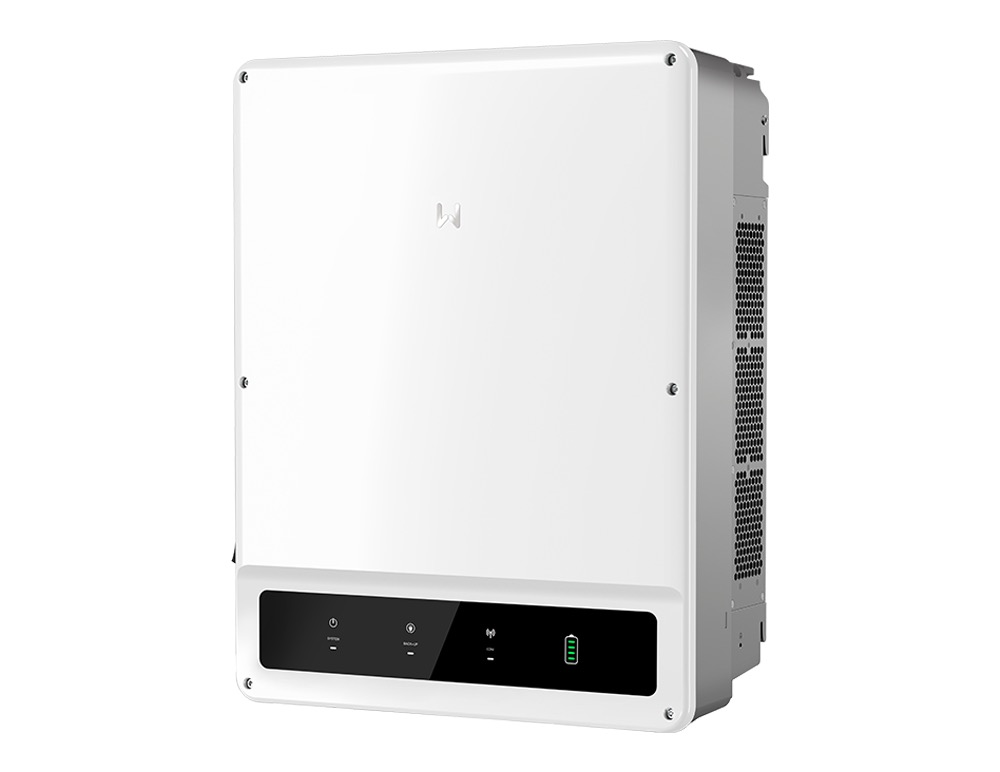

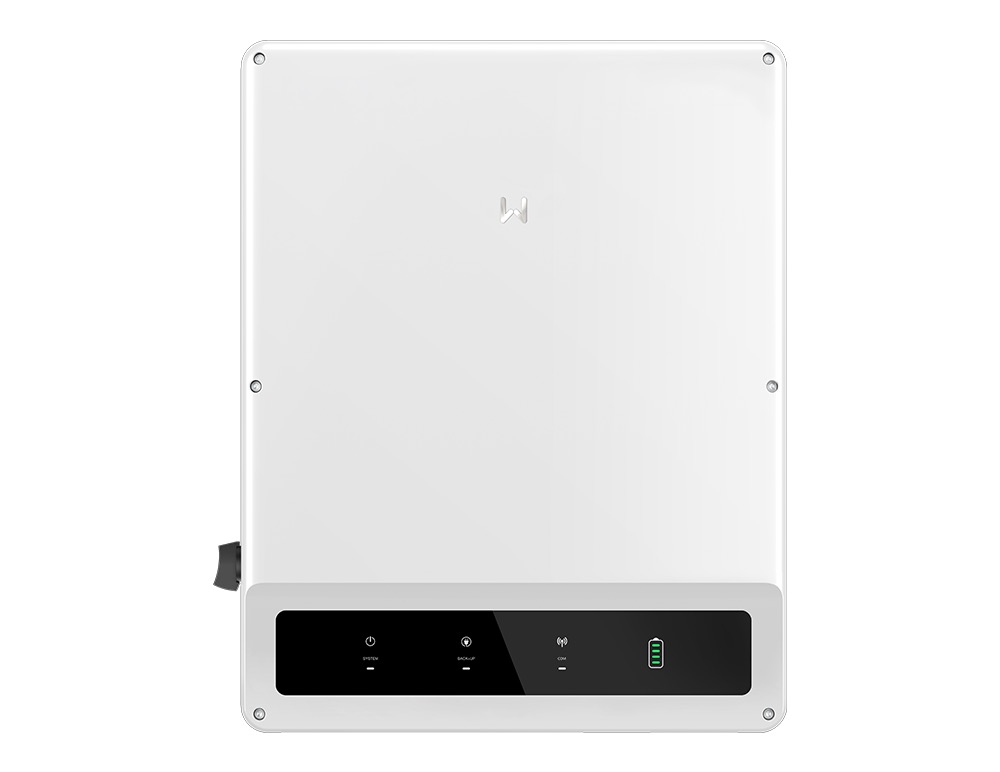

GoodWe GW10K-ET is a 10 kW three-phase hybrid inverter with 15,000 W DC intake, delivering 10,000 VA continuous emergency backup to power whole-home domestic circuits completely off-grid with zero fan noise.
10,000 VA Continuous Three-Phase Backup
Supplies full-power emergency electricity to induction hobs, heat pumps, and household circuits.
15,000 W Solar PV Absorption, 150% DC oversizing captures maximum energy across multi-pitch residential roofs on overcast winter days.
Sub-10 ms Seamless Emergency Power
Hardware-level UPS transfer protects smart home servers, routers, and sensitive electronics during blackouts.
Whisper-Quiet Natural Cooling (< 30 dB), 100% passive convection heatsink architecture eliminates fan cycling noise indoors.
More product details
Unlike smaller hybrid inverters that limit backup output to a few light sockets, the GW10K-ET powers three-phase domestic distribution panels with full 10 kVA continuous power and 16.5 kVA surge capability.
- Delivers 14.5 A continuous output current per phase on backup to sustain three-phase induction hobs and heat pumps.
- 16,500 VA surge tolerance (60 seconds) effortlessly starts heavy residential motor and compressor loads.
- Hardware-level sub-10 ms automatic transfer ensures zero computer reboots or smart home controller resets.
GoodWe
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
10 kVA
5 kVA
6.5 kVA
8 kVA
Phase
Three-phase grid
Three-phase grid
Three-phase grid
Three-phase grid
MPPT trackers
2
2
2
2
Max. efficiency
98.20 %
98.00 %
98.00 %
98.20 %
Battery voltage
180 ~ 600 V
180 ~ 600 V
180 ~ 600 V
180 ~ 600 V
Ingress protection
IP66
IP66
IP66
IP66
Weight
24 kg
24 kg
24 kg
24 kg
Dimensions
415 × 516 × 180 mm
415 × 516 × 180 mm
415 × 516 × 180 mm
415 × 516 × 180 mm
15,000 W solar intake with automated solar black-start.
Sized to absorb generation from extensive multi-aspect residential roofs, the GW10K-ET captures high solar yields and features autonomous cold black-start capabilities. Dual independent 12.5 A MPPT channels track separate roof pitches efficiently down to 180 V start-up. Automated solar black-start boots directly from DC panel voltage during extended winter blackouts. IP66 weatherproof cast-aluminum casing allows clean indoor utility mounting or outdoor sheltered installation (-35 to +60 °C).
Takes 15000 W PV on two MPPT trackers
Two independent trackers accept large rooftop arrays up to 15000 W DC. Output delivers 10000 W continuous three-phase power.
Pairs 180 to 600 V high-voltage storage
A dedicated battery port connects high-voltage lithium modules. High efficiency of 98.20 percent preserves energy across charge cycles.
Stands in an IP66 aluminum housing
The 24 kg chassis measures 415 x 516 x 180 mm. Full IP66 weatherproofing tolerates temperatures from minus 35 to plus 60 C.
Technical data
The benchmark high-capacity residential hybrid inverter engineered for complete energy independence.
10 kVA full three-phase backup backed by 15,000 W DC oversizing.
Standing as the top-tier power class in GoodWe's residential ET series, the GW10K-ET delivers the robust power throughput needed to achieve total household electrification. It handles 11,000 VA maximum apparent power to the grid while supplying 10,000 VA continuous output on its backup port, seamlessly running whole-home heating, cooking, and baseline appliances without compromise.
- Full 3-Phase Backup
- 10,000 VA
- 150% DC Solar Intake
- 15,000 Wp
- 100% Passive Cooling
- < 30 dB(A)
- High-Voltage Battery Bus
- 180–600 V
Power & Phase
- Phase
- 3
- AC power
- 10 kW
- Product role
- PV inverter for battery-ready residential or commercial project review
PV Input
- Max. Input Power (W)
- 15 kW
- Max PV input
- 15 kW
Battery Interface
- Battery voltage range
- 180-600V
Efficiency & Protection
- Max efficiency
- 98.20%
- IP rating
- IP66
Logistics
- Packaging (VPE)
- 6 per pallet
Verified enclosure data
- Ingress protection
- IP66
- Operating temperature
- -35 to +60 °C
- Dimensions
- 415 × 516 × 180 mm
- Weight
- 24 kg
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW10K-ET belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario
Large All-Electric Single-Family Residences (12–16 kWp PV / 30–38 Panels)
Modern detached homes equipped with a 3-phase air-to-water or geothermal heat pump (6–12 kW thermal), induction cooktops, and high baseline domestic loads.
10 kW continuous AC throughput is the true baseline for uncompromised residential electrification. The 15 kWp DC input allows generous multi-pitch panel layouts, ensuring ample excess power to recharge a 10–16 kWh battery bank on short winter days.
- BoundaryIf the roof accommodates fewer than 26 panels (< 11 kWp) and total simultaneous domestic load is moderate, step down to the GW8K-ET to save capital cost without sacrificing three-phase symmetry.
What Linker confirms with you
- If the roof accommodates fewer than 26 panels (< 11 kWp) and total simultaneous domestic load is moderate, step down to the GW8K-ET to save capital cost without sacrificing three-phase symmetry.
Project scenario
Whole-Home Uncompromised Off-Grid Emergency Autonomy
Homeowners who demand seamless power continuity for the entire household panel (including 3-phase kitchen induction hobs and central heating pumps) during extended grid blackouts.
With 16,500 VA surge tolerance (60 seconds), it effortlessly rides through heavy motor and compressor startup spikes that trip smaller 5–8 kW inverters.
What Linker confirms with you
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe ET Series 5–10 kW Datasheet (EN) GoodWe ET Plus Datasheet (EN) GoodWe ET Plus User Manual (EN)Product questions
Can the GW10K-ET power three-phase induction cooktops and domestic heat pumps during a blackout?
Yes. Supplies 10,000 VA continuous and 16,500 VA peak surge. The GW10K-ET provides full 10,000 VA continuous three-phase power across L1, L2, and L3 on its dedicated backup port (approx. 14.5 A nominal current per line, with a peak apparent power surge rating of 16,500 VA for 60 seconds). This surge capacity effortlessly rides through the initial inrush currents of heat pump compressors and kitchen appliances without tripping.
What is the difference between wiring the whole house to the backup port vs using a critical-loads sub-panel?
Check main service current limits (22.7 A internal pass-through ceiling). Because the inverter's maximum AC grid pass-through current is 22.7 A (approx. 15.7 kVA total), connecting the entire house through the inverter's internal backup switch means total household power draw (when grid-connected) must not exceed 22.7 A per phase. For large luxury residences where total connected domestic load can exceed 25 A per phase (e.g., simultaneous sauna, fast EV charging, and oven use), installing a dedicated backup sub-panel for essential/heating circuits. Or using an external automatic transfer switch (ATS). Is standard engineering practice.
What happens if the battery is fully drained during an extended winter power outage?
Automated DC solar black-start restores power at sunrise. The GW10K-ET features built-in solar black-start: 1. When sunrise illuminates the solar array, the inverter boots purely from DC solar string voltage. 2. It prioritizes trickle-charging the high-voltage battery stack to a safe operating threshold. 3. It automatically re-energizes the backup AC circuits once the battery threshold is reached. With zero manual intervention.
What is the maximum battery storage capacity that can be connected to this model?
Up to 16.38 kWh in a single tower; over 49 kWh with parallel towers. A single GoodWe Lynx Home F tower supports up to 5 modules (16.38 kWh / 512 V). By adding a second or third tower in parallel using an external combiner box, you can scale storage up to 32.7 kWh or 49.1 kWh while maintaining full 25 A charge and discharge speeds.
Can the GW10K-ET be installed outdoors in direct rain and snow?
Yes, IP66 rated, but avoid direct midday sun exposure. The unit carries an IP66 ingress protection rating, making it completely dust-tight and sealed against high-pressure water jets. However, installing it under an eave or protective shelter to avoid direct solar irradiance is recommended to prevent thermal derating during hot summer middays.
System components
Required components
GoodWe GM330 CT meter
Item number: DLK-GOODWE-GM330
Universal 1P2W/3P3W/3P4W clip-on meter for export limiting and self-consumption metering; needed for grid-tied operation on any GoodWe ET installation.
Recommended components
GoodWe LX D5.0-10 / Lynx D battery bank
Item number: DLK-GOODWE-LXD5010
GoodWe's Battery Compatibility Overview lists the Lynx D against the ET 5-10 kW range (ARM 28 / DSP 12 firmware or higher required on the inverter).
Optional components
GoodWe SEC1000S
Item number: DLK-GOODWE-SEC1000S
Purpose-built for the ET 5-10 kW series specifically: export power control plus parallel control for up to 10 inverters, with a built-in GM3000 meter.
GoodWe EzManager3000
Item number: DLK-GOODWE-EZMANAGER3000
Single-site home EMS: up to 1 hybrid inverter, 2 EV chargers, 1 heat pump and 12 Shelly devices from one controller.
Approved pairings
GoodWe LX D5.0-10Item number DLK-GOODWE-LXD5010GoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 10 kWh (2 x LX D5.0-10)Item number DLK-GOODWE-LYNXD10KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 15 kWh (3 x LX D5.0-10)Item number DLK-GOODWE-LYNXD15KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 20 kWh (4 x LX D5.0-10)Item number DLK-GOODWE-LYNXD20KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 25 kWh (5 x LX D5.0-10)Item number DLK-GOODWE-LYNXD25KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx Home F 13.10 kWh (PCU base + 4 x LX F3.3-H)Item number DLK-GOODWE-LXF131HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 16.38 kWh (PCU base + 5 x LX F3.3-H)Item number DLK-GOODWE-LXF164HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe LX F3.3-H (Lynx Home F battery module, 3.27 kWh)Item number DLK-GOODWE-LXF33HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 6.55 kWh (PCU base + 2 x LX F3.3-H)Item number DLK-GOODWE-LXF66HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 9.83 kWh (PCU base + 3 x LX F3.3-H)Item number DLK-GOODWE-LXF98HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F PCU base (master BMS)Item number DLK-GOODWE-LXFPCUGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
Pylontech FH9637MItem number DLK-PYLONTECH-FH9637MPylontech Ver. 2.43 lists GoodWe ET 5-10 with a Force-H2 stack of 3 to 5 modules. Our Force-H2 7.1 kWh is 2 modules and is below that minimum.
Pylontech FH10050Item number DLK-PYLONTECH-FH10050Pylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
