Pylontech FH9637M
Pylontech Battery System

Pylontech FH9637M

Pylontech FH9637M is the 3.552 kWh battery module of the Force-H2 stack: 96 V, 37 Ah, LFP cells, 35 kg.

  • IP55 enclosure, 0-50°C operating range, 95% depth of discharge, 5,000-cycle rated life.
  • CANBUS/Modbus RTU comms; 42A max charge/discharge per string, up to 6 parallel groups.
  • Certified to VDE-AR-E 2510-50, IEC 62619, IEC 63056, IEC 62040-1; UN38.3 transport.
3.552 kWh
Nominal energy
96 V
Nominal voltage
Li-iron (LFP)
Cell chemistry
42 A (Max.@15s)
Max. charge current
Manufacturer
Pylontech
Model code
FH9637M
Item no.
DLK-PYLONTECH-FH9637M
Delivery
Germany delivery estimate: EUR 85–205 · The final delivery charge is included in your Proforma.
Orderable · lead time confirmed after order

Plan with FH9637M

New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.

Trade price
Sign in for partner pricing Download datasheet
Required to install — not in the box
Pylontech FC0500M-40S-V2 Force-H2 modules stack behind this controller/BMS master — the string does not run without it.
View
Chint DTSU666 grid-side meter typically required by the paired hybrid inverter for export limiting.
View

Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.

  • GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
  • Datasheets on file for every item
  • Within 24 h engineering response
  • MOQ 1 unit · EU delivery
  • Engineering-checked configurations
Size it to the load. Grow it later.
Capacity logic

Size it to the load. Grow it later.

3.552 kWh per stack today; add modules when the load grows instead of guessing on day one.

IP55 enclosure, 0-50°C operating range, 95% depth of discharge, 5,000-cycle rated life.
CANBUS/Modbus RTU comms; 42A max charge/discharge per string, up to 6 parallel groups.
Certified to VDE-AR-E 2510-50, IEC 62619, IEC 63056, IEC 62040-1; UN38.3 transport.
In pictures

Inspect it before you spec it.

Official renders, installation photos and system panels for this model line.

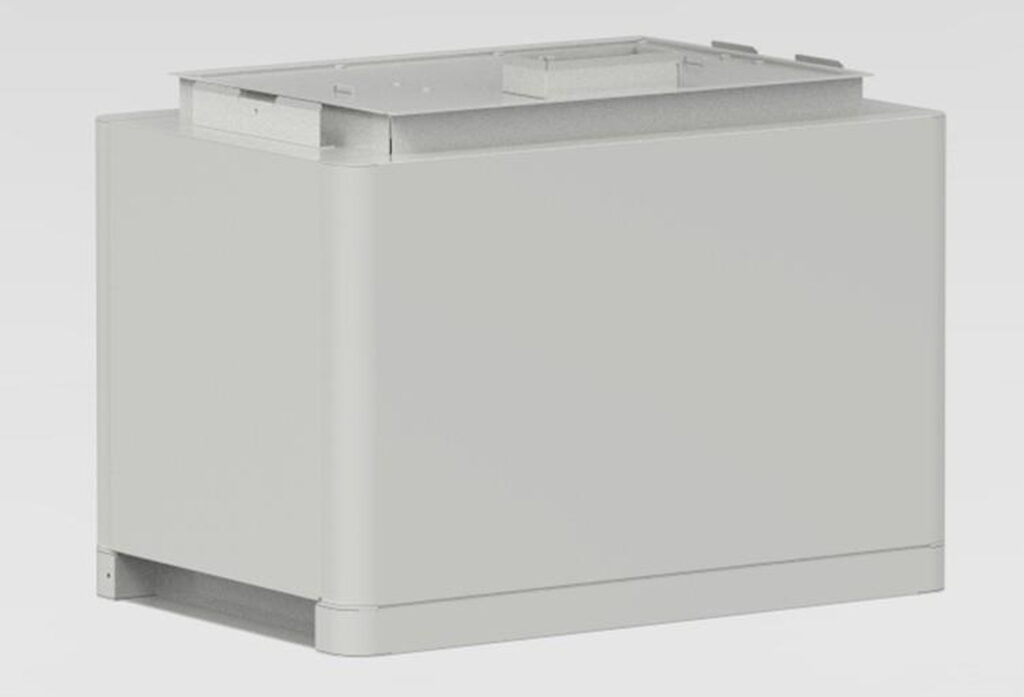

Official Pylontech render from the Force-H2 operation manuals.
Product

Official Pylontech render from the Force-H2 operation manuals.

Documentation

Specifications

Every value exactly as published in the official FH9637M documentation.

BrandPylontech
ModelFH9637M
TypeHigh-voltage stackable battery module, Force-H2 Series
Cell technologyLi-ion (LFP)
Battery module capacity (kWh)3.552
Battery module voltage (VDC)96
Battery module capacity (Ah)37
Battery cell voltage (VDC)3.2
Battery cell capacity (Ah)37
Dimension (W x D x H mm)450 x 296 x 296
Weight (kg)35
Operation temperature (C)0 ~ 50
Storage temperature (C)-20 ~ 60
Operation life (year)15+
Operation cycle life (cycle)5,000
Full datasheet (PDF) Ask an engineer

Documents

Pylontech Force-H2-V2 operation manual 5PMPA08-00134 (EN, forwarded copy)ENDownload
Pylontech Force-H2 operation manual V2.2 (EN, forwarded copy)ENDownload
Missing a certificate or language version?Request a document
ProductPylontech FH9637M

Complete the system

Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.

Required
Pylontech FC0500M-40S-V2
[1]

Pylontech FC0500M-40S-V2

Force-H2 modules stack behind this controller/BMS master — the string does not run without it.
View product →
Chint DTSU666 smart meter
[2]

Chint DTSU666 smart meter

grid-side meter typically required by the paired hybrid inverter for export limiting.
View product →
Recommended
Optional
Pylontech FH9637M module
[1]

Pylontech FH9637M module

add modules (2-4 per controller, up to 6 parallel groups) to grow capacity within the same string architecture.
View product →
Approved pairings

What this unit is approved to run with.

Every pairing below traces to a manufacturer compatibility list, by document version and date. A pairing only one maker lists is marked; we quote it, an engineer confirms it.

GoodWe GW10K-BT GoodWe GW10K-BT Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only GoodWe GW10K-BT GoodWe GW10K-BT Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only GoodWe GW10K-BT GoodWe GW10K-BT Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only GoodWe GW10K-BT GoodWe GW10K-BT Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only GoodWe GW10K-BT GoodWe GW10K-BT Item no. DLK-GOODWE-GW10KBT Listed by GoodWe only GoodWe GW5K-BT GoodWe GW5K-BT Item no. DLK-GOODWE-GW5KBT Listed by GoodWe only GoodWe GW5K-BT GoodWe GW5K-BT Item no. DLK-GOODWE-GW5KBT Listed by GoodWe only GoodWe GW5K-BT GoodWe GW5K-BT Item no. DLK-GOODWE-GW5KBT Listed by GoodWe only

Pick the rating

Pylontech family. Same engineering, different size.

3 ratings Same series, same engineering — your model is highlighted.
Pylontech FH9637M This model Sign in for pricing
Pylontech FC0500M-40S Sign in for pricing
Pylontech FC0500M-40S-V2 Sign in for pricing
Nominal voltage
96 V
—
96 V
Cell chemistry
Li-iron (LFP)
—
Li-iron (LFP)
Max. charge current
42 A (Max.@15s)
—
18.5 A
Max. discharge current
42 A (Max.@15s)
—
18.5 A
Ingress protection
IP55
—
IP55

Every figure comes straight from the manufacturer's official datasheet.

Configuration 3

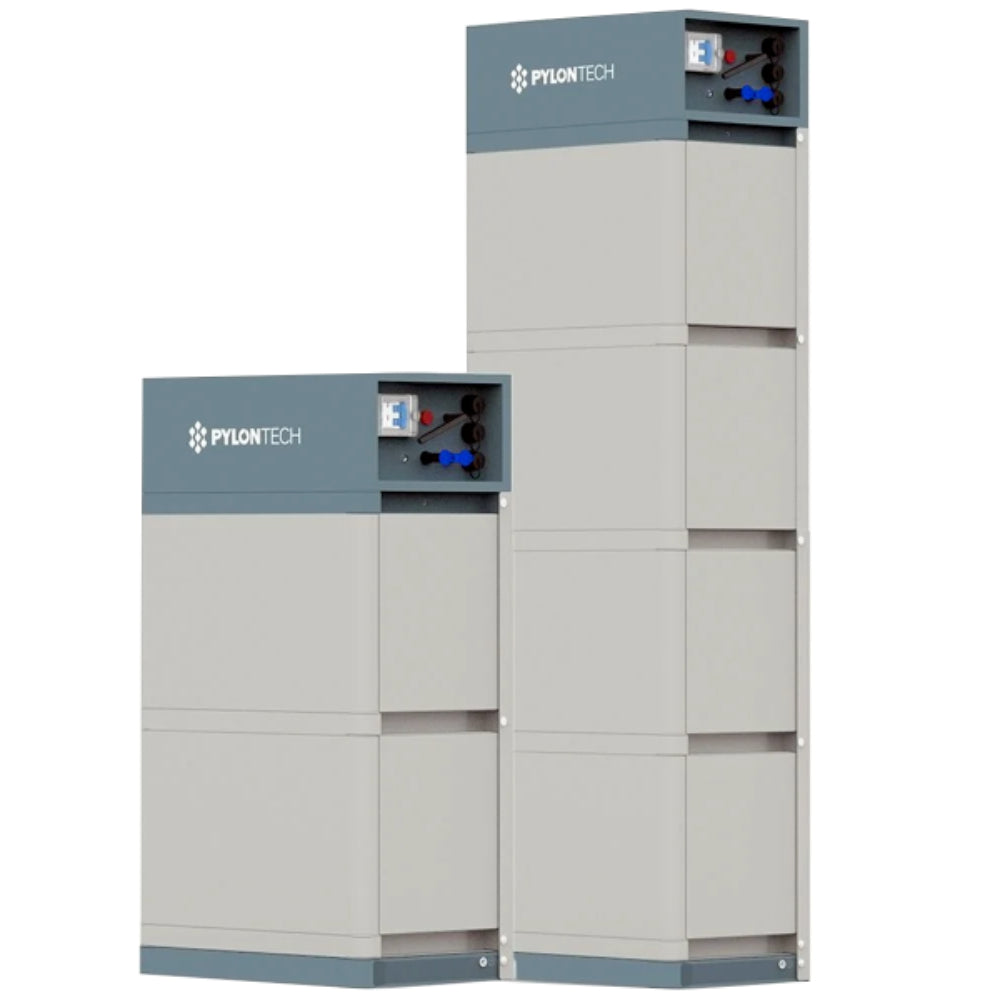

Each Force-H2 group stacks FH9637M modules of 3.552 kWh / 96 V behind one battery controller.

  • Force-H2-V2: 2 to 4 modules per group, giving 7.10 / 10.65 / 14.20 kWh at 192 / 288 / 384 V, per the V2 manual.
  • First generation: the Force-H series datasheet allows 2 to 5 modules per group, up to 17.75 kWh at 480 V.
  • Parallel: up to 6 groups run in parallel; 6 x 17.75 kWh = 106.5 kWh, simple arithmetic on the datasheet figures.
  • Naming note: the 17.75 kWh tier is a de-linker bundle matching the five-module datasheet column, not a Pylontech model number.

One controller per group, and the generation must match: FC0500M-40S for the first-generation Force-H2, FC0500M-40S-V2 for the Force-H2-V2.

  • Separate systems: Pylontech's compatibility list treats Force-H2 and Force-H2-V2 as separate systems with separate controller firmware tracks.
  • Inverter pairing: some inverters pair with the V2 system only, so confirm the paired hybrid inverter against Pylontech's list before ordering.
  • Module ceiling: the V2 manual caps a group at 4 modules (14.20 kWh); only the first-generation system runs 5 modules (17.75 kWh).

No. The FH9637M belongs to the Force-H2 series only; Force-H3 stacks use the FH10050 module with the FC1000 controller.

  • Within Force-H2: the same FH9637M module serves both the first-generation and the V2 system; the controller defines the generation.
  • Expansion: add modules within the 2 to 4 (V2) or 2 to 5 (first generation) per-group window, or add parallel groups up to 6.
  • Check first: confirm inverter compatibility, usable capacity and expansion limits against the latest Pylontech documents during final technical approval.

Installation & wiring 1

The Force-H2 is a stacked tower with an IP55 enclosure.

  • Weights: each FH9637M weighs 35 kg (450 x 296 x 296 mm); the assembled five-module tower weighs 188.5 kg at 450 x 296 x 1710 mm, per the datasheet.
  • Environment: 0 to 50 C operation, 5-95% humidity without condensation, below 2000 m altitude.
  • Communication: the system talks CANBUS / Modbus RTU to the inverter; the controller carries RS-485 and CAN / RS-232 terminals.
  • Metering: the paired hybrid inverter typically requires a grid-side meter such as the Chint DTSU666 for export limiting, with the CT sized to the site's service current, not the battery current.

Availability & compliance 1

Pylontech lists the Force-H2 system against VDE-AR-E 2510-50, IEC 62619, IEC 63056, IEC 62040-1, CEC and CE.

  • Transport: UN38.3 covers shipment of the lithium modules.
  • Enclosure: IP55 ingress protection for the assembled system.
  • Documents: the Pylontech Force H2 datasheet is on file in English and German editions on this page.
  • Grid connection: grid-code certificates are not part of this battery listing, so we confirm the certificate set for your project and paired inverter with the quote.

Operation & warranty 1

Pylontech documents state two figures: the operation manuals rate the FH9637M module at 5,000 cycles, while the Force-H series datasheet states more than 8,000 cycles at 25 C for the system.

  • Depth of discharge: 95% per the datasheet.
  • Design life: 15 years or more at 25 C.
  • Both are Pylontech figures: the difference comes from the reference document, so treat the manual figure as the conservative basis.
  • Warranty basis: ask us for the warranty terms that apply to your batch; we confirm them with the quote.

General 1

Module counts differ between generations.

  • Force-H2-V2 manual: two to four modules per group (7.10 / 10.65 / 14.20 kWh)
  • First-generation Force-H series datasheet: two to five modules per group (7.1 up to 17.75 kWh)
  • Up to six groups run in parallel
