Description
Enhanced protocol flexibility with dedicated inverter hardware handshakes.

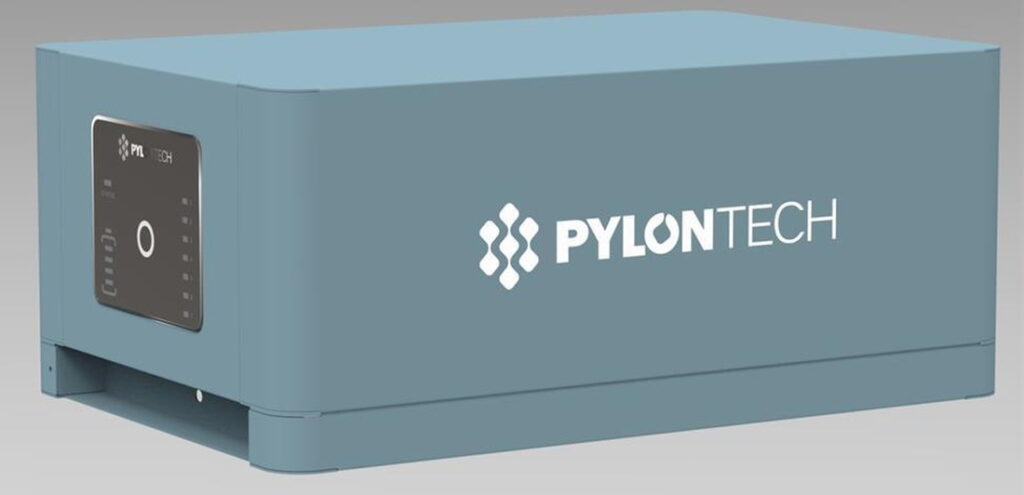

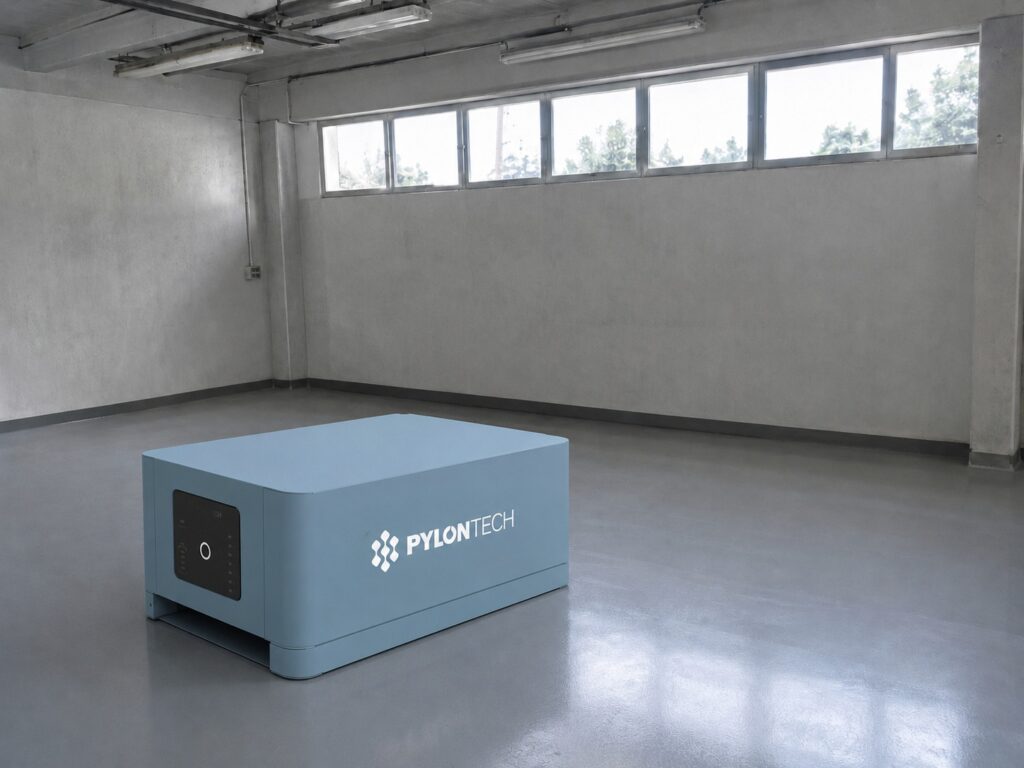

Pylontech FC0500M-40S-V2 is the upgraded Version 2 high-voltage master BMS controller unit for Pylontech Force-H2-V2 residential storage columns, featuring expanded inverter communication protocols, dedicated SMA enable line hardware, and sub-10 ms motorized DC isolation.
Upgraded V2 Master Control Architecture
Enhanced processing chipset delivers faster cell-balancing response, expanded inverter communication tables, and extended European RED compliance.
Dedicated SMA Enable Line Support
Hardware-level auxiliary 12V enable pinout dedicated for seamless integration with SMA Sunny Boy Storage and Smart Energy inverters.
40 A Continuous High-Rate Throughput
Delivers up to 15 kW continuous battery charge and discharge power across 192 V to 384 V storage stacks.
Cable-Free Slide-and-Lock Mating
Plugs directly into the top battery module via internal self-aligning busbars, eliminating external DC jumper conduits.
More product details
Modern high-voltage inverters require tighter communication polling and dedicated enable signals to initiate safe black-start procedures. The FC0500M-40S-V2 integrates a high-speed communication processor and dedicated hardware trigger lines.
- Auxiliary 12Vdc enable line natively interfaces with SMA Sunny Boy Storage and Sunny Tripower Smart Energy.
- Real-time monitoring of individual cell voltages, module temperatures, and insulation resistance to ground.
- CAN and Modbus RTU communication interfaces support GoodWe, SMA, Kostal, Sungrow, Solis, and Victron.
Pylontech
Compare different models
Scroll sideways to compare every model.
Internal busbar mating for clean, tool-free installation.
Traditional high-voltage battery cabinets require routing external DC cables between modules and the master controller. The FC0500M-40S-V2 slides directly onto the top module, engaging high-voltage and communication busbars internally. Self-aligning guide pins ensure perfect mechanical seating and electrical contact upon placement. Eliminates exposed high-voltage DC wiring on garage and utility room walls, maximizing residential safety. Compact 450 × 296 × 190 mm dimensions preserve low ceiling clearance in domestic basements.
Holds the 7.10 to 14.20 kWh string
Two, three or four FH9637M bricks make 7.10, 10.65 or 14.20 kWh. The head stays one carton.
Talks over CAN on the V2 panel
The hybrid hears one V2 battery. Limits and alarms travel on that link.
Stops a short under 4000 A
Prospective short-circuit current stays below 4000 A. This head disconnects the string.
Technical data
Next-generation master battery control engineered for Force-H2-V2 residential storage columns.
Upgraded V2 high-voltage master BMS controller with dedicated SMA enable line.
Engineered as the modern intelligence and safety gateway for Pylontech Force-H2-V2 residential storage towers, the FC0500M-40S-V2 sits directly on the top battery module. It oversees real-time cell balancing, state-of-charge calculation, and motorized DC isolation across 7.10 to 14.21 kWh stacks, broadcasting telemetry to leading hybrid inverters with enhanced firmware compatibility.
- High-Voltage Bus
- 192–384 V
- Upgraded BMS
- V2 Architecture
- High-Rate Throughput
- 40 A
- All-Weather Build
- IP55
Identity
- Brand
- Pylontech
- Model
- FC0500M-40S-V2
- Type
- Battery controller, Force-H2-V2 system
- Related module
- FH9637M
Capacity & Voltage
- Related module
- FH9637M
- Battery system capacity (kWh)
- 7.10 / 10.65 / 14.20
- Battery system voltage (VDC)
- 192 / 288 / 384
- Battery module quantity (pcs)
- 2 / 3 / 4
- Battery system capacity (Ah)
- 37
- Charge upper voltage (VDC)
- 216 / 324 / 432
Current & Comms
- Charge / discharge current, standard (A)
- 7.4
- Charge / discharge current, normal (A)
- 18.5
- Charge / discharge current, max @15 s (A)
- 42
- Short circuit rating (A)
- <4000
- Communication terminal
- RS-485; CAN / RS-232
Logistics
- Packaging (VPE)
- 20 per pallet
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech FC0500M-40S-V2 belongs in, what to verify before quoting, and when another model is the better pick.
Mandatory Master Controller for Force-H2-V2 Battery Towers (7.1 to 14.2 kWh)
Mandatory top control unit whenever configuring a new Pylontech Force-H2-V2 battery tower with 2, 3, or 4 FH9637M modules.
The current production standard, ensuring full compatibility with modern hybrid inverters and automated firmware updates.
- Confirm this model against the adjacent rating in the same family
Documents
Pylontech Force H2 (FC0500M-40S-V2) User Manual Pylontech Force-H2-V2 operation manual 5PMPA08-00134 (EN, forwarded copy)Product questions
What is the main difference between the original FC0500M-40S and the V2 version?
V2 features upgraded communication firmware, CE/RED compliance, and dedicated SMA enable pins. The V2 controller integrates an upgraded processing board with expanded CAN/Modbus firmware tables for modern European hybrid inverters, full certification under the European Radio Equipment Directive (RED 2014/53/EU), and dedicated 12V enable hardware lines for SMA inverters.
What are the physical dimensions and weight of the V2 controller?
450 × 296 × 190 mm; approx. 8.5 kg. The controller matches the exact external dimensions of the Force-H2 battery modules, measuring 450 mm wide, 296 mm deep, and 190 mm high, weighing approx. 8.5 kg.
System components
Required components
Pylontech FC0500M-40S-V2
Item number: DLK-PYLONTECH-FC0500M40SV2
Force-H2 modules stack behind this controller/BMS master, the string does not run without it.
Chint DTSU666 smart meter
Item number: DLK-CHINT-DTSU666
grid-side meter typically required by the paired hybrid inverter for export limiting.
Recommended components
MBS KBU58 400/5A CT
Item number: DLK-MBS-KBU58-400-5A
sized CT for the DTSU666 meter; choose the KBU58 amperage that matches the site's actual service current, not the battery current.
Optional components
Pylontech FH9637M module
Item number: DLK-PYLONTECH-FH9637M
add modules (2-4 per controller, up to 6 parallel groups) to grow capacity within the same string architecture.
