Description
Fanless natural convection engineered for indoor living spaces.

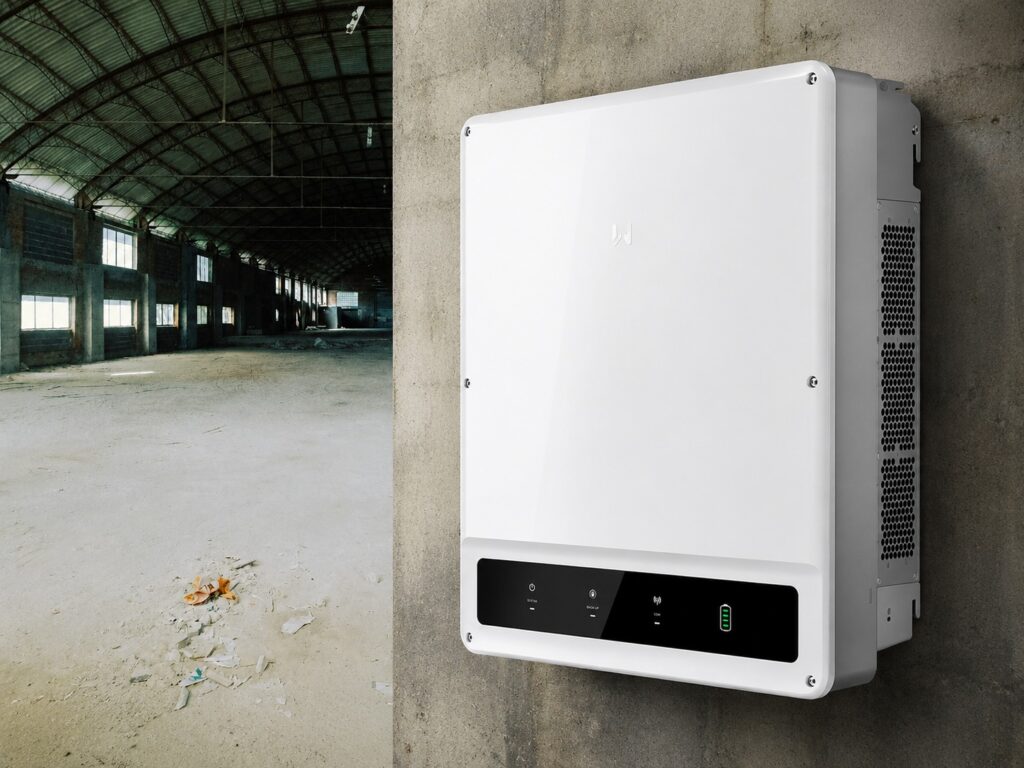

GoodWe GW5K-ET is a 5 kW three-phase hybrid inverter delivering balanced 400 V power in a whisper-quiet, fanless chassis for residential living spaces.
5,000 VA Symmetrical Output
Supplies balanced 400 V power equally across L1, L2, and L3 to satisfy European grid phase-symmetry rules.
Whisper-Quiet Natural Cooling (< 30 dB), 100% fanless heatsink eliminates acoustic hum and mechanical wear near indoor living quarters.
Sub-10 ms Seamless UPS Backup
Internal high-speed switchgear keeps home computers, routers, and essential circuits running during outages.
Low 180 V MPPT Startup
Dual independent channels start early to harvest low-angle morning sunlight from compact 6–8 panel strings.
More product details
Conventional hybrid inverters use active cooling fans that cycle aggressively during high-rate midday battery charging, creating 40–48 dB noise. The GW5K-ET dissipates heat purely through an engineered die-cast aluminum heatsink.
- Certified acoustic emission strictly below 30 dB(A) under continuous full-power 5 kW export and 25 A battery charging.
- Zero mechanical moving parts prevents dust clogging and extends internal capacitor lifespan beyond 15 years.
- IP66 sealed enclosure keeps power electronics isolated from ambient humidity, dust, and insects.
GoodWe
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
5 kVA
6.5 kVA
8 kVA
10 kVA
Phase
Three-phase grid
Three-phase grid
Three-phase grid
Three-phase grid
MPPT trackers
2
2
2
2
Max. efficiency
98.00 %
98.00 %
98.20 %
98.20 %
Battery voltage
180 ~ 600 V
180 ~ 600 V
180 ~ 600 V
180 ~ 600 V
Ingress protection
IP66
IP66
IP66
IP66
Weight
24 kg
24 kg
24 kg
24 kg
Dimensions
415 × 516 × 180 mm
415 × 516 × 180 mm
415 × 516 × 180 mm
415 × 516 × 180 mm
Direct high-voltage battery coupling with 7,500 W solar intake.
Direct high-voltage DC battery pairing (180–600 V) eliminates heavy step-up conversion losses, maximizing round-trip solar storage efficiency across winter and summer seasons. 7,500 W PV input channels surplus midday generation directly into battery storage at up to 25 A continuous rate. Dual independent MPPT trackers track separate East and West roof pitches down to 180 V starting threshold. 5,000 VA continuous three-phase backup sustains essential domestic circuits without external transformers.
Runs 5000 W across three balanced phases
The inverter supplies 5000 W continuous AC power across three 400 V phases. High efficiency of 98.00 percent maximizes harvest from the 7500 W array.
Pairs 180 to 600 V high-voltage storage
A dedicated battery port accepts 180 to 600 V DC. Direct DC storage connection minimizes conversion losses.
Stands outside from minus 35 to plus 60 C
The 24 kg aluminum chassis has an IP66 weather rating. Compact 415 x 516 x 180 mm dimensions suit tight wall spaces.
Technical data
A precision 5 kW energy hub engineered specifically for living-adjacent installations.
Three-phase domestic balance with zero acoustic noise.
Rather than forcing residential rooftops into single-phase compromises that trigger grid unbalance penalties, the GW5K-ET provides clean, balanced three-phase conversion in an ultra-compact 24 kg chassis. It channels up to 7,500 W of solar generation directly into high-voltage storage while delivering 5,000 VA continuous power to domestic circuits with zero fan noise.
- Balanced 3-Phase Power
- 5,000 VA
- 150% Solar DC Intake
- 7,500 Wp
- 100% Passive Cooling
- < 30 dB(A)
- Hardware-Level UPS Transfer
- < 10 ms
Power & Phase
- Phase
- 3
- AC power
- 5 kW
- Product role
- PV inverter for battery-ready residential or commercial project review
PV Input
- Max. Input Power (W)
- 7.5 kW
- Max PV input
- 7.5 kW
Battery Interface
- Battery voltage range
- 180-600V
Efficiency & Protection
- Max efficiency
- 98.00%
- IP rating
- IP66
Logistics
- Packaging (VPE)
- 6 per pallet
Verified enclosure data
- Ingress protection
- IP66
- Operating temperature
- -35 to +60 °C
- Dimensions
- 415 × 516 × 180 mm
- Weight
- 24 kg
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW5K-ET belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

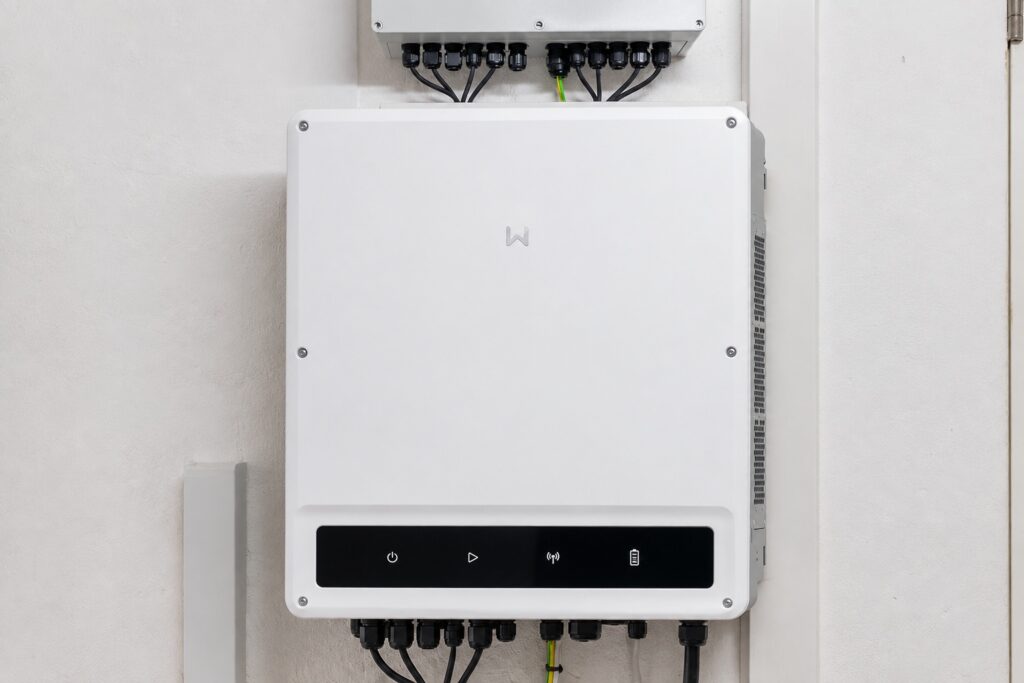

Small DACH Suburban Roofs (5–7.5 kWp) with 3-Phase Grid Mandates
Single-family homes in Germany, Austria, or Switzerland with 12–16 solar panels subject to strict 4.6 kVA single-phase unbalance limits.
Single-phase inverters above 4.6 kVA risk grid export curtailment. Conversely, installing an oversized 10 kW hybrid inverter on a small array forces the unit to operate on the inefficient low end of its curve during light 200–400 W nighttime baselines. The GW5K-ET fulfills 3-phase grid symmetry while keeping nighttime tare losses minimal.
What Linker confirms with you
- Confirm this model against the adjacent rating in the same family
Project scenario

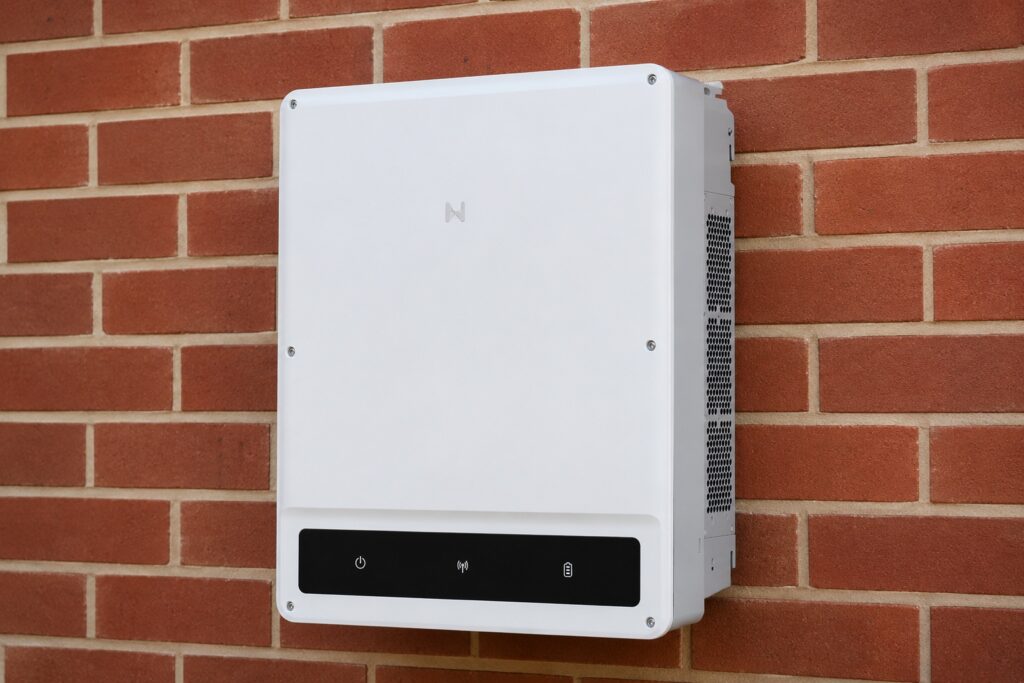

Indoor Living-Adjacent Utility Rooms & Hallway Closets
Properties where the inverter must be wall-mounted inside utility closets, laundry rooms, or basements sharing walls with living quarters.
Active fan-cooled inverters generate 40–48 dB noise during high-rate midday battery charging. The GW5K-ET uses 100% passive natural convection, ensuring dead-silent operation (< 30 dB) under all load conditions.
What Linker confirms with you
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe ET Series 5–10 kW Datasheet (EN) GoodWe ET Plus Datasheet (EN) GoodWe ET Plus User Manual (EN)Product questions
What is the minimum panel string length required to stay in MPPT range?
6 to 7 standard panels per string. Because the GW5K-ET operates with an MPPT voltage window of 200–850 V and a starting voltage of 180 V, strings must generate ≥ 200 V even on hot summer afternoons when panel voltage drops due to negative temperature coefficients ($P_{\text{temp}} \approx -0.35\%/\text{°C}$). * With 400W–450W panels ($V_{\text{mp}} \approx 31\text{. }34\text{ V}$): 6 panels in series deliver ~185–200 V in hot weather. 7 panels ensure safe, continuous tracking. * Engineering Warning: Never design strings with only 3 or 4 modules; the inverter will drop out of MPPT tracking during peak summer heat.
Why choose this 5 kW three-phase unit over a 5 kW single-phase inverter?
Automatic grid compliance and native 3-phase equipment support. * Grid Balance Regulations: European grid codes (VDE-AR-N 4105) cap single-phase unbalance at 4.6 kVA. A single-phase 5 kW unit risks grid export curtailment. * Symmetrical Load Distribution: Exports ~7.2 A equally across L1, L2, and L3, eliminating meter phase-imbalance penalties. * 3-Phase Native Backup: Supplies 400 V power directly to 3-phase domestic heat pumps and workshop tools during outages.
Can the 5 kVA backup output start a domestic heat pump during an outage?
Yes for inverter-driven heat pumps; No for fixed-speed compressors. * Modulating / Inverter Heat Pumps ($\le 4\text{ kW}$): Supported. Soft-start circuitry ramps compressor draw gradually within the 5,000 VA limit. * Fixed-Speed On/Off Compressors: Not supported. Direct-on-line starting spikes create locked-rotor currents ($> 30\text{ A}$) that trip the inverter's instantaneous overload protection. For fixed-speed systems, step up to the GW10K-ET.
Why does this inverter require at least two Lynx Home F battery modules?
Voltage floor requirements. The inverter's high-voltage DC battery port requires 180 V minimum. * A single LX F3.3-H module provides only 102.4 V nominal, which cannot start the inverter's internal DC-DC converter. * Stacking 2 modules reaches 204.8 V nominal (182.4–230.4 V operating range), placing the battery safely within the inverter's operating window.
What happens if the battery is drained completely during an extended blackout?
Automated PV black-start restores power at sunrise. The GW5K-ET features autonomous DC black-start: 1. When sunrise illuminates the solar array, the inverter boots up directly from DC string voltage. 2. It prioritizes trickle-charging the battery stack to a safe state-of-charge threshold. 3. Once stable, it automatically re-energizes the AC backup circuits without requiring grid presence or manual rebooting.
System components
Required components
GoodWe GM330 CT meter
Item number: DLK-GOODWE-GM330
Universal 1P2W/3P3W/3P4W clip-on meter for export limiting and self-consumption metering; needed for grid-tied operation on any GoodWe ET installation.
Recommended components
GoodWe LX D5.0-10 / Lynx D battery bank
Item number: DLK-GOODWE-LXD5010
GoodWe's Battery Compatibility Overview lists the Lynx D against the ET 5-10 kW range (ARM 28 / DSP 12 firmware or higher required on the inverter).
Optional components
GoodWe SEC1000S
Item number: DLK-GOODWE-SEC1000S
Purpose-built for the ET 5-10 kW series specifically: export power control plus parallel control for up to 10 inverters, with a built-in GM3000 meter.
GoodWe EzManager3000
Item number: DLK-GOODWE-EZMANAGER3000
Single-site home EMS: up to 1 hybrid inverter, 2 EV chargers, 1 heat pump and 12 Shelly devices from one controller.
Approved pairings
GoodWe LX D5.0-10Item number DLK-GOODWE-LXD5010GoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 10 kWh (2 x LX D5.0-10)Item number DLK-GOODWE-LYNXD10KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 15 kWh (3 x LX D5.0-10)Item number DLK-GOODWE-LYNXD15KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 20 kWh (4 x LX D5.0-10)Item number DLK-GOODWE-LYNXD20KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx D 25 kWh (5 x LX D5.0-10)Item number DLK-GOODWE-LYNXD25KWHGoodWe requires ARM 28 and DSP 12 or higher on the ET for the Lynx D.
GoodWe Lynx Home F 13.10 kWh (PCU base + 4 x LX F3.3-H)Item number DLK-GOODWE-LXF131HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 16.38 kWh (PCU base + 5 x LX F3.3-H)Item number DLK-GOODWE-LXF164HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe LX F3.3-H (Lynx Home F battery module, 3.27 kWh)Item number DLK-GOODWE-LXF33HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 6.55 kWh (PCU base + 2 x LX F3.3-H)Item number DLK-GOODWE-LXF66HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 9.83 kWh (PCU base + 3 x LX F3.3-H)Item number DLK-GOODWE-LXF98HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F PCU base (master BMS)Item number DLK-GOODWE-LXFPCUGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
Pylontech FH9637MItem number DLK-PYLONTECH-FH9637MPylontech Ver. 2.43 lists GoodWe ET 5-10 with a Force-H2 stack of 3 to 5 modules. Our Force-H2 7.1 kWh is 2 modules and is below that minimum.
Pylontech FH10050Item number DLK-PYLONTECH-FH10050Pylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHPylontech Ver. 2.43 lists a Force-H3 stack of 2 to 5 modules. Our Force-H3 30.72 kWh (6 modules) and 35.84 kWh (7 modules) are above that maximum.
