GoodWe Lynx D 15 kWh (3 x LX D5.0-10)
A 15 kWh GoodWe Lynx D battery tower: 3 x LX D5.0-10 modules.
- 5 kWh usable per module, 100% depth of discharge, IP66 enclosure, CAN communication to the BMS.
- Scales from a single 5 kWh module to 8 modules (40 kWh) across up to 2 parallel battery groups.
- GoodWe lists the Lynx D against the ET 5-10 kW range, the ET 15-30 kW range and the BT retrofit range — not against the ET 40-50, ET 75-100 or ETC/BTC C&I tiers.
- 5 kWh
- Usable energy
- Charge: 435; Discharge: 380 V
- Nominal voltage
- LFP (LiFePO4)
- Cell chemistry
- IP66
- Ingress protection
- Manufacturer
- GoodWe
- Model code
- LX D5.0-10
- Item no.
- DLK-GOODWE-LYNXD15KWH
- Delivery
- Delivery included in your Proforma
Plan with LX D5.0-10
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Size it to the load. Grow it later.
15 kWh per stack today; add modules when the load grows instead of guessing on day one.
Configuration
3 x LX D5.0-10, 15 kWh usable, LFP, high voltage.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.

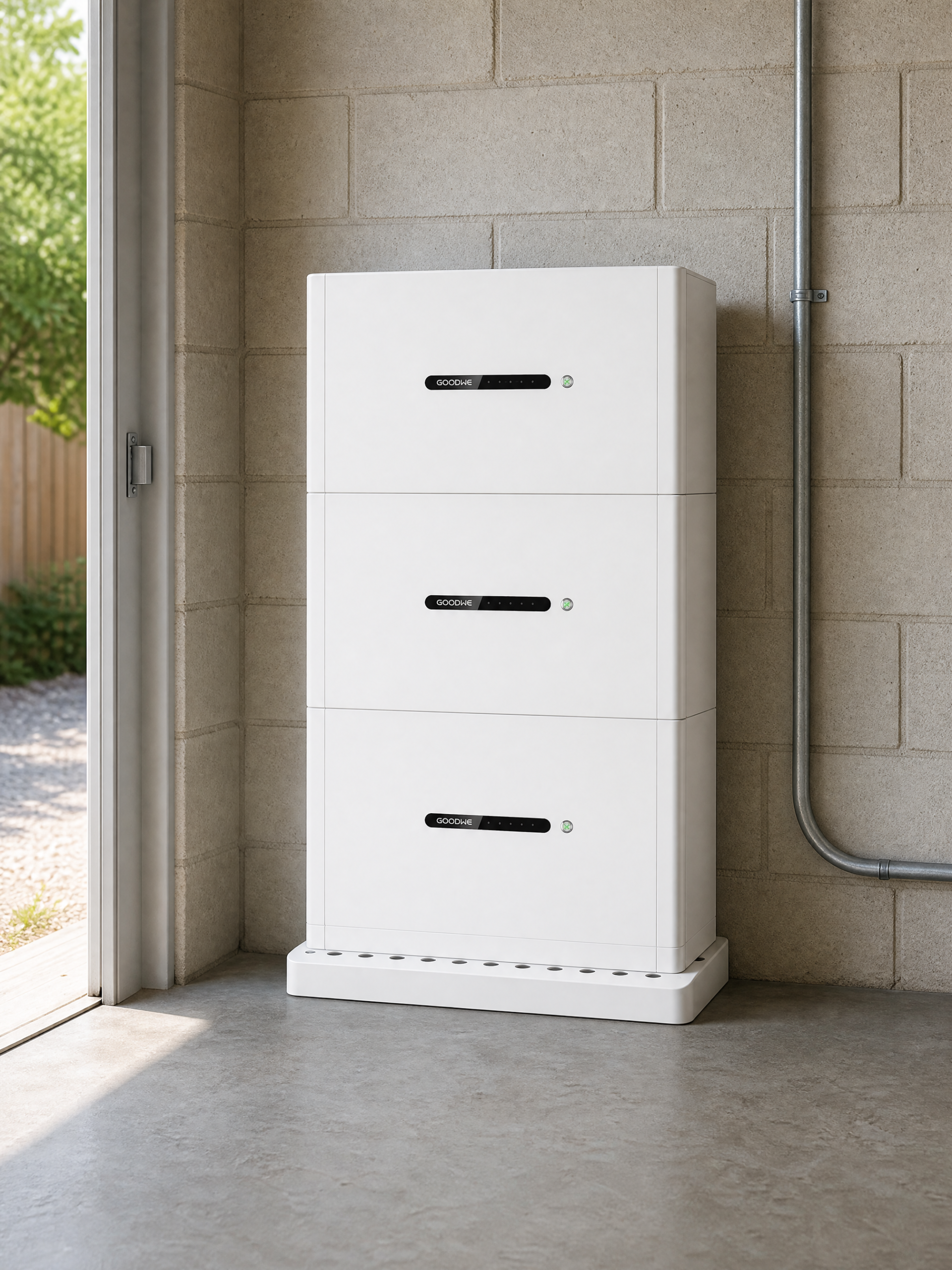

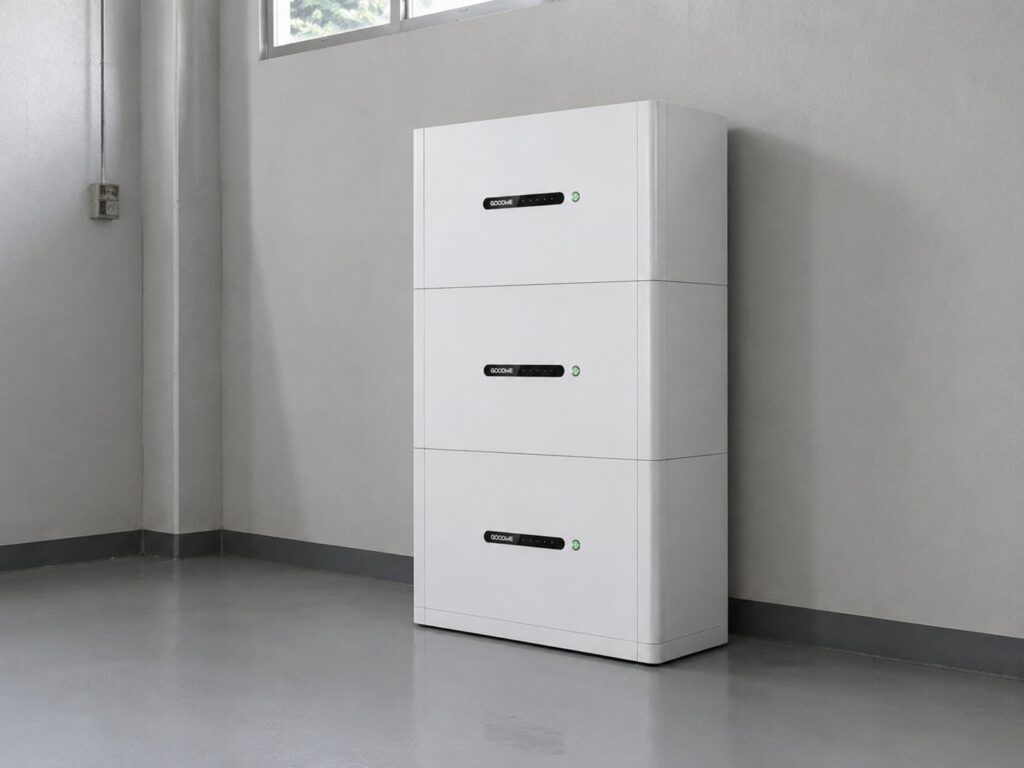

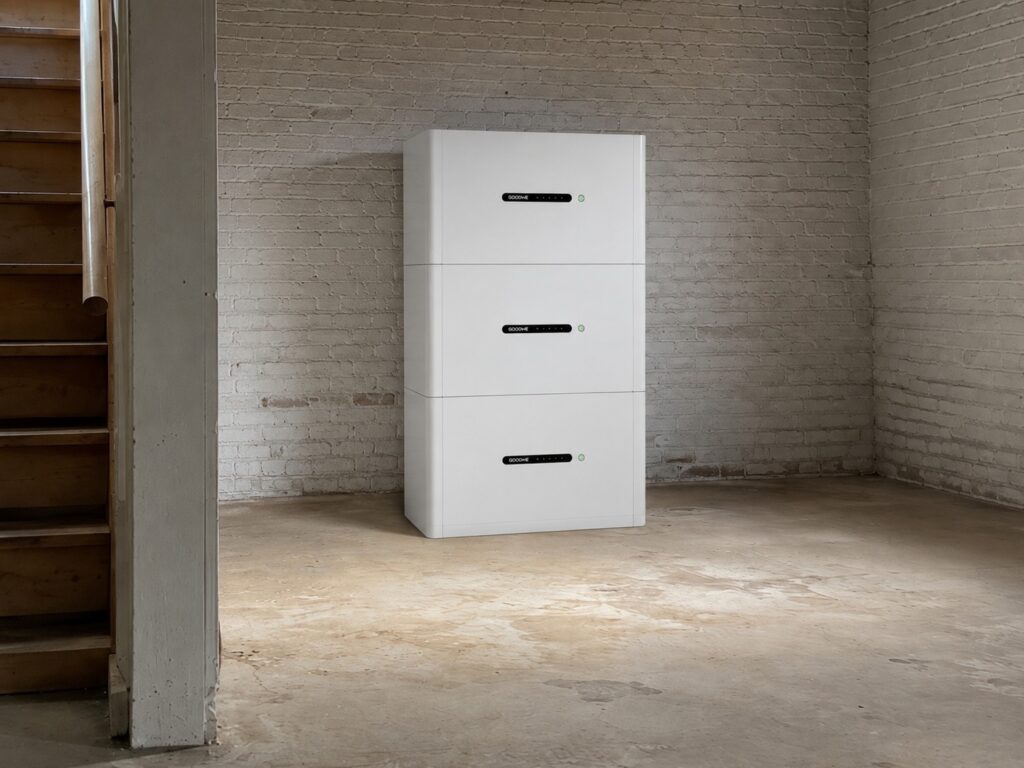

Configuration shown: 3-module 15 kWh floor stack.
Manufacturer product render from GoodWe's official datasheet.
Specifications
Every value exactly as published in the official LX D5.0-10 documentation.
Documents
Complete the system
Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.
GoodWe GM330 CT meter
- [1]GoodWe GM330 CT meter
GoodWe GW10K-ET hybrid inverter (ET 5-10 kW range)
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
- [1]GoodWe GW10K-ET hybrid inverter (ET 5-10 kW range)
- [2]GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Additional GoodWe LX D5.0-10 module
- [1]Additional GoodWe LX D5.0-10 module
What this unit is approved to run with.
Every pairing below traces to a manufacturer compatibility list, by document version and date. A pairing only one maker lists is marked; we quote it, an engineer confirms it.
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT On GoodWe's compatibility list
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT On GoodWe's compatibility list
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT On GoodWe's compatibility list
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT On GoodWe's compatibility list
GoodWe GW10K-BT
Item no. DLK-GOODWE-GW10KBT On GoodWe's compatibility list
GoodWe GW5K-BT
Item no. DLK-GOODWE-GW5KBT On GoodWe's compatibility list
GoodWe GW5K-BT
Item no. DLK-GOODWE-GW5KBT On GoodWe's compatibility list
GoodWe GW5K-BT
Item no. DLK-GOODWE-GW5KBT On GoodWe's compatibility list
Pick the rating
GoodWe family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
No. GoodWe publishes one module, the LX D5.0-10 with 5 kWh usable; the 10, 15, 20 and 25 kWh listings are de-linker supply bundles of 2, 3, 4 or 5 of that same module.
- Bundle contents: 10 kWh = 2 x LX D5.0-10 (104 kg), 15 kWh = 3 modules (156 kg), 20 kWh = 4 modules (208 kg), 25 kWh = 5 modules (260 kg).
- Same hardware: every bundle ships the identical module, so GoodWe's per-module datasheet figures apply unchanged.
- Packages: ready-made tower plus GW20K-ET or GW25K-ET inverter combinations are listed as separate items for one-line quoting.
GoodWe lists the Lynx D against its ET 5-10 kW range, the ET 15-30 kW range and the BT retrofit range.
- Named models in the product data: GW5K-ET, GW6.5K-ET, GW8K-ET, GW10K-ET, GW15K-ET and GW20K-ET.
- Firmware condition: GoodWe's pairing notes carry inverter firmware ARM 28 / DSP 12 or higher on the ET 5-10 kW and ET 15-30 kW pairings.
- Not cleared: the ET 40-50, ET 75-100 and ETC/BTC commercial tiers are not on GoodWe's Lynx D list.
- Electrical window: 320 to 480 V output with CAN communication to the inverter.
Yes. GoodWe rates the Lynx D at a maximum of 2 battery groups, up to 4 modules per group, 8 modules and 40 kWh in total.
- Headroom per bundle: the 10 kWh bundle (2 modules) leaves room for 6 more modules and the 25 kWh bundle (5 modules) for 3 more, up to the 40 kWh system maximum.
- Mixed ages: GoodWe states the Lynx D packs support mixing old and new modules, so a later extension does not require matching production batches.
- Steps: capacity grows in 5 kWh usable steps of one LX D5.0-10 module.
Installation & wiring 1
Lynx D modules floor-stack into a tower or wall-mount, with an IP66-rated enclosure.
- Handling: each module is 52 kg at 700 x 380 x 170 mm; a 20 kWh tower totals 208 kg, so check floor loading and plan two-person lifts.
- Temperature: discharge from -20 to +53 C and charge from 0 to +53 C per GoodWe.
- Environment: 0 to 95% relative humidity, altitude up to 4000 m.
- Metering: plan a GoodWe GM330 CT meter at the grid point; it is required on GoodWe ET/BT installations for export limiting and self-consumption metering.
Availability & compliance 1
GoodWe lists safety, EMC and transport certification for the LX D5.0-10 module, and every bundle ships that same certified module.
- Safety: IEC 62619, IEC 60730, VDE 2510-50, CE, CEC.
- EMC: CE and RCM.
- Transport: UN38.3.
- Grid connection: grid-code certification sits with the paired ET or BT inverter, not with the battery; confirm the certificate set required by your grid operator with the quote.
