Description
Adding 10 kW storage capacity without touching existing solar strings.

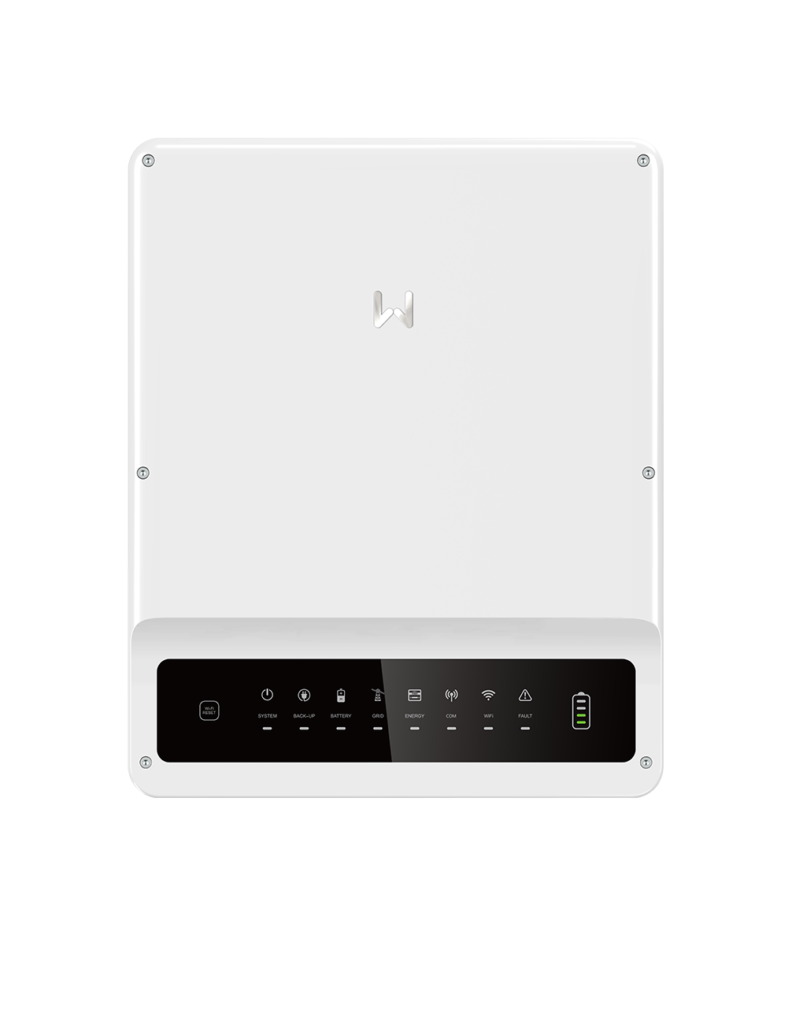

GoodWe GW10K-BT is a 10 kW flagship three-phase AC-coupled storage inverter delivering 10,000 VA continuous emergency backup, engineered to upgrade large existing solar installations to high-capacity battery storage with zero DC array modifications.
10,000 VA Continuous Three-Phase Power
Full 10 kW AC throughput provides maximum storage discharge to run heat pumps and whole-home circuits.
Drop-In Universal 400 V AC Retrofit
Adds high-voltage battery storage to any existing solar PV system without altering rooftop string wiring.
10 kVA Full Three-Phase Emergency Backup
Hardware-level sub-10 ms automatic transfer keeps all domestic circuits operational during outages.
Whisper-Quiet Natural Cooling (< 30 dB), 100% fanless heatsink architecture eliminates fan maintenance and acoustic noise indoors.
More product details
Upgrading an existing high-power residential solar system by replacing inverters requires costly DC rewiring and scaffolding. The GW10K-BT connects straight to the home's 400 V AC distribution board, capturing surplus solar from the AC grid.
- Connects directly to the main domestic AC panel beside existing string inverters of any manufacturer.
- Measures household grid import/export in real time via the GoodWe GM3000 smart meter.
- Automatically schedules charging during solar overproduction peaks and off-peak utility tariff windows.
GoodWe
Compare different models
Scroll sideways to compare every model.
3 models
Rated AC power
10 kW
5 kW
8 kW
Phase
Three-phase TN/TT system
Three-phase TN/TT system
Three-phase TN/TT system
Max. efficiency
97.6 %
97.6 %
97.6 %
Battery voltage
180 ~ 600 V
180 ~ 600 V
180 ~ 600 V
Ingress protection
IP66
IP66
IP66
Weight
21 kg
21 kg
21 kg
Dimensions
415 × 516 × 180 mm
415 × 516 × 180 mm
415 × 516 × 180 mm
Full three-phase emergency backup with direct high-voltage storage link.
Direct high-voltage battery pairing (180–600 V) eliminates heavy step-up conversion losses, while internal high-speed switchgear provides full 10 kVA emergency backup. Delivers 14.5 A continuous output current per phase on backup to sustain three-phase induction cooktops and heat pumps. Sub-10 ms automatic UPS transfer keeps home computers, routers, and heating electronics live during outages. IP66 cast-aluminum casing allows clean indoor utility mounting or outdoor sheltered installation (-35 to +60 °C).
Takes 25 A across the HV battery port
Charge and discharge current tops out at 25 A. The 180 to 600 V window matches modern high-voltage lithium banks.
Holds 97.6 percent peak conversion
Balanced three-phase inversion keeps peak efficiency at 97.6 percent. Less heat in the chassis means more energy left in the pack.
Includes RS485, WiFi and LAN together
Monitoring and control share the onboard interfaces. Fleet tools reach the inverter without a separate gateway module.
Technical data
The flagship residential AC-coupled storage engine engineered for complete domestic autonomy.
10 kW continuous three-phase AC-coupled storage retrofit with 10 kVA whole-home backup.
Maxing out GoodWe's residential AC-coupled lineup, the GW10K-BT delivers 10,000 W continuous AC power (11,000 VA max) to charge and discharge high-voltage storage. It retrofits onto any existing three-phase solar PV system, providing full 10 kVA continuous emergency backup and complete domestic energy autonomy without touching existing string inverters.
- Full 3-Phase Power
- 10,000 VA
- High-Voltage Battery Bus
- 180–600 V
- DC Rewiring Needed
- Zero
- 100% Passive Cooling
- < 30 dB(A)
Power & Phase
- AC output power
- 10 kW
- Phase
- 3
- System role
- AC-coupled retrofit
Battery Interface
- Battery type
- Li-Ion (HV)
- Battery voltage range
- 180 to 600 V
- Max. charge / discharge current
- 25 A
Efficiency & Protection
- Max. efficiency
- 97.6 %
- Protection rating
- IP66
- UPS function
- Yes
Physical & Comms
- Dimensions (W x H x D)
- 415 x 516 x 180 mm
- Weight
- 21.0 kg
- Communication
- RS485, WiFi / LAN
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW10K-BT belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

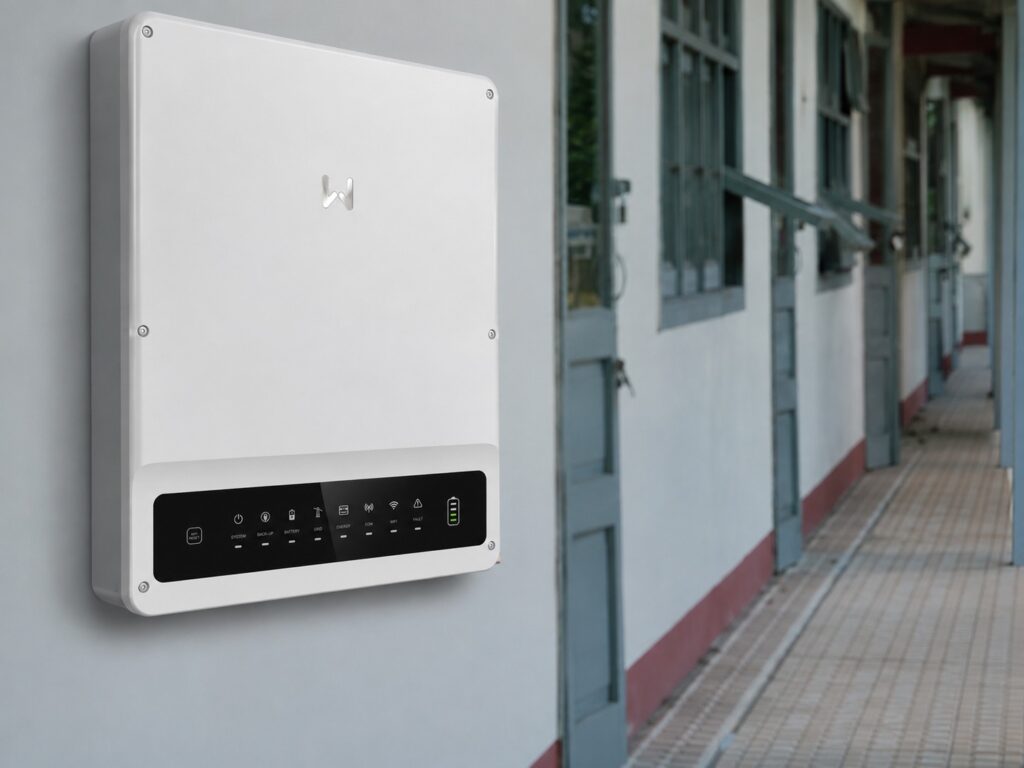

Large Electrified Homes (12–16 kWp Existing Solar) Adding High-Capacity Storage
Large residential properties with existing three-phase solar systems seeking to add 13–20 kWh of storage to cover heavy evening heat pump and cooking loads.
10 kW continuous AC throughput delivers the power needed to run multiple high-draw appliances simultaneously from battery storage without grid purchases.
- BoundaryIf household continuous peak demand is moderate (< 8 kW) and existing solar capacity is under 12 kWp, step down to the GW8K-BT to save capital expenditure. ---
What Linker confirms with you
- If household continuous peak demand is moderate (< 8 kW) and existing solar capacity is under 12 kWp, step down to the GW8K-BT to save capital expenditure. ---
Documents
GoodWe BT Series 5-10kW AC-Coupled Retrofit Inverter Datasheet GoodWe ET/ET+/BT Series User ManualProduct questions
Can the GW10K-BT power three-phase induction cooktops and heat pumps during a blackout?
Yes. Delivers 10,000 VA continuous three-phase emergency backup. The GW10K-BT supplies full 10,000 VA continuous three-phase power across L1, L2, and L3 on its dedicated backup port (approx. 14.5 A nominal current per line). Its high-current power stage effortlessly carries the starting inrush currents of heat pump compressors and kitchen appliances without voltage sags or tripping.
What is the maximum continuous AC export current on this model?
16.5 A max output current; 20 A or 25 A 3-pole circuit breaker. The GW10K-BT delivers a nominal continuous output current of 14.5 A per phase (max output current 16.5 A @ 400 V). A 3-pole 20 A or 25 A circuit breaker (MCB) is standard on the AC distribution board.
System components
Required components
GoodWe GM330 CT meter
Item number: DLK-GOODWE-GM330
Export limiting / self-consumption metering, needed alongside the existing PV inverter's own metering.
Recommended components
GoodWe LX D5.0-10 / Lynx D battery bank
Item number: DLK-GOODWE-LXD5010
GoodWe's Battery Compatibility Overview lists the Lynx D against the BT range (ARM 28 / DSP 12 firmware or higher required on the inverter).
Approved pairings
GoodWe LX D5.0-10Item number DLK-GOODWE-LXD5010GoodWe requires ARM 28 and DSP 12 or higher on the BT for the Lynx D.
GoodWe Lynx D 10 kWh (2 x LX D5.0-10)Item number DLK-GOODWE-LYNXD10KWHGoodWe requires ARM 28 and DSP 12 or higher on the BT for the Lynx D.
GoodWe Lynx D 15 kWh (3 x LX D5.0-10)Item number DLK-GOODWE-LYNXD15KWHGoodWe requires ARM 28 and DSP 12 or higher on the BT for the Lynx D.
GoodWe Lynx D 20 kWh (4 x LX D5.0-10)Item number DLK-GOODWE-LYNXD20KWHGoodWe requires ARM 28 and DSP 12 or higher on the BT for the Lynx D.
GoodWe Lynx D 25 kWh (5 x LX D5.0-10)Item number DLK-GOODWE-LYNXD25KWHGoodWe requires ARM 28 and DSP 12 or higher on the BT for the Lynx D.
GoodWe Lynx Home F 13.10 kWh (PCU base + 4 x LX F3.3-H)Item number DLK-GOODWE-LXF131HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 16.38 kWh (PCU base + 5 x LX F3.3-H)Item number DLK-GOODWE-LXF164HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe LX F3.3-H (Lynx Home F battery module, 3.27 kWh)Item number DLK-GOODWE-LXF33HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 6.55 kWh (PCU base + 2 x LX F3.3-H)Item number DLK-GOODWE-LXF66HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F 9.83 kWh (PCU base + 3 x LX F3.3-H)Item number DLK-GOODWE-LXF98HGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe Lynx Home F PCU base (master BMS)Item number DLK-GOODWE-LXFPCUGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
Pylontech FH9637MItem number DLK-PYLONTECH-FH9637MGoodWe's list, 2026-04-14, carries a BT column and puts Force-H2 in it, at ARM 14 or higher. This is the one pairing where GoodWe is the maker who lists it.
Pylontech FH10050Item number DLK-PYLONTECH-FH10050GoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 10.24 kWh (2 x FH10050)Item number DLK-PYLONTECH-FORCEH31024KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 15.36 kWh (3 x FH10050)Item number DLK-PYLONTECH-FORCEH31536KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 20.48 kWh (4 x FH10050)Item number DLK-PYLONTECH-FORCEH32048KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 25.6 kWh (5 x FH10050)Item number DLK-PYLONTECH-FORCEH3256KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 30.72 kWh (6 x FH10050)Item number DLK-PYLONTECH-FORCEH33072KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
Pylontech Force-H3 35.84 kWh (7 x FH10050)Item number DLK-PYLONTECH-FORCEH33584KWHGoodWe's list, 2026-04-14, puts Force-H3 in the BT column, at ARM 14 or higher.
