Description
Comprehensive cell-level monitoring with integrated DC isolation.

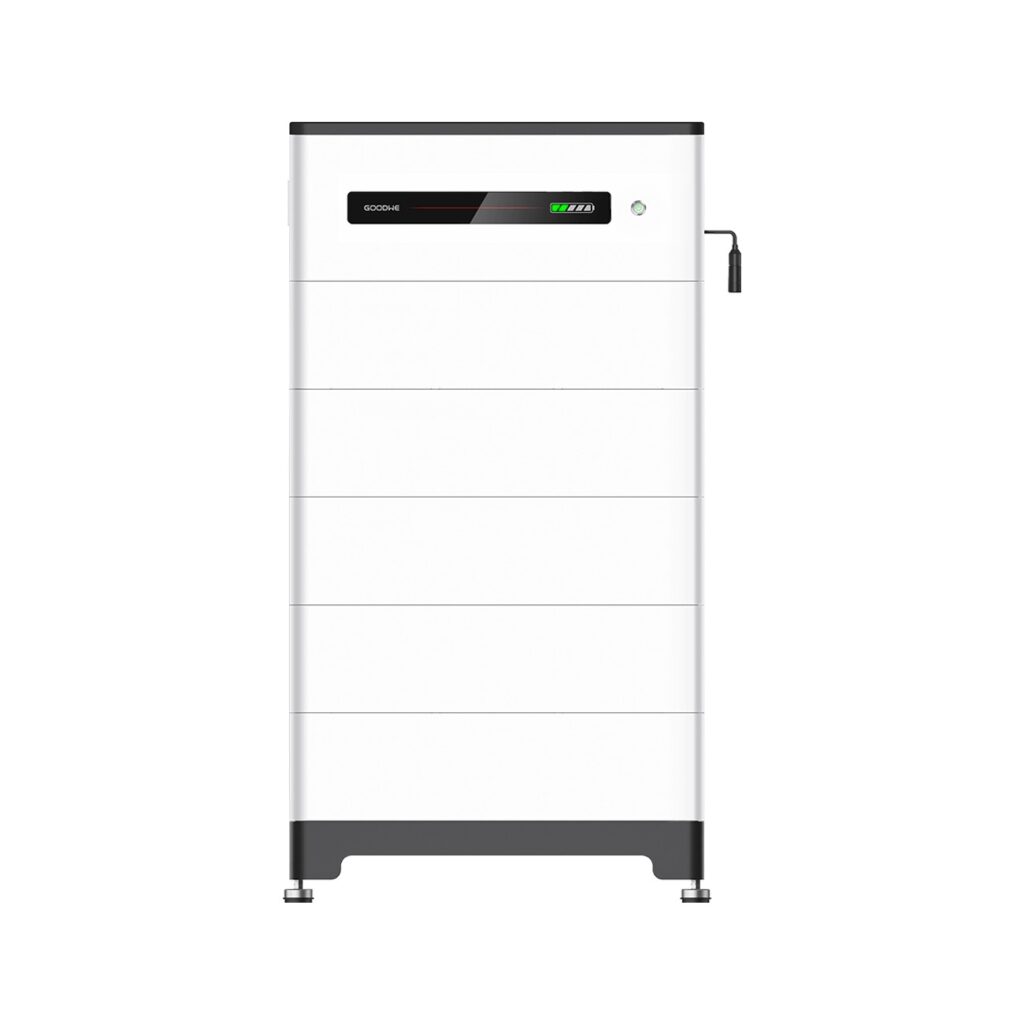

GoodWe Lynx Home F PCU Base is the high-voltage master BMS controller and floor pedestal that manages cell balancing, automated commissioning, and safety isolation for 2 to 5 stacked Lynx Home F modules.
Integrated Master BMS Intelligence
Continuously monitors individual cell voltages, temperatures, and insulation across 2 to 5 stacked modules (up to 576 V).
Automated Module Recognition
Auto-detects the number of attached battery bricks upon startup, eliminating manual dip-switch configuration.
Stable Ground-Mounted Foundation
Heavy-duty floor pedestal with IP55 sealing safely anchors stacks weighing up to 244 kg against domestic walls.
Direct Hybrid Inverter Communication
Native high-speed CAN link communicates seamlessly with GoodWe ET and BT hybrid inverters.
More product details
The PCU base centralizes high-voltage system protection, actively communicating with sub-BMS units inside each LX F3.3-H module to balance cell states and execute sub-second fault isolation.
- Real-time monitoring of cell voltages, string temperatures, and ground insulation resistance.
- Integrated motorized DC circuit breaker automatically isolates the stack during overcurrent, short circuit, or thermal faults.
- Direct CAN/RS485 protocol handshake provides real-time state-of-charge (SoC) telemetry to GoodWe hybrid inverters.
GoodWe Lynx Home F
Compare different models
Scroll sideways to compare every model.

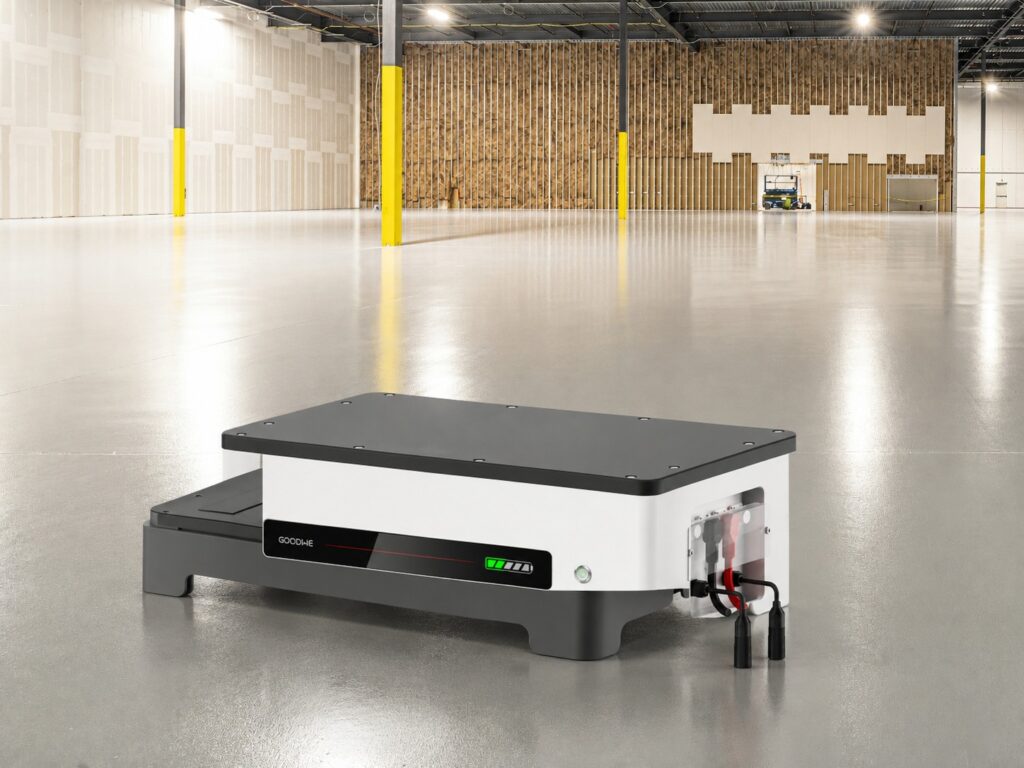

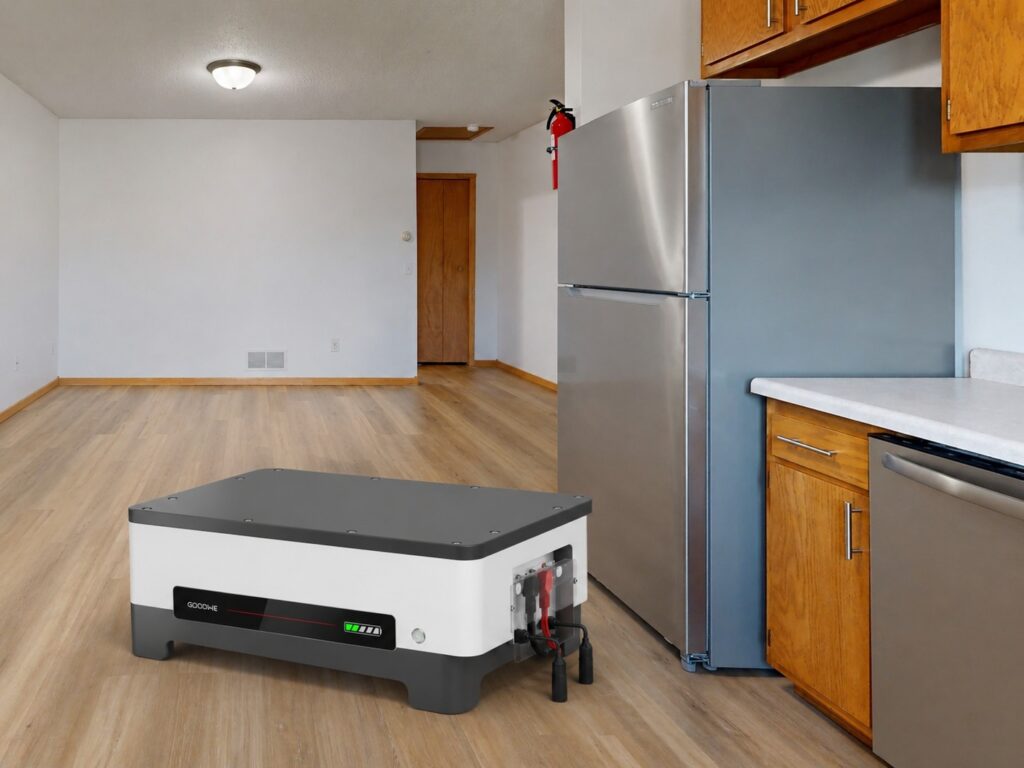

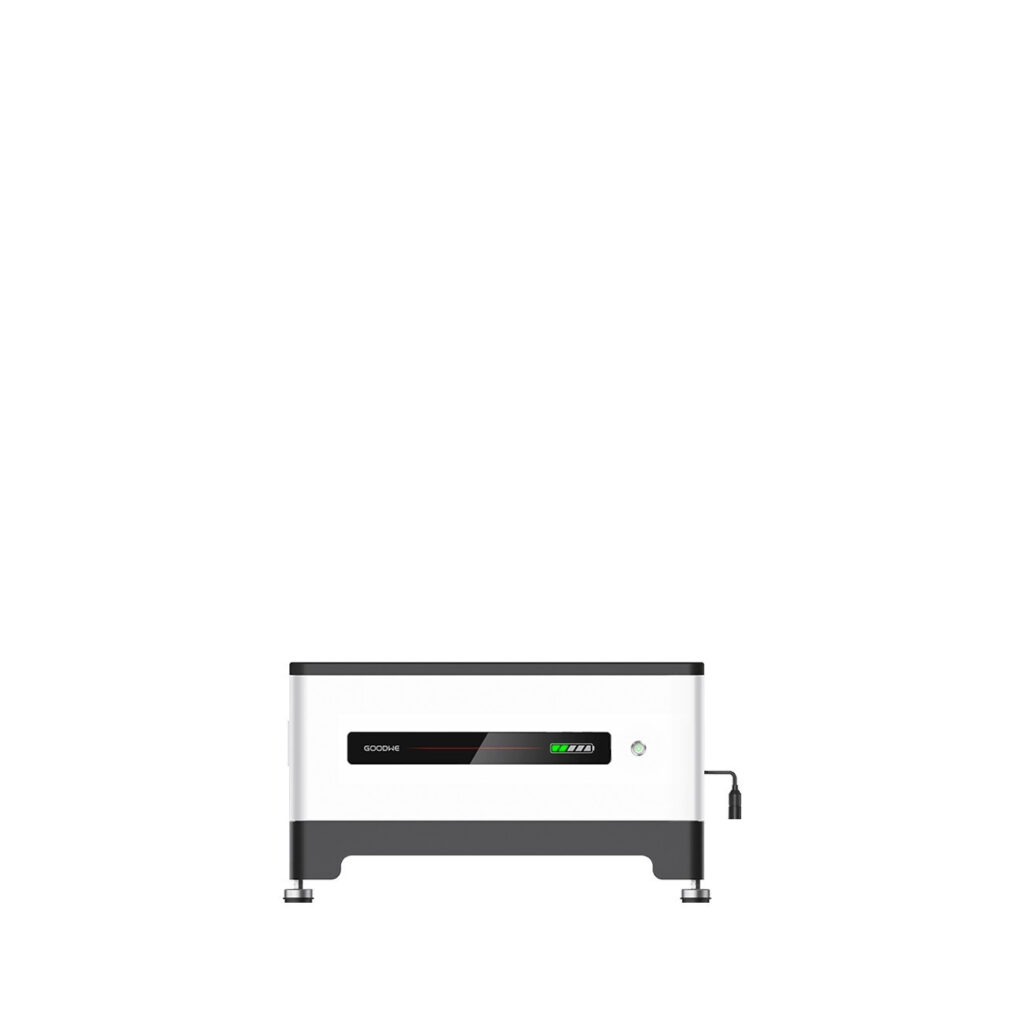

Rugged floor-mounted pedestal with internal busbar mating.
Designed as the structural baseplate of the vertical battery column, the PCU provides precision leveling feet and self-aligning internal high-voltage contacts. Internal push-in busbar terminals pass high-voltage power and communication directly to the first battery brick without external cables. Engineered floor-level stand isolates battery modules from concrete floor moisture and standing condensation. Supports vertical stacking of up to 5 modules (over 240 kg) with integrated wall-anchoring brackets.
It holds the tower up and keeps it in order
The base takes the weight of two to five modules at floor level, so nothing loads the wall, while the master BMS balances and supervises the stack standing on it.
What reaches the inverter is a battery, not a parts list
Module-level detail stays inside the PCU. What leaves it on the CAN line is a single battery system - which is why commissioning and later firmware work do not change when the module count does.
Eight towers, eight bases
GoodWe's Lynx F manual documents up to eight towers in parallel, each standing on its own PCU base. A site grows by repeating a known unit rather than by redesigning one.
Technical data
Centralizing high-voltage safety, cell diagnostics, and plug-and-play stacking in a single base.
The intelligent master controller and structural foundation for Lynx Home F.
Acting as the central brain and mechanical anchor of the Lynx Home F series, the PCU base houses the primary battery management processor, motorized DC breaker switchgear, and inverter communication bridge. It supports granular capacity expansion from 6.55 kWh to 16.38 kWh, managing high-voltage safety without requiring external DC disconnect boxes.
- High-Voltage Range
- 180–600 V
- Continuous Current
- 25 A
- Plug-and-Play
- Auto-Detect
- Weatherproof Enclosure
- IP55
General data
- Configuration
- PCU base with master BMS, 1 per tower
- Supported modules
- 2 to 5 x LX F3.3-H
- Packaging (VPE)
- 8 per pallet
System boundary & compatibility
- System role
- Floor base and master BMS for one Lynx Home F tower
- Required quantity
- 1 PCU per tower
- Compatible battery module
- GoodWe LX F3.3-H
- Minimum battery modules
- 2
- Maximum battery modules
- 5
- Tower energy range
- 6.6–16.4 kWh
- Battery communication
- CAN
- Standalone operation
- Not possible, requires battery modules and a compatible inverter
- Energy stored in PCU
- None, controller/base only
- Compatible inverter families
- GoodWe BH, EH, BT and ET seriesexact model pairing must be checked
- Maximum parallel towers
- 8, subject to the current GoodWe system design rules
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe Lynx Home F PCU base (master BMS) belongs in, what to verify before quoting, and when another model is the better pick.
Required Base for Any New Lynx Home F Installation (6.55–16.38 kWh)
Mandatory foundation unit whenever configuring a new GoodWe Lynx Home F battery tower with 2, 3, 4, or 5 battery modules.
One PCU base is required per battery column to house the master BMS and provide physical floor mounting.
- Confirm this model against the adjacent rating in the same family
Replacement / Service Unit for Existing Lynx Home F Stacks
Maintenance or warranty replacement of the master controller on an existing residential battery tower.
Drops directly into existing Lynx Home F columns, automatically recognizing the existing module configuration upon power-up.
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe Lynx Home F Series (HV) Datasheet (EMEA, EN)Product questions
Can a single PCU base control more than 5 battery modules?
No. Maximum 5 modules (16.38 kWh) per single tower. The PCU's internal master BMS firmware and DC voltage ceiling (600 V DC) are engineered to support a maximum of 5 modules in series (16.38 kWh / 512 V nominal). To expand capacity beyond 16.38 kWh, you must install a second complete tower (including its own PCU base) and connect the two towers in parallel using an external high-voltage combiner box.
Does the PCU base include the bottom floor pedestal in the box?
Yes. The PCU base includes the master control unit and the ground stand. The unit serves as both the electrical master controller and the bottom mechanical floor pedestal. It features adjustable leveling feet to ensure vertical stack alignment against uneven basement or garage floors.
Is any manual dip-switch addressing required when adding battery modules?
No. Automated module addressing on startup. The PCU base features plug-and-play auto-recognition. Upon powering on the system, the master controller interrogates the stack, identifies how many LX F3.3-H modules are connected (from 2 to 5), calibrates total string voltage, and establishes communication with the hybrid inverter automatically.
Approved pairings
GoodWe GW10K-BTItem number DLK-GOODWE-GW10KBTGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW5K-BTItem number DLK-GOODWE-GW5KBTGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW8K-BTItem number DLK-GOODWE-GW8KBTGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGoodWe requires ARM 07 and DSP 06 or higher on the ET 15-30 kW for the Lynx Home F.
GoodWe GW10K-ETItem number DLK-GOODWE-GW10KETGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW5K-ETItem number DLK-GOODWE-GW5KETGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW6.5K-ETItem number DLK-GOODWE-GW65KETGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
GoodWe GW8K-ETItem number DLK-GOODWE-GW8KETGoodWe requires ARM 25 and DSP 09 or higher on the ET/BT for the Lynx Home F.
