Description
Low-current high-voltage transmission for heavy industrial cycling.

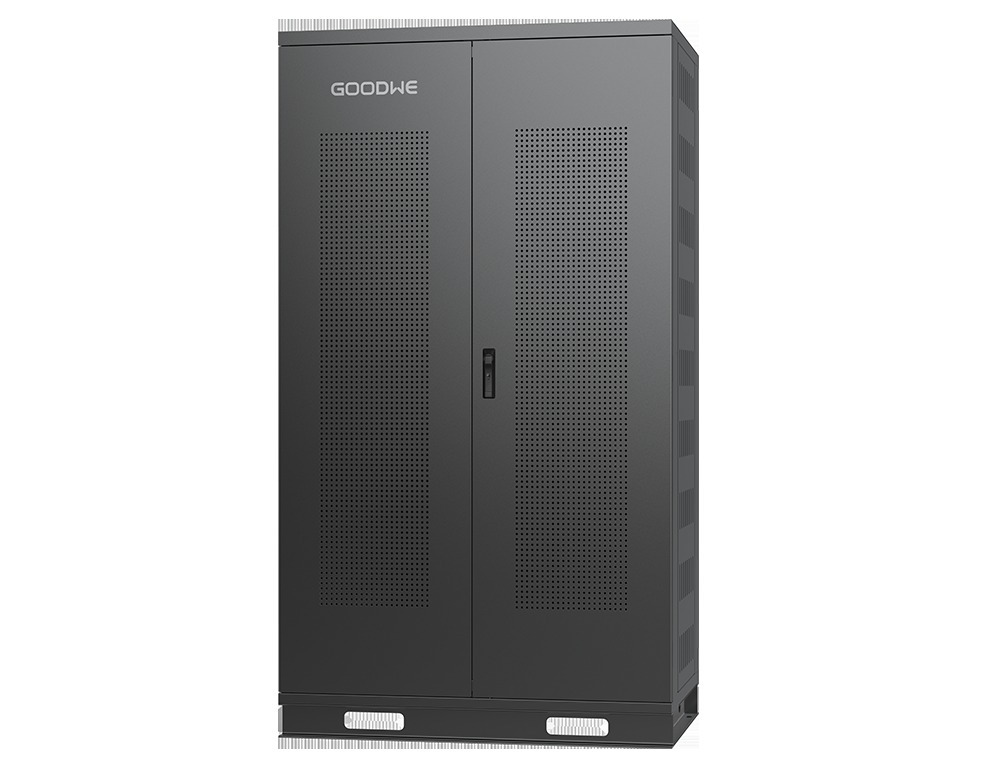

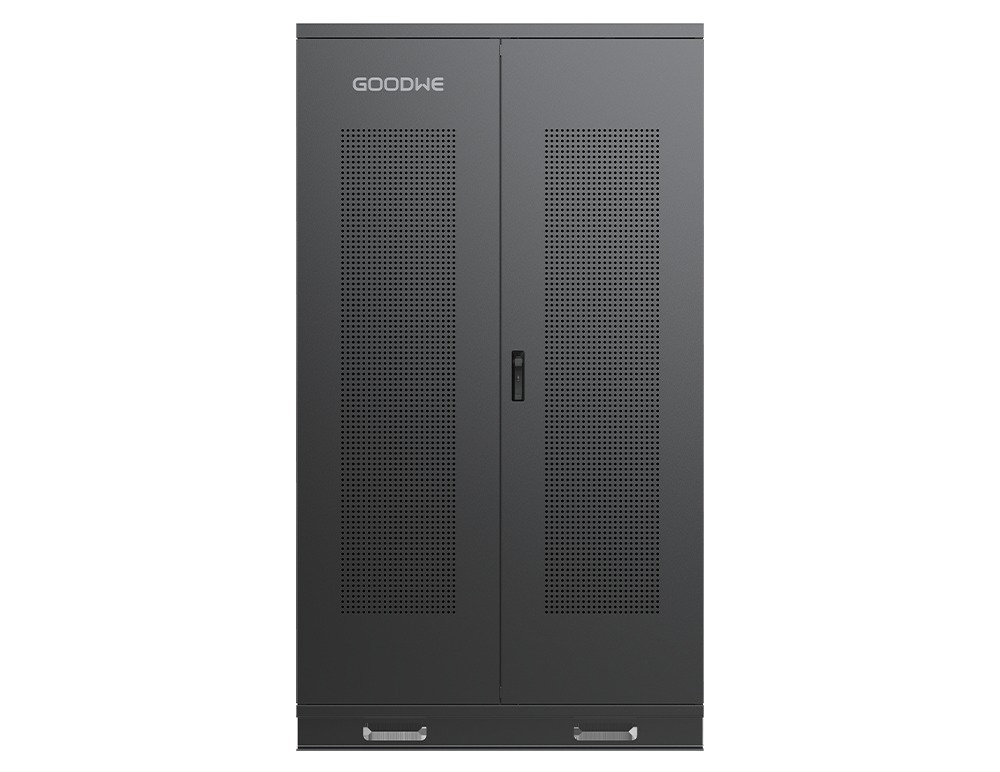

GoodWe LX C138-10 is a 138.24 kWh commercial indoor high-voltage battery rack delivering 576.0 V nominal operating voltage, engineered for energy-intensive industrial facilities requiring high round-trip storage efficiency and 100 A continuous peak shaving.
138.24 kWh Heavy Commercial Storage, 124.4 kWh usable capacity provides deep multi-hour peak shaving for manufacturing facilities.
576.0 V High-Voltage Bus (15 Packs)
Higher string voltage reduces resistive cable heat and minimizes conversion losses on 100 kW inverters.
100 A Continuous Power Throughput
Delivers up to 57 kW continuous DC charge and discharge power into facility loads.
Pre-Engineered Turnkey Indoor Cabinet
Factory-assembled grounded enclosure with internal copper busbars and master BMS switchgear.
More product details
Operating high-voltage commercial storage at ~576 V nominal minimizes internal current stress and resistive line heat, allowing the inverter to deliver peak conversion efficiency during continuous 100 A cycling.
- 15 series-connected packs provide 576.0 V nominal (513.0–639.0 V operating range).
- Heavy-duty internal copper busbars handle continuous 100 A current flow with ultra-low thermal dissipation.
- Integrated motorized DC breaker provides sub-second short-circuit, overcurrent, and thermal isolation.
GoodWe
Compare different models
Scroll sideways to compare every model.
Factory-calibrated communication for GoodWe commercial inverters.
The LX C138-10 communicates natively with GoodWe commercial inverters via CAN/RS485, providing cell-level telemetry and dynamic multi-tariff scheduling. Pre-configured communication profiles eliminate on-site protocol debugging and custom BMS gateway programming. Real-time cell balancing, temperature tracking, and state-of-charge synchronization monitored via SEMS portal. IP21 grounded industrial cabinet engineered for dedicated indoor electrical switchrooms and battery rooms.
Runs from 504.0 to 639.0 V DC
Operating voltage stays within 504.0 to 639.0 V throughout charge cycles. Matched voltage curves deliver stable discharge under high commercial loads.

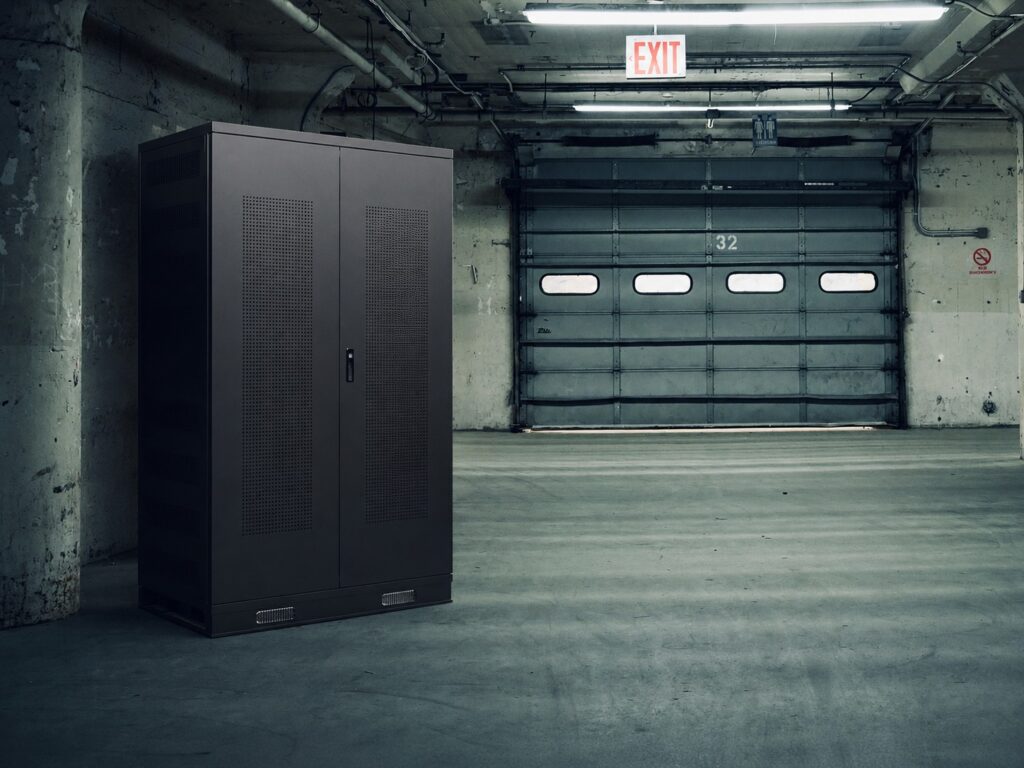

Stands on a grounded heavy base
The 1480 kg indoor enclosure anchors directly to reinforced facility floors. IP21 casing protects internal electrical components.
Stands 2065 mm tall at 1480 kg
Fifteen modules need the tall frame. Footprint stays 1155 by 730 mm. Ingress is IP21.

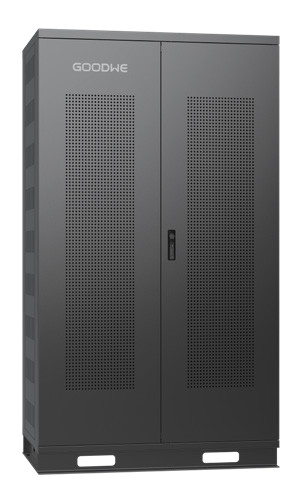

Technical data
High-density commercial storage engineered for heavy industrial peak shaving and multi-hour backup.
138.24 kWh / 576.0 V commercial storage rack delivering high round-trip efficiency.
Populated with fifteen series-connected LFP battery packs, the LX C138-10 delivers 138.24 kWh of commercial storage at 576.0 V nominal. Operating at higher DC bus voltage reduces internal transmission current, maintaining lower operating temperatures and higher efficiency across continuous daily commercial charge/discharge cycles.
- Nominal Storage
- 138.24 kWh
- High-Voltage Bus
- 576.0 V
- Continuous Throughput
- 100 A
- Indoor Rack
- Pre-Wired
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Battery module
- LX C9.2-10, 38.4 V, 9.21 kWh

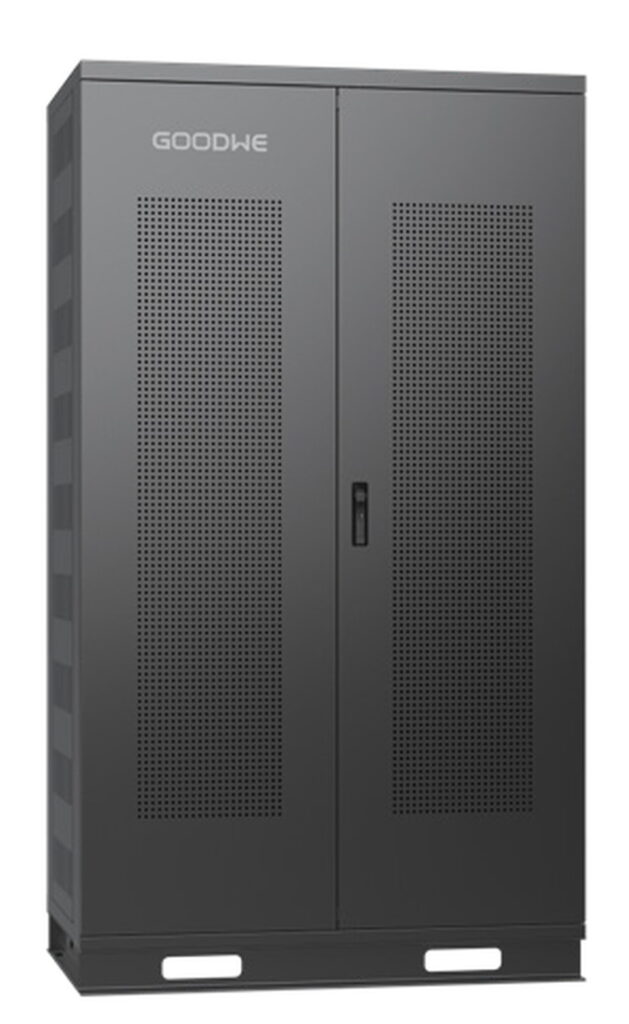

- Usable energy (kWh)
- 138.24
- Nominal voltage (V)
- 576.0
- Operating voltage range (V)
- 504.0 ~ 639.0
- Nominal charge / discharge current (A)
- 100
- Nominal power (kW)
- 57.60
- Depth of discharge
- 100%
Scalability
- Number of modules
- 15
- Cabinets per battery input
- Up to 3
- System range
- 101 kWh to 936 kWh
Environment
- Operating temperature range (C)
- Charge 0 ~ +45, discharge -20 ~ +50
- Relative humidity
- 0 ~ 95%
- Max. operating altitude (m)
- 2000
Mechanical & Comms
- Communication
- CAN + RS485
- Dimensions (W x H x D mm)
- 1155 x 2065 x 730
- Weight (kg)
- 1480
- Ingress protection rating
- IP21
- Mounting method
- Grounded
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe LX C138-10 belongs in, what to verify before quoting, and when another model is the better pick.
Commercial Facilities with 80–100 kWp Solar & 3 to 4-Hour Peak Shaving Demands
Manufacturing plants running multi-shift operations seeking ~140 kWh of storage to offset afternoon utility demand charges.
138.24 kWh capacity and 576.0 V operating bus provide the optimal electrical match for 100 kW inverters.
- BoundaryIf the facility requires maximum single-rack energy capacity (156.67 kWh), step up to the LX C156-10. ---
- If the facility requires maximum single-rack energy capacity (156.67 kWh), step up to the LX C156-10. ---
Documents
GoodWe Lynx C 101-156 kWh datasheet (EMEA, EN)Product questions
What is the continuous charge/discharge power capability of this 138.24 kWh rack?
Approximately 57 kW continuous DC power. At the nominal voltage of 576.0 V and the maximum continuous current of 100 A ($P = V \times I$), the rack delivers approx. 57.6 kW continuous DC charge and discharge power, allowing a 100 kW inverter to cycle the battery rapidly during peak solar and tariff windows.
What are the physical dimensions and weight of this cabinet?
Approx. 1155 × 2100 × 730 mm; ~1,350 kg total weight. The cabinet measures approx. 1155 mm wide × 2100 mm high × 730 mm deep and weighs approx. 1,350 kg when fully populated with 15 battery packs and the master control unit. It is rated IP21 for indoor use only.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for C&I export control.
Recommended components
GoodWe GW50K07-ETC hybrid inverter (ETC/BTC range)
Item number: DLK-GOODWE-GW50K07ETC
GoodWe's C&I compatibility table lists the full LX C101-10 to LX C156-10 range against the ETC/BTC pair.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
This pairing applies to the GW60KWH-D-10 SKU specifically, not the LX C101-10 to LX C156-10 cabinets, which GoodWe does not list against the ET 15-30 kW range.
Approved pairings

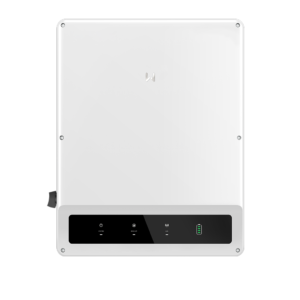

GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW100K07-BTCItem number DLK-GOODWE-GW100K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW100K07-ETCItem number DLK-GOODWE-GW100K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-BTCItem number DLK-GOODWE-GW50K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-ETCItem number DLK-GOODWE-GW50K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
