Description
156 kWh capacity consolidated in a single 1.15 m cabinet footprint.

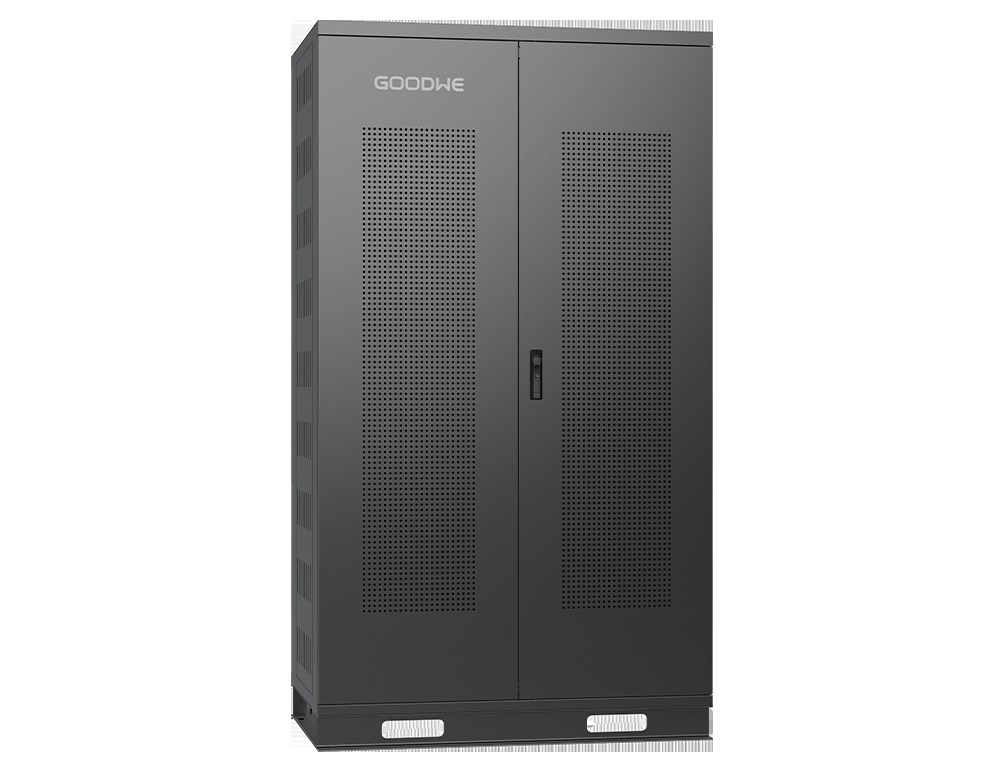

GoodWe LX C156-10 is the flagship 156.67 kWh commercial indoor high-voltage battery rack delivering 652.8 V nominal operating voltage, engineered to provide maximum single-cabinet energy density and heavy-duty 100 A peak shaving for 100 kW commercial inverters.
156.67 kWh Maximum Single-Rack Capacity
Delivers the highest energy capacity in the Lynx C range, minimizing total cabinet count in large C&I installations.
652.8 V High-Voltage Operating Ceiling (17 Packs)
Matches the upper operating window of 100 kW inverters (GW100K-ETC/BTC), delivering peak electrical efficiency.
100 A Heavy Commercial Power Throughput
Rapidly absorbs large solar generation surges and delivers sustained high-power factory peak shaving (up to 65 kW DC).
Pre-Engineered Turnkey Indoor Cabinet
Factory-assembled grounded enclosure with internal copper busbars and master BMS switchgear.
More product details
Sourcing multiple smaller battery cabinets increases switchroom floor space requirements and inter-cabinet cabling costs. The LX C156-10 consolidates 17 packs into a single 1.15 m × 0.73 m footprint.
- 17 series-connected packs provide 652.8 V nominal (581.4–724.2 V operating range).
- Heavy-duty internal copper busbars handle continuous 100 A current flow with ultra-low thermal dissipation.
- Integrated motorized DC breaker provides sub-second short-circuit, overcurrent, and thermal isolation.
GoodWe
Compare different models
Scroll sideways to compare every model.
Factory-calibrated communication for GoodWe commercial inverters.
The LX C156-10 communicates natively with GoodWe commercial inverters via CAN/RS485, providing cell-level telemetry and dynamic multi-tariff scheduling. Pre-configured communication profiles eliminate on-site protocol debugging and custom BMS gateway programming. Real-time cell balancing, temperature tracking, and state-of-charge synchronization monitored via SEMS portal. IP21 grounded industrial cabinet engineered for dedicated indoor electrical switchrooms and battery rooms.
Takes 100 A continuous current
A steady 100 A charge and discharge rate handles rigorous commercial duty cycles. Internal cell balancing optimizes state-of-charge consistency.

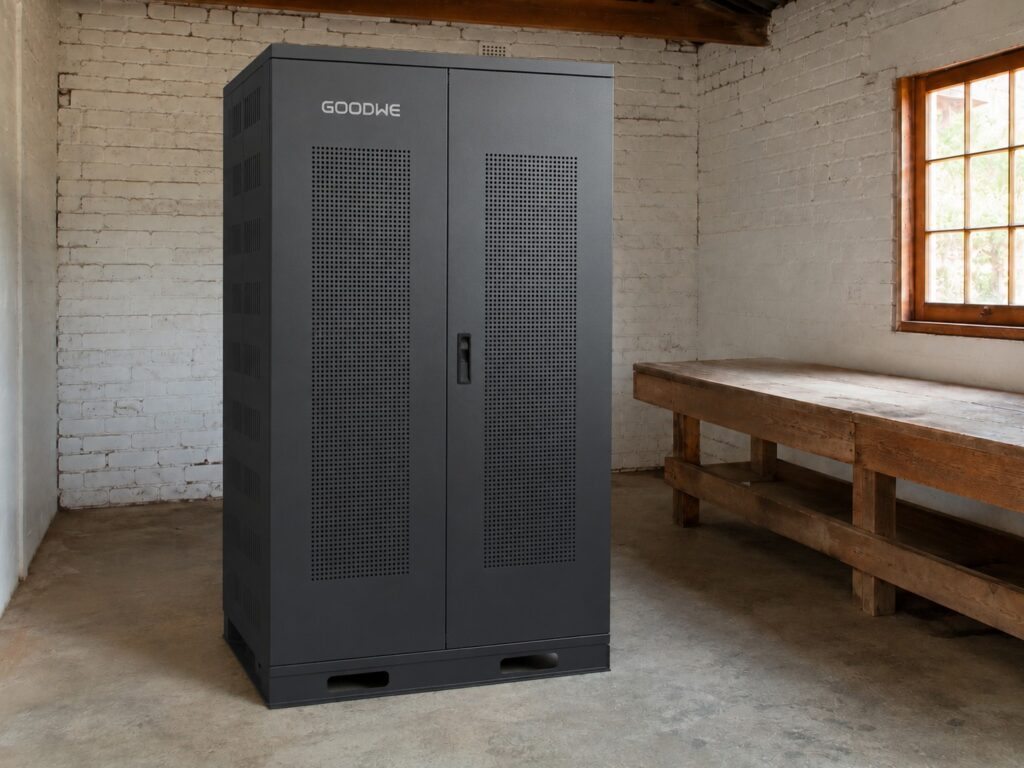

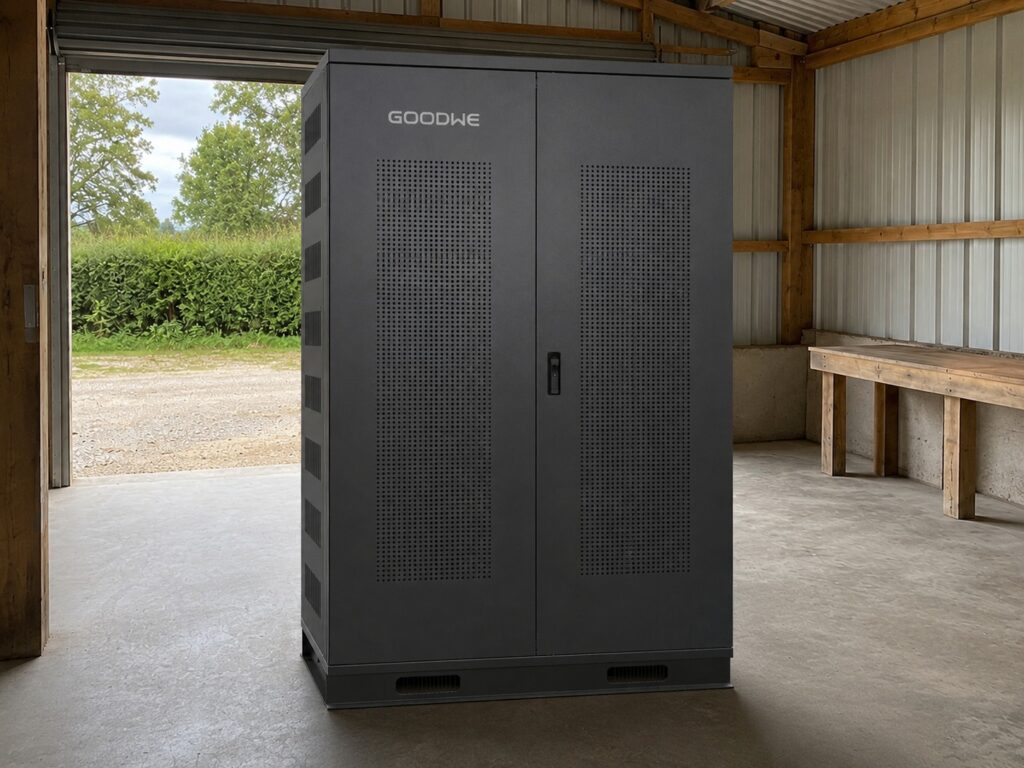

Stands in IP21 at 1650 kg weight
Dimensions measure 1155 x 2065 x 730 mm on a grounded indoor base. Heavy-gauge steel panels shield internal battery modules.
Holds 17 modules at 1650 kg
The tall cabinet is 1155 x 2065 x 730 mm. Ingress is IP21. Mounting is grounded.
Technical data
The flagship high-density commercial storage rack engineered for 100 kW industrial electrification.
156.67 kWh / 652.8 V maximum capacity indoor commercial storage rack.
Maxing out the Lynx C commercial indoor lineup, the LX C156-10 packs seventeen series-connected LFP modules to achieve 156.67 kWh at 652.8 V nominal. Designed for energy-intensive industrial facilities and multi-megawatt-hour storage projects, it delivers high energy density in a single factory-engineered enclosure, enabling full-day load shifting and emergency factory backup.
- Maximum Rack Storage
- 156.67 kWh
- High-Voltage Bus
- 652.8 V
- Continuous Throughput
- 100 A
- Indoor Rack
- Pre-Wired
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Battery module
- LX C9.2-10, 38.4 V, 9.21 kWh
- Usable energy (kWh)
- 156.67
- Nominal voltage (V)
- 652.8
- Operating voltage range (V)
- 571.2 ~ 724.2
- Nominal charge / discharge current (A)
- 100
- Nominal power (kW)
- 65.28
- Depth of discharge
- 100%
Scalability
- Number of modules
- 17
- Cabinets per battery input
- Up to 3
- System range
- 101 kWh to 936 kWh
Environment
- Operating temperature range (C)
- Charge 0 ~ +45, discharge -20 ~ +50
- Relative humidity
- 0 ~ 95%
- Max. operating altitude (m)
- 2000
Mechanical & Comms
- Communication
- CAN + RS485
- Dimensions (W x H x D mm)
- 1155 x 2065 x 730
- Weight (kg)
- 1650
- Ingress protection rating
- IP21
- Mounting method
- Grounded
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe LX C156-10 belongs in, what to verify before quoting, and when another model is the better pick.
Energy-Intensive Industrial Facilities with 100 kW Inverters (100–150 kWp Solar)
Manufacturing plants, cold storage warehouses, and large agricultural processing facilities operating GoodWe GW100K07-ETC or GW100K07-BTC inverters.
Max single-rack capacity (156.67 kWh) provides the deepest energy buffer per square meter of switchroom floor space, operating at 652.8 V for peak round-trip efficiency.
- BoundaryIf switchroom ceiling or floor load constraints require a lighter cabinet, or if the facility only requires 90–120 kWh of storage, step down to the smaller configurations to save capital expenditure. ---
- If switchroom ceiling or floor load constraints require a lighter cabinet, or if the facility only requires 90–120 kWh of storage, step down to the smaller configurations to save capital expenditure. ---
Documents
GoodWe Lynx C 101-156 kWh datasheet (EMEA, EN)Product questions
What is the continuous charge/discharge power capability of this 156.67 kWh rack?
Approximately 65 kW continuous DC power. At the nominal voltage of 652.8 V and the maximum continuous current of 100 A ($P = V \times I$), the rack delivers approx. 65.2 kW continuous DC charge and discharge power, allowing a 100 kW inverter to cycle the battery rapidly during peak solar and tariff windows.
What are the physical dimensions and weight of this cabinet?
Approx. 1155 × 2100 × 730 mm; ~1,500 kg total weight. The cabinet measures approx. 1155 mm wide × 2100 mm high × 730 mm deep and weighs approx. 1,500 kg when fully populated with 17 battery packs and the master control unit. It is rated IP21 for indoor use only and requires a reinforced concrete floor pad.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for C&I export control.
Recommended components

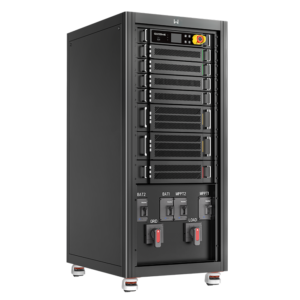

GoodWe GW50K07-ETC hybrid inverter (ETC/BTC range)
Item number: DLK-GOODWE-GW50K07ETC
GoodWe's C&I compatibility table lists the full LX C101-10 to LX C156-10 range against the ETC/BTC pair.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
This pairing applies to the GW60KWH-D-10 SKU specifically, not the LX C101-10 to LX C156-10 cabinets, which GoodWe does not list against the ET 15-30 kW range.
Approved pairings
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW100K07-BTCItem number DLK-GOODWE-GW100K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW100K07-ETCItem number DLK-GOODWE-GW100K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-BTCItem number DLK-GOODWE-GW50K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-ETCItem number DLK-GOODWE-GW50K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
