Description

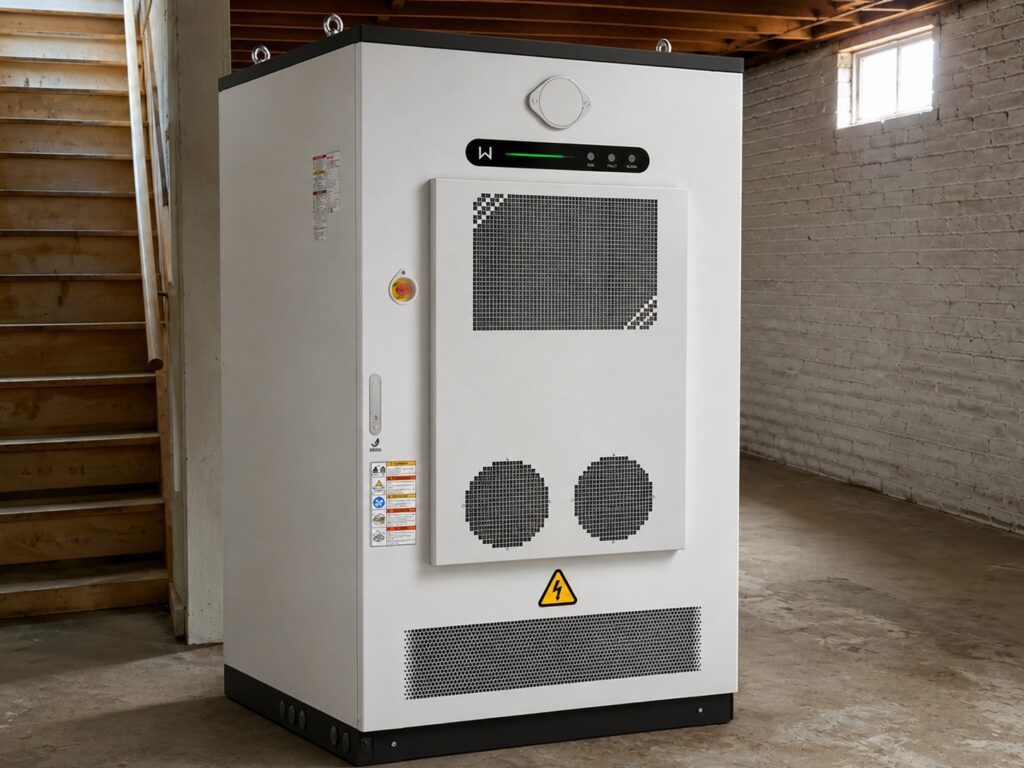

GoodWe GW208.9-BAT-LCD-G10 brings liquid-cooled storage to a 208.9 kWh C&I cabinet. Its 700–1000 V system operating range and maximum 2105 kg mass shape both the electrical design and the route into place.
GoodWe GW208.9-BAT-LCD-G10
The current compatibility overview does not list this cabinet. The V1.0 table still gives 700–1000 V and 180/180 A, and the cabinet access figures, for the site check.
GoodWe BAT-C
Printed on V1.0, omitted from later datasheets
The EMEA V1.0 datasheet still names GW208.9-BAT-LCD-G10; EMEA V1.1 and global V2.2 do not. The Battery Compatibility Overview does not list this cabinet. The V1.0 table gives a 700–1000 V system operating range and 180/180 A maximum input/output current.
GoodWe BAT-C

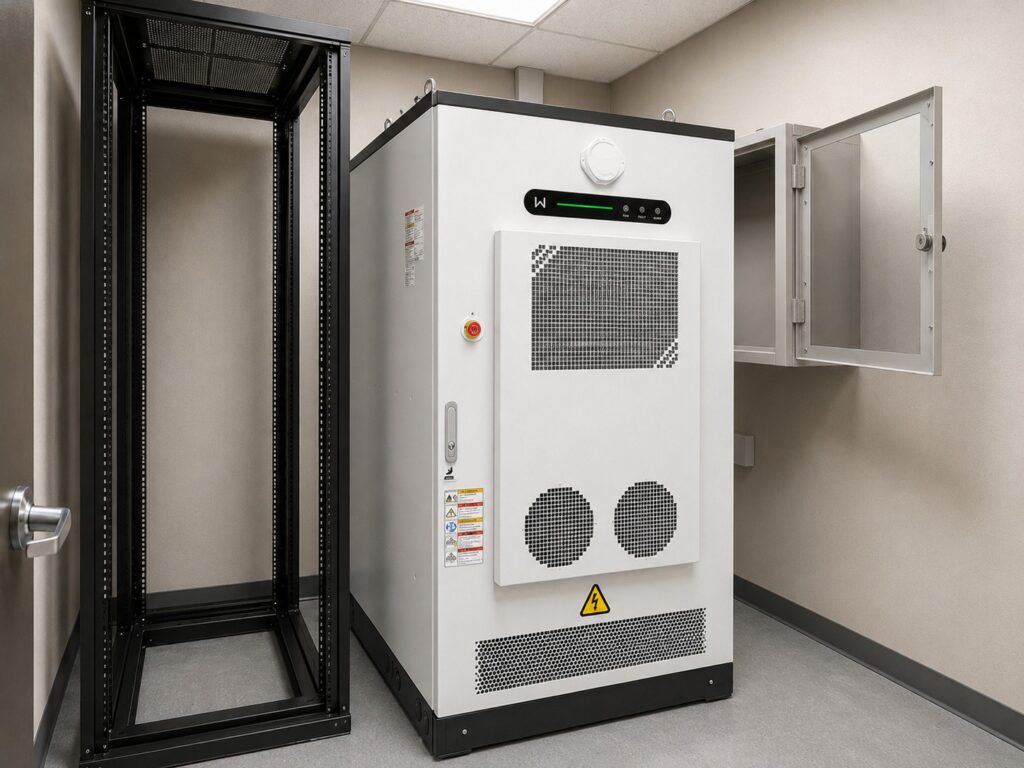

Room for the liquid-cooled cabinet
At 1050 × 2025 × 1565 mm and a maximum mass of 2105 kg, the cabinet needs an access route and final position that can accommodate the complete enclosure.
Technical data
Model-specific cabinet figures
About these specifications
208.9 kWh · 4 packs
Cabinet configuration
- Rated energy
- 208.9 kWh
- Number of packs
- 4
- System operating voltage range
- 700 ~ 1000 V
- Max. input / output current
- 180 / 180 A
Installation
- Cooling
- Liquid cooling
- Dimensions W × H × D
- 1050 × 2025 × 1565 mm
- Maximum cabinet mass
- ≤2105 kg
- Ingress protection
- IP55
- Communication
- CAN; RS485 optional
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW208.9-BAT-LCD-G10 belongs in, and the limits behind our engineers' recommendation.
A 208.9 kWh LCD cabinet the current datasheet no longer prints
A C&I project is evaluating the 208.9 kWh liquid-cooled LCD cabinet; the electrical design and the cabinet access are settled before the order.
The EMEA V1.0 datasheet still names this LCD cabinet; later EMEA V1.1 and global V2.2 do not. The Battery Compatibility Overview does not list it for any inverter. The 700–1000 V system operating range, 180/180 A maximum input/output current, 1050 × 2025 × 1565 mm enclosure and 2105 kg maximum mass set the project's limits.
- The current EMEA datasheet no longer prints this model; the V1.0 table is the source of the figures on this page.
- The Battery Compatibility Overview does not list this cabinet.
- System operating range 700–1000 V and maximum input/output current 180/180 A, for the inverter design.
- 1050 × 2025 × 1565 mm and up to 2105 kg, on the delivery route and at the final position.
Documents
Compatibility records
The GoodWe ETR 50–125 kW user manual (pp. 24–25) lists GW125K-ETR-G10 with GW208.9-BAT-LCD-G10 in its single-unit system table; pp. 26–27 repeat the pair for parallel systems, which require SEC3000C main program V7.8.19 or later. GoodWe's Battery Compatibility Overview (p. 6) does not name GW208.9-BAT-LCD-G10, so the manual's system table is not a complete warranty approval.
