Description

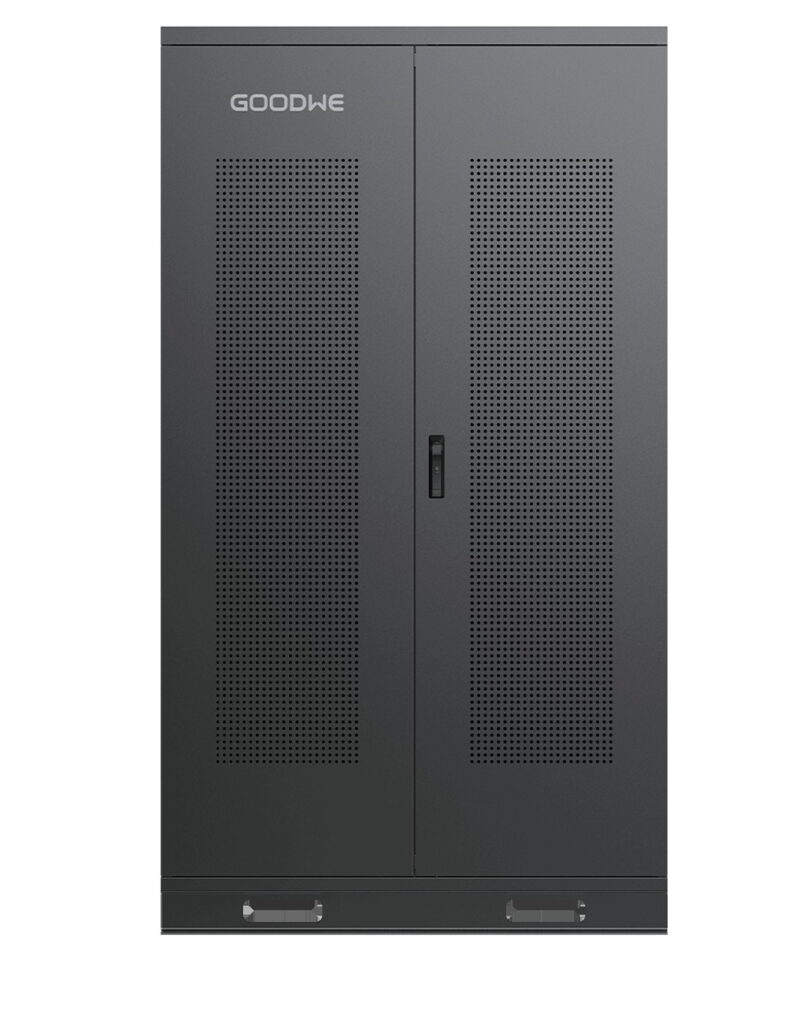

Pre-engineered indoor storage rack with integrated DC switchgear.

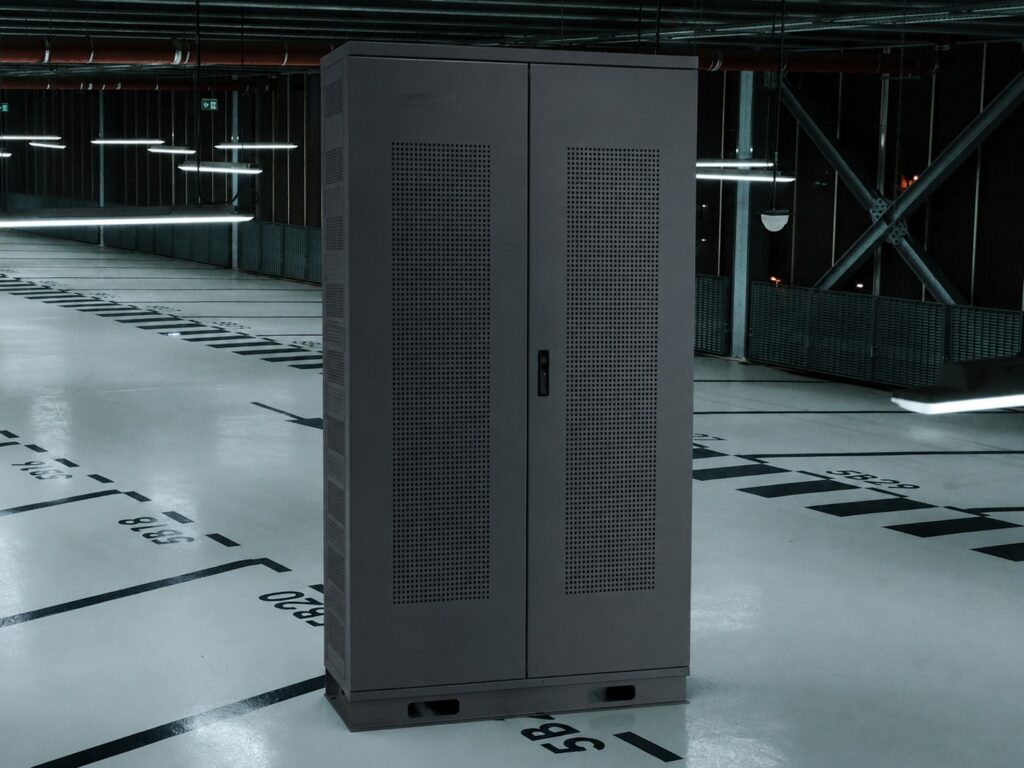

GoodWe LX C101-10 is a 101.38 kWh commercial indoor high-voltage battery rack delivering 422.4 V nominal bus voltage, engineered to pair natively with GoodWe 50 kW ETC and BTC commercial inverters for heavy peak shaving and factory backup.
101.38 kWh Commercial Storage Capacity
Consolidates over 100 kWh of commercial LFP storage into an organized, pre-wired indoor cabinet footprint.
422.4 V High-Voltage Operating Bus
Direct DC connection to GoodWe 50 kW commercial hybrid and AC-coupled inverters at peak conversion efficiency.
100 A Heavy Commercial Throughput
Delivers up to 42 kW continuous charge and discharge power for rapid daily energy arbitrage.
Integrated Master BMS & Multi-Level Safety
Centralized cell-level voltage and thermal diagnostics with automated motorized DC breaker protection.
More product details
Sourcing loose battery modules and custom cabinets creates on-site assembly delays and wiring errors. The LX C101-10 arrives as a factory-assembled grounded cabinet containing eleven series-connected packs and an integrated master control unit.
- 11 series-connected packs provide 422.4 V nominal (376.2–468.6 V operating range) for optimal inverter handshake.
- Internal heavy-duty copper busbars handle continuous 100 A current flow with minimal contact resistance.
- Integrated motorized DC breaker provides sub-second short-circuit, overcurrent, and thermal isolation.
GoodWe
Compare different models
Scroll sideways to compare every model.
Factory-calibrated communication for GoodWe commercial inverters.
Operating multi-megawatt commercial solar-plus-storage requires seamless data synchronization. The LX C101-10 communicates natively with GoodWe commercial inverters via CAN/RS485 for dynamic multi-tariff scheduling. Pre-configured communication profiles eliminate on-site protocol debugging and custom BMS gateway programming. Real-time cell balancing, temperature tracking, and state-of-charge synchronization monitored via SEMS portal. IP21 grounded industrial cabinet engineered for dedicated indoor electrical switchrooms and battery rooms.
Takes 100 A charge and discharge
Continuous current holds at 100 A. Peak power reaches 42.24 kW under full inverter demand. Cell safety stays governed across every module.
Talks to ETC and BTC inverters
Dual CAN and RS485 links connect straight to GoodWe power conversion units. Firmware coordinates battery telemetry in real time.

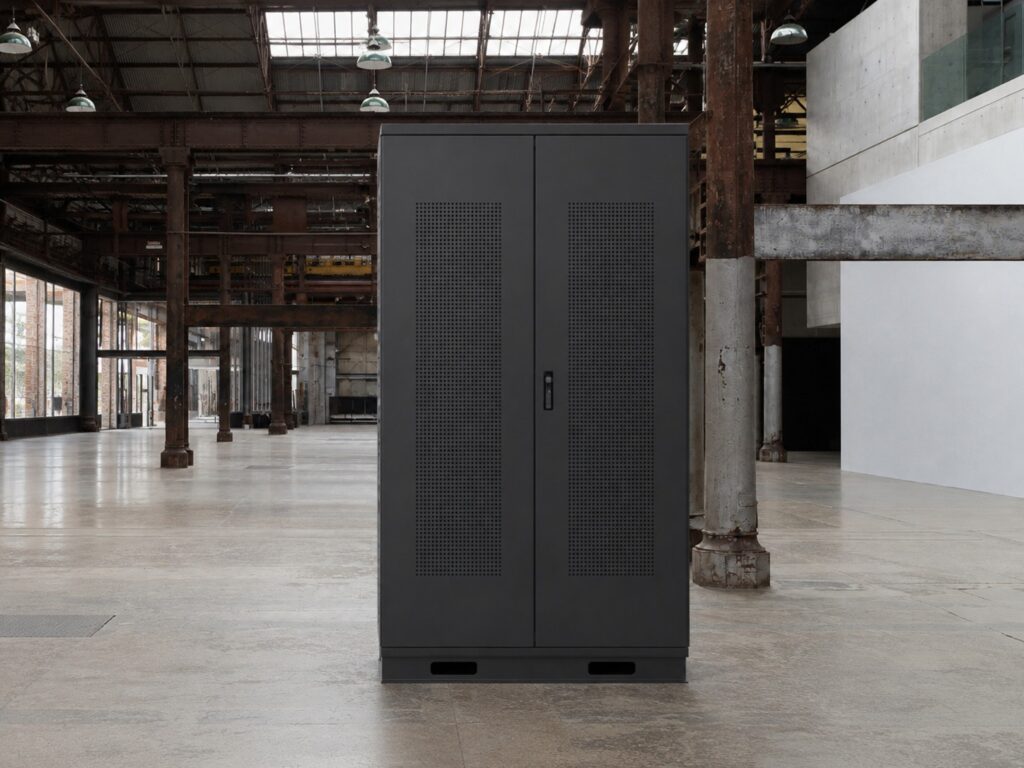

Stands 1650 mm tall at 1120 kg
The short cabinet is 1155 x 1650 x 730 mm. Mounting is grounded. Ingress is IP21.
Technical data
Turnkey commercial energy storage engineered for factory peak shaving and solar self-consumption.
101.38 kWh / 422.4 V commercial storage rack pre-matched with GoodWe ETC and BTC inverters.
Populated with eleven series-connected LFP battery packs, the LX C101-10 delivers 101.38 kWh of commercial storage at 422.4 V nominal in a grounded indoor enclosure. Pre-engineered to pair natively with GoodWe 50 kW ETC hybrid and BTC AC-coupled inverters, it eliminates multi-vendor commissioning hurdles, providing turnkey commercial peak shaving and continuous factory backup.
- Nominal Storage
- 101.38 kWh
- High-Voltage Bus
- 422.4 V
- Continuous Throughput
- 100 A
- Indoor Rack
- Pre-Wired
Energy & Electrical
- Cell type
- LFP (LiFePO4)
- Battery module
- LX C9.2-10, 38.4 V, 9.21 kWh
- Usable energy (kWh)
- 101.38
- Nominal voltage (V)
- 422.4
- Operating voltage range (V)
- 369.6 ~ 468.6
- Nominal charge / discharge current (A)
- 100
- Nominal power (kW)
- 42.24
- Depth of discharge
- 100%
Scalability
- Number of modules
- 11
- Cabinets per battery input
- Up to 3
- System range
- 101 kWh to 936 kWh
Environment
- Operating temperature range (C)
- Charge 0 ~ +45, discharge -20 ~ +50
- Relative humidity
- 0 ~ 95%
- Max. operating altitude (m)
- 2000
Mechanical & Comms
- Communication
- CAN + RS485
- Dimensions (W x H x D mm)
- 1155 x 1650 x 730
- Weight (kg)
- 1120
- Ingress protection rating
- IP21
- Mounting method
- Grounded
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe LX C101-10 belongs in, what to verify before quoting, and when another model is the better pick.
Commercial Workshops & Distribution Warehouses with 50 kW Inverters
Commercial sites operating a GoodWe GW50K07-ETC hybrid or GW50K07-BTC AC-coupled inverter seeking ~100 kWh of storage for 2-hour peak shaving.
101.38 kWh capacity and 422.4 V operating bus provide the exact electrical match for 50 kW commercial inverters, enabling full 100 A charging during midday solar peaks.
- BoundaryIf the facility connects to a 100 kW inverter (such as GW100K07-ETC/BTC) or requires 3 to 4 hours of continuous peak shaving, step up to the LX C138-10 (138.24 kWh) or LX C156-10 (156.67 kWh). ---
- If the facility connects to a 100 kW inverter (such as GW100K07-ETC/BTC) or requires 3 to 4 hours of continuous peak shaving, step up to the LX C138-10 (138.24 kWh) or LX C156-10 (156.67 kWh). ---
Documents
GoodWe Lynx C 101-156 kWh datasheet (EMEA, EN)Product questions
What inverters are natively compatible with the LX C101-10 battery rack?
GoodWe ETC and BTC commercial series (50 kW to 100 kW). The LX C101-10 is pre-calibrated via CAN/RS485 for GoodWe GW50K07-ETC, GW100K07-ETC, GW50K07-BTC, GW100K07-BTC, and GW50K-BTC commercial inverters. Its 422.4 V nominal bus sits comfortably within their 200–865 V DC battery input window.
What are the installation space and weight requirements for this cabinet?
Dedicated indoor switchroom; approx. 1,050 kg total weight. The cabinet measures approx. 1155 mm wide × 2100 mm high × 730 mm deep and weighs approx. 1,050 kg when fully populated with 11 battery packs and the master control unit. It is rated IP21 for indoor use only and must be installed on a load-bearing concrete floor in a well-ventilated electrical room.
System components
Required components
GoodWe GM3000 three-phase meter
Item number: DLK-GOODWE-GM3000
Dedicated three-phase direct meter for C&I export control.
Recommended components
GoodWe GW50K07-ETC hybrid inverter (ETC/BTC range)
Item number: DLK-GOODWE-GW50K07ETC
GoodWe's C&I compatibility table lists the full LX C101-10 to LX C156-10 range against the ETC/BTC pair.
Optional components
GoodWe GW20K-ET hybrid inverter (ET 15-30 kW range)
Item number: DLK-GOODWE-GW20KET
This pairing applies to the GW60KWH-D-10 SKU specifically, not the LX C101-10 to LX C156-10 cabinets, which GoodWe does not list against the ET 15-30 kW range.
Approved pairings
GoodWe GW15K-ETItem number DLK-GOODWE-GW15KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW20K-ETItem number DLK-GOODWE-GW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 20 kWh + GW20K-ETItem number DLK-GOODWE-LYNXD20KWHGW20KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW25K-ETItem number DLK-GOODWE-GW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe Lynx D 25 kWh + GW25K-ETItem number DLK-GOODWE-LYNXD25KWHGW25KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW29.9K-ETItem number DLK-GOODWE-GW299KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW30K-ETItem number DLK-GOODWE-GW30KETGW60KWH-D-10 only. GoodWe does not list LX C101-10 to LX C156-10 against the ET 15-30; those are listed against the ET 40-50 and the ETC / BTC.
GoodWe GW40K-ET-10Item number DLK-GOODWE-GW40KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW50K-ET-10Item number DLK-GOODWE-GW50KET10GoodWe prints, verbatim: 'ET 50kW with Lynx C-Series LX C101-10, LX C120-10 cannot reach the maximum power of the inverter.' GW60KWH-D-10 is not listed here; it is listed against the ET 15-30.
GoodWe GW100K07-BTCItem number DLK-GOODWE-GW100K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW100K07-ETCItem number DLK-GOODWE-GW100K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-BTCItem number DLK-GOODWE-GW50K07BTCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe GW50K07-ETCItem number DLK-GOODWE-GW50K07ETCLX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
