Description
Heavy industrial power delivery with 100 A storage throughput.

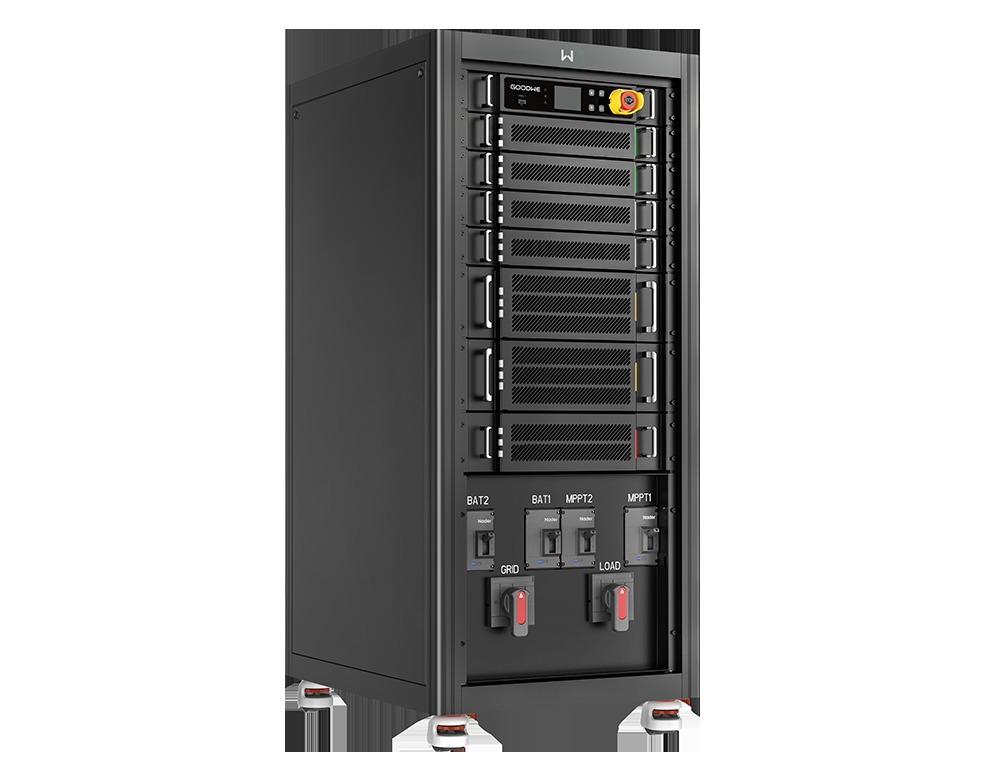

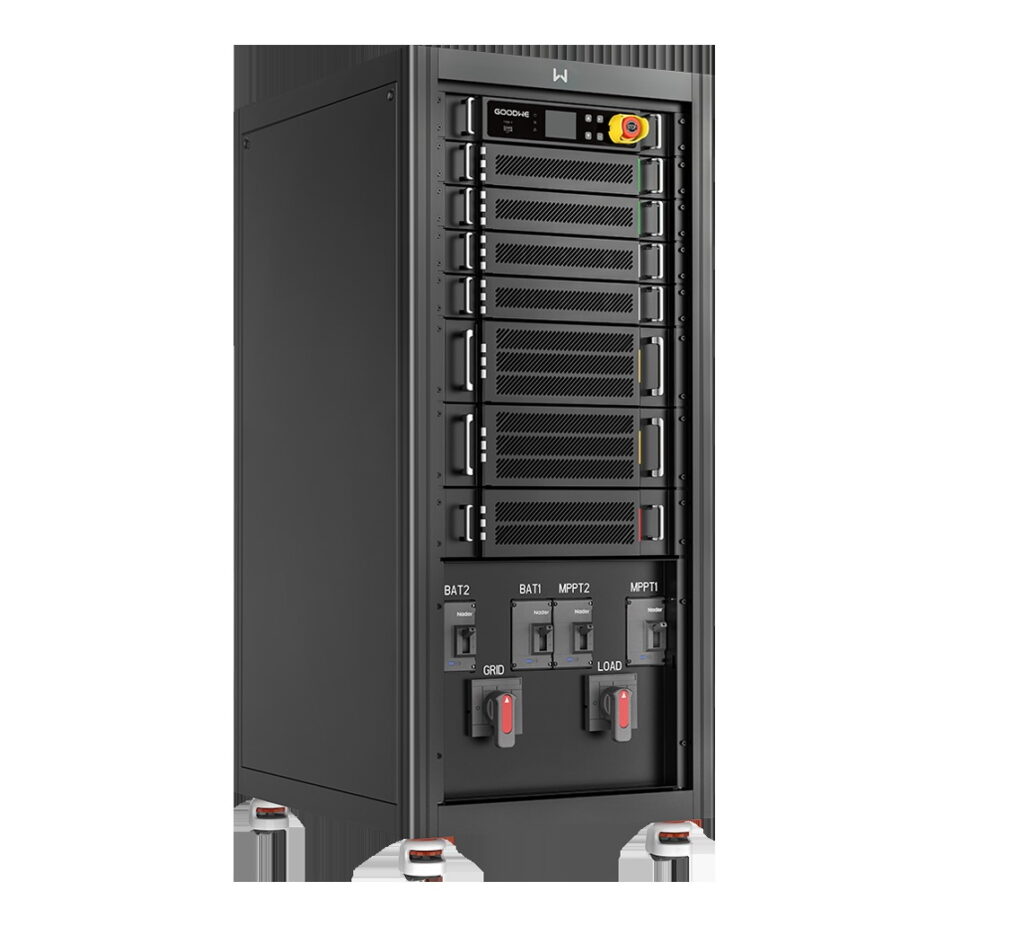

GoodWe GW100K07-ETC is a 100 kW commercial three-phase hybrid inverter delivering 110 kVA maximum apparent power and 130 kWp solar intake across dual 60 A MPPT channels, engineered to drive large-scale commercial storage racks for factory peak shaving and facility backup.
100 kW Continuous Commercial Output (110 kVA Max)
Delivers massive three-phase power throughput (159.5 A max) to drive heavy manufacturing machinery.
130 kWp Solar PV Intake across Dual MPPTs
Handles large industrial rooftop arrays with 60 A max input current per tracker (4 strings total).
100 A High-Voltage Battery Interface (200–865 V)
Directly charges and discharges large commercial battery racks at full 100 kW speed.
100 kVA Full Facility Emergency Backup
Automated backup capability keeps critical industrial circuits and production lines online through utility blackouts.
More product details
Built for energy-intensive manufacturing plants and logistics hubs, the GW100K07-ETC delivers 100 kW continuous AC power (159.5 A max), managing high daytime factory electrical draws and dynamic peak shaving.
- Delivers up to 159.5 A continuous output current per phase to handle heavy industrial machine starts.
- Direct high-voltage battery coupling (200–865 V) delivers full 100 kW continuous DC charge/discharge power.
- 97.6% peak conversion efficiency minimizes thermal heat dissipation under continuous heavy industrial cycling.
GoodWe
Compare different models
Scroll sideways to compare every model.
High-current solar absorption with 100 kVA whole-facility emergency power.
Sized to absorb 130,000 W of solar input across dual 60 A MPPT channels (Isc 80 A), it captures high generation yields across large commercial roofs while providing full 100 kVA continuous emergency backup. Dual 60 A MPPT channels optimize 4 strings of modern 600W+ bifacial modules without current clipping. Sub-10 ms automatic UPS transfer keeps sensitive commercial electronics and production lines running through blackouts. IP65 weatherproof casing allows clean indoor switchroom or sheltered outdoor mounting (-30 to +60 °C).
Takes 100 A on two 1000 V trackers
MPPT window is 250 to 960 V, nominal 600 V. Tracking efficiency is 99.9 percent.
Pairs 200 to 865 V storage on two ports
Two HV Li-Ion inputs. RS485 and CAN talk to the BMS on this 100 kW hybrid.

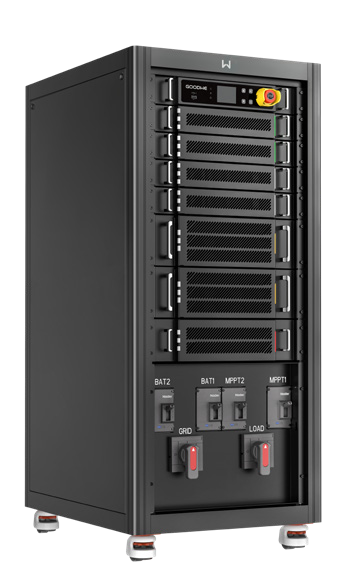

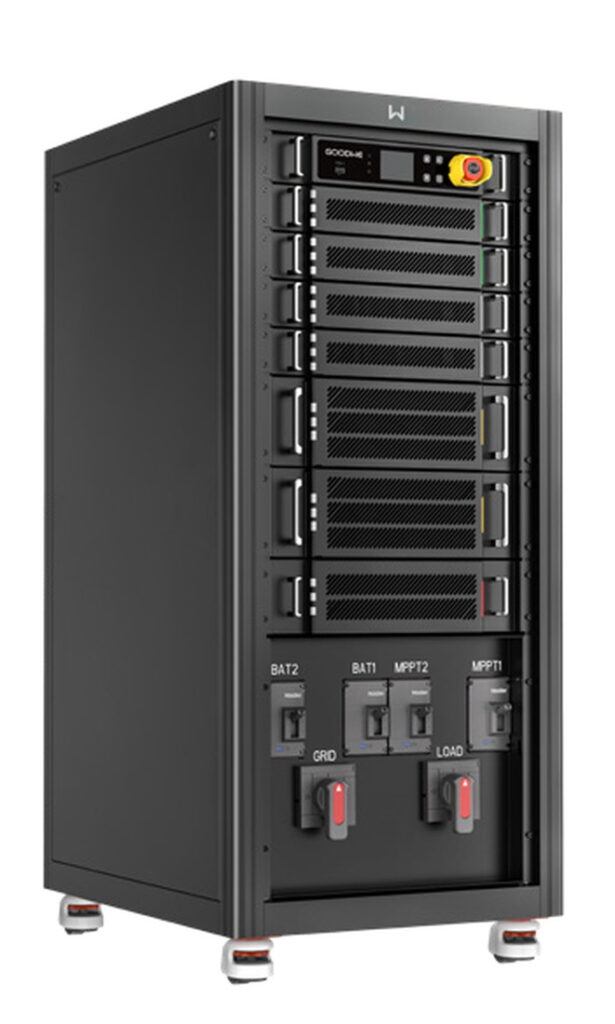

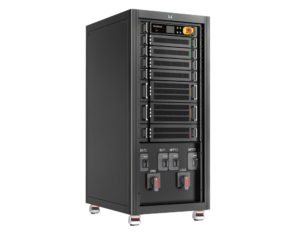

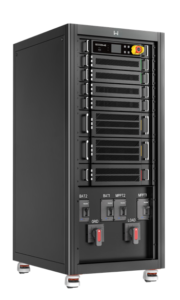

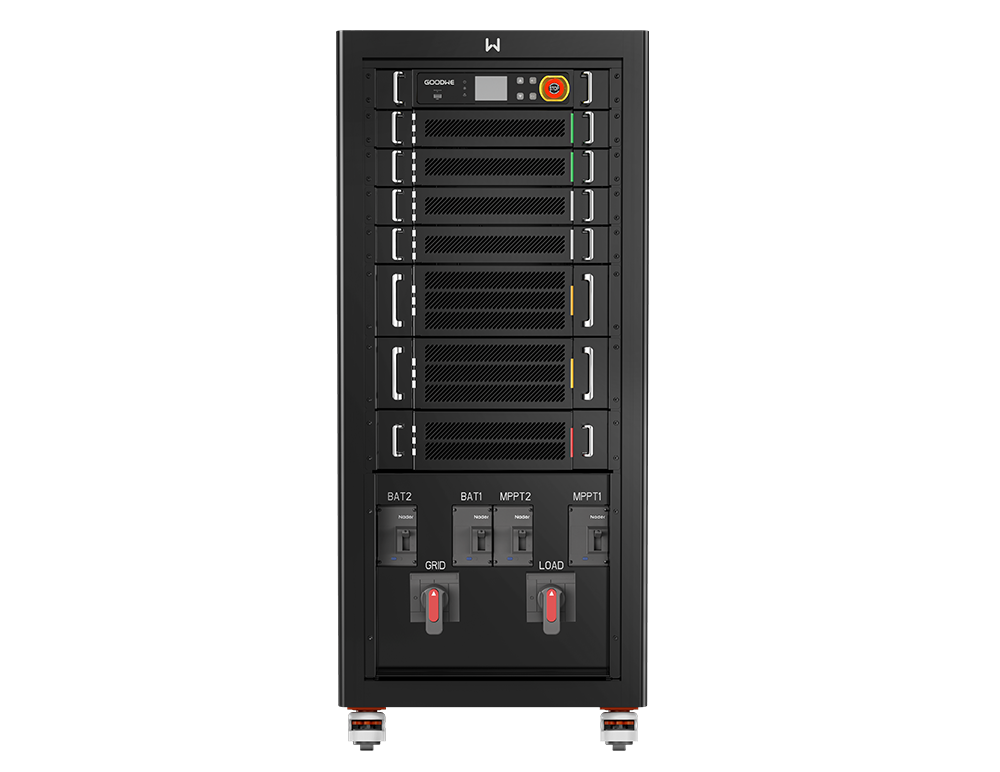

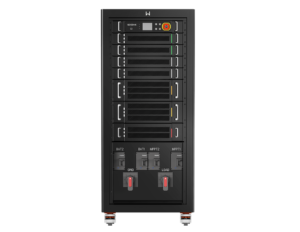

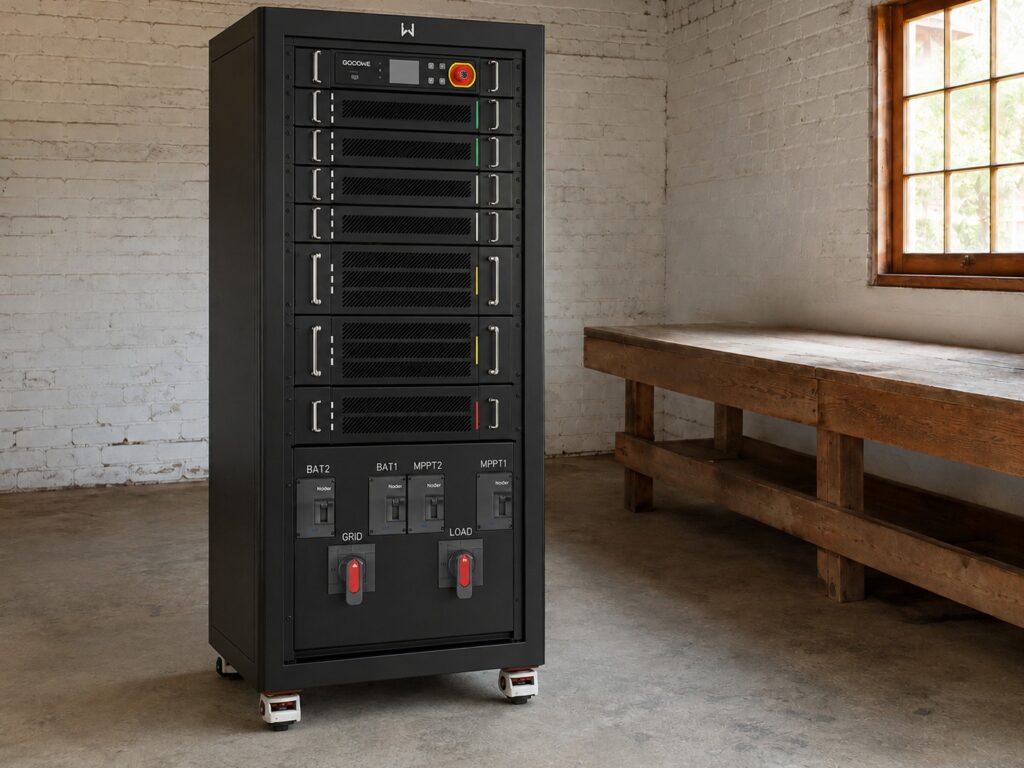

Sits in a 239.5 kg IP20 floor cabinet
585 x 1360 x 750 mm, smart fan cooling. Derating starts above 45 C. Altitude to 4000 m.
Technical data
The flagship 100 kW commercial hybrid engine engineered for megawatt-hour energy storage integration.
130 kWp solar absorption with 100 kW continuous hybrid output across dual MPPTs.
Maxing out GoodWe's ETC commercial hybrid series, the GW100K07-ETC delivers 100 kW continuous AC power (110 kVA max) and processes up to 130,000 W of solar input across 2 high-capacity MPPT trackers. Its 100 A battery port drives large-scale battery banks (such as GoodWe Lynx C LXC156 or BAT-C) to achieve facility-wide peak shaving, demand charge reduction, and multi-megawatt scalability.
- Continuous 3-Phase Power
- 100,000 VA
- High-Density Solar Intake
- 130,000 Wp
- Direct High-Voltage Storage Port
- 100 A
- Whole-Facility Backup
- 100 kVA
Power & Phase
- Phase
- 3
- Nominal output power (kW)
- 100
- Max. apparent power to / from grid (kVA)
- 110
- Power factor
- ~1 (adjustable 0.8 leading to 0.8 lagging)
- Back-up nominal apparent power (kVA)
- 100
PV Input
- Max. input power (kW)
- 130
- Max. input voltage (V)
- 1000
- MPPT operating voltage range (V)
- 250 ~ 960
- Nominal input voltage (V)
- 600
- Max. input current per MPPT (A)
- 100
- MPPT efficiency
- 99.9%
Battery Interface
- Battery voltage class
- HV
- Battery type
- Li-Ion
- Battery voltage range (V)
- 200 ~ 865
- Number of battery inputs
- 2
Efficiency & Protection
- Max. efficiency
- 97.6%
- European efficiency
- 97.3%
- Max. battery to AC efficiency
- 97.2%
- MPPT efficiency
- 99.9%
- Ingress protection rating
- IP20
- Cooling method
- Smart fan cooling
Physical & Comms
- Dimension (W x H x D mm)
- 585 x 1360 x 750
- Weight (kg)
- 239.5
- Operating temperature range (C)
- -20 ~ +60 (>45C derating)
- Max. operating altitude (m)
- 4000
- Communication with BMS
- RS485, CAN
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe GW100K07-ETC belongs in, what to verify before quoting, and when another model is the better pick.

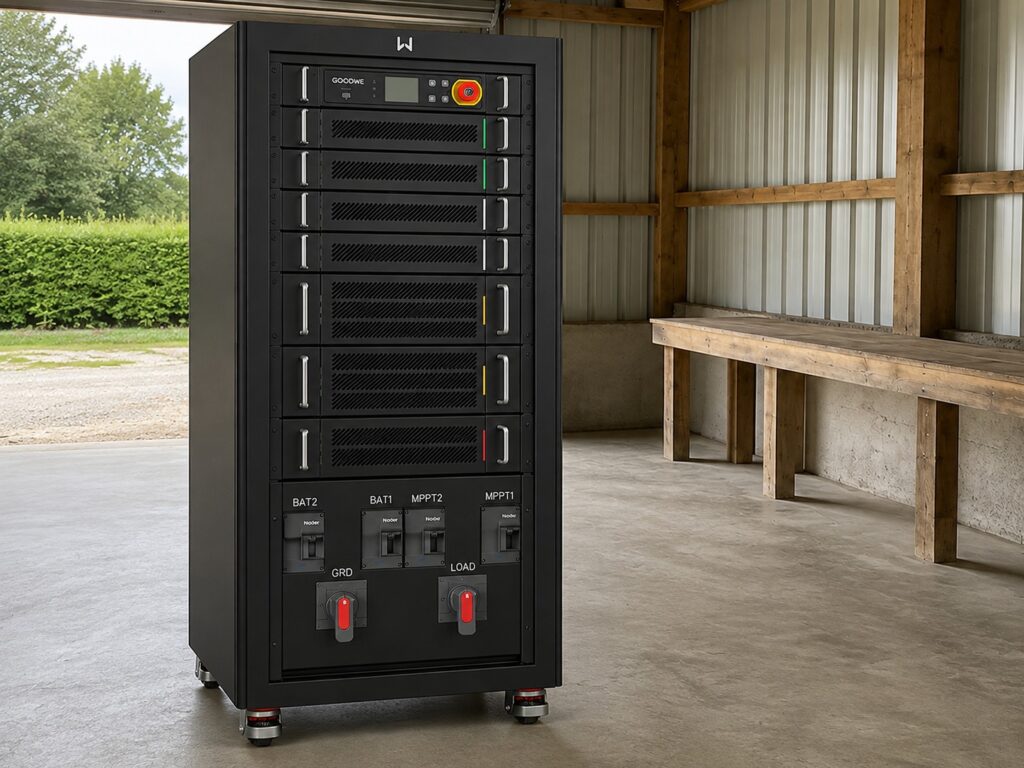

Large Commercial Manufacturing & Warehouses with 100–130 kWp Solar
Industrial manufacturing plants and distribution hubs with large uniform roof planes installing 100–130 kWp of solar alongside 100–150 kWh storage.
Provides pre-engineered hardware synergy with Lynx C battery racks, delivering full 100 kW continuous charge and discharge for dynamic peak shaving.
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe ETC Series 50-100 kW datasheet (EMEA, EN)Product questions
What is the maximum continuous AC export current on this model, and what breaker is required?
159.5 A max output current; 200 A or 250 A 3-pole industrial MCCB. The GW100K07-ETC delivers a nominal continuous output current of 145.0 A per phase (max output current 159.5 A @ 400 V). A 3-pole 200 A or 250 A industrial circuit breaker (MCCB) is required on the main AC distribution board, paired with copper conductor cross-sections of 70 mm² to 95 mm².
What battery systems are natively compatible with this 100 kW inverter?
GoodWe Lynx C indoor racks (LXC101 to LXC156) and commercial storage containers. The inverter's high-voltage DC port is pre-calibrated via CAN/RS485 for GoodWe Lynx C commercial battery racks (101.38 kWh to 156.67 kWh) and GoodWe BAT-C outdoor storage containers, operating across a wide 200 V to 865 V window.
System components
Required components
GoodWe SEC3000C
Item number: DLK-GOODWE-SEC3000C
Bundles a GM330 meter with parallel-inverter connection, removing the need for a separate meter on a C&I ETC install.
Recommended components
GoodWe LX C101-10 to LX C156-10 battery cabinet
Item number: DLK-GOODWE-LXC13810
GoodWe's C&I compatibility table lists the full Lynx C range against the ETC/BTC pair (EMS firmware 02+ on the 50 kW unit, 00+ on the 100 kW unit). GW60KWH-D-10 is not in this table, it is listed against the ET 15-30 kW range instead.
Optional components
GoodWe EzLogger3000C
Item number: DLK-GOODWE-EZLOGGER3000C
C&I data acquisition and protocol conversion for up to 100 mixed old/new inverters on a multi-inverter site.
Approved pairings
GoodWe GW60KWH-D-10Item number DLK-GOODWE-GW60KWHD10LX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe LX C101-10Item number DLK-GOODWE-LXC10110LX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe LX C120-10Item number DLK-GOODWE-LXC12010LX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe LX C138-10Item number DLK-GOODWE-LXC13810LX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
GoodWe LX C156-10Item number DLK-GOODWE-LXC15610LX C101-10 to LX C156-10. EMS firmware 02 or higher on the 50 kW; 00 or higher on the 100 kW. GW60KWH-D-10 is not in GoodWe's C&I table.
