SAJ H2-12K-T3 (12 kW three-phase hybrid inverter)
Description
Independent 3-pitch solar optimization with zero DC clipping.
SAJ H2-10K-T3 is a 10 kW commercial-grade three-phase hybrid inverter with 3 independent 40 A MPPT channels and 200% DC oversizing (20 kWp), engineered to harvest complex multi-pitch roofs and deliver heavy 50 A battery throughput.
3 Independent 40 A MPPT Trackers
Eliminates string mismatch across 3 distinct roof pitches, accepting 6 strings of high-power bifacial modules.
20,000 Wp Massive Solar Intake (200% Ratio)
Massive DC capacity ensures rapid battery charging and full daytime self-consumption even on overcast days.
50 A High-Rate Battery Interface
Delivers up to 10 kW direct DC battery charging across a wide 180–800 V storage window.
100% Phase Unbalanced Output
Dynamically diverts power to heavily loaded single-phase equipment without drawing expensive grid electricity.
More product details
Multi-pitch residential roofs (East, South, and West) suffer severe mismatch losses if forced into standard 2-MPPT inverters. The H2-10K-T3 features 3 independent 40 A MPPT channels (Isc 50 A) to optimize 6 strings of modern 600W+ bifacial modules.
- 3 MPPT channels allow dedicated tracking for 3 distinct roof aspects with zero inter-string mismatch.
- Absorbs up to 20,000 Wp of solar generation, routing daytime power directly into household loads and 50 A storage banks.
- Wide MPPT operating window (180–900 V) optimizes harvest across extreme temperature swings.
SAJ H2
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
10 kW
15 kW
20 kW
12 kW
Phase
Three-phase
Three-phase
Three-phase
Three-phase
MPPT trackers
3
3
3
3
Max. efficiency
98.0 %
98.0 %
98.0 %
98.0 %
Battery voltage
180~800 V
180~800 V
180~800 V
180~800 V
Ingress protection
IP65
IP65
IP65
IP65
Weight
50 kg
50 kg
50 kg
50 kg
Dimensions
576*659*242 mm
576*659*242 mm
576*659*242 mm
576*659*242 mm
Faster battery charging with dynamic single-phase load compensation.
Featuring a heavy-duty 50 A battery interface (180–800 V) and 100% phase-unbalanced capability, the inverter charges storage rapidly while eliminating grid import penalties on asymmetric domestic loads. 50 A charge/discharge throughput tops off 10–25 kWh battery stacks faster during brief midday solar peaks. Dynamically shifts up to 100% of capacity onto a single heavily loaded phase to prevent utility grid purchases. IP65 cast-aluminum casing allows clean indoor utility mounting or outdoor sheltered installation (-40 to +60 °C).
40 A into each of three MPPTs.
Six strings at high module current stay on this chassis. The H2 T3 datasheet is 40 A per tracker - not the 10/20 A slogan from other H2 ranges.
Two ports for the B2 stack.
Charge and discharge at up to 50 A into an 180-800 V LiFePO4 window through the BC2-HV1 control module.
Technical data
Commercial-grade string architecture and 50 A battery throughput engineered for complex residential estates.
3 MPPT trackers with 200% DC oversizing (20 kWp) in a 10 kW hybrid class.
Bringing commercial-grade 3-MPPT tracking to 10 kW installations, the H2-10K-T3 features 3 independent 40 A MPPT channels (6 strings) supporting up to 20,000 Wp of solar input. It pairs with high-voltage storage from 180 to 800 V at up to 50 A charge throughput, delivering 10 kVA continuous emergency power with 100% phase-unbalanced compensation.
- Continuous 3-Phase Power
- 10,000 VA
- 200% Solar DC Intake
- 20,000 Wp
- High-Rate Battery Port
- 50 A
- High String Current
- 40 A / MPPT
Inverter
- Phase
- Three Phase
- Topology
- Non-isolated
- MPP trackers
- 3
- Communication
- Wi-Fi/Ethernet/4G(Optional)
Solar input
- Max. PV array power
- 20 kWp
- Max. DC voltage
- 1000 V
- MPPT voltage range
- 180~900 V
- Rated DC voltage
- 600 V
- Start-up voltage
- 180 V
- Max. input current per MPPT
- 40 A
- Max. short-circuit current per MPPT
- 50 A
- Strings per MPPT
- 2
Battery
- Battery type
- LiFePO4
- Battery voltage range
- 180~800 V
- Max. charge current
- 50 A
- Max. discharge current
- 50 A
- Battery ports
- 2
Grid and backup output
- Rated AC output power
- 10 kW
- Max. apparent output power
- 11 kVA
- AC voltage range
- 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 V
- Rated output current (on-grid)
- 14.5 A
- Max. output current (on-grid)
- 16 A
- Max. AC input current
- 28.3 A
- Backup output power
- 10 kVA
- Peak backup apparent power
- 15 kVA (3 s)
- Off-grid switchover time
- ≤20 ms
- Power factor range
- 0.8 leading~0.8 lagging
Efficiency
- Max. efficiency
- 98.0 %
- European efficiency
- 97.6 %
Physical and compliance
- Dimensions
- 576*659*242 mm
- Weight
- 50 kg
- Ingress protection
- IP65
- Operating temperature
- -40 to +60 (45 and above with derating) °C
- Standards and grid codes
- EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1
Project fit
Where this model fits.
Scenarios that show which projects the SAJ H2-10K-T3 (10 kW three-phase hybrid inverter) belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

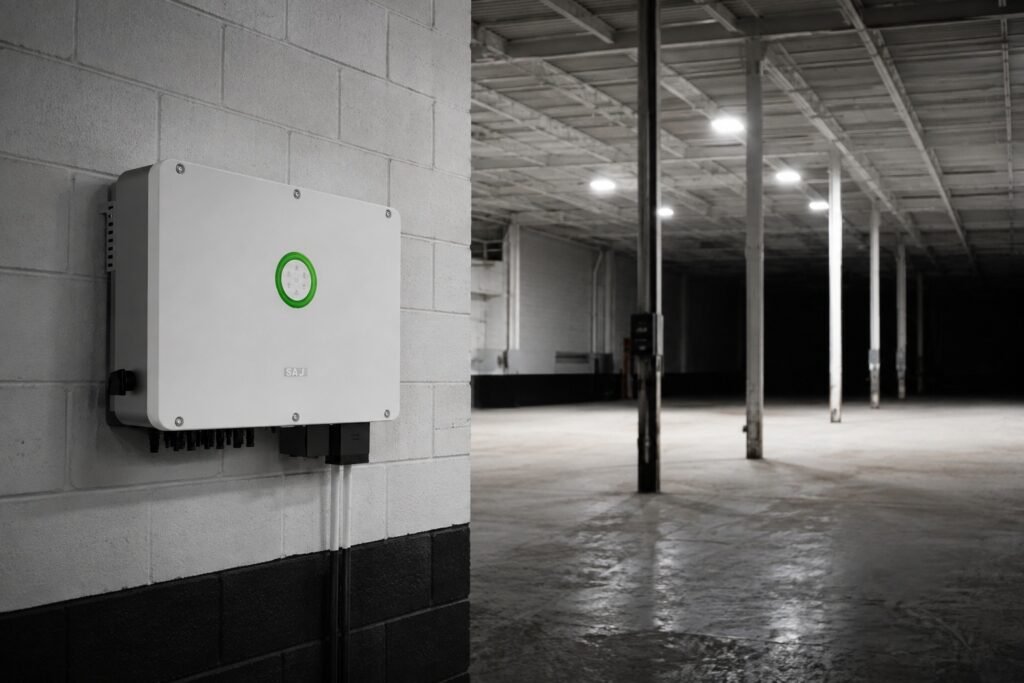

Large Residential Estates with 3 Roof Pitches (15–20 kWp PV)
Detached homes with East, South, and West roof pitches requiring dedicated string optimization on a 10 kW grid connection.
3 MPPT channels eliminate the need for external DC optimizers, while 20 kWp DC intake ensures rapid battery charging on cloudy days.
- BoundaryIf the roof has only 1 or 2 pitches and array size is under 15 kWp, step down to the HS2-10K-T2-X (2 MPPTs) to save equipment cost. * When to Upgrade to H2-15K-T3: If total solar array exceeds 20 kWp (up to 30 kWp) and continuous AC load exceeds 10 kW, step up to the H2-15K-T3. ---
What Linker confirms with you
- If the roof has only 1 or 2 pitches and array size is under 15 kWp, step down to the HS2-10K-T2-X (2 MPPTs) to save equipment cost. * When to Upgrade to H2-15K-T3: If total solar array exceeds 20 kWp (up to 30 kWp) and continuous AC load exceeds 10 kW, step up to the H2-15K-T3. ---
Documents
SAJ H2 10-30K Three Phase Hybrid Inverter datasheet (Europe, EN) SAJ H2 Series (10-30K) T2/T3 Datasheet (EN, BEU)Product questions
Why choose the H2-10K-T3 over the standard HS2-10K-T2-X?
3 MPPTs (vs 2 MPPTs), 200% oversizing (20 kWp vs 15 kWp), and 50 A battery throughput (vs 30 A). * SAJ HS2-10K-T2-X: Residential unit with 2 MPPTs (16 A each), 15 kWp solar intake, and 30 A battery port. Best for standard 1 or 2-pitch roofs. * SAJ H2-10K-T3: Heavy-duty commercial-grade platform with 3 MPPTs (40 A each), 20 kWp solar intake, and 50 A battery port. Best for complex 3-pitch roofs and high-capacity battery stacks.
What is the maximum continuous AC export current on this model?
15.9 A max output current; 20 A or 25 A 3-pole circuit breaker. The H2-10K-T3 delivers a nominal continuous output current of 14.5 A per phase (max output current 15.9 A @ 400 V). A 3-pole 20 A or 25 A circuit breaker (MCB) on the main distribution panel is standard for European installations.
System components
Recommended components
SAJ B2 HV battery system (BC2-HV1 control unit + BU2-5.0-HV1/HV5 modules, 5.0–25.0 kWh stackable)
Item number: DLK-SAJ-B2100HV1
SAJ's H2/HS2/HS3/AS2/AS3 Configuration Instructions V1.0, Section 2, names the H2 series storage inverter with the BU2 series battery or the BC2 series battery control unit as the required device set. The battery side does not change with inverter size: this 10 kW unit takes the same 180–800 V window and the same 50 A charge and discharge current as the 30 kW model.
Approved pairings
SAJ B2-10.0-HV1Item number DLK-SAJ-B2100HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-10.0-HV5Item number DLK-SAJ-B2100HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-15.0-HV1Item number DLK-SAJ-B2150HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-15.0-HV5Item number DLK-SAJ-B2150HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-20.0-HV1Item number DLK-SAJ-B2200HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-20.0-HV5Item number DLK-SAJ-B2200HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-25.0-HV1Item number DLK-SAJ-B2250HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-25.0-HV5Item number DLK-SAJ-B2250HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-5.0-HV1Item number DLK-SAJ-B250HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ B2-5.0-HV5Item number DLK-SAJ-B250HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ BC2-HV1Item number DLK-SAJ-BC2HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ BU2-5.0-HV1Item number DLK-SAJ-BU250HV1B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ BU2-5.0-HV5Item number DLK-SAJ-BU250HV5B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ CB3-HVCItem number DLK-SAJ-CB3HVCB2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ CB3-L261Item number DLK-SAJ-CB3L261B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ CB3-M20Item number DLK-SAJ-CB3M20B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
