Description

SAJ BU2-5.0-HV1 is a high-voltage LiFePO4 battery module with 32S1P cells: 102.4 V nominal voltage, 50 Ah, 5.0 kWh rated energy and 4.5 kWh usable energy. One to five modules with one BC2-HV1 control module form a SAJ B2 battery system for the SAJ H2 inverter; a SAJ HS2 all-in-one system takes two to five modules.

SAJ BU2-5.0-HV1

  • 32S1P LiFePO4 module: 102.4 V nominal voltage, 50 Ah, 5.0 kWh rated energy, 4.5 kWh usable energy.

  • Maximum charge current 30 A and maximum discharge current 30 A.

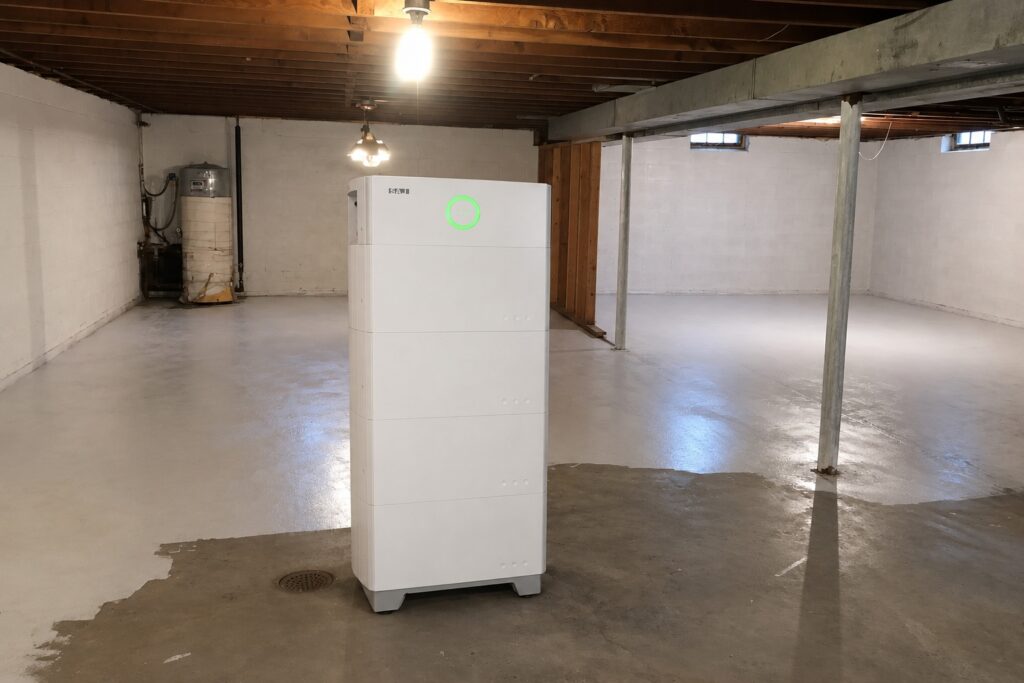

  • One to five modules in a SAJ B2 stack with one BC2-HV1 control module; two to five modules on a SAJ HS2.

  • 261 × 626 × 365 mm (H × W × D), 50.5 kg, IP65.

30 A charge and discharge current.

Maximum charge current and maximum discharge current are 30 A, with one module and with five.

IP65, natural convection.

Ingress protection is IP65 and cooling is by natural convection. Charging at 0 to 50 °C, discharging at -10 to 50 °C, ambient humidity 0 to 95 %, non-condensing.

5.0 kWh module with its own BMS.

SAJ

5.0 kWh module with its own BMS.

Each BU2-5.0-HV1 has 32S1P LiFePO4 cells at 102.4 V nominal voltage and 50 Ah, and a battery management system is built into the module. The operating voltage of one module is 89.6 to 115.2 V.

Technical data

BU2-5.0-HV1 in figures

Rated energy
5.0 kWh
Usable energy
4.5 kWh
Nominal voltage
102.4 V
Max. charge and discharge current
30 A
About these specifications

5.0 kWh rated energy per module.

One BU2-5.0-HV1 module: 5.0 kWh rated energy, 4.5 kWh usable energy, 102.4 V nominal voltage, 50 Ah and 30 A maximum charge and discharge current, in a housing of 261 × 626 × 365 mm at 50.5 kg.
Battery module
Battery module
BU2-5.0-HV1
Cell arrangement
32S1P
Cell chemistry
LiFePO4
Nominal voltage
102.4 V
Capacity
50 Ah
Rated energy
5.0 kWh
Usable energy
4.5 kWh
Depth of discharge
90 %
Rated power
3072 W
Operating voltage
89.6 to 115.2 V
Max. charge current
30 A
Max. discharge current
30 A
Dimensions (H × W × D)
261 × 626 × 365 mm
Weight
50.5 kg

Documents

SAJ B2 Series (5.0-25.0) HV1/HV5 Battery Datasheet (EN, BEU)Datasheet · PDF · ENSAJ B2 high-voltage battery, B2-5.0 to B2-25.0 with BU2-5.0 and BC2-HV1: datasheet (German)Datasheet · PDF · DESAJ B2 Series (5.0-25.0) HV1/HV5 High Voltage Battery User Manual (EN)Manual · PDF · ENSAJ B2 battery systems and BU2-5.0 battery modules: EU declaration of conformity (multilingual)Certificate · PDF · Multilingual

Product questions

Which systems use the BU2-5.0-HV1?

The BU2-5.0-HV1 is the battery module of the B2-5.0-HV1. The B2 battery can only be used as a set with SAJ's H2 high voltage series storage inverter.

What are the dimensions and the weight of one module?

The datasheet does not list dimensions or weight for a module on its own. For the B2-5.0-HV1, which has 1 module, the datasheet gives 261*626*365 mm (H*W*D) and 50.5 kg; these figures are stated for the system with one module, not for the module alone.

How is the module stored before installation?

Store it in a dry and ventilated environment, away from heat sources. For storage months below 3, the storage temperature is -20 °C to 40 °C at humidity below 85% RH. For long-term storage of 3 to 6 months, the temperature is -20 °C to 25 °C at humidity below 85% RH. The battery should be installed within 6 months since it was delivered from the factory.

Compatibility records

SAJ H2-10K-T3 (10 kW three-phase hybrid inverter)SAJ H2-10K-T3 (10 kW three-phase hybrid inverter)Item number DLK-SAJ-H210KT3Documented by SAJSAJ H2-12K-T3 (12 kW three-phase hybrid inverter)SAJ H2-12K-T3 (12 kW three-phase hybrid inverter)Item number DLK-SAJ-H212KT3Documented by SAJSAJ H2-15K-T3SAJ H2-15K-T3Item number DLK-SAJ-H215KT3Documented by SAJSAJ H2-20K-T3SAJ H2-20K-T3Item number DLK-SAJ-H220KT3Documented by SAJSAJ H2-25K-T3SAJ H2-25K-T3Item number DLK-SAJ-H225KT3Documented by SAJSAJ H2-30K-T3-DESAJ H2-30K-T3-DEItem number DLK-SAJ-H230KT3DEDocumented by SAJSAJ HS2-5K-T2-X (5 kW three-phase hybrid inverter)SAJ HS2-5K-T2-X (5 kW three-phase hybrid inverter)Item number DLK-SAJ-HS25KT2XDocumented by SAJSAJ HS2-6K-T2-XSAJ HS2-6K-T2-XItem number DLK-SAJ-HS26KT2XDocumented by SAJSAJ HS2-8K-T2-XSAJ HS2-8K-T2-XItem number DLK-SAJ-HS28KT2XDocumented by SAJSAJ HS2-10K-T2-XSAJ HS2-10K-T2-XItem number DLK-SAJ-HS210KT2XDocumented by SAJ

SAJ's Configuration Instructions V1.0 (Section 2) give the H2 series system as H2 + BC2 + BU2. SAJ's B2 datasheet names B2-5.0 to B2-25.0 as one to five BU2-5.0 modules with one BC2-HV1 control module, and SAJ's B2 manual (V1.2, PDF p5) says the B2 can only be used as a set with SAJ's H2 high voltage series storage inverter. The listing does not cover the one-module B2-5.0, whose operating voltage lies below the H2 T3's battery voltage range. One BU2-5.0 module alone operates at 89.6 to 115.2 V (SAJ's B2 datasheet gives this for the one-module B2-5.0), below the H2 T3's battery voltage range of 180 to 800 V; two modules operate at 179.2 to 230.4 V.

The HS2 takes two to five BU2-5.0 battery modules (HS2/AS2 manual V0.3, PDF p12). Battery voltage range 180 to 600 V. One BU2-5.0 module alone operates at 89.6 to 115.2 V (SAJ's B2 datasheet gives this for the one-module B2-5.0), below the HS2's battery voltage range of 180 to 600 V; the HS2 manual gives two modules as the smallest stack.
