Description

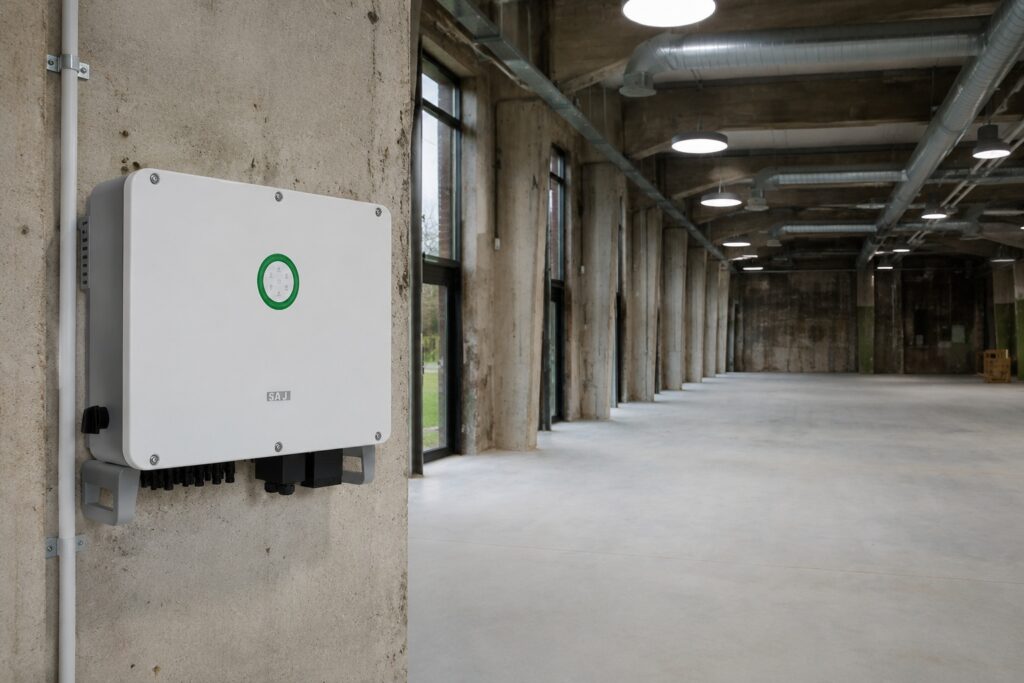

SAJ H2-20K-T3 is a three-phase hybrid inverter with 20,000 W rated AC power and 22,000 VA maximum apparent power. It has three MPPTs for up to 40,000 Wp of PV, two battery inputs for 180–800 V LiFePO4 batteries and a backup output.
SAJ H2-20K-T3
PV array power up to 40,000 Wp (STC) on three MPPTs with two strings each.
40 A maximum DC input current and 50 A maximum short-circuit current per MPPT.
Backup output with 20,000 VA and a peak of 30,000 VA for 3 s.
Supplied with the eSolar AIO3 communication module, a smart meter and three current transformers.
Three MPPTs with 40 A each.
Each of the three MPPTs takes two strings, with 40 A maximum DC input current and 50 A maximum short-circuit current per MPPT. The MPPT voltage range is 180–900 V, the maximum DC voltage 1000 V and the start voltage 180 V.
Backup output with a switch-over time of ≤ 20 ms.
The backup output supplies up to 20,000 VA and a peak apparent power of 30,000 VA for 3 s; the switch-over time to backup is ≤ 20 ms. The backup function needs a properly grounded backup PE line and earthing bar.
SAJ
Two battery inputs for 180–800 V.
The inverter has two battery inputs (BAT1 and BAT2) for LiFePO4 batteries with a battery voltage range of 180–800 V and a maximum charge and discharge current of 50 A. The SAJ B2 high-voltage battery is used as a set with the H2; the B2's own maximum charge and discharge current is 30 A.
Technical data
Main figures of the H2-20K-T3
- Rated AC power
- 20,000 W
- Max. PV array power
- 40,000 Wp
- Max. battery charge / discharge current
- 50 A
- Max. DC input current
- 40 A / MPPT
About these specifications
20,000 W rated AC power, 40,000 Wp PV, three MPPTs.
PV input
- Max. PV array power
- 40000 Wpat STC
- Max. DC voltage
- 1000 V
- MPPT voltage range
- 180–900 V
- Rated DC voltage
- 600 V
- Start voltage
- 180 V
- Max. DC input current per MPPT
- 40 / 40 / 40 A
- Max. DC short-circuit current per MPPT
- 50 / 50 / 50 A
- Number of MPPTs
- 3
- Strings per MPPT
- 2 / 2 / 2
Battery connection
- Battery type
- LiFePO4
- Battery voltage range
- 180–800 V
- Max. charge / discharge current
- 50 A
- Number of battery inputs
- 2
AC output (on-grid)
- Rated AC power
- 20000 W
- Max. apparent power
- 22000 VA
- Rated output current
- 29.0 Aat 230 V AC
- Max. output current
- 31.9 A
- Rated AC voltage
- 3L+N+PE, 220/380, 230/400, 240/415 V
- AC voltage range
- 180–280 / 312–485 V
- Rated output frequency / range
- 50, 60 / 45–55, 55–65 Hz
- Power factor (cos φ)
- 0.8 leading to 0.8 lagging
- Total harmonic distortion (THDi)
- < 3 %
AC input (on-grid)
- Rated AC voltage
- 3L+N+PE, 220/380, 230/400, 240/415 V
- AC voltage range
- 180–280 / 312–485 V
- Rated input frequency
- 50, 60 Hz
- Max. input current
- 37.7 Aat 230 V AC
AC output (backup)
- Max. output power
- 20000 VA
- Max. output current
- 29.0 A
- Peak output apparent power
- 30000 VAfor 3 s
- Rated AC voltage
- 3L+N+PE, 220/380, 230/400, 240/415 V
- AC voltage range
- 180–280 / 312–485 V
- Rated output frequency / range
- 50, 60 / 45–55, 55–65 Hz
- Output voltage distortion (THDv)
- < 3 %at linear load
- Backup switch-over time
- ≤ 20 ms
Efficiency
- Max. efficiency
- 98.0 %
- European efficiency
- 97.6 %
Protection
- Battery input reverse-polarity protection
- Integrated
- Overload protection
- Integrated
- AC short-circuit current protection
- Integrated
- DC surge protection
- Type II
- AC surge protection
- Type II
- Anti-islanding protection
- Integrated
- AFCI protection
- Integrated
Interfaces
- AC connection
- Terminal block
- Display
- LED and app
- Communication
- Wi-Fi / Ethernet / 4G (optional)
General data
- Topology
- Non-isolated
- Operating temperature range
- -40 to +60 °Cderating at 45 °C and above
- Cooling
- Intelligent fan cooling
- Ambient humidity
- 0–100 %non-condensing
- Altitude
- 4000 mpower derating above 3000 m
- Noise
- < 50 dB(A)
- Ingress protection
- IP65
- Dimensions (H × W × D)
- 576 × 659 × 242 mm
- Weight
- 50 kg
- Warranty (years)
- 10
- Standards
- EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1
Documents
Product questions
What does the H2-20K-T3 package contain?
The packaging list covers the H2 inverter, a mounting bracket, PV connectors (T3*6 x2, T2*4 x2), pluggable terminal blocks (2-pin x2, 3-pin x1, 6-pin x1), a waterproof communication terminal cover, a waterproof AC terminal cover, an AC terminal, an M6*50 screw set x4, positive battery connectors x2, negative battery connectors x2, an eSolar AIO3, a smart meter, current transformers x3, a meter COMM cable (10 m), RJ45 plugs x10, and documents (user manual, quick installation guide, warranty card, packaging list).
Which circuit breaker and AC cable does the H2-20K-T3 need?
For the H2-(10K-20K)-(T2,T3) the recommended breaker specification is 50A. Do not connect multiple inverters to one AC circuit breaker. For the AC cable cross-sectional area, the range for H2-(10K-30K)-(T2,T3) is 10 - 16 mm², recommended 16 mm². The additional grounding cable cross-sectional area is 8 mm².
Which battery connection does the H2-20K-T3 have?
The H2-20K-T3 uses a quick connector for the battery connection. The battery type is LiFePO4, the battery voltage range is 180 - 800 V, and the max. charging/discharging current is 2*50 A.
Compatibility records
SAJ B2-10.0-HV1Item number DLK-SAJ-B2100HV1
SAJ B2-15.0-HV1Item number DLK-SAJ-B2150HV1
SAJ B2-20.0-HV1Item number DLK-SAJ-B2200HV1
SAJ B2-25.0-HV1Item number DLK-SAJ-B2250HV1
SAJ BC2-HV1Item number DLK-SAJ-BC2HV1
SAJ BU2-5.0-HV1Item number DLK-SAJ-BU250HV1SAJ's Configuration Instructions V1.0 (Section 2) give the H2 series system as H2 + BC2 + BU2. SAJ's B2 datasheet names B2-5.0 to B2-25.0 as one to five BU2-5.0 modules with one BC2-HV1 control module, and SAJ's B2 manual (V1.2, PDF p5) says the B2 can only be used as a set with SAJ's H2 high voltage series storage inverter. The listing does not cover the one-module B2-5.0, whose operating voltage lies below the H2 T3's battery voltage range. SAJ's B2 datasheet gives 179.2 to 230.4 V for the two-module B2-10.0; the H2 T3 manual's battery voltage range begins at 180 V.
SAJ's Configuration Instructions V1.0 (Section 2) give the H2 series system as H2 + BC2 + BU2. SAJ's B2 datasheet names B2-5.0 to B2-25.0 as one to five BU2-5.0 modules with one BC2-HV1 control module, and SAJ's B2 manual (V1.2, PDF p5) says the B2 can only be used as a set with SAJ's H2 high voltage series storage inverter. The listing does not cover the one-module B2-5.0, whose operating voltage lies below the H2 T3's battery voltage range.
SAJ's Configuration Instructions V1.0 (Section 2) give the H2 series system as H2 + BC2 + BU2. SAJ's B2 datasheet names B2-5.0 to B2-25.0 as one to five BU2-5.0 modules with one BC2-HV1 control module, and SAJ's B2 manual (V1.2, PDF p5) says the B2 can only be used as a set with SAJ's H2 high voltage series storage inverter. The listing does not cover the one-module B2-5.0, whose operating voltage lies below the H2 T3's battery voltage range. One BU2-5.0 module alone operates at 89.6 to 115.2 V (SAJ's B2 datasheet gives this for the one-module B2-5.0), below the H2 T3's battery voltage range of 180 to 800 V; two modules operate at 179.2 to 230.4 V.
