Description

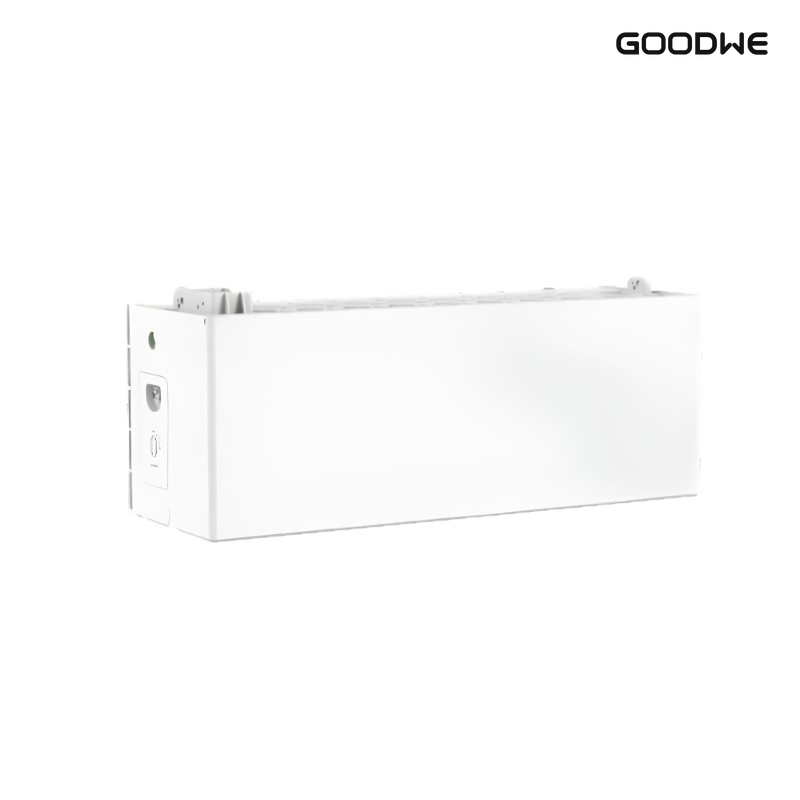

GoodWe GW8.3-BAT-D-G20 (ESA battery module, 8.32 kWh)
GW8.3-BAT-D-G20 is the 8.32 kWh rated ESA battery module with 8.0 kWh usable under the printed test. Mass 79 ± 1 kg, 800 × 326 × 270 mm.
8.0 kWh usable under the printed test; 79 ± 1 kg; IP66.
Heating (Optional); aerosol fire extinguishing (Integrated).
A 79 ± 1 kg module

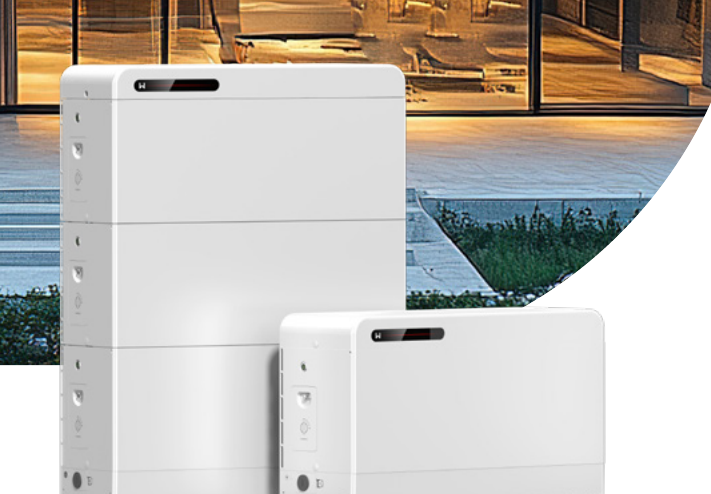

The module weighs 79 ± 1 kg and measures 800 × 326 × 270 mm. Mounting: Floor stacked / Wall-mounted.
Functions in the module
Heating (Optional); aerosol fire extinguishing (Integrated). IP66. Charging -18 ~ +55 °C.
Technical data
Module energy
- Rated energy
- 8.32 kWh
- Usable energy
- 8.0 kWh*1 100% DOD, cell 2.85–3.6 V, 0.2P, 25±2 °C, beginning of life
- Battery chemistry
- LFP (LiFePO4)
- Cycle life
- ≥8000laboratory test conditions
Electrical (three-phase system)
- Operating voltage range
- 700 ~ 950 V350 ~ 550 V on a single-phase system
- Max. input / output current
- 19.0 / 21.0 A
- Max. input / output power
- 8.0 / 8.0 kWderating with temperature and SOC
- Peak output power
- 12 @10s kWderating with temperature and SOC
Module handling
- Weight
- 79 ± 1 kg
- Dimensions W × H × D
- 800 × 326 × 270 mm
- Mounting
- Floor stacked / Wall-mounted
- Ingress protection
- IP66
- Function configuration
- Heating (Optional); aerosol fire extinguishing (Integrated)
- Charging temperature
- -18 ~ +55 °Cdischarge −20 ~ +55 °C
- Communication
- CAN
Documents
GoodWe ESA Series 5–30 kW datasheet (EN) GoodWe ESA Serie 5–30 kW datasheet (DE) GoodWe Lynx D G2 datasheet (EN, EMEA) GoodWe ESA Series 5–30 kW user manual (EN, V1.5) GoodWe ESA Serie 5–30 kW Benutzerhandbuch (DE, V1.4) GoodWe LX D G2 battery limited warranty for the EU (EN)Product questions
Does GW8.3-BAT-D-G20 include heating?
Heating (Optional); aerosol fire extinguishing (Integrated). Charging temperature range -18 ~ +55 °C; discharging −20 ~ +55 °C.
How many modules in one column?
Up to six modules in one column and twelve in the system. Different BAT-D models can be mixed; mixing 5.1/8.3 G20 or G21 with 6.0/9.0 G20 disables battery heating.
Compatibility records
GoodWe ESA GW3.6K-EHA-G20 (3.6 kW single-phase power module)Item number DLK-GOODWE-GW36KEHAG20GoodWe ESA GW3K-EHA-G20 (3 kW single-phase power module)Item number DLK-GOODWE-GW3KEHAG20GoodWe ESA GW5K-EHA-G20 (5 kW single-phase power module)Item number DLK-GOODWE-GW5KEHAG20GoodWe ESA GW6K-EHA-G20 (6 kW single-phase power module)Item number DLK-GOODWE-GW6KEHAG20GoodWe ESA GW8K-EHA-G20 (8 kW single-phase power module)Item number DLK-GOODWE-GW8KEHAG20GoodWe ESA GW10K-EHA-G20 (10 kW single-phase power module)Item number DLK-GOODWE-GW10KEHAG20The GoodWe ESA 3–10 kW datasheet (EMEA, p. 2–3) lists the GW5.1/8.3/6.0/9.0-BAT-D-G20 battery modules for the GW3K–10K-EHA-G20 power modules. The EMEA datasheet names the G20 modules for the single-phase ESA; the G21 variants are not in that table.
GoodWe ESA GW5K-ETA-G20 (5 kW three-phase power module)Item number DLK-GOODWE-GW5KETAG20GoodWe ESA GW6K-ETA-G20 (6 kW three-phase power module)Item number DLK-GOODWE-GW6KETAG20GoodWe ESA GW8K-ETA-G20 (8 kW three-phase power module)Item number DLK-GOODWE-GW8KETAG20GoodWe ESA GW9.999K-ETA-G20 (9.999 kW three-phase power module)Item number DLK-GOODWE-GW9999KETAG20GoodWe ESA GW10K-ETA-G20 (10 kW three-phase power module)Item number DLK-GOODWE-GW10KETAG20GoodWe ESA GW12K-ETA-G20 (12 kW three-phase power module)Item number DLK-GOODWE-GW12KETAG20GoodWe ESA GW15K-ETA-G20 (15 kW three-phase power module)Item number DLK-GOODWE-GW15KETAG20GoodWe ESA GW20K-ETA-G20 (20 kW three-phase power module)Item number DLK-GOODWE-GW20KETAG20GoodWe ESA GW25K-ETA-G20 (25 kW three-phase power module)Item number DLK-GOODWE-GW25KETAG20GoodWe ESA GW29.999K-ETA-G20 (29.999 kW three-phase power module)Item number DLK-GOODWE-GW29999KETAG20GoodWe ESA GW30K-ETA-G20 (30 kW three-phase power module)Item number DLK-GOODWE-GW30KETAG20The GoodWe ESA datasheet lists GW6.0-BAT-D-G20 and GW9.0-BAT-D-G20 modules and prints scalability of 12 pcs (p. 3). The user manual limits one column to six batteries and names a battery expansion kit for higher capacity or a lower column (p. 79).
