SAJ CB2-85.9-HV5 (85.9 kWh C&I battery cabinet)
Description
Low-current long-string transmission for heavy commercial cycling.
SAJ CB2-100.3-HV5 is the flagship 100.3 kWh pre-integrated commercial outdoor battery cabinet operating at 1075.2 V nominal, equipped with twenty-one 50 A BU2-HV5 modules, active HVAC climate control, and aerosol fire protection for heavy commercial microgrids.
100.3 kWh Single-Cabinet Capacity
Consolidates over 100 kWh of commercial LFP storage into a single 1.3 m × 1.0 m footprint, eliminating indoor battery rooms.
1075.2 V Nominal High-Voltage Bus (21 Modules)
Delivers maximum round-trip electrical efficiency when paired with 50 kW to 125 kW commercial inverters.
Integrated HVAC Air Conditioning & Heating
Maintains optimal battery cell temperatures across extreme outdoor seasons (-20 °C to +50 °C).
Multi-Tier Aerosol Fire Protection
Automated thermal sensors and integrated fire suppression provide commercial property safety.
More product details
Operating twenty-one 50 A modules in series pushes system voltage to 1075.2 V nominal (940.8–1209.6 V window), reducing current stress and line resistance losses during continuous 50 A charging and discharging.
- 336S series LFP cell string delivers maximum round-trip electrical efficiency on SAJ CH3 and CHS2 inverters.
- 50 A continuous current rating delivers up to 50 kW continuous DC charge and discharge power.
- Real-time master BMS balancing maintains uniform voltage across all 21 internal modules.
SAJ CHS2 / CB2
Compare different models
Scroll sideways to compare every model.
4 models
Nominal energy
100.3 kWh
57.3 kWh
71.6 kWh
85.9 kWh
Ingress protection
IP55
IP55
IP55
IP55
Operating temperature
-30~50 °C
-30~50 °C
-30~50 °C
-30~50 °C
Weight
1260 kg
960 kg
1060 kg
1160 kg
Dimensions
1980*988*1065 mm [H*W*D]
1980*988*1065 mm [H*W*D]
1980*988*1065 mm [H*W*D]
1980*988*1065 mm [H*W*D]
Factory-integrated storage station with zero indoor space requirements.
Constructing fire-rated indoor battery switchrooms adds heavy construction costs and planning delays. The CB2-100.3 arrives as a fully integrated IP55 outdoor cabinet ready to connect to external concrete pads. Pre-wired with internal high-voltage DC busbars, motorized disconnect switchgear, and master BMS. Integrated HVAC unit maintains battery cells at an optimal 20–25 °C regardless of ambient weather. Automated aerosol fire suppression and gas detection provide certified industrial property safety.
The CHS2 battery number.
CHS2 lists 100.3 kWh as battery rated energy. This cabinet is that energy as a standalone CB2 line.
Outdoor IP55 plant.
Ground-mounted, CAN-linked, air-conditioner cooled. Spec it as a C&I cabinet, not a wall brick.
Technical data
The flagship outdoor commercial energy storage cabinet engineered for heavy industrial electrification.
100.3 kWh maximum capacity commercial outdoor battery cabinet with active HVAC.
Maxing out the CB2 outdoor cabinet series, this unit integrates twenty-one 50 A BU2-HV5 modules to deliver 100.3 kWh of high-voltage LFP storage. Purpose-built for commercial microgrids, industrial peak shaving, and high-power EV fleet hubs, it delivers high energy density in a single factory-tested outdoor enclosure without requiring indoor switchroom construction.
- Max. Cabinet Storage
- 100.35 kWh
- High-Voltage Bus
- 1075.2 V
- Active Climate
- Integrated HVAC
- IP55 Enclosure
- Turnkey Pad
Battery Cabinet
- Type
- C&I battery cabinet, SAJ CHS2 / CB2 series (LiFePO4)
- Rated energy (kWh)
- 100.3 kWh
- Usable energy (kWh)
- 90.2 kWh
- Rated power (kW)
- 50.1 kW
- Number of battery modules
- 7
- Battery module
- CBU2-14.33-HV5 — 14.33 kWh, 115 kg, 231 x 523 x 805 mm
- Control module
- CBC2-HV5 — 28 kg, 225 x 483 x 610 mm
Electrical
- Nominal voltage (V)
- 358.4 V
- Voltage range (V)
- 313.6~403.2 V
- Rated capacity (Ah)
- 280 Ah
- Max. charging / discharging current (A)
- 150 A
- Communication
- CAN
Physical & Environment
- Dimensions (H x W x D, mm)
- 1980*988*1065 mm [H*W*D]
- Weight (kg)
- 1260 kg
- Ingress protection
- IP55
- Cooling method
- Air Conditioner
- Mounting
- Ground-Mounted
- Operating temperature range (°C)
- -30~50 °C
- Ambient humidity
- 5~95% (No Condensing)
- Max. operating altitude (m)
- 2000 m
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CB2-100.3-HV5 (100.3 kWh C&I battery cabinet) belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

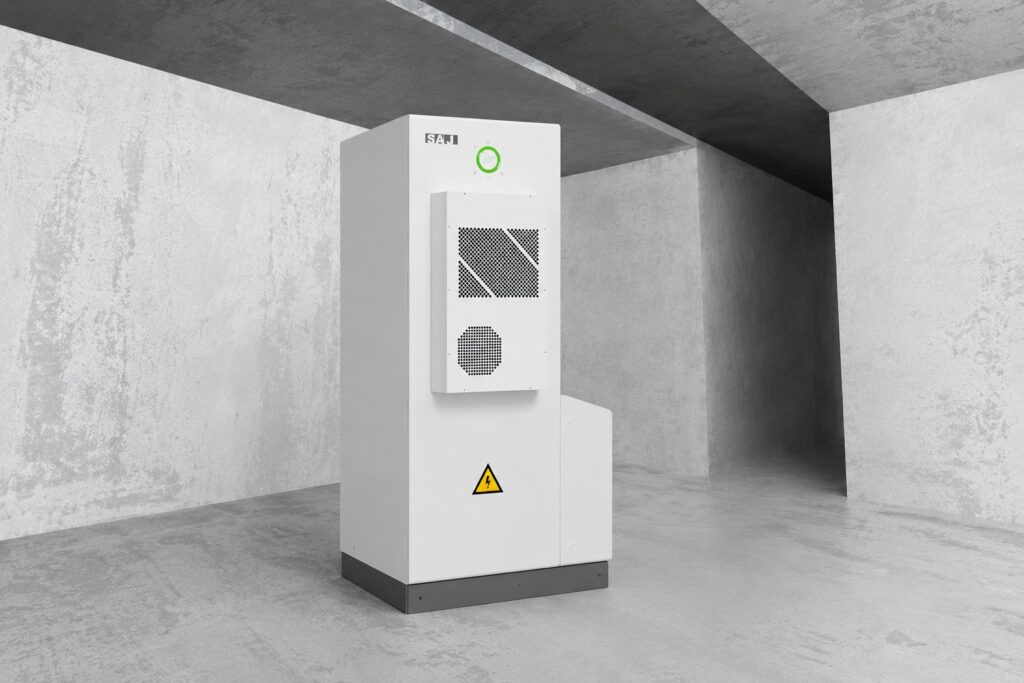

Commercial Manufacturing, EV Fleet Hubs & Agricultural Microgrids (100–150 kWp Solar)
Commercial facilities running automated production lines, heavy CNC machinery, or high-power fleet charging demanding ~100 kWh of outdoor storage.
Pre-engineered IP55 outdoor cabinet saves interior factory space while delivering 1075.2 V high-voltage efficiency and 50 A continuous cycling.
- BoundaryIf the facility's roof capacity is under 80 kWp and only requires 50–70 kWh of storage, step down to the CB2-57.3 or CB2-71.6 to save capital expenditure. ---
What Linker confirms with you
- If the facility's roof capacity is under 80 kWp and only requires 50–70 kWh of storage, step down to the CB2-57.3 or CB2-71.6 to save capital expenditure. ---
Documents
SAJ CHS2 All-in-One datasheet (Europe, EN), CB2 cabinet table on p4Product questions
What inverters are natively compatible with the CB2-100.3-HV5 cabinet?
SAJ CH3 series (75–125 kW) and CHS2 all-in-one stations. The cabinet operates across 940.8 V to 1209.6 V DC, matching the high-voltage battery input windows of SAJ CH3 commercial hybrid inverters and SAJ CHS2 all-in-one commercial storage systems.
What are the physical dimensions and weight of this cabinet?
1300 × 1030 × 2250 mm; approx. 1,700 kg. The outdoor cabinet measures 1,300 mm wide × 1,030 mm deep × 2,250 mm high and weighs approx. 1,700 kg (1.7 metric tons). It is rated IP55 for outdoor pad mounting on a reinforced concrete slab.
System components
Recommended components
SAJ eManager-C1 Pro communication box
Item number: DLK-SAJ-EMANAGERC1PRO
The eManager-C1 Pro datasheet states a recommended use of 'CHS2, 2 to 10 units in parallel', which is the same C&I line this cabinet belongs to.
