Description
SAJ CHS2-30K-T4-X: a three-phase all-in-one storage system with the CH2 hybrid inverter and the CB2 LiFePO4 battery in one cabinet, with 30 kW rated AC power and 4 MPPT trackers for up to 60,000 Wp of PV. The X in the name is the battery option: 57.3, 71.6, 85.9 or 100.3 kWh rated energy.
SAJ CHS2-30K-T4-X
30 kW rated AC power, 33,000 VA maximum apparent power: three-phase 3+N+PE at 380/400 V, 47.9 A maximum output current.
4 MPPT trackers with 2 strings each for up to 60,000 Wp: MPPT range 180–850 V, 1000 V maximum DC voltage, 22.5 A per string.
LiFePO4 battery in four options: 57.3, 71.6, 85.9 or 100.3 kWh rated energy, 51.5, 64.4, 77.3 or 90.2 kWh usable.
One cabinet of 1980 × 988 × 1065 mm (H × W × D) for indoor or outdoor installation: IP55, inverter IP66, cooled by an air conditioner, −30 to +50 °C.
Backup in 20 ms, generator input included.
The built-in STS switches between on-grid and off-grid operation in 20 ms. The backup output delivers up to 33,000 VA, and 45,000 VA for 5 s. A diesel generator connects to the GEN port without additional equipment, with up to 200 A input current; in single-unit operation the DRY.DO1 contact starts and stops it.
Expandable with up to three CB2 battery cabinets.
One CHS2 takes up to three further CB2 battery systems. For 2 to 10 CHS2 in parallel connection, the eManager-C1 Pro communication box is recommended.
SAJ

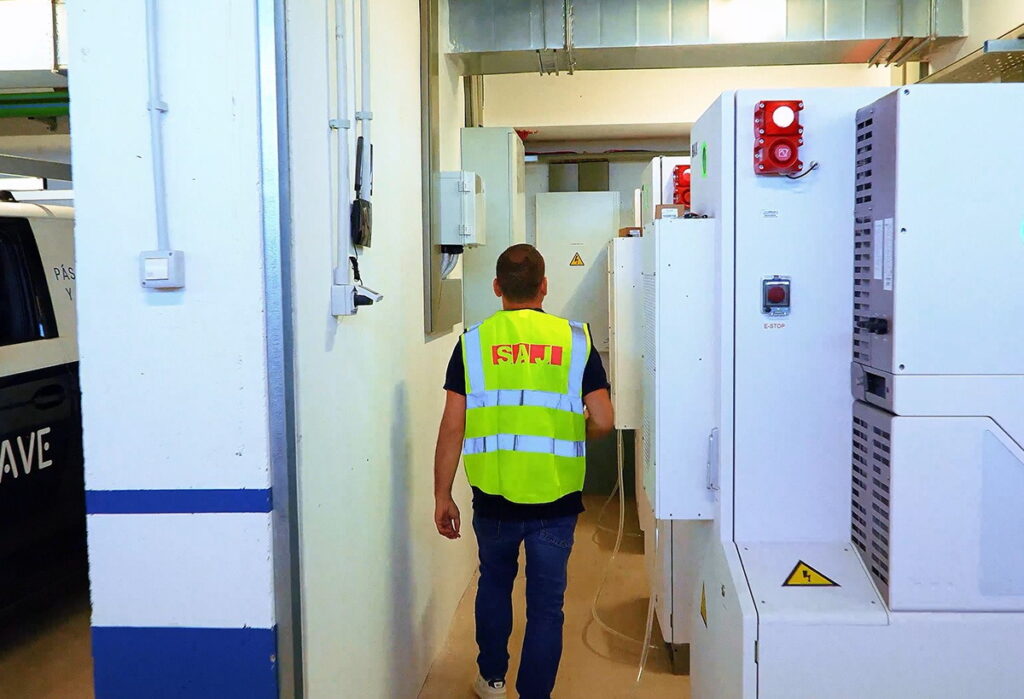

Inverter, battery and air conditioner in one cabinet.
The CHS2 combines the CH2 hybrid inverter and the CB2 battery system with its battery management system in one cabinet. The battery power cables are connected before delivery; on site the AC cables to the grid, the DC cables to the PV array and the communication cables are connected. The cabinet has type II surge protection on the AC and DC side, CO and fire detection and cabinet-level fire protection. Arc-fault detection (AFCI) is built in and is enabled in the elekeeper app.
Technical data
Hybrid inverter, LiFePO4 battery and air conditioner in one cabinet.
- Rated AC power, three-phase
- 30 kW
- Max. PV array power
- 60 kWp
- Rated energy by battery option
- 57.3–100.3 kWh
- Cabinet (inverter IP66)
- IP55
About these specifications
30 kW three-phase, 4 MPPT trackers, four battery options.
PV input (DC)
- Max. PV array power
- 60000 Wpat STC
- Max. DC voltage
- 1000 V
- MPPT voltage range
- 180–850 V
- Rated DC voltage
- 600 V
- Start voltage
- 200 V
- Number of MPPT trackers
- 4
- Strings per MPPT
- 2
- Max. DC input current
- 4 × 45 A
- Max. DC input current per string
- 22.5 A
- Max. DC short-circuit current
- 4 × 55 A
Battery
- Battery type
- LiFePO4
- Rated energy by battery option
- 57.3 / 71.6 / 85.9 / 100.3 kWh
- Usable energy by battery option
- 51.5 / 64.4 / 77.3 / 90.2 kWh
- Battery rated voltage by battery option
- 204.8 / 256.0 / 307.2 / 358.4 V
- Rated capacity
- 280 Ah
- Battery voltage range
- 179.2–403.2 V
AC output (on-grid)
- Rated AC power
- 30000 W
- Max. apparent power
- 33000 VA
- Rated output current
- 43.5 Aat 230 V
- Max. output current
- 47.9 Aat 230 V
- Rated AC voltage
- 3+N+PE, 380/400 V
- Rated output frequency
- 50 Hzrange 45–55 Hz
- Power factor (cos φ)
- 0i – 1 – 0c
- Total harmonic distortion (THDi)
- <3 %
AC input (on-grid)
- Rated AC voltage
- 3+N+PE, 400 V
- Rated frequency
- 50 Hz
AC output (backup)
- Max. output power
- 33000 VA
- Peak output apparent power
- 45000 VAfor 5 s
- Rated AC voltage
- 3+N+PE, 400 V
- Rated output frequency
- 50 Hzrange 45–55 Hz
- Output voltage distortion (THDv)
- <3 %with linear load
- Switching between on-grid and off-grid operation
- 20 msbuilt-in STS
AC input (generator)
- Max. input current
- 200 Aat 230 V
- Rated input voltage
- 3+N+PE, 400 V
- Rated input frequency
- 50 Hzrange 45–55 Hz
Efficiency
- Max. efficiency
- 98 %
- European efficiency
- 97.3 %
- Max. battery to AC efficiency
- 96.0 %
Protection
- PV reverse polarity protection
- Integrated
- Anti-islanding protection
- Integrated
- AC overcurrent protection
- Integrated
- AC short-circuit protection
- Integrated
- AC overvoltage protection
- Integrated
- DC switch
- Integrated
- DC surge protection
- Type II
- AC surge protection
- Type II
- Arc-fault detection (AFCI)
- Integratedenabled in the elekeeper app
- Rapid shutdown (RSD)
- Optional
General data of the system
- Communication
- Wi-Fi / Ethernet / RS485
- Topology
- Transformerless
- Operating temperature range
- −30 to +50 °Cwith derating from 45 °C to 50 °C
- Cooling method
- Air conditioner
- Ambient humidity
- 5–95 %non-condensing
- Max. operating altitude
- 2000 m
- Ingress protection
- IP55; inverter IP66
- Dimensions (H × W × D)
- 1980 × 988 × 1065 mm
- Standards
- VDE4105, VDE0126, EN50549-1, IEC61727/62116, IEC62109-1/-2, EN61000-6-1/-2/-3/-4
CH2 hybrid inverter inside the cabinet
- Dimensions (H × W × D)
- 630 × 630 × 290 mm
- Weight
- 76 kg
- Ingress protection
- IP66
- Cooling method
- Smart fan cooling
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CHS2-30K-T4-X belongs in, and the limits behind our engineers' recommendation.
Supermarkets, farms and small factories with up to 60 kWp of PV
Sites with a three-phase 380/400 V connection that use their PV power themselves, shift it by time of use and keep backup loads supplied in a grid outage.
4 MPPT trackers take up to 60,000 Wp; the cabinet stands on the ground indoors or outdoors and runs in self-consumption, time-of-use and backup mode.
- Grid connection 3+N+PE, 380/400 V; string voltage within the 180–850 V MPPT range and below 1000 V; 2 strings per tracker with at most 22.5 A per string; ambient temperature −30 to +50 °C, with derating from 45 °C; flat ground with a load-bearing capacity of 1.5 t.
Documents
Product questions
What does the X in CHS2-30K-T4-X stand for?
The X indicates the battery rated voltage, rated capacity, and usable energy. The value of X includes 204.8V/280Ah/51.5kWh, 256.0V/280Ah/64.4kWh, 307.2V/280Ah/77.3kWh, and 358.4V/280Ah/90.2kWh.
How is the cabinet moved and secured?
Move and place the cabinet to the installation location with a forklift or crane. Secure the cabinet with the screw bolts or with the mounting brackets.
