Description
Pylontech OPTIM US L260-OMNI combines a 125 kW PCS with 260 kWh nominal LFP storage and liquid cooling. Rated AC output voltage is 400 V at 50 Hz. This offer covers one cabinet; expansion and backup are project configuration items.

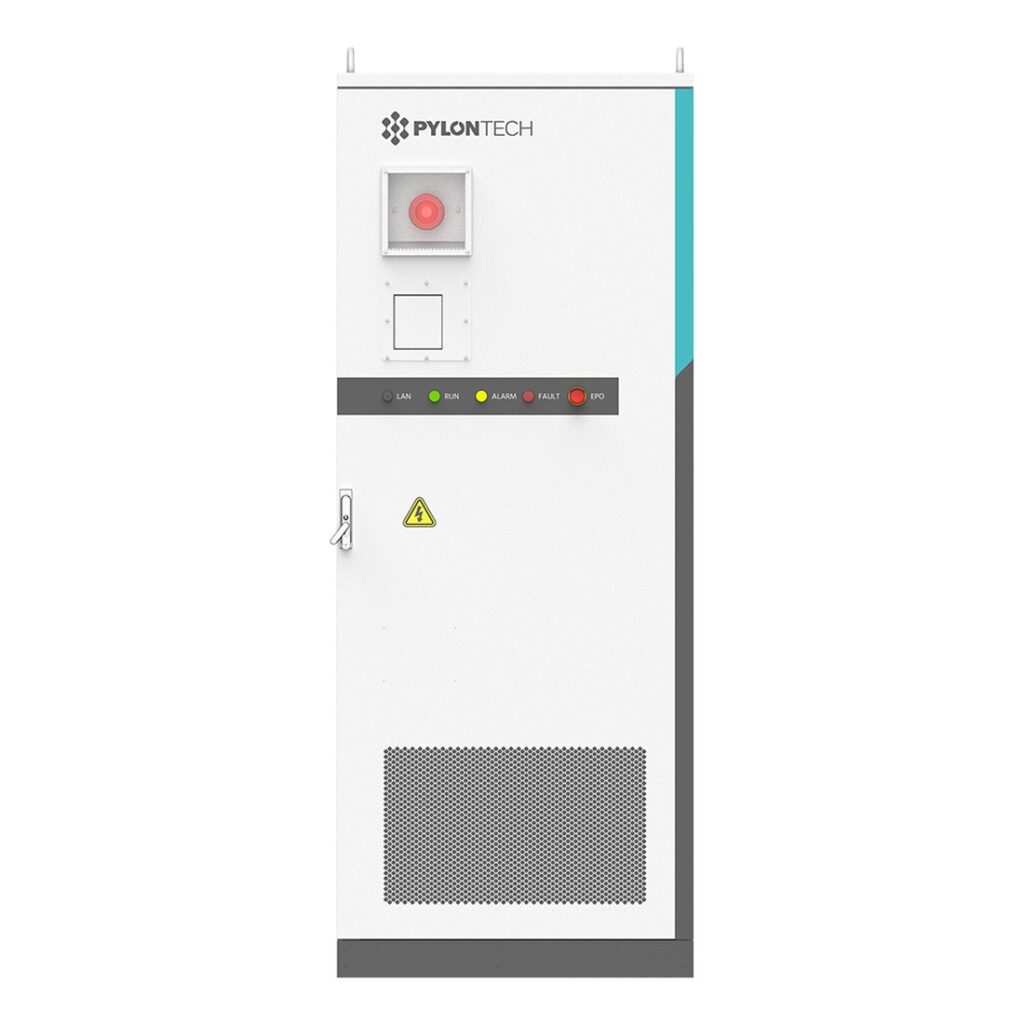

Pylontech OPTIM US L260-OMNI
125 kW / 260 kWh Cabinet: Integrated PCS and nominal LFP storage in one liquid-cooled cabinet. This offer covers one cabinet.
Liquid Cooling: Working temperature range is -25 to 50°C, with derating below 10°C or above 40°C.
400 V AC Connection: Rated on-grid AC output voltage is 400 V at 50 Hz, with a maximum AC current of 181 A. Connection and backup layouts are project configuration items.
Single-String Battery Data: 702–936 Vdc and 98% depth of discharge; round-trip efficiency is >95% at 0.5C.
Cabinet dimensions for site planning
Listed dimensions are 950 × 1300 × 2480 mm (W × D × H), without the inverter; stated weight is 2.9 tons. The installed PCS footprint and site clearances belong in the project layout.

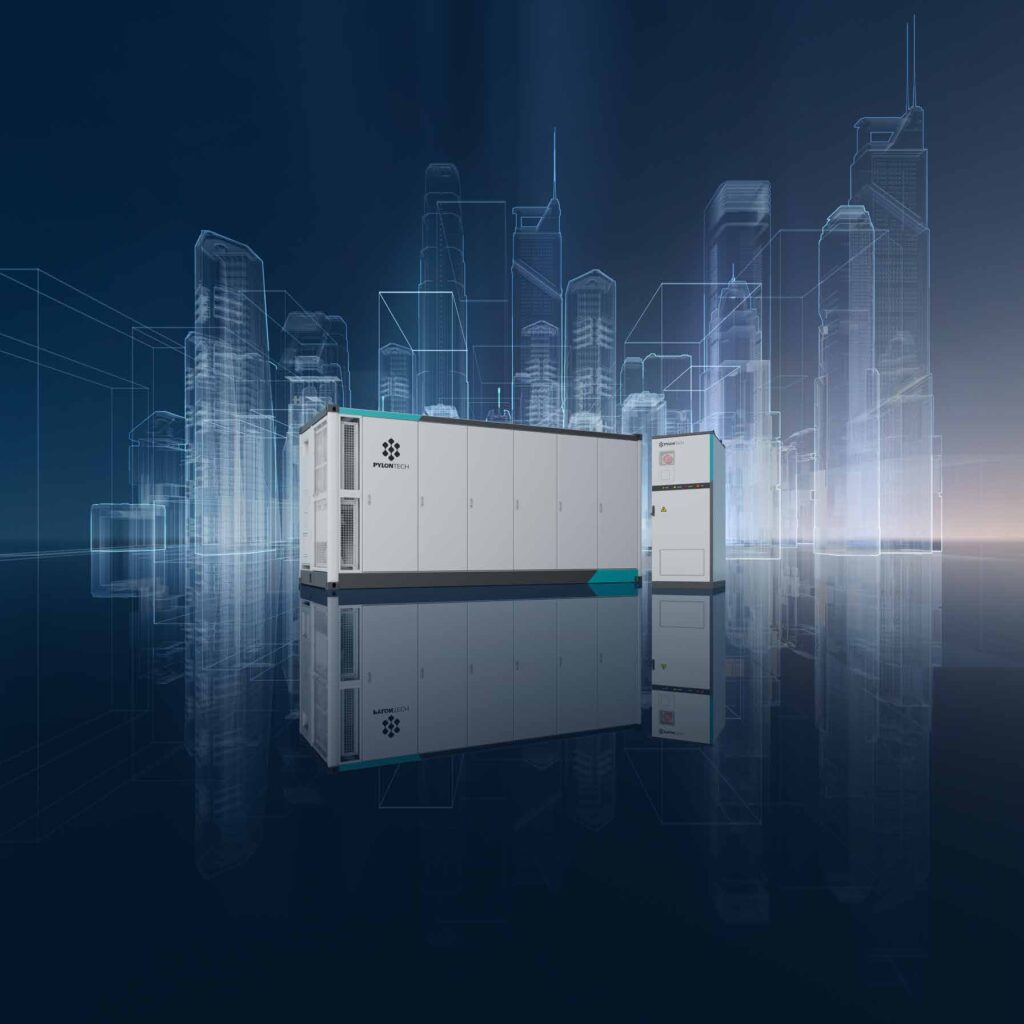

Optional expansion to six cabinet/PCS pairs
The Standard configuration is one 260 kWh cabinet with one 125 kW PCS. Optional configurations use two to six cabinets with the same number of PCS units. Six pairs provide 1560 kWh nominal capacity and 750 kW rated AC power.
IP55 cabinet with C3 corrosion rating
The specification lists IP55, C3 corrosion protection with C5 optional, and aerosol fire extinguishing. The fire protection configuration is to be specified for the order.
Pylontech OPTIM US
125 kW PCS for commercial storage
The integrated PCS is rated at 125 kW on-grid, with 400 V / 50 Hz AC output and a maximum AC current of 181 A. The cabinet combines 260 kWh nominal LFP storage with liquid cooling and Ethernet (Modbus TCP) communication.
Technical data
Commercial and industrial liquid-cooled storage.
- One Cabinet
- 125 kW / 260 kWh
- Single-String DC Range
- 702–936 V
- Cycle Longevity
- >8,500
- IP55 Enclosure
- IP55
About these specifications
125 kW PCS / 260 kWh nominal LFP capacity.
Identity
- Battery type
- Li-ion (LFP)
- Isolation type
- Non-isolation
- Communication type
- Ethernet (Modbus TCP)
- Inverter type
- 125 kW
Battery
- Battery type
- Li-ion (LFP)
- Nominal capacity (kWh)
- 260
- Depth of discharge
- 98% (single string)
- Cycle life
- >8500
- DC voltage range (Vdc)
- 702 - 936 (single string)
- Maximum / continuous operation current (A)
- 200 / 157
- Round-trip efficiency at 0.5C
- >95%
Inverter / PCS
- Rated AC power (kW)
- 125
- Rated AC output voltage (Vac)
- 400
- Rated AC output frequency (Hz)
- 50
- Maximum AC current (A)
- 181
- Overload capacity
- 110%
- AC power factor
- 1.0 (lagging) ~ 1.0 (leading)
- CEC efficiency at 0.5C
- 98%
- Isolation type
- Non-isolation
- Inverter type
- 125 kW
- PCS count 1 - 6 (kW), same-count cabinet pairs
- 125 / 250 / 375 / 500 / 625 / 750 (1: Standard; 2-6: Optional)
Cabinet & Environment
- Dimensions W x D x H (mm), without inverter
- 950 x 1300 x 2480
- Weight (tons)
- 2.9
- Working temperature range (°C)
- -25 to 50
- Temperature derating
- Below 10°C or above 40°C
- Protection class
- IP55
- Altitude (m)
- <=3000
- Humidity
- 5% - 95%
- Fire extinguishing
- Aerosol
- Cooling system
- Liquid cooling
- Cooling system consumption (kW)
- 2.56
- Auxiliary power consumption (kW), continuous / peak, including HVAC
- 2.7 / 3.85
- Anti-corrosion
- C3 (C5 optional)
System Configuration
- Maximum parallel configuration (cabinet/PCS pairs)
- 6 (optional)
- Communication type
- Ethernet (Modbus TCP)
- Operation logic
- Wide temperature range / ancillary service / electricity arbitrage / demand response / backup
- Cabinets 1 - 6 (kWh), same-count PCS pairs
- 260 / 520 / 780 / 1040 / 1300 / 1560 (1: Standard; 2-6: Optional)
Certification list · partial applications in progress
- Listed safety standards / LVD
- IEC62619 / IEC62040-1 / VDE2510-50 / UL1973 / IEC 62477-1 / CE LVD
- Listed EMC standards
- CE EMC / IEC 61000-6-2
- Listed grid standards
- EN 50549-1: 2019 / EN 50549-2: 2019
- Listed mark / test reference
- CE / UL9540A
- Application status
- Partial application in progress; the list does not identify which applications remain open.
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech OPTIM US L260-OMNI belongs in, and the limits behind our engineers' recommendation.
Commercial and industrial storage project
Projects assessing a 125 kW PCS with 260 kWh nominal LFP storage for electricity arbitrage, demand response or backup.
The single cabinet uses liquid cooling and provides 125 kW rated on-grid AC power at 400 V / 50 Hz.
- Per cabinet: 125 kW PCS and 260 kWh nominal; our engineers match the cabinet count to the site's load profile.
- The order names the cabinet version, the fire protection configuration and the site connection.
- Expansion and backup set the cabinet and PCS count and the backup arrangement.
