SAJ

BU2-5.0-HV5

Item number: DLK-SAJ-BU250HV5

Usable energy: 4.5 kWh
Nominal energy: 5.0 kWh
Nominal voltage: 102.4 V
Cell chemistry: LiFePO4

Model Compare different models

Orderable · lead time confirmed after order

Germany delivery estimate: €85.00 to €205.00 · The final delivery charge is included in your Proforma.

Documents

Plan with BU2-5.0-HV5

New system, extension or replacement? Linker Advisor starts from this model and asks only for what is still open (existing model, quantity, postcode, installation date).

Description

50 A high-current discharge with enhanced thermal dissipation.

SAJ BU2-5.0-HV5 is a 5.0 kWh high-current high-voltage LFP battery module supporting up to 50 A continuous discharge (5 kW per brick), engineered for heavy heat pump loads, commercial workshops, and SAJ H2 inverter pairing.

50 A High-Current Continuous Rating
Delivers 66% higher throughput than standard 30 A modules, driving 5 kW of continuous power from a single 5 kWh brick.
Heavy-Duty High-Capacity Cells (52.5 kg)
Enhanced internal thermal dissipation channels maintain low operating temperatures under heavy 50 A cycling.
Cable-Free Direct Modular Stacking
Internal busbar terminals eliminate external high-voltage DC cables and wiring errors during vertical stacking.
IP65 Heavy Weatherproof Protection
Sealed against dust and water jets for unconditioned mechanical basements, outdoor sheds, and carports.

More product details

Delivering high continuous discharge generates thermal stress inside battery cells. The BU2-5.0-HV5 incorporates enhanced internal cooling channels and heavy copper interconnects to sustain 50 A continuous power.

Delivers up to 5 kW continuous DC discharge per single module (102.4 V @ 50 A).
Heavy-duty 52.5 kg chassis provides robust thermal mass and structural heat dissipation.
Cell-level thermal sensors and active balancing prevent localized degradation across thousands of daily cycles.

SAJ

Compare different models

Show differences only

Scroll sideways to compare every model.

2 models

SAJ BU2-5.0-HV5

This model

SAJ BU2-5.0-HV1

Usable energy

4.5 kWh

Nominal energy

5.0 kWh

Nominal voltage

102.4 V

Cell chemistry

LiFePO4

Max. charge current

30 A

Max. discharge current

30 A

Ingress protection

IP65

Weight

52.5 kg

50.5 kg

View full technical data

Internal self-aligning busbars for fast, error-free assembly.

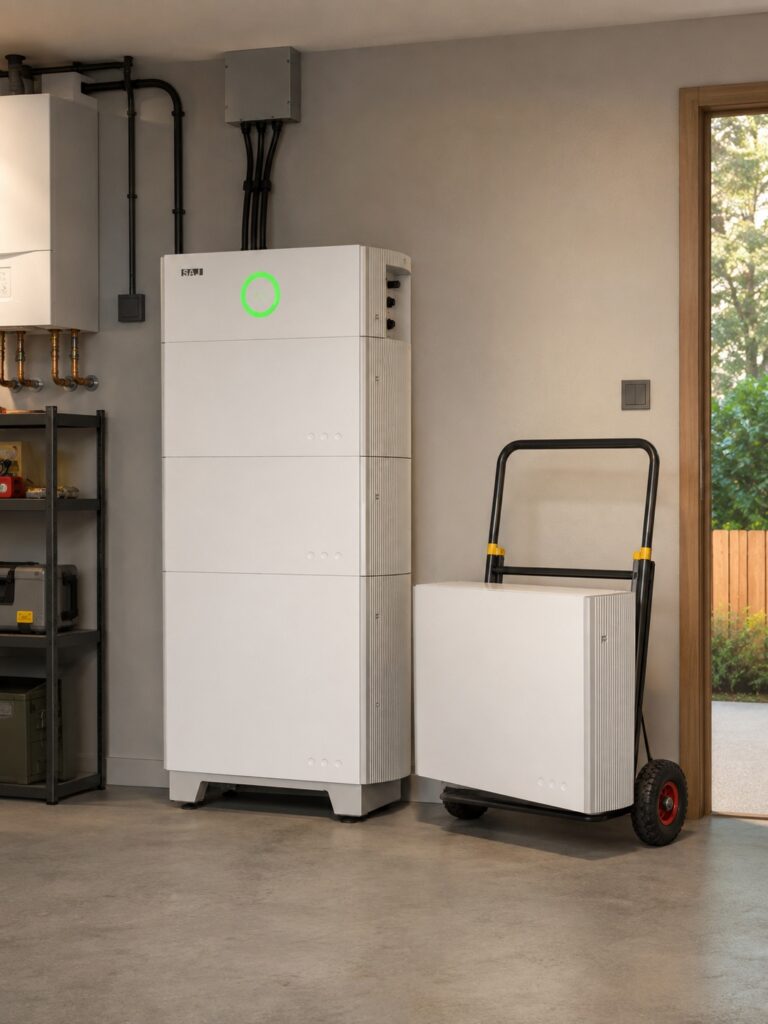

Stacking modules vertically passes all electrical power and CAN communication internally through heavy-duty mating terminals without external wiring tools. Self-aligning guide pins ensure perfect mechanical seating and electrical contact upon vertical placement. Eliminates exposed high-voltage DC wiring on garage and utility room walls, maximizing residential safety. IP65 sealed enclosure protects power cells against humidity, dust, and coastal environments (-10 to +50 °C).

30 A charge and discharge.

Current stays at 30 A across the module count.

Outdoor IP65 module.

Charge 0-50 C, discharge -10-50 C, CAN via the stack head.

Technical data

High-throughput energy storage engineered for heavy domestic electrification and commercial H2 systems.

5.0 kWh high-current expansion brick supporting up to 50 A continuous discharge.

Upgraded for high-power residential and commercial demand, the BU2-5.0-HV5 module steps up continuous current capacity to 50 A. Sized at 5.0 kWh (102.4 V nominal), it pairs with SAJ H2 and HS2 inverters to deliver massive instantaneous backup power for heat pumps and heavy machinery without current throttling.

Nominal Storage: 5.0 kWh
High-Voltage Bus: 102.4 V
High-Rate Throughput: 50 A
External DC Conduits: Zero

Type & Configuration

Type: High-voltage battery module, B2 Series (HV5)
Cell configuration: 32S1P
Cell type: LiFePO4

Energy & Electrical

Module voltage (V): 102.4
Module capacity (Ah): 50
Rated energy per module (kWh): 5.0
Usable energy per module (kWh): 4.8
Max. charge current (A): 30
Max. discharge current (A): 30

Mechanical

Dimension per module (H x W x D mm): 261 x 626 x 365
Weight (kg): 52.5

Environment

Ingress protection (system): IP65
Operating temperature range: Charging 0 ~ 50 C; discharging -10 ~ 50 C
Cooling method: Natural convection

Project fit

Where this model fits.

Scenarios that show which projects the SAJ BU2-5.0-HV5 belongs in, what to verify before quoting, and when another model is the better pick.

Project scenario

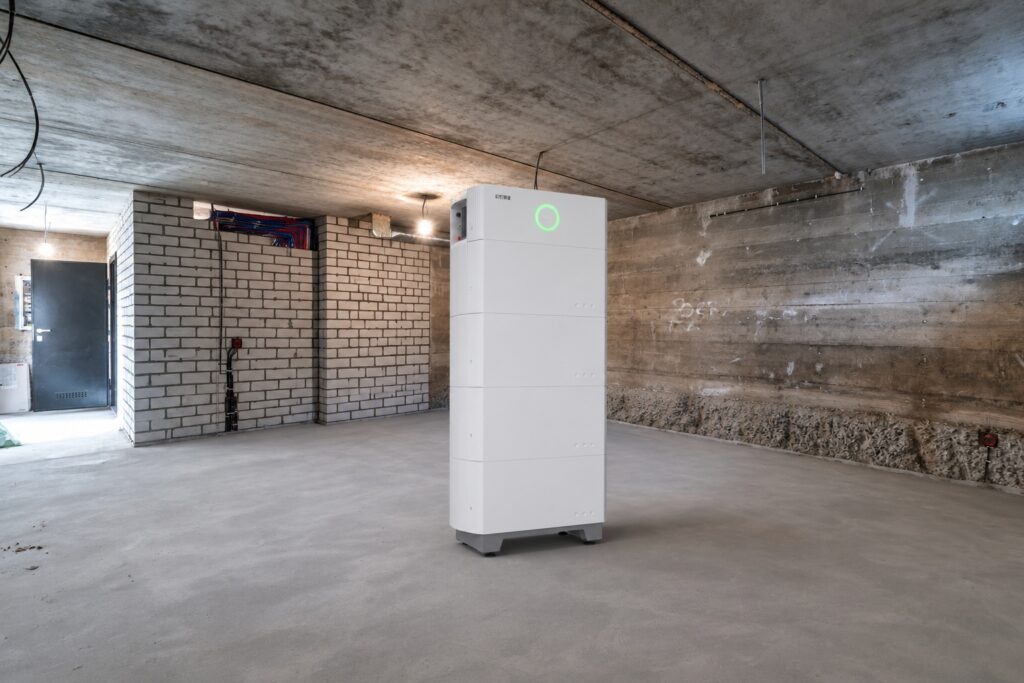

Pairing with SAJ H2 Commercial Hybrid Inverters (10–30 kW)

Commercial workshops or large residential properties installing SAJ H2-10K to H2-30K-DE inverters requiring 50 A battery throughput.

50 A continuous current rating unlocks the full charge and discharge speed of the H2 inverter, cutting battery cycling times in half.

What Linker confirms with you

Confirm this model against the adjacent rating in the same family

Documents

SAJ B2 HV1 / HV5 Series high-voltage battery datasheet (AU, EN) Datasheet · PDF · EN SAJ B2 Series (5.0-25.0) HV1/HV5 Battery Datasheet (EN, AU) Datasheet · PDF · EN

Product questions

Why does the HV5 module weigh 52.5 kg compared to 50.5 kg for the HV1?

Heavier internal copper busbars and enhanced thermal heat dissipation channels. To sustain 50 A continuous current (up to 5 kW per module) without overheating, the HV5 incorporates thicker internal copper interconnects, heavy-duty contact terminals, and reinforced aluminum heat dissipation channels, adding 2.0 kg of structural thermal mass.

Can I mix HV1 (30 A) and HV5 (50 A) modules in the same battery stack?

No. All modules in a single column must be identical. To ensure balanced current sharing and uniform cell impedance, all modules in a vertical tower must be of the same model and current rating (i.e., all HV1 or all HV5).
