Description

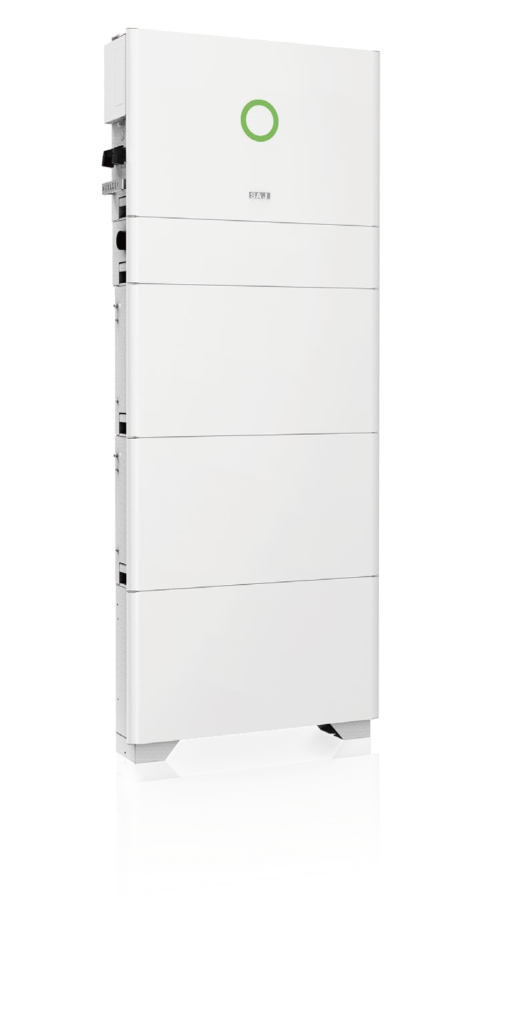

SAJ BU3-5.0-TV2-PRO is the LiFePO4 battery module of the HS3 all-in-one storage system, with 5.0 kWh rated energy and 4.8 kWh usable energy at 450 V nominal voltage. It has an integrated DC/DC optimiser and battery management system and is stacked under the HS3 inverter, one to eight modules per inverter.
SAJ BU3-5.0-TV2-PRO
5.0 kWh rated energy and 4.8 kWh usable energy per module; rated capacity 100 Ah.

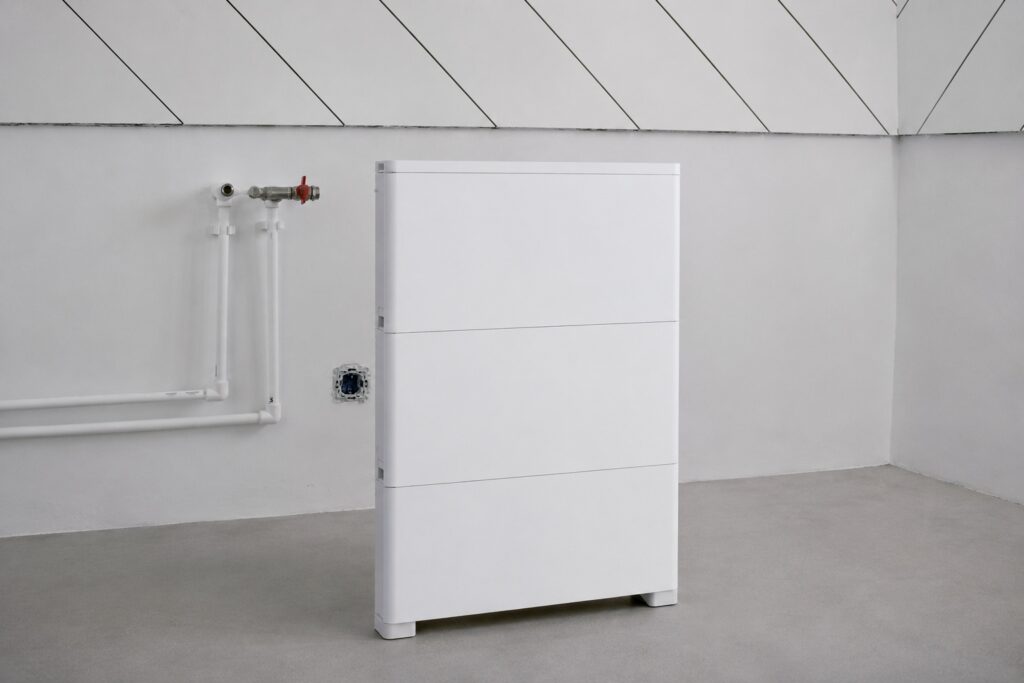

One to eight modules per HS3 inverter: at most four in a ground-mounted stack and three in a wall-mounted stack.
Operating temperature -30 °C to +50 °C; IP65; ground or wall mounting.
370 × 695 × 170 mm (H × W × D) and 52 kg per module, without the battery base.
4.8 kWh usable.
Rated energy 5.0 kWh, usable energy 4.8 kWh, rated capacity 100 Ah.
-30 °C to +50 °C, IP65.
The operating temperature range is -30 °C to +50 °C and the ingress protection IP65. A battery heating function can be set in the app; in the default mode heating starts below 5 °C and stops at 15 °C.
SAJ
LiFePO4 module with DC/DC optimiser and BMS.
Each module holds LiFePO4 cells, a pack-level DC/DC optimiser and a battery management system. The nominal voltage is 450 V, the operating voltage 380–500 V and the maximum charging and discharging current 7.9 A per module. The module communicates over CAN.
Technical data
Main figures of the BU3-5.0-TV2-PRO
- Rated energy
- 5.0 kWh
- Usable energy
- 4.8 kWh
- Nominal voltage
- 450 V
- Depth
- 170 mm
About these specifications
5.0 kWh rated energy, 4.8 kWh usable, 450 V nominal voltage.
Battery module
- Battery type
- LiFePO4
- Rated capacity
- 100 Ah
- Rated energy
- 5.0 kWh
- Usable energy
- 4.8 kWh
- Nominal voltage
- 450 V
- Operating voltage
- 380–500 V
- Max. charging current
- 7.9 A
- Max. discharging current
- 7.9 A
- Communication
- CAN
Mechanical data and environment
- Dimensions (H × W × D)
- 370 × 695 × 170 mmwithout battery base
- Weight
- 52 kgwithout battery base
- Ingress protection
- IP65
- Mounting
- Ground mounting; wall mounting
- Operating temperature range
- -30 to +50 °C
- Storage temperature range
- -10 to +40 °C
- Ambient humidity
- 5–95 %non-condensing
- Max. operating altitude
- 3000 m
- Cooling method
- Natural convection

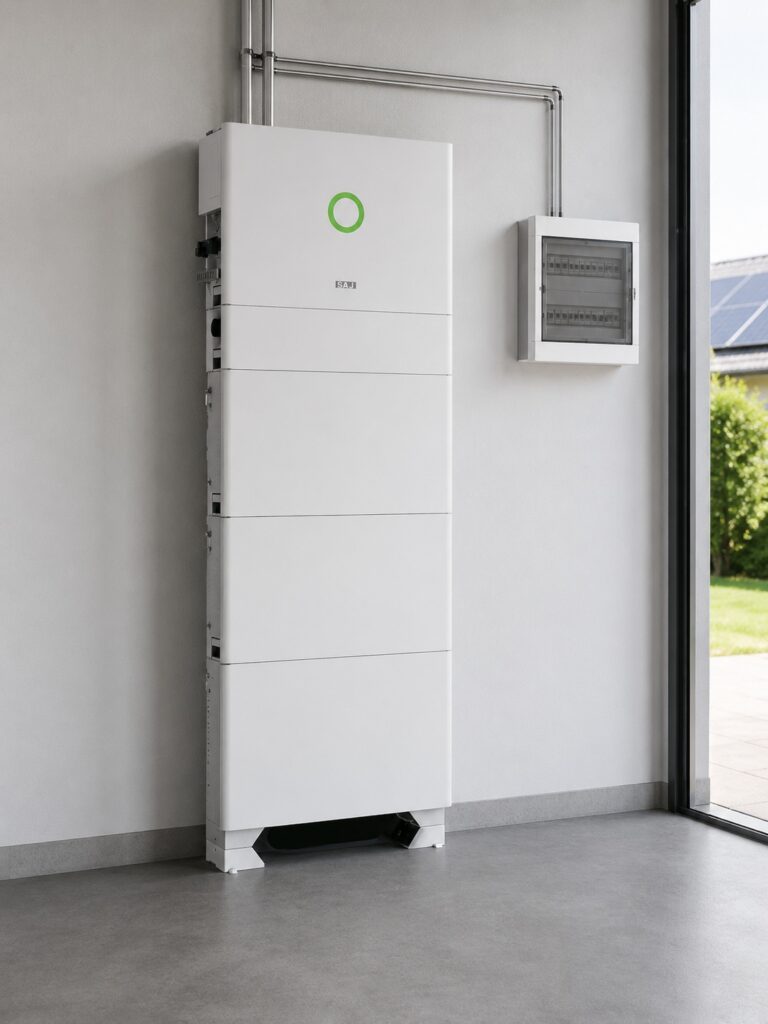

In the HS3 system
- Modules per HS3 inverter
- 1 to 8
- Modules per ground-mounted stack
- up to 4
- Modules per wall-mounted stack
- up to 3
Documents
Product questions
Which inverters does the BU3-5.0-TV2-PRO work with?
The BU3-5.0-TV2-PRO is listed as the battery for the HS3 three-phase inverter series. The manual's inverter compatibility table covers HS3-3K-T2, HS3-4K-T2, HS3-5K-T2, HS3-6K-T2, HS3-8K-T2, HS3-10K-T2 and HS3-12K-T2 variants.
What are the dimensions and the weight of a BU3 module?
For the BU3-5.0-TV2-PRO the dimensions are 370*695*170 mm (H*W*D) and the weight is 52 kg.
Compatibility records
SAJ HS3-5K-T2-W/G-PXItem number DLK-SAJ-HS35KT2WPSAJ HS3-6K-T2-W/G-PXItem number DLK-SAJ-HS36KT2WPSAJ HS3-8K-T2-W/G-PXItem number DLK-SAJ-HS38KT2WPSAJ HS3-10K-T2-W/G-PXItem number DLK-SAJ-HS310KT2WPSAJ HS3-12K-T2-W/G-PXItem number DLK-SAJ-HS312KT2WPBU3-5.0-TV2-PRO modules, 1 to 8 per inverter (450 V nominal, 380-500 V window matching the HS3 battery port exactly).
