SAJ HS3-8K-T2-W/G-PX
Description
Whole-home three-phase emergency power in a single column.
SAJ HS3-10K-T2-W/G-PX is a 10 kW three-phase All-in-One modular hybrid inverter unit delivering 20 kWp solar intake and 11,000 VA apparent power, engineered to provide whole-home emergency backup and heat pump power in a slim 17 cm column.
10,000 VA Continuous Three-Phase Backup
Powers whole-home three-phase domestic circuits, heat pumps, and induction hobs seamlessly during grid outages.
20,000 W Solar PV Input (200% Oversizing)
Double solar intake ensures rapid battery charging and full domestic self-consumption even on overcast winter days.
20 A High-Current Dual MPPTs (Isc 25 A), 100% compatible with modern 600W+ high-power bifacial panels with zero DC current clipping.
Ultra-Slim 17 cm Column Depth
Furniture-grade vertical column hugs residential garage and utility room walls closely with zero exposed wiring.
More product details
Delivering full 10,000 VA continuous power across all three lines on backup, the HS3-10K powers induction hobs, multi-split air conditioning, and domestic lighting simultaneously during utility outages.
- Delivers up to 15.9 A continuous output current per phase on backup to sustain heavy domestic loads.
- Sub-10 ms automatic transfer ensures zero computer reboots or smart home controller resets.
- Symmetrical three-phase power export complies natively with European grid regulations.
SAJ
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
10 kW
6 kW
8 kW
12 kW (11 kW for Ireland variant)
Phase
3L+N+PE
3L+N+PE
3L+N+PE
3L+N+PE
MPPT trackers
2
2
2
2
Max. efficiency
98.0 %
98.0 %
98.0 %
98.0 %
Battery voltage
380-500 V
380-500 V
380-500 V
380-500 V
Ingress protection
IP65
IP65
IP65
IP65
Weight
34 kg, inverter only
34 kg, inverter only
34 kg, inverter only
34 kg, inverter only
Dimensions
450*695*170 mm (H*W*D), inverter only
450*695*170 mm (H*W*D), inverter only
450*695*170 mm (H*W*D), inverter only
450*695*170 mm (H*W*D), inverter only
20 A high-current tracking with 200% solar oversizing.
Modern large-format solar panels produce operating currents exceeding 14 A. The HS3 features dual 20 A MPPT channels (Isc 25 A) to capture 100% of solar generation across 20 kWp arrays. Dual 20 A MPPT channels optimize multi-pitch residential stringing without current clipping. Wide MPPT window (180–900 V) optimizes harvest across extreme seasonal temperature swings. IP65 cast-aluminum casing certified for clean indoor or sheltered outdoor installations (-40 to +60 °C).
30 A into BU3.
Discharge current reaches the platform maximum while the battery window stays 380-500 V.
10 kW backup on three phases.
Backup power matches the AC rating on the same IP65 slim chassis.
Technical data
The flagship 10 kW All-in-One residential energy hub engineered for complete household autonomy.
20 kWp solar intake delivering 10 kW continuous three-phase whole-home backup.
Serving as the primary high-power tier for the HS3 series, the HS3-10K-T2-W/G-PX handles 20,000 Wp of solar input and delivers 10,000 W continuous (11,000 VA max) apparent power. Stacking directly on BU3 battery modules, it powers whole-home domestic circuits during grid drops without external switchgear clutter.
- Continuous 3-Phase Power
- 10,000 VA
- 200% Solar DC Intake
- 20,000 Wp
- High String Current
- 20 A / MPPT
- External DC Conduits
- Zero
Inverter
- Series
- HS3
- Kw
- 10
- Phase
- 3
- AC output power
- 10 kW
- Max apparent power
- 11 kVA
- Backup power
- 10 kW
- Peak backup power
- 15 kVA (60 s)
- Rated output current
- 14.5 A @230Vac
- Max output current
- 15.9 A
- Max efficiency
- 98.0 %
- Euro efficiency
- 97.6 %
- Topology
- Non-isolated
- Phases
- 3L+N+PE
Solar Input
- MPPT trackers
- 2
- Max a mppt
- 20
- Max PV input power
- 15 kWp
- Max PV input voltage
- 1000 V
- MPPT voltage range
- 180-900 V
- Start voltage
- 180 V
- Max Isc per MPPT
- 25 A
Battery
- Bat module
- BU3-5.0-TV2-PRO
- Bat kwh
- 5-40
- Bat modules
- 1-8
- Battery type
- LiFePO4
- Battery voltage range
- 380-500 V
- Max battery charge current
- 30 A
- Max battery discharge current
- 30 A
Physical
- Dimensions
- 450*695*170 mm (H*W*D), inverter only
- Weight
- 34 kg, inverter only
- Heating
- Yes
- IP rating
- IP65
- Operating temperature
- -30 to +50
- Communication
- Wi-Fi/Ethernet/4G(Optional)
Project fit
Where this model fits.
Scenarios that show which projects the SAJ HS3-10K-T2-W/G-PX belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

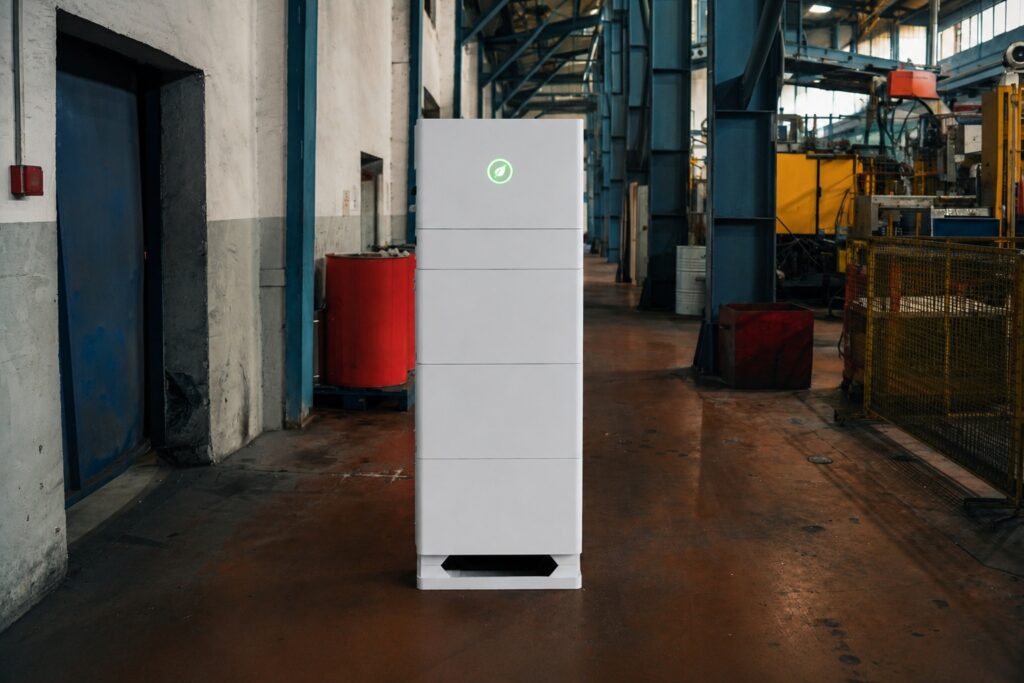

Large All-Electric Single-Family Residences (14–20 kWp PV)
Modern detached homes equipped with a 3-phase air-to-water heat pump, induction cooktops, and high baseline domestic loads seeking a single-column All-in-One system.
10 kW continuous AC throughput provides the power needed to run heavy domestic loads simultaneously, while 20 kWp solar intake ensures fast battery replenishment on cloudy days.
- BoundaryIf total solar array size is under 14 kWp and continuous household load stays under 8 kW, step down to the HS3-8K to save capital cost. ---
What Linker confirms with you
- If total solar array size is under 14 kWp and continuous household load stays under 8 kW, step down to the HS3-8K to save capital cost. ---
Documents
SAJ HS3 Three Phase All-in-One datasheet (UK, EN) SAJ HS3 5-12K T2 Three-Phase Battery Storage Datasheet EN SAJ HS3 (3K-12K) T2 Three-Phase ESS User Manual (EN, EU)Product questions
What size AC circuit breaker is required for the HS3-10K?
3-pole 20 A or 25 A MCB; 5 × 4 mm² copper cable. The HS3-10K delivers a nominal continuous output current of 14.5 A per phase (max output current 15.9 A @ 400 V). A 3-pole 20 A or 25 A miniature circuit breaker (MCB) is standard for European installations.
What battery capacity is recommended for this 10 kW model?
Stacking 3 to 5 BU3 modules (15.0 kWh to 25.0 kWh). To support whole-home backup and deep winter solar buffering, pairing this 10 kW unit with 3 to 5 BU3-5.0-TV2-PRO modules (15.0 to 25.0 kWh) provides the ideal balance between high power throughput and multi-day energy autonomy.
System components
Recommended components
SAJ BU3-5.0-TV2-PRO battery modules (up to 8, 5.0–40.0 kWh)
Item number: DLK-SAJ-BU350TV2PRO
SAJ's HS3 datasheet scalability row: 'BU3-5.0-TV2-PRO, up to 8 battery modules.' HS3 does not take the BU2 (SAJ's own Configuration Instructions confirm the HS2-only BU2 pairing separately).
Chint DTSU666 three-phase meter
Item number: DLK-CHINT-DTSU666
Same DTSU666 model SAJ specifies in its own accessories catalogue; HS3 is a three-phase unit.
Optional components
SAJ ATS1-T63-A automatic transfer switch (three-phase, 63A)
Item number: DLK-SAJ-ATS1T63A
ATS1's own datasheet compatible-inverter row lists HS3-5/6/8/10/12K-T2-W/4G-EX by name.
