SAJ CH3-125K-T8
Description
Symmetrical 8-tracker routing for complex commercial roofs.
SAJ CH3-110K-T8 is a 110 kW commercial three-phase hybrid inverter delivering 121 kVA maximum apparent power and 165 kWp solar intake across 8 independent 32 A MPPT channels, engineered to drive large-scale commercial storage racks for factory peak shaving and fleet charging.
110 kW Continuous Commercial Output (167.1 A Max)
Delivers massive three-phase power throughput (121 kVA max) to drive heavy manufacturing machinery.
165,000 Wp Solar PV Intake (150% Oversizing)
Channels massive solar generation from large warehouse roofs into building loads and commercial storage.
8 Independent 32 A MPPT Trackers (16 Strings)
Eliminates DC power clipping across expansive, multi-sloped industrial roof sections.
150 A Heavy-Duty Battery Interface (500–900 V)
Drives large battery banks at high charge and discharge rates for dynamic multi-tariff optimization.
More product details
Sprawling logistics warehouses and commercial facilities with complex multi-pitch roofs suffer heavy mismatch losses if grouped on fewer trackers. The CH3-110K-T8 provides 8 independent 32 A MPPT trackers (Isc 40 A), optimizing 16 strings of 600W+ bifacial modules.
- 8 symmetrical MPPT channels allow dedicated tracking for multiple warehouse pitches with zero cross-string clipping.
- Absorbs up to 165,000 W of solar generation, routing daytime power directly into industrial loads and 150 A storage racks.
- Wide MPPT window (500–850 V) delivers peak electrical conversion efficiency under full continuous load.
SAJ
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
110 kW
99.9 kW
100 kW
125 kW
Max. efficiency
≥98 %
≥98 %
≥98 %
≥98 %
Battery voltage
750-950 V
750-950 V
750-950 V
750-950 V
Ingress protection
IP66
IP66
IP66
IP66
Weight
135 kg
135 kg
135 kg
135 kg
Dimensions
1027*895*342 mm [H*W*D]
1027*895*342 mm [H*W*D]
1027*895*342 mm [H*W*D]
1027*895*342 mm [H*W*D]
Heavy commercial battery throughput with 110 kVA emergency power.
Transitioning into heavy commercial storage, the CH3-110K-T8 delivers 150 A continuous DC throughput across a wide 500–900 V window, allowing rapid cycling on large commercial battery containers (such as SAJ CB3-L261). Direct high-voltage pairing with SAJ CB2 and CB3 storage cabinets at up to 100 kW continuous DC power. 110 kVA continuous three-phase backup sustains commercial workshops and critical facility sub-panels in under 20 ms. IP65 heavy-duty cast-aluminum casing provides complete dust and high-pressure water protection (-30 to +60 °C).
CB3 is the listed battery.
CB3-L261 or CB3-M20 modules behind the CB3-HVC, 60 to 260 kWh per cluster, 200 A into 750-950 V LFP.
220 kWp of PV on a 110 kW hybrid.
200% oversizing puts 220 kWp on this 110 kW unit, so the roof can grow on this hybrid.
1500 V strings.
Longer runs than a 1000 V design, fewer DC home-runs on a commercial roof.
Technical data
Megawatt-scale commercial hybrid energy management engineered for high-power industrial electrification.
165 kWp solar intake with 110 kW continuous output for high-power commercial storage.
Pushing commercial power density higher, the CH3-110K-T8 delivers 110 kW continuous AC output (121 kVA max) and absorbs up to 165,000 Wp of solar generation across 8 MPPT channels. It is engineered for large logistics facilities, corporate microgrids, and high-throughput commercial storage installations requiring heavy continuous power throughput.
- Continuous 3-Phase Power
- 110,000 VA
- 150% Solar DC Intake
- 165,000 Wp
- High-Rate Storage Port
- 150 A
- High String Current
- 32 A / MPPT
Power & Config
- Type
- 1500 V DC C&I hybrid inverter, CH3 Series
- Phase
- 3
- Topology
- Transformerless
- Battery type
- LFP
- Rated AC power (kW)
- 110
- Rated / max. output current (A @230V)
- 167.1 / 167.1
Solar Input
- Max. PV array power (kWp @STC)
- 220
- Max. DC voltage (V)
- 1500
- MPPT voltage range (V)
- 300 ~ 1500
- Rated DC voltage (V)
- 1050
- Max. DC input current (A)
- 40
- Max. DC short circuit current (A)
- 55
- Number of strings per MPPT
- 8*2
- String-level disconnector
- Integrated
Battery & Charge
- Battery type
- LFP
- Battery voltage range (V)
- 750 ~ 950
- Max. charging / discharging current (A)
- 200
Backup & Grid Output
- Max. apparent power (kVA)
- 110
- Rated / max. output current (A @230V)
- 167.1 / 167.1
- Rated output frequency (Hz)
- 50 / 60
- Max. backup output power (kVA)
- 110
- Peak backup apparent power
- 1.1 x rated continuous, 1.55 x rated for 1 s
- Max. generator input power (kW)
- 220
- Max. generator input current (A @230V)
- 334.2
Efficiency
- Max. efficiency
- >=98%
- Euro efficiency
- >=97.5%
- Max. battery to AC efficiency
- >=98%
Physical & Environment
- Dimensions (H x W x D mm)
- 1027 x 895 x 342
- Weight (kg)
- 135
- Ingress protection
- IP66
- Cooling method
- Smart air cooling
- Operating temperature range
- -30 C to +60 C (45 C to 50 C with derating)
- Altitude (m)
- 3000
- Warranty (year)
- 5 / 10
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CH3-110K-T8 belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

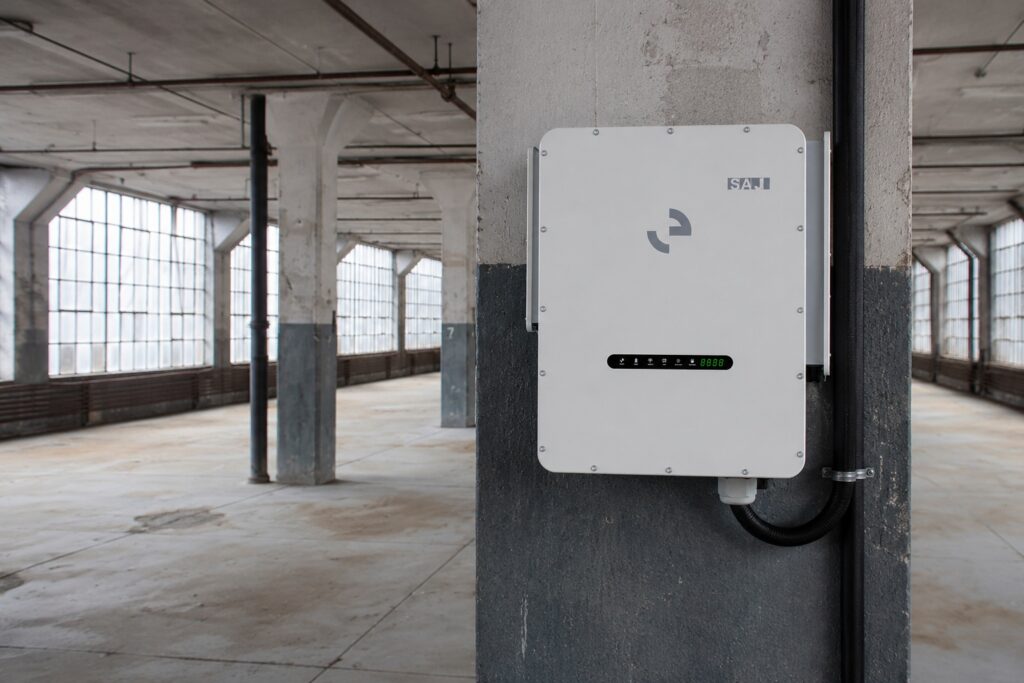

Large Industrial Logistics Hubs & Fleet Charging Depots (140–165 kWp Solar)
Logistics centers operating multi-vehicle fast charging depots alongside high-draw warehouse automation.
110 kW continuous output handles heavy charging spikes, while 165 kWp solar intake ensures rapid battery replenishment.
- BoundaryIf the facility requires maximum commercial power throughput (125 kW / 137.5 kVA), step up to the CH3-125K-T8. ---
What Linker confirms with you
- If the facility requires maximum commercial power throughput (125 kW / 137.5 kVA), step up to the CH3-125K-T8. ---
Documents
SAJ CH3 and CB3 Series 75-125 kW datasheet (EN)Product questions
What size AC circuit breaker and cable cross-section are required for the CH3-110K?
250 A 3-pole industrial MCCB; 95 mm² to 120 mm² copper cable. The inverter has a maximum continuous AC output current of 167.1 A per phase (at 400 V three-phase). A 3-pole 250 A industrial circuit breaker (MCCB) is standard on the AC distribution board, paired with copper conductor cross-sections of 95 mm² to 120 mm².
System components
Required components
SAJ CB3-HVC cluster control / BMS unit
Item number: DLK-SAJ-CB3HVC
CB3-M20's own live spec sheet: 'Control module = CB3-HVC (required, sold separately)'.
Recommended components
SAJ CB3-M20 stackable module or CB3-L261 liquid-cooled cabinet (60–260 kWh per cluster)
Item number: DLK-SAJ-CB3M20
SAJ's CH3 + CB3 datasheet, verbatim: 'The battery is compatible with SAJ CH2 and CH3 series inverters,' 60 to 260 kWh per cluster.
Approved pairings
SAJ B2-10.0-HV1Item number DLK-SAJ-B2100HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-10.0-HV5Item number DLK-SAJ-B2100HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-15.0-HV1Item number DLK-SAJ-B2150HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-15.0-HV5Item number DLK-SAJ-B2150HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-20.0-HV1Item number DLK-SAJ-B2200HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-20.0-HV5Item number DLK-SAJ-B2200HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-25.0-HV1Item number DLK-SAJ-B2250HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-25.0-HV5Item number DLK-SAJ-B2250HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-5.0-HV1Item number DLK-SAJ-B250HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ B2-5.0-HV5Item number DLK-SAJ-B250HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ BC2-HV1Item number DLK-SAJ-BC2HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ BU2-5.0-HV1Item number DLK-SAJ-BU250HV1CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ BU2-5.0-HV5Item number DLK-SAJ-BU250HV5CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CB3-HVCItem number DLK-SAJ-CB3HVCCB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CB3-L261Item number DLK-SAJ-CB3L261CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CB3-M20Item number DLK-SAJ-CB3M20CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
