SAJ B2-5.0-HV5
Description
10 kW continuous discharge with enhanced thermal dissipation.

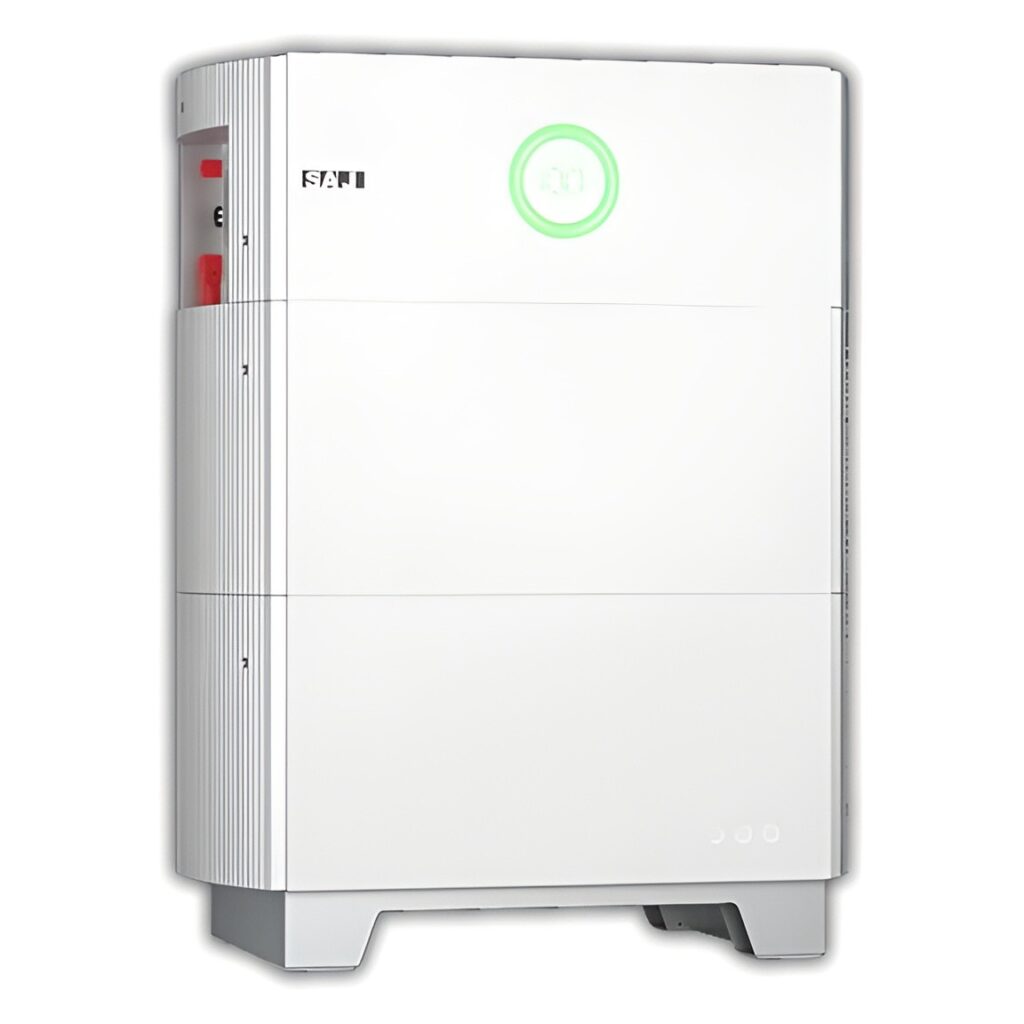

SAJ B2-10.0-HV5 is a 10.0 kWh high-current high-voltage LFP battery tower delivering up to 50 A continuous discharge (10 kW continuous output across two modules), engineered for high-demand heat pumps, EV wallboxes, and SAJ H2 inverter pairing.
10 kW Continuous Power Delivery (50 A)
Supplies massive instantaneous power to sustain whole-home emergency backup without current derating.
204.8 V Direct High-Voltage Bus
Matches three-phase hybrid inverter voltage windows, ensuring high round-trip conversion efficiency.
Heavy-Duty High-Capacity BU2-HV5 Cells (52.5 kg)
Enhanced thermal dissipation channels maintain low operating temperatures under heavy 50 A cycling.
Compact Single-Column Footprint (0.23 m²)
Preserves valuable garage and utility room floor space in a clean 626 × 365 mm column.
More product details
Delivering 10 kW of continuous discharge from a compact battery creates heavy thermal stress. The B2-10.0-HV5 incorporates enhanced internal cooling channels and heavy copper interconnects to sustain 50 A continuous power.
- Delivers up to 10 kW continuous DC discharge across 2 modules (204.8 V @ 50 A).
- Heavy-duty 52.5 kg chassis provides robust thermal mass and structural heat dissipation.
- Cell-level thermal sensors and active balancing prevent localized degradation across thousands of daily cycles.
SAJ
Compare different models
Scroll sideways to compare every model.
4 models
Usable energy
9.6 kWh
4.8 kWh
14.4 kWh
19.2 kWh
Nominal energy
10.0 kWh
5.0 kWh
15.0 kWh
20.0 kWh
Nominal voltage
204.8 V
102.4 V
307.2 V
409.6 V
Max. charge current
30 A
30 A
30 A
30 A
Max. discharge current
30 A
30 A
30 A
30 A
Ingress protection
IP65
IP65
IP65
IP65
Weight
105 kg
52.5 kg
157.5 kg
210 kg

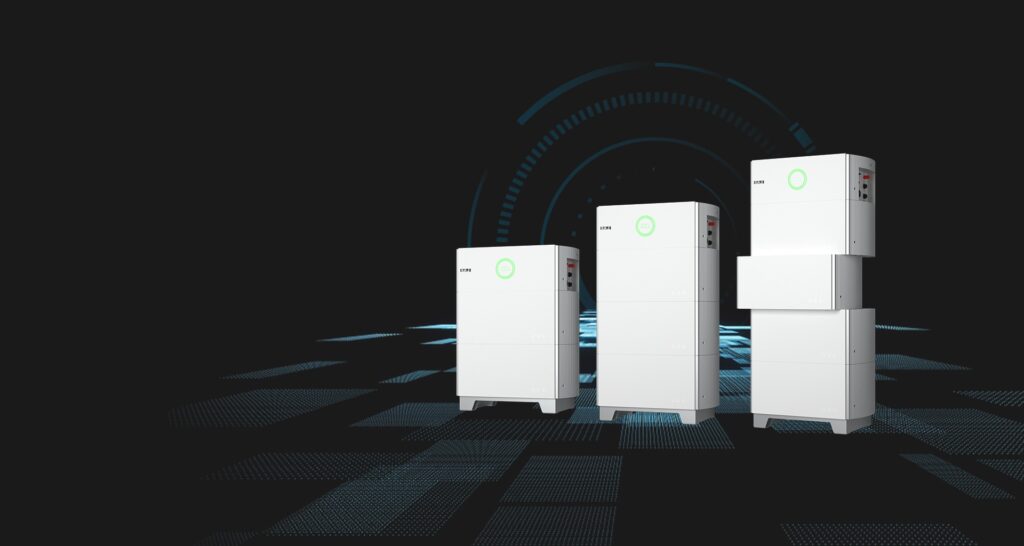

Low-profile column with multi-year expansion headroom.

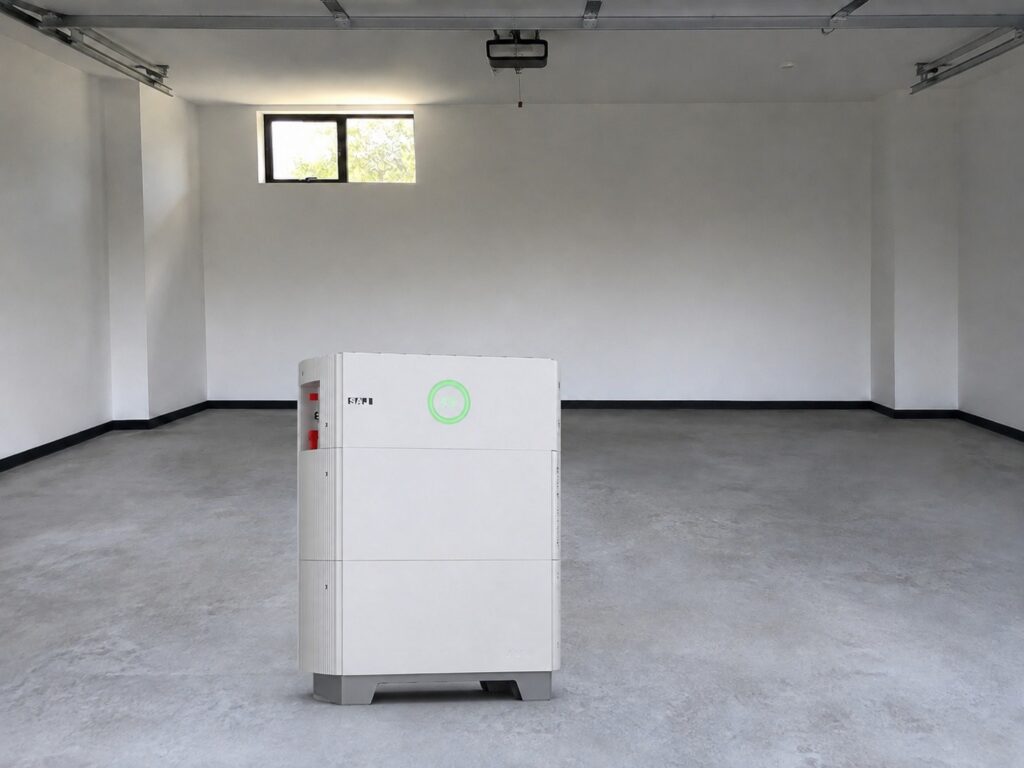

Standing on its heavy-duty base pedestal, this 2-module tower delivers extreme energy density while leaving vertical headroom to add up to 3 additional modules later. Heavy-duty floor pedestal isolates power modules from ground moisture and standing cellar condensation. Expandable up to 5 modules (25.0 kWh) by simply stacking additional BU2-5.0-HV5 bricks on top. IP65 weatherproof enclosure certified for unheated basements, technical utility rooms, and sheltered outdoor alcoves.
Generation stay-on-HV5.
Later modules should match this HV5 face so the column stays one line.
IP65, CAN, outdoor rated.
Charge 0-50 C, discharge -10-50 C, hybrid link on CAN.
Technical data
High-throughput commercial-grade energy storage engineered for residential heat pumps and workshops.
10.0 kWh high-current storage delivering 10 kW continuous discharge across 2 modules.
Stacking two 50 A high-throughput HV5 modules to reach 10.0 kWh at 204.8 V nominal, this system delivers up to 10,000 W of continuous battery power. It easily runs domestic heat pumps, high-power induction cooking, and emergency three-phase backup circuits simultaneously without power dips or thermal current throttling.
- Nominal Storage
- 10.0 kWh
- High-Voltage Bus
- 204.8 V
- High-Rate Throughput
- 50 A
- All-Weather Build
- IP65
Type & Configuration
- Type
- High-voltage residential battery system, B2 Series (HV5)
- Battery module

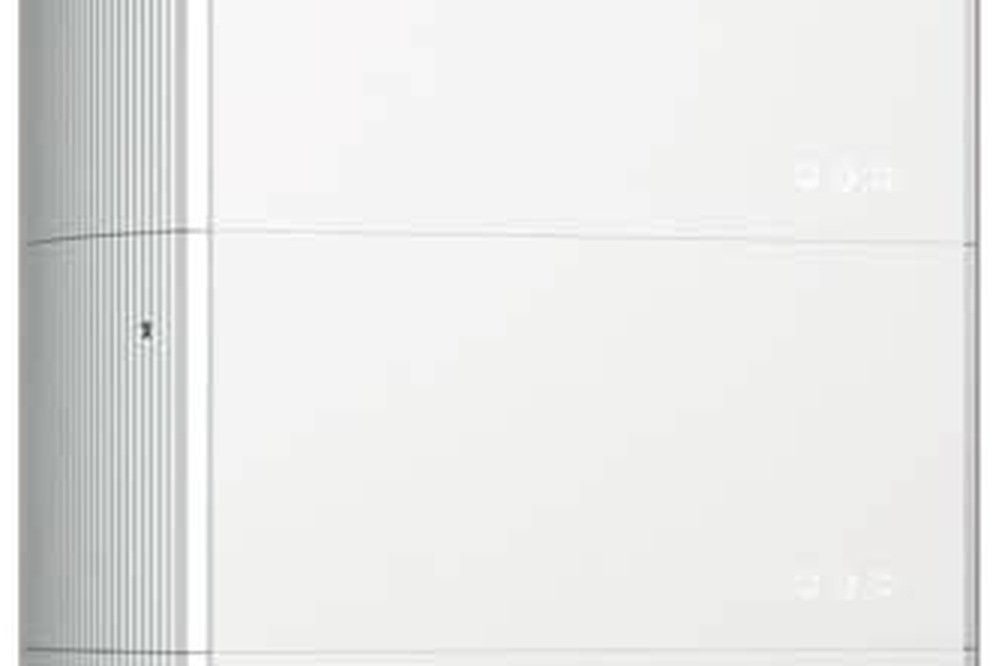

- BU2-5.0-HV5 (32S1P, 102.4 V / 50 Ah)
- Control module
- BC2-HV1 (as printed in the HV5 table)
- Control module dimension (H x W x D mm)
- 220 x 626 x 365
- Control module weight (kg)
- 11
Energy & Electrical
- Number of modules
- 2
- Rated energy (kWh)
- 10.0
- Usable energy (kWh)
- 9.6
- Rated power (W)
- 6144
- Nominal voltage (V)
- 204.8
- Operating voltage (V)
- 179.2 - 230.4
- Max. charge current (A)
- 30
- Max. discharge current (A)
- 30
Mechanical
- Module stack dimension (H x W x D mm)
- 522 x 626 x 365
- Module stack weight (kg)
- 105
- Control module dimension (H x W x D mm)
- 220 x 626 x 365
- Control module weight (kg)
- 11
Environment
- Ingress protection
- IP65
- Protection class
- I
- Mounting
- Wall-mounted (optional) / ground-mounted
- Operating temperature range
- Charging 0 ~ 50 C; discharging -10 ~ 50 C
- Ambient humidity
- 0 ~ 95% non-condensing
- Cooling method
- Natural convection
- Communication
- CAN
Project fit
Where this model fits.
Scenarios that show which projects the SAJ B2-10.0-HV5 belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

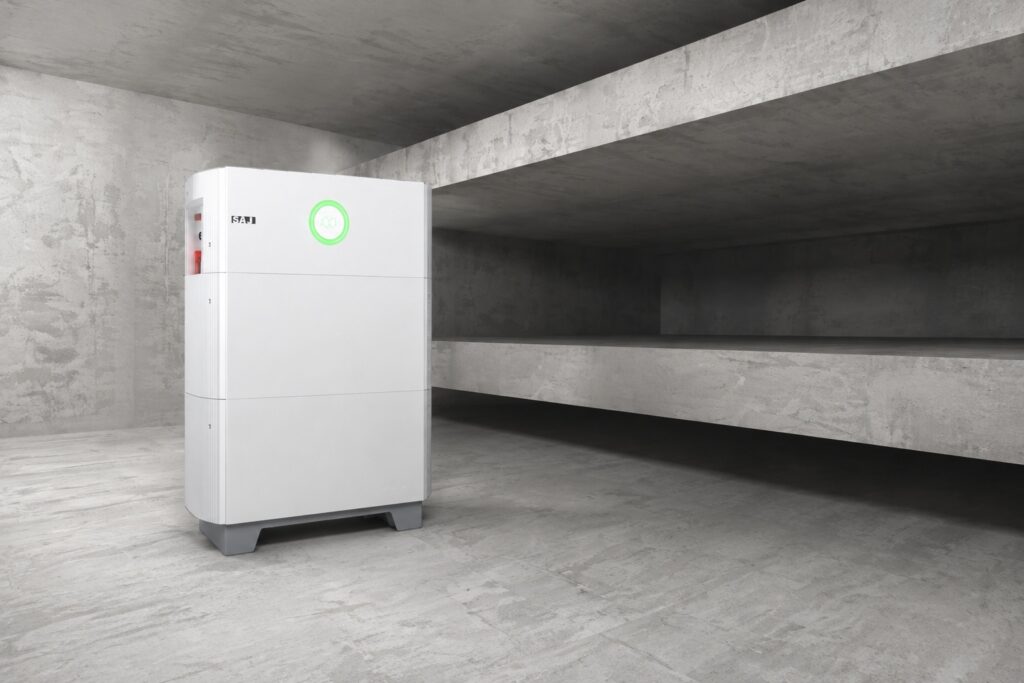

High-Power Residences with Heat Pumps & 10 kW Solar Inverters
Homes with 3-phase heat pumps and 8–12 kWp solar needing 10 kW continuous battery power to handle evening kitchen, HVAC, and domestic loads.
50 A discharge delivers full 10 kW power from just 2 modules, whereas standard 30 A systems would require 3 or 4 modules to deliver matching power.
- BoundaryIf the household requires deeper overnight capacity (> 12 kWh) for multi-day winter heating buffers, step up to the 15.0 kWh (3-module) or 20.0 kWh (4-module) tower. ---
What Linker confirms with you
- If the household requires deeper overnight capacity (> 12 kWh) for multi-day winter heating buffers, step up to the 15.0 kWh (3-module) or 20.0 kWh (4-module) tower. ---
Documents
SAJ B2 HV1 / HV5 Series high-voltage battery datasheet (AU, EN) SAJ B2 Series (5.0-25.0) HV1/HV5 Battery Datasheet (EN, AU)Product questions
Why choose the B2-10.0-HV5 over the standard B2-10.0-HV1?
HV5 delivers 10 kW continuous discharge (50 A); HV1 delivers 6 kW (30 A). * B2-10.0-HV1: Standard 30 A residential tower (max output ~6 kW). * B2-10.0-HV5: High-throughput 50 A tower (max output ~10 kW), specifically designed to pair with SAJ H2 inverters and drive heavy three-phase motor loads without current throttling.
What is the total assembled height and weight of the 2-module HV5 tower?
783 mm height; 116.0 kg total weight. * Total Height: 783 mm (626 mm wide × 365 mm deep). * Total Weight: 116 kg (approx. 256 lbs).
Approved pairings
SAJ CH3-100K-T8Item number DLK-SAJ-CH3100KT8CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CH3-110K-T8Item number DLK-SAJ-CH3110KT8CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CH3-125K-T8Item number DLK-SAJ-CH3125KT8CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CH3-75K-T6Item number DLK-SAJ-CH375KT6CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CH3-80K-T6Item number DLK-SAJ-CH380KT6CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ CH3-99.9K-T8Item number DLK-SAJ-CH3999KT8CB3-L261 and CB3-M20, through the CB3-HVC high-voltage cabinet. SAJ's CB3 datasheet states it directly: the battery is compatible with SAJ CH2 and CH3 series inverters. 60 to 260 kWh per cluster.
SAJ H2-10K-T3 (10 kW three-phase hybrid inverter)Item number DLK-SAJ-H210KT3B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ H2-12K-T3 (12 kW three-phase hybrid inverter)Item number DLK-SAJ-H212KT3B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ H2-15K-T3Item number DLK-SAJ-H215KT3B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ H2-20K-T3Item number DLK-SAJ-H220KT3B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ H2-25K-T3Item number DLK-SAJ-H225KT3B2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ H2-30K-T3-DEItem number DLK-SAJ-H230KT3DEB2-5.0-HV1 to B2-25.0-HV1 and B2-5.0-HV5 to B2-25.0-HV5, through the BC2-HV1 control module. SAJ's Configuration Instructions V1.0 state the system as H2 plus BC2 plus BU2. CAVEAT: the signed statement is SAJ's Oceania issue and names the -AU model variants. Ask SAJ to confirm the EU and DE variants in writing before a first order.
SAJ HS2-10K-T2-XItem number DLK-SAJ-HS210KT2XBU2-5.0-HV1/HV5, up to 5 battery modules. Battery window 180 to 600 V.
SAJ HS2-5K-T2-X (5 kW three-phase hybrid inverter)Item number DLK-SAJ-HS25KT2XBU2-5.0-HV1/HV5, up to 5 battery modules. Battery window 180 to 600 V.
SAJ HS2-6K-T2-XItem number DLK-SAJ-HS26KT2XBU2-5.0-HV1/HV5, up to 5 battery modules. Battery window 180 to 600 V.
SAJ HS2-8K-T2-XItem number DLK-SAJ-HS28KT2XBU2-5.0-HV1/HV5, up to 5 battery modules. Battery window 180 to 600 V.
