Description

SAJ B2-5.0-HV1 is a high-voltage LiFePO4 battery system made of one BC2-HV1 control module and one BU2-5.0-HV1 battery module: 5.0 kWh rated energy, 4.5 kWh usable energy, 102.4 V nominal voltage. The B2 series works only as a set with a SAJ H2 series storage inverter. The one-module B2-5.0-HV1 operates at 89.6 to 115.2 V, below the battery voltage range of 180 to 800 V of the H2 10-30K inverters.

SAJ B2-5.0-HV1

  • One BC2-HV1 control module and one BU2-5.0-HV1 battery module: 5.0 kWh rated energy and 4.5 kWh usable energy, 90 % depth of discharge.

  • 102.4 V nominal voltage and 3072 W rated power; maximum charge and discharge current 30 A.

  • IP65; ground mounting or optional wall mounting; charging at 0 to 50 °C, discharging at -10 to 50 °C.

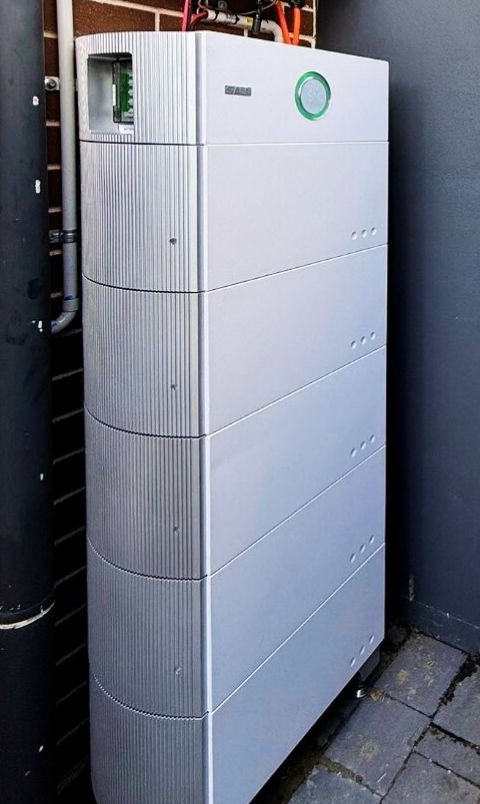

  • One B2 stack holds one to five BU2-5.0-HV1 modules on one BC2-HV1, 5.0 to 25.0 kWh rated energy.

30 A charge and discharge current.

Maximum charge current and maximum discharge current are 30 A. Rated power is 3072 W at 102.4 V nominal voltage; the operating voltage is 89.6 to 115.2 V.

IP65, on the ground or on the wall.

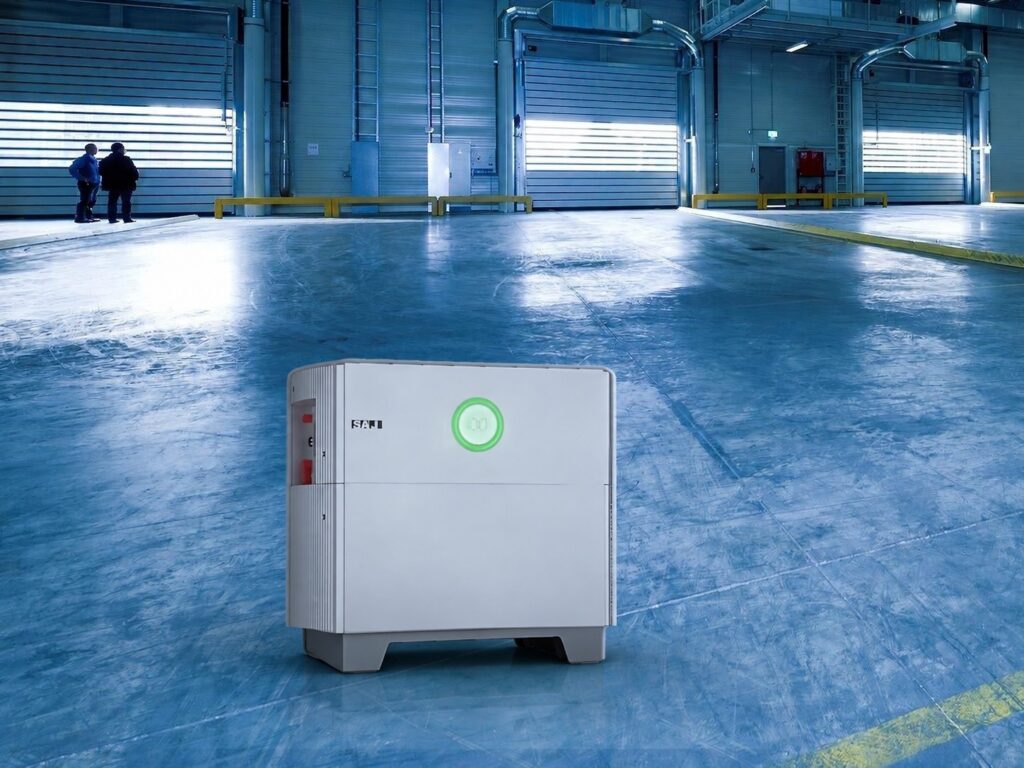

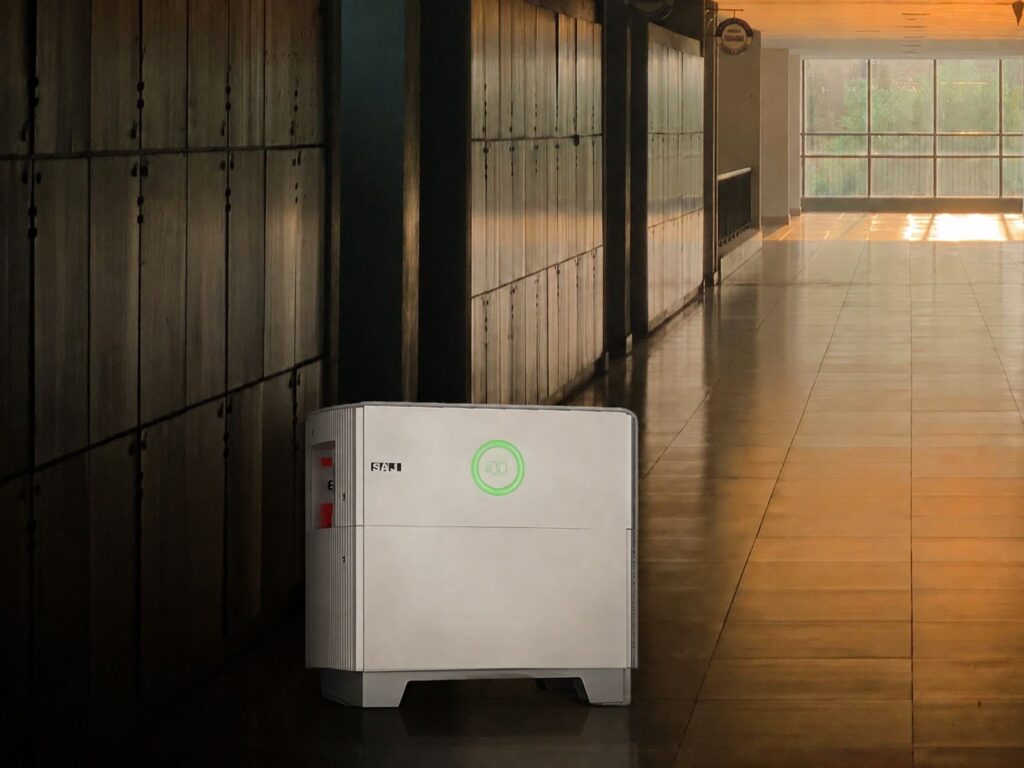

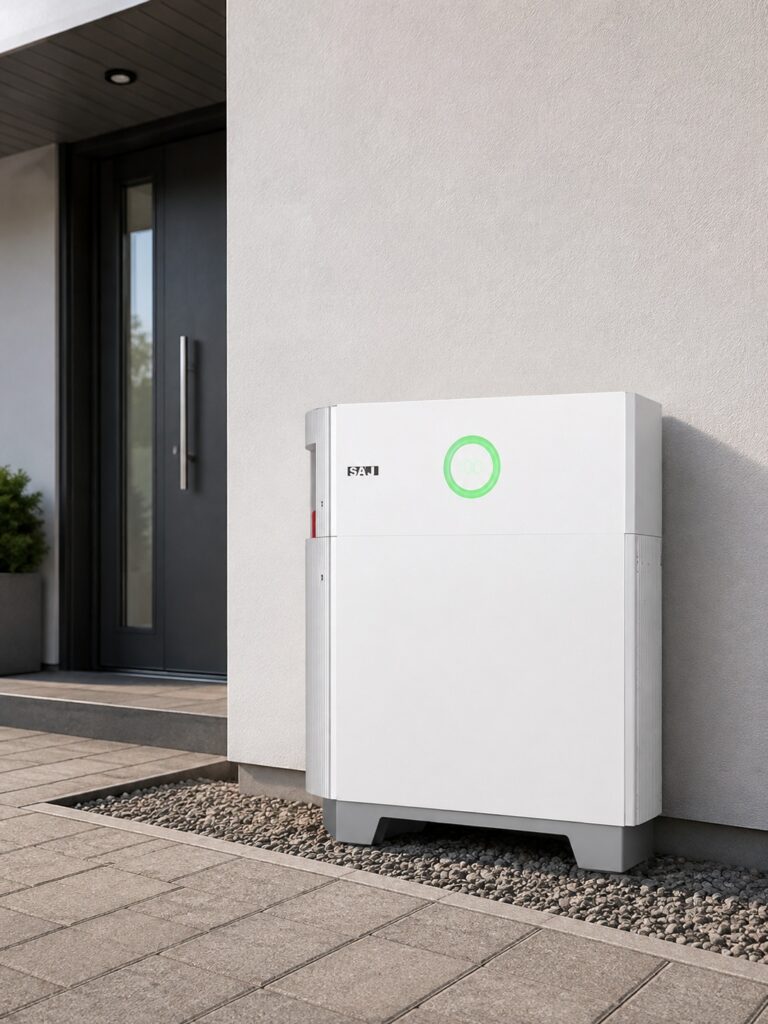

Ingress protection is IP65 and cooling is by natural convection. The stack is mounted vertically, on the ground or optionally on a wall, indoors or outdoors, with 50 cm clearance above, on both sides and in front. An indoor or sheltered place is suggested, away from direct sunlight, rain and snow.

One control module, one battery module.

SAJ BU2-HV1

One control module, one battery module.

The BC2-HV1 control module is the top unit of the stack and carries the circuit breaker, the display, the start button and the battery and communication ports to the inverter. Below it: 1 × BU2-5.0-HV1, each with 32S1P cells, 102.4 V and 50 Ah. Control module and battery module together measure 461 × 626 × 365 mm (H × W × D) and weigh 61.5 kg.

Technical data

B2-5.0-HV1 in figures

Rated energy
5.0 kWh
Usable energy
4.5 kWh
Max. charge and discharge current
30 A
Ingress protection
IP65
About these specifications

5.0 kWh rated energy at 102.4 V nominal voltage.

One BU2-5.0-HV1 battery module under one BC2-HV1 control module: 5.0 kWh rated energy, 4.5 kWh usable energy, 3072 W rated power, 89.6 to 115.2 V operating voltage and 30 A maximum charge and discharge current.
Battery system
Battery module
BU2-5.0-HV1 (32S1P, 102.4 V, 50 Ah)
Number of modules
1
Rated energy
5.0 kWh
Usable energy
4.5 kWh
Rated power
3072 W
Dimensions of the battery module (H × W × D)
261 × 626 × 365 mm
Weight of the battery module
50.5 kg
Nominal voltage
102.4 V
Operating voltage
89.6 to 115.2 V
Max. charge current
30 A
Max. discharge current
30 A

Documents

SAJ B2 Series (5.0-25.0) HV1/HV5 Battery Datasheet (EN, BEU)Datasheet · PDF · ENSAJ B2 high-voltage battery, B2-5.0 to B2-25.0 with BU2-5.0 and BC2-HV1: datasheet (German)Datasheet · PDF · DESAJ B2 HV1/HV5 battery datasheet (EN, AU)Datasheet · PDF · ENSAJ B2 Series (5.0-25.0) HV1/HV5 High Voltage Battery User Manual (EN)Manual · PDF · ENSAJ B2 battery systems and BC2-HV1 control module: EU declaration of conformity (multilingual)Certificate · PDF · MultilingualSAJ B2 battery systems and BU2-5.0 battery modules: EU declaration of conformity (multilingual)Certificate · PDF · Multilingual

Product questions

Which inverter does the B2-5.0-HV1 work with?

The B2 battery can only be used as a set with SAJ's H2 high voltage series storage inverter.

How tall and how heavy is the assembled B2-5.0-HV1?

The B2-5.0-HV1 has one module. Its dimensions are 261*626*365 mm (H*W*D) and its weight is 50.5 kg.

Where and how is the stack installed?

The battery employs either ground mounting or wall mounting, and its position is determined by the drilled holes of the bracket. Mount vertically. Never install the battery tilted forwards, sideways, horizontally or upside down.
