SAJ EK90 HS5-10KT3-X (10 kW three-phase all-in-one, 2026 flagship)
Description
24,000 W solar intake with heavy continuous three-phase power.
SAJ EK90 HS5-12KT3-X is a 12 kW three-phase All-in-One modular hybrid inverter unit delivering 13,200 VA maximum apparent power and 24 kWp solar intake, engineered to power luxury residences, multi-zone heat pumps, and workshops atop 314 Ah BU5 battery bricks.
12,000 VA Continuous Three-Phase Power (19.1 A Max)
Delivers heavy continuous power (13.2 kVA max) to handle heat pumps, workshop machinery, and whole-home circuits.
24,000 W Solar PV Input (200% Oversizing)
Massive solar absorption channels daytime generation into three-phase loads and high-voltage storage.
Direct Cable-Free BU5 Stacking
Mates power and communication lines directly through internal busbars with zero exposed high-voltage DC conduit.
100% Phase Unbalanced Output
Dynamically diverts power to heavily loaded single-phase circuits without drawing expensive grid electricity.
More product details
Built for large electrified residences and domestic workshops, the HS5-12KT3 delivers 19.1 A maximum continuous current across L1, L2, and L3, powering multiple high-draw appliances without utility grid purchases.
- Dual independent MPPT channels (Isc 20 A) optimize multi-pitch residential stringing without current clipping.
- Absorbs up to 24,000 W of solar generation, routing daytime power directly into facility loads and BU5 storage.
- 100% phase-unbalanced output eliminates grid draw on asymmetric domestic loads.
SAJ HS5
Compare different models
Scroll sideways to compare every model.
4 models
Rated AC power
12 kW
10 kW
15 kW
20 kW
Phase
Three-phase
Three-phase
Three-phase
Three-phase
MPPT trackers
3
3
3
3
Max. efficiency
98.2 %
98.2 %
98.2 %
98.2 %
Ingress protection
IP66
IP66
IP66
IP66
Furniture-grade single-column integration with internal busbars.
Stacking directly on top of BU5-6.0 / 7.0 / 9.0 kWh battery modules eliminates external high-voltage conduits, junction boxes, and messy communication patch leads. Internal push-in busbars pass high-voltage power and communication directly between inverter and battery modules. Eliminates exposed high-voltage DC wiring on garage and utility room walls, maximizing residential safety. IP65 cast-aluminum casing certified for clean indoor utility rooms or sheltered outdoor walls (-10 to +50 °C).
UPS in 10 ms or less.
Protected loads see backup at 12000 W rated and 24000 VA peak when the grid drops.
BU5 under a three-phase head.
Same closed blind-mate stack as the single-phase line - 1 to 6 packs, no cable battery interface.
Technical data
Furniture-grade three-phase energy management engineered for high-demand electrified properties.
24 kWp solar intake with 13.2 kVA apparent power in an integrated 314 Ah tower.
Sized for high-consumption estates and commercial workshops, the EK90 HS5-12KT3-X handles up to 24,000 Wp of solar input across dual 16 A MPPT channels. It delivers 13,200 VA maximum apparent power, stacking directly on 314 Ah BU5 modular battery bricks (6.0 to 27.0 kWh) to sustain multi-zone heat pumps and heavy machinery with 100% phase-unbalanced compensation.
- Continuous 3-Phase Power
- 12,000 VA
- 200% Solar DC Intake
- 24,000 Wp
- Prismatic LFP Synergy
- 314 Ah
- External DC Conduits
- Zero
Inverter
- Rated AC power
- 12 kW
- Phase
- Three-phase (3L+N+PE)
- Max. PV input
- 24 kW
- MPPT trackers
- 3
- Max. efficiency
- 98.2%
- Whole-home backup
- built-in 63 A bypass, ≤10 ms switchover
Battery
- Cell
- 314 Ah LFP
- Module (EK90 BU5)
- 6 / 7 / 9 kWh packs
- Stackable capacity
- up to 6 packs → 6–54 kWh
- Cycle life
- 10,000 (SAJ datasheet banner states up to 12,000)
- Warranty
- 15 years (capacity retention per SAJ warranty policy)
EV charging
- Built-in DC EV charging
- Announced by SAJcurrently under development and coming soon
- V2H / V2G
- Announced by SAJcurrently under development and coming soon
Communication
- Interfaces
- WiFi / LAN / RS485
- App / EMS
- elekeeper 5.0 · eManager 5.0 (AI Saving 3.0)
- Metering
- Wireless-pro LoRa meter or DTSU666 + CTs
Model / Family
- Brand
- SAJ
- Model
- EK90 HS5-12KT3-X
- Series
- HS5 (EK90)
- Type
- Three-phase all-in-one
- Three-phase tiers
- 8 / 10 / 12 / 15 / 20 kW
Project fit
Where this model fits.
Scenarios that show which projects the SAJ EK90 HS5-12KT3-X (12 kW three-phase all-in-one) belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario

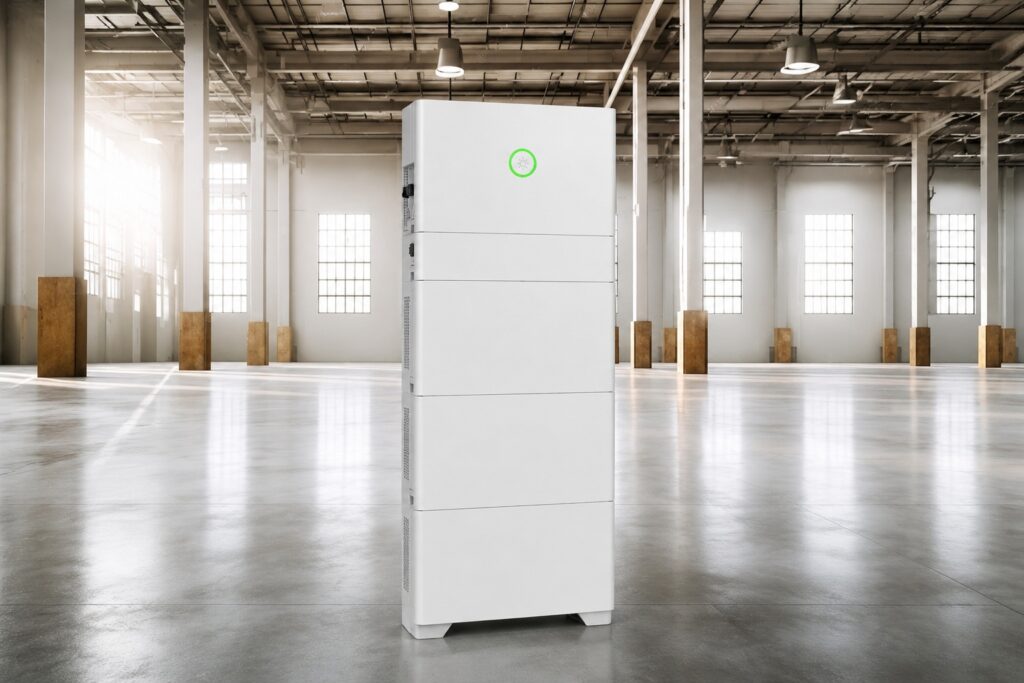

Large Estates & Multi-Family Homes (16–24 kWp PV) with Heavy Electrification
Luxury single-family properties with extensive daily electricity consumption (multi-zone heat pumps, EV wallboxes, induction cooking).
12 kW continuous AC throughput provides the power needed to run heavy loads simultaneously, while 24 kWp solar intake ensures fast battery replenishment on short winter days.
- BoundaryIf the facility requires higher continuous power output (15–20 kW) to run workshops or high-inrush agricultural loads, step up to the higher power models. ---
What Linker confirms with you
- If the facility requires higher continuous power output (15–20 kW) to run workshops or high-inrush agricultural loads, step up to the higher power models. ---
Documents
SAJ EK90 HS5 Three-Phase Datasheet (EU)Product questions
What size AC circuit breaker is required for the HS5-12KT3-X?
3-pole 25 A or 32 A MCB; 5 × 4 mm² to 5 × 6 mm² copper cable. The HS5-12KT3-X delivers a nominal continuous output current of 17.4 A per phase (max output current 19.1 A @ 400 V). A 3-pole 25 A or 32 A miniature circuit breaker (MCB) is standard on the AC distribution board.
System components
Required components
SAJ eSolar Wireless-pro Meter
Item number: DLK-SAJ-ESOLAR-WIRELESS-PRO-METER
The inverter needs a grid-side meter to see household import/export in real time. This is what enables self-consumption
Chint DTSU666 three-phase meter (80 A)
Item number: DLK-CHINT-DTSU666
SAJ's smart-meter sheet lists DTSU666 as the three-phase 80 A RS485 meter when the Wireless-pro meter cannot be used.
Lazzen NDQ2S-63/3P
Item number: DLK-LAZZEN-NDQ2S-63
On the three-phase EK90 HS5, whole-home backup is built around a transfer switch that lets the entire house load switch
SAJ ATS1-T63-A automatic transfer switch
Item number: DLK-SAJ-ATS1T63A
For installations that want hands-off whole-home backup, the SAJ ATS panel automatically switches the whole-home load (u
Recommended components
SAJ eSolar AIO3 Pro
Item number: DLK-SAJ-ESOLAR-AIO3
This is the gateway that pushes system data to the cloud and app for remote monitoring, alarms/AI Care health checks.
SAJ EK90 BU5-6.0-TV / BU5-7.0-TV / BU5-9.0-TV
Item number: DLK-SAJ-EK90-BU5-6-0-TV
Storage capacity is scaled purely by adding modules, up to 6 battery modules per system (system energy configurable rou
Optional components
SAJ Integrated EVDC charging module
Item number: DLK-SAJ-INTEGRATED-EVDC-CHARGING-MODULE
Roadmap option only: SAJ marks bidirectional V2H/V2G as currently under development. Confirm availability and rating before adding it to the BOM.
SAJ eManager
Item number: DLK-SAJ-EMANAGER
For households that want deeper smart-energy control, coordinating extra loads, external meters and tariff-based optimi
SAJ Smart Wi-Fi Plug
Item number: DLK-SAJ-SAJ-SMART-PLUG
Enables load shifting: the AI energy manager can turn a specific appliance on when surplus solar or cheap-tariff energy is available.
Approved pairings
SAJ EK90 BU5-6.0-TV battery pack (6 kWh, 314 Ah LFP)Item number DLK-SAJ-EK90-BU5-6-0-TVBlind-mate stacking only: 1 to 6 BU5 packs (6/7/9 kWh, 100% DoD) under the HS5 unit. SAJ defers pack-combination rules to a battery combination datasheet that its Download Center does not carry, so the 21 permitted size combinations are undocumented - quote conservatively.
SAJ EK90 BU5-7.0-TV battery pack (7 kWh, 314 Ah LFP)Item number DLK-SAJ-EK90-BU5-7-0-TVBlind-mate stacking only: 1 to 6 BU5 packs (6/7/9 kWh, 100% DoD) under the HS5 unit. SAJ defers pack-combination rules to a battery combination datasheet that its Download Center does not carry, so the 21 permitted size combinations are undocumented - quote conservatively.
SAJ EK90 BU5-9.0-TV battery pack (9 kWh, 314 Ah LFP)Item number DLK-SAJ-EK90-BU5-9-0-TVBlind-mate stacking only: 1 to 6 BU5 packs (6/7/9 kWh, 100% DoD) under the HS5 unit. SAJ defers pack-combination rules to a battery combination datasheet that its Download Center does not carry, so the 21 permitted size combinations are undocumented - quote conservatively.
