SAJ CH3-125K-T8
Description
Megawatt-scale solar harvesting with symmetrical 8-tracker routing.
SAJ CHS3 125 kW / 261 kWh is a turnkey utility-scale commercial hybrid storage station pairing the 8-MPPT CH3-125K-T8 inverter with the liquid-cooled CB3-L261 container, engineered for industrial microgrids, 187.5 kWp solar arrays, and high-rate peak shaving.
Factory-Matched 125 kW / 261 kWh Synergy
Pre-engineered communication and hardware integration between the 125 kW hybrid inverter and 261 kWh liquid-cooled battery container.
187.5 kWp Massive Solar PV Intake, 8 independent MPPT channels absorb immense rooftop generation to run heavy industrial equipment and charge storage at full 140 A speed.
Industrial Closed-Loop Liquid Cooling
Precision liquid thermal distribution maintains cell temperature uniformity within ≤2.5 °C for extended battery cycle life.
Streamlined Single-SKU Procurement
Eliminates multi-vendor compatibility risks, delivering an integrated utility-grade commercial storage station in one verified shipment.
More product details
Managing multi-megawatt commercial solar arrays across expansive factory roofs requires high string granularity. The integrated CH3-125K inverter provides 8 independent 32 A MPPT trackers (Isc 40 A), optimizing 16 strings of 600W+ bifacial modules.
- 8 MPPT channels allow dedicated tracking for diverse warehouse roof slopes with zero inter-string mismatch.
- Absorbs up to 187,500 W of solar generation, routing daytime power directly into industrial loads and storage.
- Delivers up to 189.9 A continuous three-phase AC output (137.5 kVA max) to handle heavy machine starts.

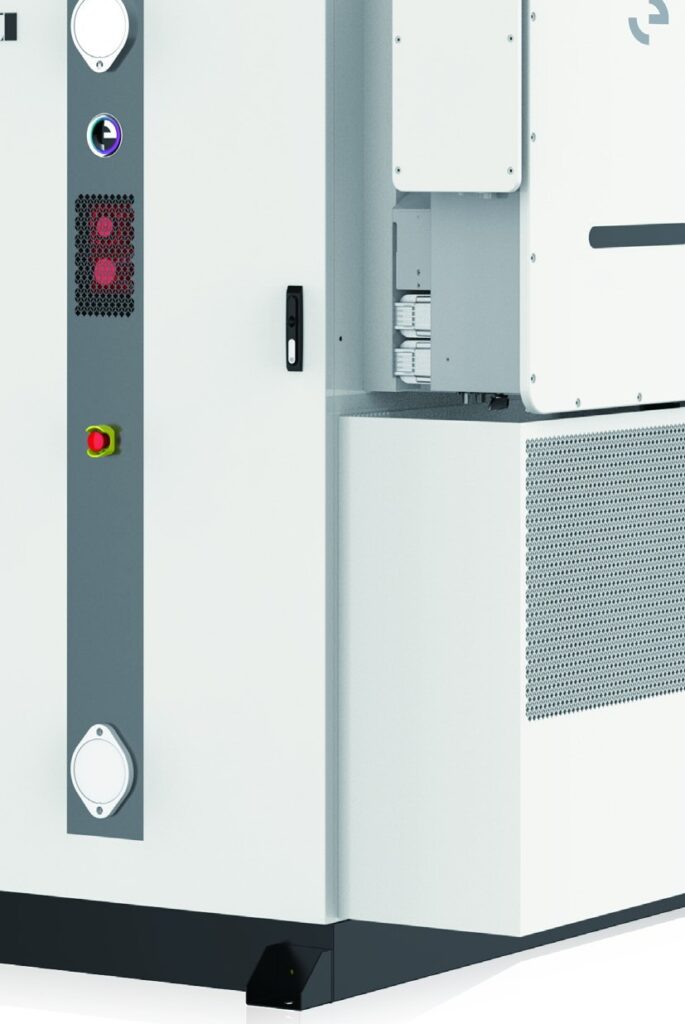

Precision liquid thermal loop for multi-cycle daily durability.
Sized for heavy daily commercial cycling, the integrated CB3-L261 container houses thirteen 20 kWh liquid-cooled modules using 280 Ah prismatic LFP cells. Direct liquid cooling plates beneath cells maintain temperature variance strictly within ≤2.5 °C. 931.8 V nominal operating bus minimizes DC transmission losses and thermal stress during 140 A cycling. Multi-sensor aerosol fire suppression, combustible gas detection, and emergency pressure relief vents.
L261 storage half.
261 kWh liquid-cooled IP55 cabinet at 832 V nominal - the listed CB3 cabinet path.
C&I plant in two roles.
Wall unit for conversion and backup switching; ground cabinet for liquid-cooled energy. Spec both pads.
Technical data
Pre-engineered commercial solar-plus-storage delivering megawatt-hour scalability and industrial peak shaving.
Turnkey 125 kW / 261 kWh utility-scale storage station with 187.5 kWp solar intake.
Pre-matched for large industrial microgrids, distribution centers, and energy trading projects, this complete package pairs the CH3-125K-T8 hybrid inverter with the 261.2 kWh liquid-cooled CB3-L261 battery cabinet. It provides 125 kW continuous hybrid throughput across 8 MPPT channels, delivering industrial peak shaving and multi-megawatt-hour scalability with zero integration guesswork.
- Turnkey Scale
- 125 kW / 261 kWh
- 150% Solar DC Intake
- 187,500 Wp
- Thermal Uniformity
- ≤ 2.5 °C
- High-Rate Storage Port
- 150 A
Hybrid Inverter: PV Input (CH3-125K-T8-EU)
- Max. PV array power
- 250 kWp @STC (200% PV oversizing headline).CH3 family: 75K=150, 80K=160, 99.9K/100K=200, 110K=220, 125K=250 kWp
- Max. DC voltage
- 1250 V (EU-version datasheet)the global-version datasheet states 1500 V, confirm the applicable version for your project at quote
- MPPT voltage range / rated DC voltage
- 300–1250 V / 1050 V (EU version); start voltage 400 V
- Max. DC input / short-circuit current
- 40 A / 55 A
- Strings per MPPT
- 8×2 (99.9K–125K models; 75K/80K: 6×2)
Hybrid Inverter: AC Output, Backup & Efficiency
- Rated AC power / max. apparent power
- 125 kW / 125 kVA (CH3-125K-T8).Family: 75 / 80 / 99.9 / 100 / 110 / 125 kW
- Rated output current
- 189.9 A @230 V per phase; 3/N/PE, 380/400 V, 50/60 Hz
- Backup output
- Max. 125 kWpeak 1.1× rated power continuous, 1.55× rated power for 1 s · output THDv < 3% (linear load)
- Generator input
- Max.125 kW / 189.9 A @230 V (EU version), 3/N/PE 380/400 V, 50/60 Hz
- Power factor / THD
- 0.8 inductive – 1 – 0.8 capacitive; THDi < 3%
- Efficiency
- Max. ≥98%; Euro ≥97.5%; max. battery-to-AC ≥98%
Battery: Interface & CB3-L261 Cabinet
- Battery interface (CH3)
- LFP, battery voltage range 750–950 V, max. charge/discharge current 200 A
- Cell / configuration
- LFP 3.2 V / 314 Ah; configuration 1P52S×5S
- Nominal energy / rate
- 261 kWh per CB3-L261 cabinet; 0.5P charge/discharge rate
- Nominal voltage / range / max. current
- 832 V; 728–936 V; 188 A
- Cooling / noise / fire suppression
- Liquid cooling≤75 dB @1 m · pack-level aerosols + cabinet-level aerosols + water sprinkler
- Cabinet enclosure
- IP55, anti-corrosion C4-Medium, -25 to +55 °C, 0–95% RH non-condensing, max. 3000 mdimensions 1030 × 2300 × 1400 mm (W×H×D) · weight ≤2400 kg · communication CAN
System Integration & Communication
- Energy management
- Built-in EMS100 Mbps high-speed Ethernet communication · WLAN + App, LED indicators
- Parallel operation
- Up to 10 units in off-grid parallel with integrated STS (no external STS module)up to 20 units on-grid expansion
- Battery scaling per inverter
- Up to 4 × CB3-L261 liquid-cooled cabinets per CH3 inverter, enabling system durations from 2 to 8 hours
- Protection features
- PV reverse polarity, anti-islanding, AC over-current/short-circuit/over-voltage protection, integrated DC switch, Type II DC & AC surge protection, PV terminal temperature detection, string-level disconnector integratedAFCI module optional
General (CH3 inverter)
- Ingress protection / cooling
- IP66; smart air cooling
- Operating temperature range
- -30 °C to +60 °C (derating from 45–50 °C)ambient humidity 5–95% non-condensing · max. 3000 m
- Topology
- Transformerless
- Dimensions / weight
- 1027 × 895 × 342 mm (H×W×D); 135 kg
- Warranty
- 5/10 years per the CH3 EU datasheet (preliminary)the CB3 battery line is promoted with a 10-year cell warranty, confirm terms in SAJ's warranty policy at quote
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CHS3 125 kW / 261 kWh belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario
Large Industrial Plants, Logistics Hubs & EV Depots (150–250 kWp Solar)
Manufacturing facilities or fleet charging depots requiring a complete, factory-matched 125 kW / 261 kWh solar-plus-storage station.
Pre-engineered package eliminates multi-vendor compatibility risks, providing turnkey single-SKU procurement and unified commissioning.
- BoundaryIf solar capacity is under 100 kWp and storage demand is under 100 kWh, step down to the CHS2-50K-T6-X (50 kW / 100 kWh) station. ---
What Linker confirms with you
- If solar capacity is under 100 kWp and storage demand is under 100 kWh, step down to the CHS2-50K-T6-X (50 kW / 100 kWh) station. ---
Documents
SAJ CH3/CB3 C&I Series (75-125K) T6/T8 Datasheet (EN)Product questions
What components are included in this complete package?
1x SAJ CH3-125K-T8 hybrid inverter + 1x SAJ CB3-L261 liquid-cooled container (261.2 kWh). The package includes the CH3-125K-T8 125 kW commercial hybrid inverter (8 MPPTs) and the CB3-L261 outdoor liquid-cooled battery container (261.17 kWh nominal / 248.1 kWh usable), complete with internal BMS controller, liquid chiller unit, and interconnecting power/communication leads.
What size AC circuit breaker and cabling are required for this 125 kW station?
250 A 3-pole industrial MCCB; 95 mm² to 120 mm² copper cable. With a maximum continuous AC output current of 189.9 A per phase (at 400 V three-phase), install a 3-pole 250 A industrial circuit breaker (MCCB) on the main distribution switchboard, paired with copper conductor cross-sections of 95 mm² to 120 mm².
System components
Required components
Chint DTSU666-CT grid meter
Item number: DLK-CHINT-DTSU666CT
Grid-connection-point measurement for export limitation and site consumption monitoring where the DSO or the EMS strategy requires it, confirm the SAJ-approved meter configuration for the CH3 when quoting.
MBS KBU 58 400/5 A split-core CT set
Item number: DLK-MBS-KBU58-400-5A
Split-core CTs for the grid-point meter on C&I incomers; pick the ratio (400/5 up to 1000/5 available) to match the site's main breaker.
Recommended components
SAJ eManager-C1 Pro
Item number: DLK-SAJ-EMANAGERC1PRO
SAJ's C&I energy-management controller, listed by SAJ alongside the CHS3, for plant-level EMS, monitoring and dispatch across multiple inverters and battery cabinets.
SAJ CB3-L261 battery cabinet
Item number: DLK-SAJ-CB3L261
Duration scales by adding cabinets: up to 4 × CB3-L261 per CH3 inverter, covering 2 h to 8 h storage durations at 125 kW.
