Description
GoodWe GW7K-HCA-20 charges at 7 kW from a 230 V single-phase connection at 32 A. It is supplied with a fixed 7.5 m IEC Type 2 cable.

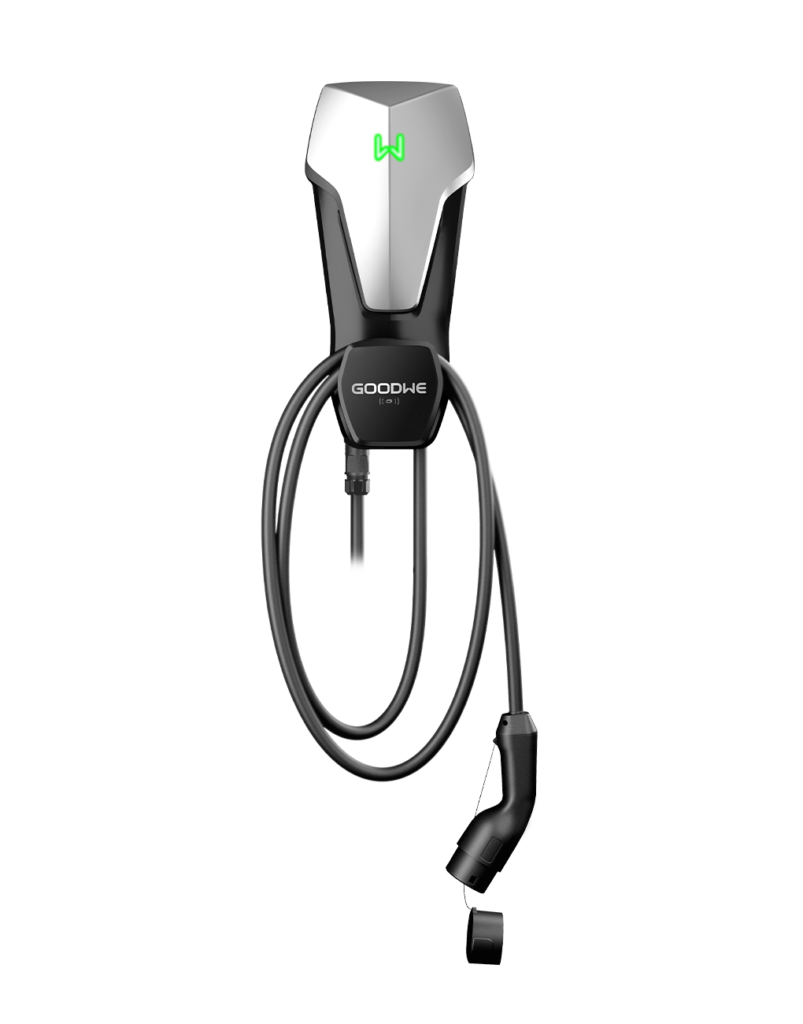

GoodWe HCA G2 GW7K-HCA-20 (7 kW single-phase EV charger, 7.5 m cable)
A 230 V single-phase location makes this the 7 kW option, provided the circuit is planned for 32 A.
Fixed 7.5 m IEC Type 2 cable.
The external Type A RCD stays in the installation scope alongside the charger's listed AC/DC residual-current protection.
GoodWe HCA G2
The connection comes first
The model table assigns 7,000 W on 230 V L/N/PE at 32 A. That is the electrical starting point for the installation brief.
GoodWe HCA G2
Fixed 7.5 m Type 2 cable
The charger is supplied with a fixed 7.5 m IEC Type 2 cable and weighs 5.6 kg.
GoodWe HCA G2
Grid-draw limit on board
The charger has an EnWG §14a function that, when enabled, keeps its grid draw at or below 4.2 kW; the communication protocol is Modbus TCP.
Technical data
For the installation brief
About these specifications
7 kW / 32 A on 230 V
Electrical connection
- Nominal output
- 7,000 W
- Nominal current
- 32 A
- Supply
- 230 V L/N/PE
- External protection
- Type A RCD required
Mounting and cable
- Enclosure
- IP66 enclosure; Type 2 plug IP55
- Dimensions W × H × D
- 208 × 450 × 170 mm
- Charging cable
- 7.5 m, fixed, IEC Type 2
- Weight
- 5.6 kg with 7.5 m cable
- Mounting
- Wall or floor (stand optional)
Control and protection
- Start methods
- App, RFID, automatic
- Communication
- Bluetooth, Wi-Fi, RS485 ×2, LAN
- Protocol
- Modbus TCP
- EnWG §14a function
- Grid-draw limit 4.2 kW
- Single/three-phase switching
- No (three-phase models only)
- Residual-current protection
- AC 30 mA + DC 6 mA
- AC surge protection
- Type III
Scope of delivery
- Included
- Charger with fixed 7.5 m Type 2 cable, 2 RFID cards, installation accessories and documents per the user manual
- Not included
- Stand or post, RCBO distribution box, MID meter, external Type A RCD
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe HCA G2 GW7K-HCA-20 (7 kW single-phase EV charger, 7.5 m cable) belongs in, and the limits behind our engineers' recommendation.

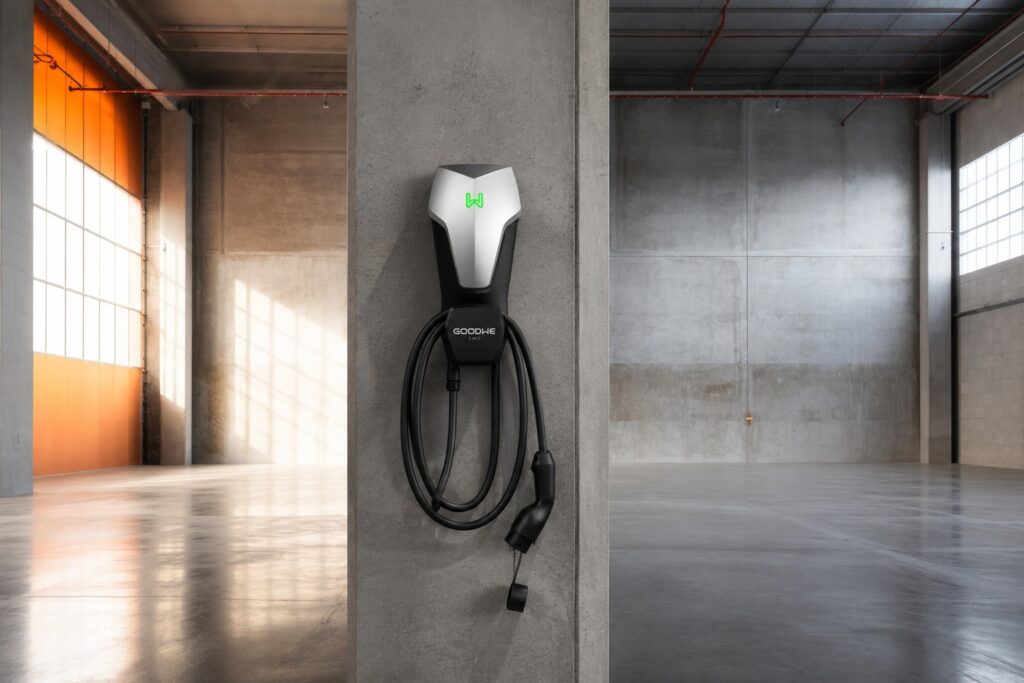

A 230 V charging location
A single-phase charging location has a planned 230 V feed. The 32 A rating and the separate Type A RCD are the two installation requirements of this 7 kW model.
The GW7K-HCA-20 is specified for 7,000 W at 32 A on 230 V L/N/PE, with an external Type A RCD required.
- The feed is 230 V L/N/PE and carries the 32 A charger rating.
- An external Type A RCD is required in the protection design.
- The fixed cable is 7.5 m long, from the mounting point to the parking space.
- The §14a control arrangement is agreed with the grid operator before the order.
Documents
Product questions
Can GW7K-HCA-20 be specified for a 230 V single-phase charge point?
Yes. For GW7K-HCA-20, connect the single-phase AC input line. Voltage: 230 Vac, L/N/PE; current: 32 A; frequency: 50/60 Hz.
What comes with the charger?
The scope of delivery includes: Charger x 1, AC connector x 1, Dummy socket x 1, fastening screws x 4, Expansion bolt x 4, RS485 communication connector x 1, LAN communication connector x 1, Screwdriver x 1, AC cable pin terminal x 2, RS485 cable pin terminal x 1, RFID card x 5, RJ45 terminal x 4, Waterproof rubber plug x 2, Documents x 1.
