EcoFlow EF HD-P1-3K-S1
EcoFlow PowerOcean EF HD-P1-3K-S1 is a single-phase residential hybrid inverter rated 3000 W with two MPP trackers and up to 9000 W of PV input.
- 3 kW to 6 kW single-phase (EF HD-P1) and 6 kW to 12 kW three-phase (EF HD-P3) inverters cover residential through small-commercial loads on the same PowerOcean platform.
- Battery capacity builds in 5.1 kWh EF BD-5.1-S1 packs: up to 15.3 kWh on a single HD-P1 inverter (cascadable to about 45 kWh across three HD-P1 units), or up to 45.9 kWh directly on a single HD-P3 three-phase inverter.
- IP65-rated inverters and battery stacks are specified for -20 to 50 degrees C, so they can sit outdoors or in an unheated plant room.
- Built-in RS485, CAN, Wi-Fi, Bluetooth and 4G give direct EcoFlow app monitoring without extra gateway hardware.
- Single-phase
- Phase
- >96%
- Max. efficiency
- 720-960 V
- Battery voltage
- IP65
- Ingress protection
- Manufacturer
- EcoFlow
- Model code
- EF HD-P1-3K-S1
- Item no.
- DLK-ECOFLOW-EFHDP13KS1
- Delivery
- Delivery to Germany · EUR 14.90 at checkout
Plan with EF HD-P1-3K-S1
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Numbers that survive the bank's site audit.
Every figure below comes from the manufacturer datasheet on file — the same document your lender's technical advisor will request.
Nominal AC power
Max. apparent power
MPPTs
Max. PV input
Store sun. Sell peak.
Charge through solar noon, discharge into evening tariffs - up to 3 kW shifted on your tariff schedule.
Power class
3000 W rated AC power and 3000 VA maximum apparent power, single phase 220/230/240 V, L+N+PE.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.
Manufacturer imagery from EcoFlow's official documentation.
EcoFlow PowerOcean single-phase hybrid inverter, official render from the EcoFlow datasheet

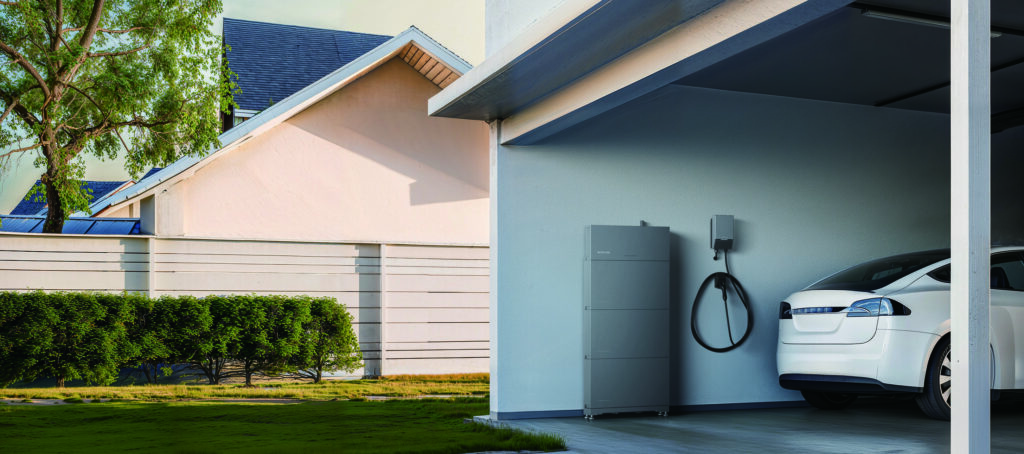

EcoFlow PowerOcean system at a residence, official EcoFlow brochure render

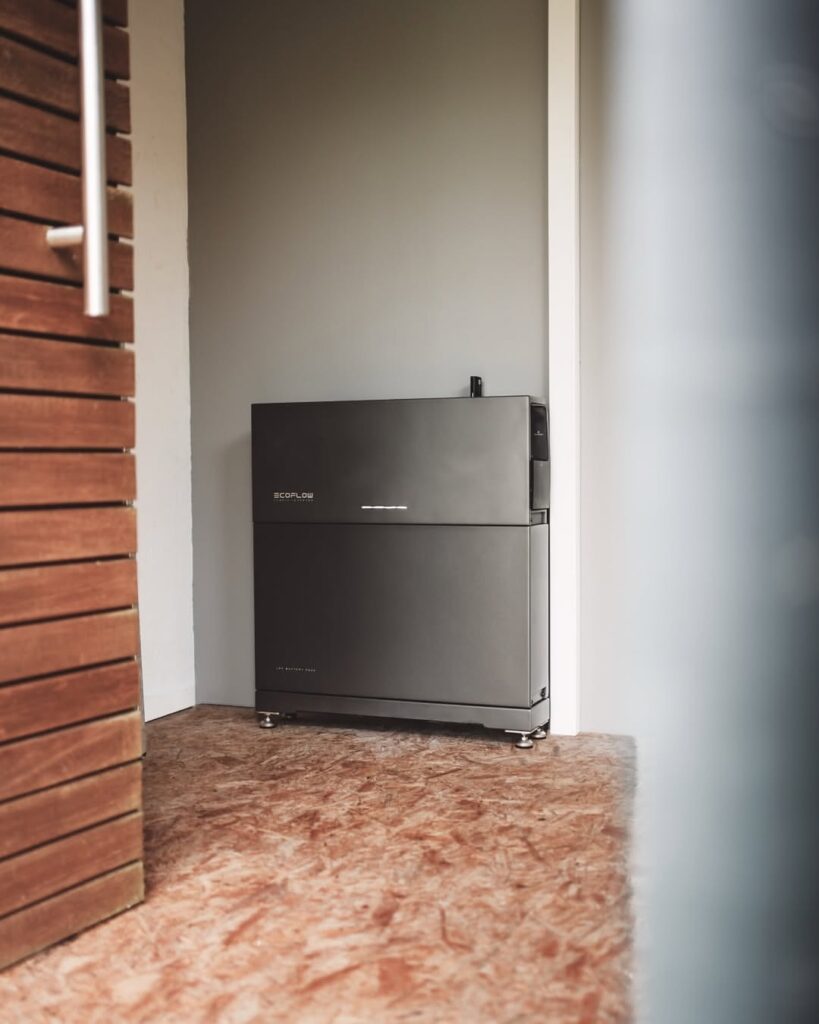

Installer photograph, eye-gated 2026-07-11.
Specifications
Every value exactly as published in the official EF HD-P1-3K-S1 documentation.
Documents
Complete the system
Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.
EF BD-5.1-S1 5.1 kWh LFP battery pack
EF BD-B-S1 battery stack base unit
EF BD-JC-S1 junction pack
- [1]EF BD-5.1-S1 5.1 kWh LFP battery pack
- [2]EF BD-B-S1 battery stack base unit
- [3]EF BD-JC-S1 junction pack
What this unit is approved to run with.
Every pairing below traces to a manufacturer compatibility list, by document version and date. A pairing only one maker lists is marked; we quote it, an engineer confirms it.
Pick the rating
EcoFlow PowerOcean family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
The single-phase range covers 3, 3.68, 4.6, 5 and 6 kW rated output at 220/230/240 V, and PV headroom grows with the rating.
- PV ceiling: maximum PV power runs from 9000 W on the 3K-S1 up to 12000 W on the 6K-S1.
- MPPTs: two trackers on every model, 90 to 520 V MPPT range, 600 V maximum input voltage.
- String current: up to 18 A per MPPT on a single PV input, 16 A with dual PV inputs, 20 A short-circuit rating.
- AC current: rated output current spans 13.1 A (3K) to 26.1 A (6K); the 3.68K-S1 sits at 16 A.
EcoFlow rates one HD-P1 inverter for up to 15.3 kWh of battery, and up to about 45 kWh across three cascaded inverters.
- Building block: storage grows in 5.1 kWh EF BD-5.1-S1 LFP packs; 3 x 5.1 kWh = 15.3 kWh per inverter.
- Stack base: EcoFlow's stack table lists one EF BD-B-S1 base unit in every single-phase configuration.
- Battery bus: 790 V rated, 800 V maximum battery voltage; 7.6 A rated battery current (8.4 A maximum on the 6K).
- Larger sites: for more storage on a single inverter, the three-phase HD-P3 carries up to 45.9 kWh directly.
Backup runs on the same 220/230/240 V single-phase connection at the model's full apparent power rating.
- Rating: backup output tracks the model class, from 3000 VA on the 3K-S1 to 6000 VA on the 6K-S1.
- Current: maximum backup output current runs from 16 A (3K) up to 32 A (6K) per the datasheet.
- Power quality: total harmonic distortion at rated power is 5 percent or less on the 3K and 3.68K and 3 percent or less on the 4.6K, 5K and 6K.
Availability & compliance 1
EcoFlow's single-phase datasheet lists a broad European grid-code set for the range, including the German connection rules.
- Germany: VDE-AR-N 4105 and VDE 0126-1-1 appear on the datasheet's grid-code list.
- Wider coverage: EN 50549-1, G98/G99/G100, CEI 0-21, C10/11, UNE 217001/217002 and NC RfG, among others.
- Per-order check: certificates are issued per model and market, so confirm the exact certificate set for your model and network operator with the quote.
Installation & wiring 1
Yes. Every HD-P1 rating is IP65 and specified for -20 to 50 C, so an outside wall or an unheated plant room both work.
- Envelope: 679.6 x 182.7 x 280 mm without the IoT and Wi-Fi module, 21.5 kg, identical across all five ratings.
- Acoustics: natural convection cooling with 40 dB noise emission, so no fan noise near living areas.
- Derating: the datasheet notes derating above 40 C and below 0 C, so allow shading and airflow in hot locations.
- AC side: single-phase 220/230/240 V connection, L+N+PE.
Operation & warranty 1
Communication is built in; the system reports to the EcoFlow app without extra gateway hardware.
- Interfaces: RS485, CAN, Wi-Fi, Bluetooth, WAN and 4G on board.
- Standby: night self-consumption stays below 30 W per the datasheet.
- Efficiency: European weighted efficiency is above 95 percent on the 3K, above 95.5 percent on the 4.6K and above 96 percent on the 3.68K, 5K and 6K.
