SAJ CM2-125K-261-EU
Description
Complete outdoor energy station with zero indoor switchroom requirements.
SAJ CM2-99.9K-261-EU is a turnkey 99.9 kW / 261 kWh AC-coupled commercial storage station with closed-loop liquid cooling, engineered to connect directly to 400 V factory distribution panels and streamline interconnection under 100 kW grid caps.
Turnkey Single-Enclosure AC Storage Station
Integrates a 99.9 kW bidirectional PCS, 261 kWh liquid-cooled battery racks, HVAC, and fire protection in one outdoor unit.
Drop-In Commercial AC Retrofit
Connects directly to existing commercial 400 V electrical panels without modifying existing rooftop solar inverters.
99.9 kW Grid-Optimized AC Output
Pre-configured beneath standard 100 kW utility connection thresholds for streamlined connection approval.
Precision Liquid Cooling (≤2.5 °C)
Industrial coolant loop maintains uniform battery cell temperatures across extreme outdoor seasons.
More product details
Constructing separate indoor battery rooms, installing PCS units, and running complex inter-cabinet cabling requires months of engineering. The CM2-99.9K-261 integrates the PCS, battery racks, HVAC, and fire suppression in a single pad-mounted unit.
- Connects straight to the main commercial 400 V AC distribution panel with zero rooftop DC rewiring.
- Internal pre-wired bidirectional PCS manages power conversion at 97.5%+ European efficiency.
- Multi-sensor aerosol fire suppression, combustible gas detection, and emergency pressure relief vents.
SAJ
Compare different models
Scroll sideways to compare every model.
Nominal energy
261 kWh
261 kWh
Cell chemistry
LFP 3.2V/314Ah
LFP 3.2V/314Ah
Ingress protection
IP54 (Cabinet); IP65 (PCS)
IP54 (Cabinet); IP65 (PCS)
Operating temperature
-25°C to +55°C
-25°C to +55°C
Weight
2600 kg
2600 kg
Dimensions
2325*1030*1400 mm [H*W*D]
2325*1030*1400 mm [H*W*D]
Extending battery calendar life with active liquid thermal regulation.
Air-cooled commercial storage stations develop thermal hot spots during heavy summer peak shaving. The CM2 circulates liquid coolant directly through thermal plates beneath the 280 Ah cells. Circulating liquid coolant maintains cell temperature differentials strictly within ≤2.5 °C across the container. Extends battery calendar life by over 30% compared to conventional air-cooled commercial stations. Integrated HVAC maintains optimal 20–25 °C cell temperatures across extreme outdoor ambient conditions (-30 to +55 °C).
Same tank as CM2-125.
261 kWh / 832 V does not change on the power step. Current and PCS rating do.
Packs already inside.

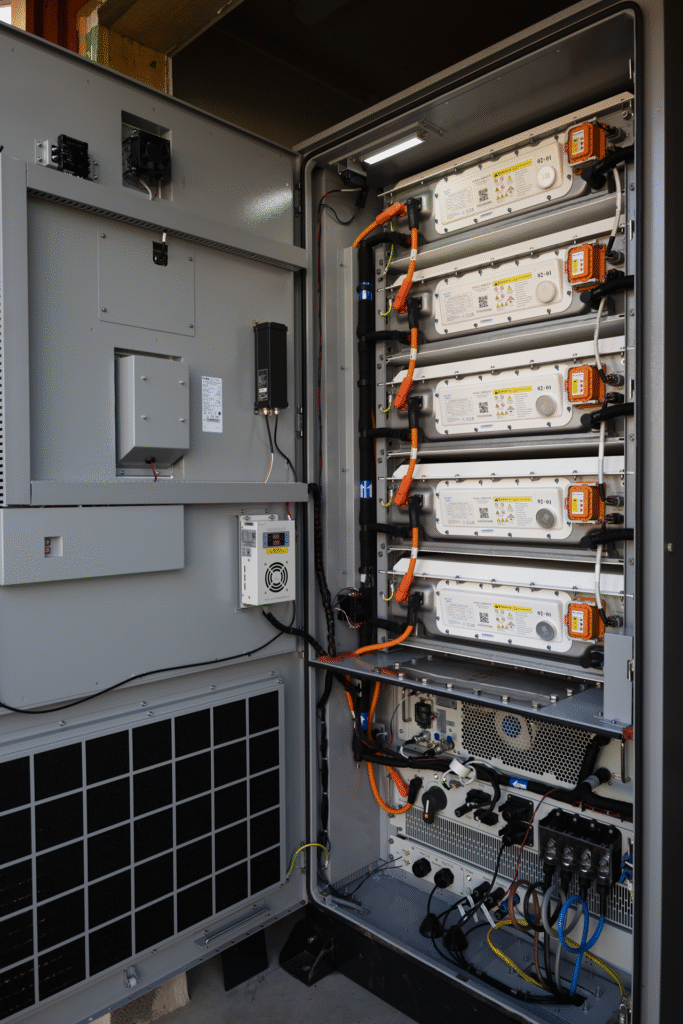

Energy is the five packs already inside the CM2 cabinet.
Technical data
Megawatt-scale commercial energy storage and peak shaving engineered for grid-constrained industrial facilities.
99.9 kW / 261 kWh turnkey AC-coupled liquid-cooled storage with 100 kW grid compliance.
Pre-engineered as a complete outdoor energy storage station, the CM2-99.9K-261-EU combines a 99.9 kW bidirectional PCS with 261 kWh of liquid-cooled LFP battery storage in a single enclosure. It connects directly to the facility's 400 V AC distribution board without modifying existing solar inverters, staying strictly within standard 100 kW grid connection limits while providing heavy factory peak shaving.
- Grid-Capped Power
- 99.9 kW
- Storage Capacity
- 261.0 kWh
- Thermal Uniformity
- ≤ 2.5 °C
- IP55 Enclosure
- Turnkey Pad
System Config
- Type
- All-in-one C&I battery energy storage system, CM2 Series
- Topology
- Non-isolated
- Cell type
- LFP 3.2 V / 314 Ah
- System configuration
- 260S1P
- Cooling type
- Liquid cooling (battery), forced air (PCS)
Battery
- Rated energy (kWh)
- 261
- Rated battery voltage (V)
- 832
- Voltage range (V)
- 728 ~ 936
- Number of battery packs
- 5
- Depth of discharge
- 0 ~ 100%
- Charge / discharge rate
- 0.5C
- Battery pack protection level
- IP67
- Battery cell cycles
- >=8000 @70% EOL
Power Output
- Rated charge / discharge power (kW)
- 99.9
- Max. charge / discharge power (kW)
- 99.9
- Max. charge / discharge current (A)
- 151.7 @380V, 144 @400V
- Rated AC voltage (V)
- 380 / 400, 3L+N+PE
Efficiency
- Round-trip efficiency
- >90% @0.25C, >88% @0.5C
Physical & Environment
- Ingress protection class
- IP54 (cabinet), IP65 (PCS)
- Cooling type
- Liquid cooling (battery), forced air (PCS)
- Operating temperature range (C)
- -25 ~ +55
- Relative humidity
- 0 ~ 95%, non-condensing
- Max. operating altitude (m)
- 2000
- Dimension (H x W x D mm)
- 2325 x 1030 x 1400
- Weight (kg)
- 2600
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CM2-99.9K-261-EU belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario
Industrial Facilities with Existing Solar Subject to 100 kW Grid Caps
Manufacturing plants and logistics centers with existing commercial solar inverters where the local utility enforces a strict 100 kW maximum export limit.
Pre-set to 99.9 kW continuous output (144.3 A), ensuring fast DNO/utility interconnection approval while providing 261 kWh of liquid-cooled storage for factory peak shaving.
- BoundaryIf the facility connects to a private transformer station without 100 kW grid export limits and requires higher discharge power (125 kW / 137.5 kVA), step up to the CM2-125K-261-EU. ---
What Linker confirms with you
- If the facility connects to a private transformer station without 100 kW grid export limits and requires higher discharge power (125 kW / 137.5 kVA), step up to the CM2-125K-261-EU. ---
Documents
SAJ CM2 99.9-125 kW / 261 kWh datasheet (EN)Product questions
Does the CM2-99.9K-261 require any DC solar string connections?
No. Pure AC-coupled storage station connecting to the 400 V AC switchboard. The unit is a self-contained AC storage station with an internal bidirectional PCS. It connects directly to the facility's main 400 V AC distribution panel via standard AC power cables and an RS485/Ethernet communication link to the main grid meter.
What are the physical dimensions and weight of this station?
1030 × 1400 × 2325 mm; approx. 2,600 kg. The outdoor container measures 1,030 mm wide × 1,400 mm deep × 2,325 mm high and weighs approx. 2,600 kg (2.6 metric tons). It is rated IP55 for outdoor pad mounting.
System components
Recommended components
SAJ eManager-C1 Pro communication box
Item number: DLK-SAJ-EMANAGERC1PRO
eManager-C1 Pro's own datasheet states a recommended use of 'CHS2, 2 to 10 units in parallel.'
