SAJ CM2-99.9K-261-EU
Description
125 kW high-speed power conversion for heavy factory machinery.
SAJ CM2-125K-261-EU is a 125 kW / 261 kWh commercial outdoor AC-coupled storage station delivering 137.5 kVA peak apparent power with closed-loop liquid cooling, engineered for industrial demand charge reduction and dynamic energy arbitrage without altering existing solar arrays.
125 kW Continuous AC Output (137.5 kVA Max)
Delivers massive bidirectional power throughput (198.5 A max) to shave sharp industrial load spikes and arbitrage energy tariffs.
261 kWh High-Density Liquid-Cooled Storage
Holds substantial energy reserves in a single 2,600 kg outdoor station, scaling easily via parallel installation.
Industrial Closed-Loop Liquid Cooling
Keeps battery cells operating at peak efficiency under continuous 0.5C charge/discharge cycling with extended calendar life.
Turnkey Pad-Mounted Outdoor Design
Fully self-contained with internal HVAC, BMS controller, motorized DC breakers, and multi-sensor aerosol fire protection.
More product details
Shaving sharp 100 kW+ demand spikes from industrial machinery requires high instantaneous power throughput. The CM2-125K delivers up to 198.5 A of bidirectional AC current directly into the facility switchboard.
- Delivers 125 kW continuous and 137.5 kVA peak apparent power across all three phases (400 V AC).
- Direct 400 V AC grid synchronization eliminates rooftop DC string modifications.
- Internal pre-wired bidirectional PCS manages power conversion at 97.5%+ European efficiency.
SAJ
Compare different models
Scroll sideways to compare every model.
Nominal energy
261 kWh
261 kWh
Cell chemistry
LFP 3.2V/314Ah
LFP 3.2V/314Ah
Ingress protection
IP54 (Cabinet); IP65 (PCS)
IP54 (Cabinet); IP65 (PCS)
Operating temperature
-25°C to +55°C
-25°C to +55°C
Weight
2600 kg
2600 kg
Dimensions
2325*1030*1400 mm [H*W*D]
2325*1030*1400 mm [H*W*D]

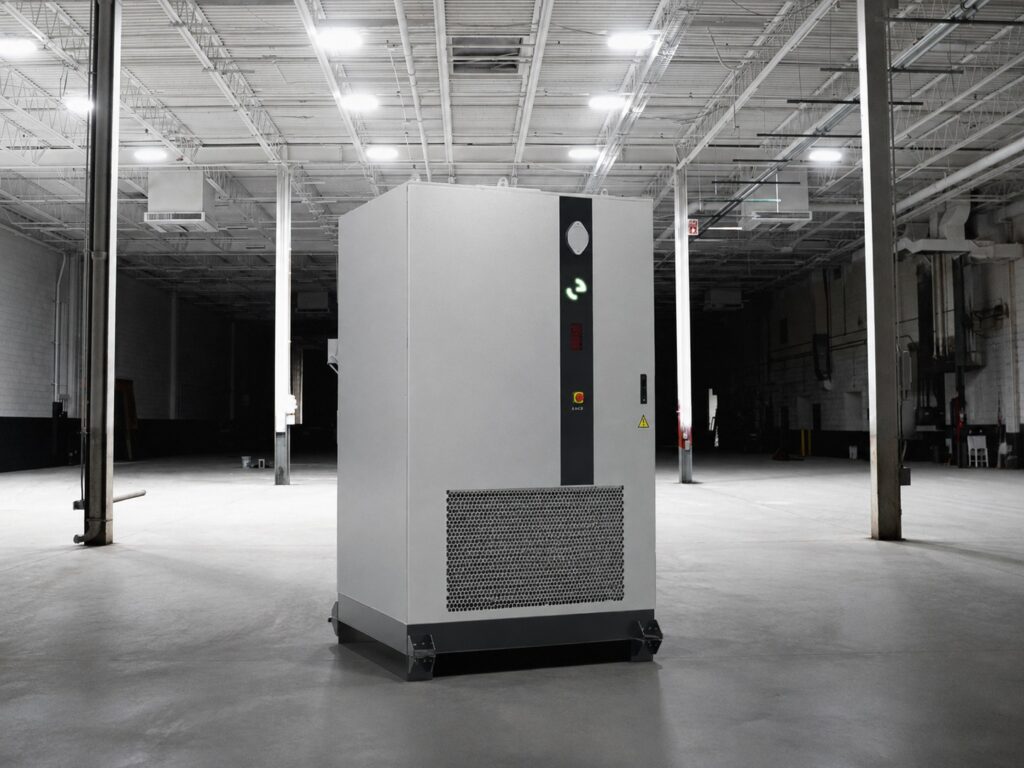

Extending battery calendar life with active liquid thermal regulation.
Air-cooled commercial storage stations develop thermal hot spots during heavy summer peak shaving. The CM2 circulates liquid coolant directly through thermal plates beneath the 280 Ah cells. Circulating liquid coolant maintains cell temperature differentials strictly within ≤2.5 °C across the container. Extends battery calendar life by over 30% compared to conventional air-cooled commercial stations. Multi-sensor aerosol fire suppression, combustible gas detection, and emergency pressure relief vents.
Energy does not move.
Five packs still print 261 kWh. Sell current and power, not a larger tank.
Closed outdoor plant.
One cabinet for PCS and storage. PCS and storage share one outdoor cabinet.
Technical data
The flagship turnkey AC-coupled storage station engineered for heavy industrial peak shaving and microgrids.
125 kW / 261 kWh commercial storage station delivering 137.5 kVA peak power.
Delivering the highest power density in SAJ's AC-coupled lineup, the CM2-125K-261-EU integrates a 125 kW PCS (137.5 kVA max) and 261 kWh of liquid-cooled LFP storage. Purpose-built for industrial demand charge reduction, dynamic energy trading, and critical factory backup power, it connects straight to the main commercial 400 V switchboard with zero rooftop DC rewiring.
- Bidirectional AC Power
- 125.0 kW
- Storage Capacity
- 261.0 kWh
- Thermal Uniformity
- ≤ 2.5 °C
- IP55 Enclosure
- Turnkey Pad
System Config
- Type
- All-in-one C&I battery energy storage system, CM2 Series
- Topology
- Non-isolated
- Cell type
- LFP 3.2 V / 314 Ah
- System configuration
- 260S1P
- Cooling type
- Liquid cooling (battery), forced air (PCS)
Battery
- Rated energy (kWh)
- 261
- Rated battery voltage (V)
- 832
- Voltage range (V)
- 728 ~ 936
- Number of battery packs
- 5
- Depth of discharge
- 0 ~ 100%
- Charge / discharge rate
- 0.5C
- Battery pack protection level
- IP67
- Battery cell cycles
- >=8000 @70% EOL
Power Output
- Rated charge / discharge power (kW)
- 125
- Max. charge / discharge power (kW)
- 137.5
- Max. charge / discharge current (A)
- 208.9 @380V, 198.5 @400V
- Rated AC voltage (V)
- 380 / 400, 3L+N+PE
Efficiency
- Round-trip efficiency
- >90% @0.25C, >88% @0.5C
Physical & Environment
- Ingress protection class
- IP54 (cabinet), IP65 (PCS)
- Cooling type
- Liquid cooling (battery), forced air (PCS)
- Operating temperature range (C)
- -25 ~ +55
- Relative humidity
- 0 ~ 95%, non-condensing
- Max. operating altitude (m)
- 2000
- Dimension (H x W x D mm)
- 2325 x 1030 x 1400
- Weight (kg)
- 2600
Project fit
Where this model fits.
Scenarios that show which projects the SAJ CM2-125K-261-EU belongs in, what to verify before quoting, and when another model is the better pick.
Project scenario
Industrial Plants & EV Charging Depots with High Peak Demand Charges
Heavy manufacturing plants, automated logistics warehouses, and EV fleet depots seeking to eliminate expensive 15-minute peak demand penalties.
125 kW continuous discharge power provides the high throughput needed to flatten heavy machinery startup spikes and multi-vehicle fast charging.
- BoundaryIf the site connects to a public grid with a strict 100 kW connection cap, step down to the CM2-99.9K-261-EU to simplify utility approval. ---
What Linker confirms with you
- If the site connects to a public grid with a strict 100 kW connection cap, step down to the CM2-99.9K-261-EU to simplify utility approval. ---
Documents
SAJ CM2 99.9-125 kW / 261 kWh datasheet (EN)Product questions
What size AC breaker and cabling are required for this 125 kW station?
250 A 3-pole industrial MCCB; 95 mm² to 120 mm² copper cable. With a maximum continuous AC output current of 198.5 A per phase (at 400 V three-phase), install a 3-pole 250 A industrial circuit breaker (MCCB) on the main switchboard, paired with copper conductor cross-sections of 95 mm² to 120 mm².
Can multiple CM2-125K-261 units be installed in parallel?
Yes. Multi-unit parallel scaling for multi-megawatt-hour projects. Multiple CM2 outdoor stations can be connected in parallel on the same 400 V AC distribution bus, managed centrally by an SAJ eManager-C1 Pro controller to scale power and capacity to 500 kW / 1+ MWh.
System components
Recommended components
SAJ eManager-C1 Pro communication box
Item number: DLK-SAJ-EMANAGERC1PRO
eManager-C1 Pro's own datasheet states a recommended use of 'CHS2, 2 to 10 units in parallel.'
