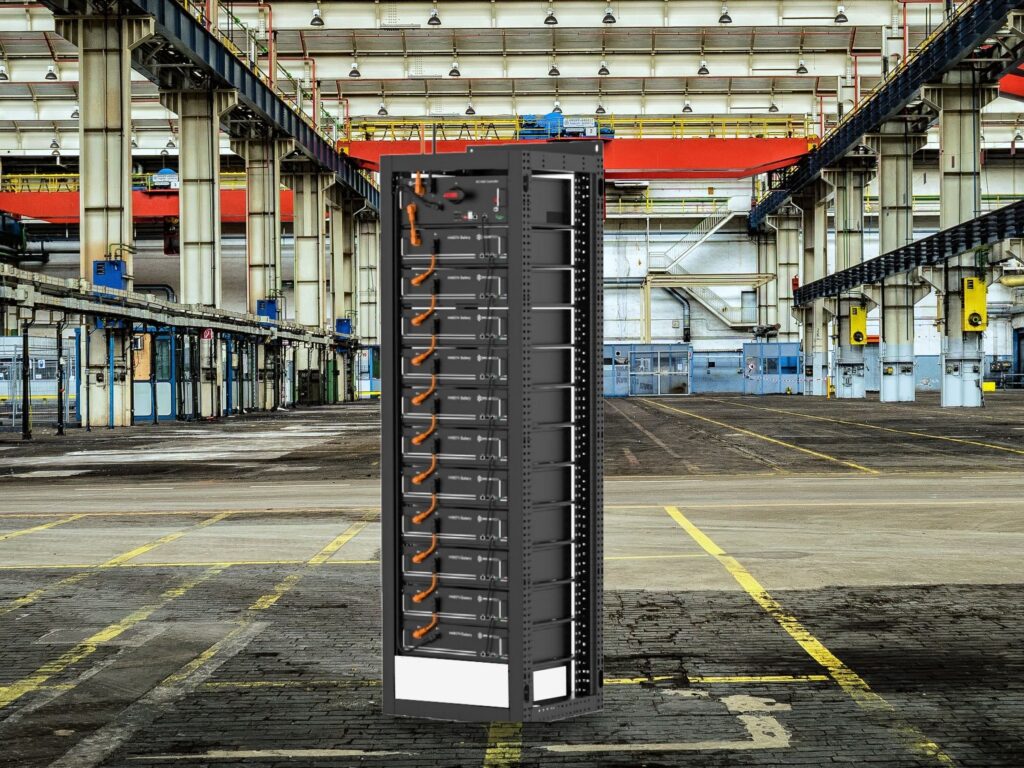

Pylontech PowerCube-H2 (42.62 kWh, 12 x H48074 + SC1000-100)
Pylontech PowerCube-H2: an LFP battery rack of 5 to 18 H48074 modules, 17.76 to 63.936 kWh, priced here at 42.62 kWh.
- Scales 5 to 18 modules: 17.76 to 63.936 kWh at 240 to 864 V, in steps of one 3.552 kWh H48074 module.
- 5,000 cycles and a 15+ year design life at 95% depth of discharge — LFP chemistry, 96% round-trip at 0.5C.
- Natural cooling and IP20: no fans, no refrigerant circuit, nothing in the rack that needs servicing to keep the battery cool.
- Certified to IEC62619, CE EMC, IEC62477-1 and UL1973, with UN38.3 for transport.
- 3.552 kWh
- Nominal energy
- 48 Vdc
- Nominal voltage
- IP20
- Ingress protection
- Manufacturer
- Pylontech
- Model code
- Powercube-H2
- Item no.
- DLK-PYLONTECH-POWERCUBEH2
- Delivery
- Delivery included in your Proforma
Plan with Powercube-H2
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Documentation
Specifications
Every value exactly as published in the official Powercube-H2 documentation.
Product typePowerCube-H2-48/zzzV (zzz = 240~864, in steps of 48)
System energy17.76 ~ 63.936 (3.552 × n, n = 5~18) kWh
System voltage240 ~ 864 (48 × n, n = 5~18) Vdc
Modules, minimum5 pcs
Modules, maximum18 pcs
Charge / discharge current, standard14.8 A
Charge / discharge current, normal37 A
Charge / discharge current, maximum74 (max, 15 s) A
Cell technologyLi-ion (LFP)
Charge upper voltage54 × n (n = 5~18) Vdc
Discharge lower voltage43.5 × n (n = 5~18) Vdc
Round-trip efficiency96 (@0.5C) %
Depth of discharge95 %
ModuleH48074
Module energy3.552 kWh
Module capacity74 Ah
Module voltage48 Vdc
Module dimensions442 × 390 × 132 mm
ControllerSC1000-100
Rack dimensionsRack 1: 600 × 505 × 2130 (n = 5~12), and Rack 2: 600 × 505 × 2130 (n = 13~18) mm
WeightRack 1: 77 + 32 × n (n = 5~15)Rack 2: 68 + 32 × n (n = 16~18) kg
Controller dimensions442 × 390 × 132 mm
Ingress protectionIP20
CoolingNatural
Operating temperature0~50 °C
Storage temperature-20~60 °C
Humidity5~95 %
Cycle life5,000 cycles
Design life15+ years
CommunicationModbus RTU / CAN
CertificationIEC62619, CE EMC, IEC62477-1, UL1973
Transport certificationUN38.3
Short-circuit rating<4000 A
Documents
Missing a certificate or language version?Request a document
Product![Pylontech PowerCube-H2 (42.62 kWh, 12 x H48074 + SC1000-100)]()
Pick the rating
PowerCube-H1 / H2 family. Same engineering, different size.
4 ratings
Same series, same engineering — your model is highlighted.
Pylontech PowerCube-X2 (17.76 kWh, 5 x H48074 + SC0500-100S-V2)
Sign in for pricing
Pylontech PowerCube-H1 (36 kWh, 15 x H48050 + SC1000-100)
Sign in for pricing
Pylontech PowerCube-M2A-180 (107.98 kWh, 19 x HM2A180)
Sign in for pricing
Nominal energy
3.552 kWh
2.4 kWh
3.552 kWh
5.6832 kWh
Nominal voltage
48 Vdc
48 Vdc
48 Vdc
38.4 Vdc
Ingress protection
Same across the family: IP20
Weight
77 + 32 × n (n = 2~10) kg
Rack 1: 77 + 24 × n (n = 5~15)Rack 2: 68 + 24 × n (n = 16~18) kg
Rack 1: 77 + 32 × n (n = 5~15)Rack 2: 68 + 32 × n (n = 16~18) kg
Single rack: 140 + 55 × n (n = 1~19) kg
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
The configuration named in the title: 12 x H48074 modules and one SC1000-100 controller, giving 42.62 kWh.
- Why a configuration and not just a model: Pylontech uses one model name for the whole range. PowerCube-H2 means anything from 5 to 18 modules, 17.76 to 63.936 kWh. A single price cannot cover that.
- A different size: tell us the module count or the kWh you want on the enquiry and we will price that configuration. The step is one 3.552 kWh module.
5 to 18. That is Pylontech's own figure from the manual linked on this page.
- Worth saying because we had it wrong: our own data previously carried a lower ceiling, taken from the manual's dimension row — which states the module count at which a SECOND rack is needed, not the count at which the system stops. Corrected on 2026-08-10 against the manual.
- Above one rack: the larger counts occupy two racks. The specification table on this page gives both rack cases and their weights.
That is a project question, and we will not guess it on a catalogue page.
- What the battery offers: the voltage window and communication in the table above — Modbus RTU and CAN.
- What decides it: whether your inverter's own battery compatibility list names this PowerCube and this firmware. Pylontech and the inverter manufacturer both publish that list, and it changes.
- What we will do: tell us the inverter on the enquiry and we will confirm the pairing against both lists before quoting.
Installation & wiring 1
A floor-standing rack, naturally cooled, IP20 — so indoors, in a dry room.
- IP20 means indoor: there is no weather sealing. This is not an outdoor cabinet.
- Temperature: 0 to 50 °C.
- Floor loading: the weight formula is in the table. Check it against the floor before ordering — at the top of the range these racks are well over half a tonne.
- Cooling: natural. No fans and no refrigerant circuit, but the room still has to shed the heat.
Availability & compliance 1
Per project, and because we will not show you a different battery.
- Supply: PowerCube is not carried by the German tier-1 distributors — Krannich's Pylontech range is Force H3 and H3X only, and Memodo and BayWa r.e. Germany carry none. We source it from second-tier European channels, so this is a project order and the lead time is confirmed after order rather than promised here.
- Freight: multi-pallet, dangerous goods (UN38.3 lithium battery), and the modules ship separately from the rack and controller.
- Imagery: we hold no PowerCube photograph. Our Pylontech images are Force H3, US5000 and Fidus racks — they look similar and are different products, so showing one here would be misleading. Ask and we will send Pylontech's own images with the quote.
- Documentation: Pylontech's installation manual, linked below. There is no current PowerCube datasheet — Pylontech's published line is 18 models and none of them is a PowerCube, so the manual is the primary source and we host a copy so the link keeps working.
