Pylontech PowerCube-X2 (17.76 kWh, 5 x H48074 + SC0500-100S-V2)
Pylontech PowerCube-X2: an LFP battery rack of 2 to 10 H48074 modules, 7.104 to 35.52 kWh, priced here at 17.76 kWh.
- Scales 2 to 10 modules: 7.104 to 35.52 kWh at 96 to 480 V, in steps of one 3.552 kWh H48074 module.
- 5,000 cycles and a 15+ year design life at 95% depth of discharge — LFP chemistry, 96% round-trip at 0.5C.
- Natural cooling and IP20: no fans, no refrigerant circuit, nothing in the rack that needs servicing to keep the battery cool.
- Certified to IEC62619, IEC63056, RED, CE LVD, VDE2510-50 and IEC62040-1, with UN38.3 for transport.
- 3.552 kWh
- Nominal energy
- 48 Vdc
- Nominal voltage
- IP20
- Ingress protection
- Manufacturer
- Pylontech
- Model code
- Powercube-X2
- Item no.
- DLK-PYLONTECH-POWERCUBEX2
- Delivery
- Delivery included in your Proforma
Plan with Powercube-X2
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Documentation
Specifications
Every value exactly as published in the official Powercube-X2 documentation.
Product typePowerCube-X2-V2-48/zzzV (zzz = 96~480, in steps of 48)
System energy7.104 ~ 35.52 (3.552 × n, n = 2~10) kWh
System voltage96 ~ 480 (48 × n, n = 2~10) Vdc
Modules, minimum2 pcs
Modules, maximum10 pcs
Maximum system voltage<600 V
Charge current, nominal37 A
Charge current, maximum37 (40S-V2) / 74 (100S-V2) A
Discharge current, nominal37 A
Discharge current, maximum37 (40S-V2) / 74 (100S-V2) A
Cell technologyLiFePO4
Charge upper voltage54 × n (n = 2~10) Vdc
Discharge lower voltage43.5 × n (n = 2~10) Vdc
Round-trip efficiency96 (@0.5C) %
Depth of discharge95 %
ModuleH48074
Module energy3.552 kWh
Module capacity74 Ah
Module voltage48 Vdc
Module dimensions442 × 390 × 132 mm
Module weight32 kg
ControllerSC0500-40S-V2 or SC0500-100S-V2
Rack dimensions600 × 505 × 2130 (n = 2~10) mm
Weight77 + 32 × n (n = 2~10) kg
Controller dimensions442 × 390 × 87 (40S-V2) / 442 × 390 × 132 (100S-V2) mm
Ingress protectionIP20
CoolingNatural
Operating temperature0~50 °C
Storage temperature-20~60 °C
Humidity5~95 %
Cycle life5,000 cycles
Design life15+ years
CommunicationModbus RTU / CAN / LAN
CertificationIEC62619, IEC63056, RED, CE LVD, VDE2510-50, IEC62040-1
Transport certificationUN38.3
Short-circuit rating<3000 A
Documents
Missing a certificate or language version?Request a document

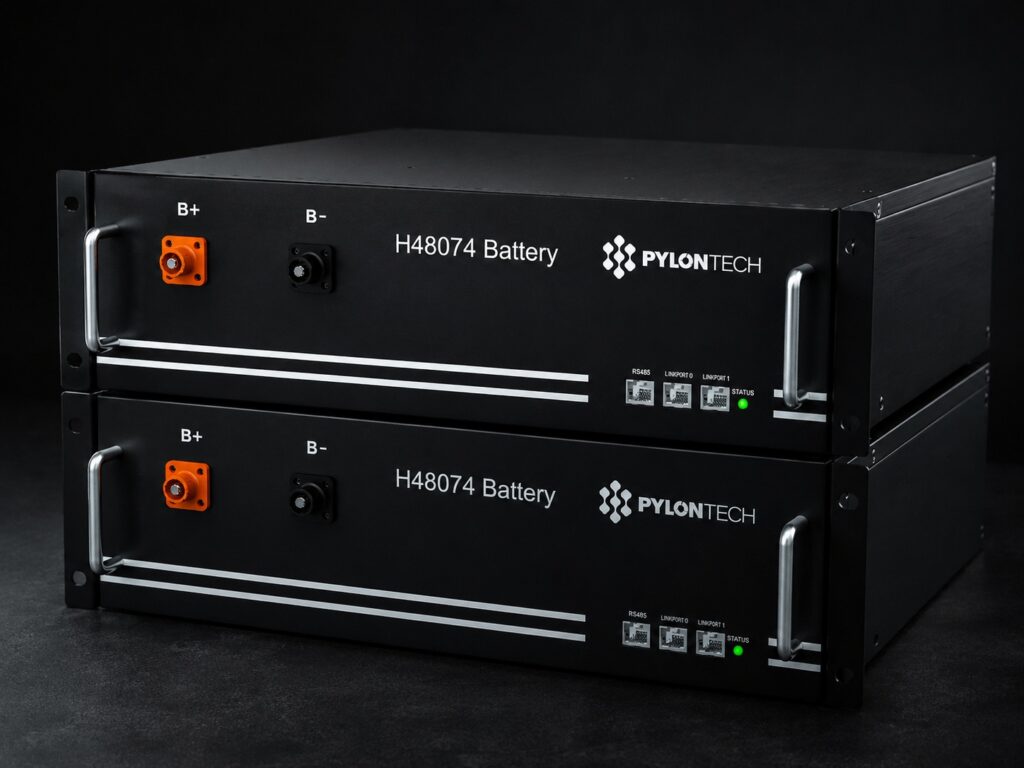

Product![Pylontech PowerCube-X2 (17.76 kWh, 5 x H48074 + SC0500-100S-V2)]()
Pick the rating
PowerCube-X1 / X2 family. Same engineering, different size.
4 ratings
Same series, same engineering — your model is highlighted.
Pylontech PowerCube-X1 (16.8 kWh, 7 x H48050 + SC0500-100S-V2)
Sign in for pricing
Pylontech PowerCube-H1 (36 kWh, 15 x H48050 + SC1000-100)
Sign in for pricing
Pylontech PowerCube-H2 (42.62 kWh, 12 x H48074 + SC1000-100)
Sign in for pricing
Nominal energy
2.4 kWh
3.552 kWh
2.4 kWh
3.552 kWh
Nominal voltage
Same across the family: 48 Vdc
Ingress protection
Same across the family: IP20
Weight
Rack 1: 58 + 24 × n (n = 2~8)Rack 2: 77 + 24 × n (n = 2~10) kg
77 + 32 × n (n = 2~10) kg
Rack 1: 77 + 24 × n (n = 5~15)Rack 2: 68 + 24 × n (n = 16~18) kg
Rack 1: 77 + 32 × n (n = 5~15)Rack 2: 68 + 32 × n (n = 16~18) kg
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
The configuration named in the title: 5 x H48074 modules and one SC0500-100S-V2 controller, giving 17.76 kWh.
- Why a configuration and not just a model: Pylontech uses one model name for the whole range. PowerCube-X2 means anything from 2 to 10 modules, 7.104 to 35.52 kWh. A single price cannot cover that.
- A different size: tell us the module count or the kWh you want on the enquiry and we will price that configuration. The step is one 3.552 kWh module.
2 to 10. That is Pylontech's own figure from the manual linked on this page.
- Worth saying because we had it wrong: our own data previously carried a lower ceiling, taken from the manual's dimension row — which states the module count at which a SECOND rack is needed, not the count at which the system stops. Corrected on 2026-08-10 against the manual.
- Above one rack: the larger counts occupy two racks. The specification table on this page gives both rack cases and their weights.
That is a project question, and we will not guess it on a catalogue page.
- What the battery offers: the voltage window and communication in the table above — Modbus RTU and CAN, plus LAN.
- What decides it: whether your inverter's own battery compatibility list names this PowerCube and this firmware. Pylontech and the inverter manufacturer both publish that list, and it changes.
- What we will do: tell us the inverter on the enquiry and we will confirm the pairing against both lists before quoting.
Installation & wiring 1
A floor-standing rack, naturally cooled, IP20 — so indoors, in a dry room.
- IP20 means indoor: there is no weather sealing. This is not an outdoor cabinet.
- Temperature: 0 to 50 °C.
- Floor loading: the weight formula is in the table. Check it against the floor before ordering — at the top of the range these racks are well over half a tonne.
- Cooling: natural. No fans and no refrigerant circuit, but the room still has to shed the heat.
Availability & compliance 1
Per project, and because we will not show you a different battery.
- Supply: PowerCube is not carried by the German tier-1 distributors — Krannich's Pylontech range is Force H3 and H3X only, and Memodo and BayWa r.e. Germany carry none. We source it from second-tier European channels, so this is a project order and the lead time is confirmed after order rather than promised here.
- Freight: multi-pallet, dangerous goods (UN38.3 lithium battery), and the modules ship separately from the rack and controller.
- Imagery: we hold no PowerCube photograph. Our Pylontech images are Force H3, US5000 and Fidus racks — they look similar and are different products, so showing one here would be misleading. Ask and we will send Pylontech's own images with the quote.
- Documentation: Pylontech's installation manual, linked below. There is no current PowerCube datasheet — Pylontech's published line is 18 models and none of them is a PowerCube, so the manual is the primary source and we host a copy so the link keeps working.
