Description
Low-current long-string transmission for heavy commercial cycling.

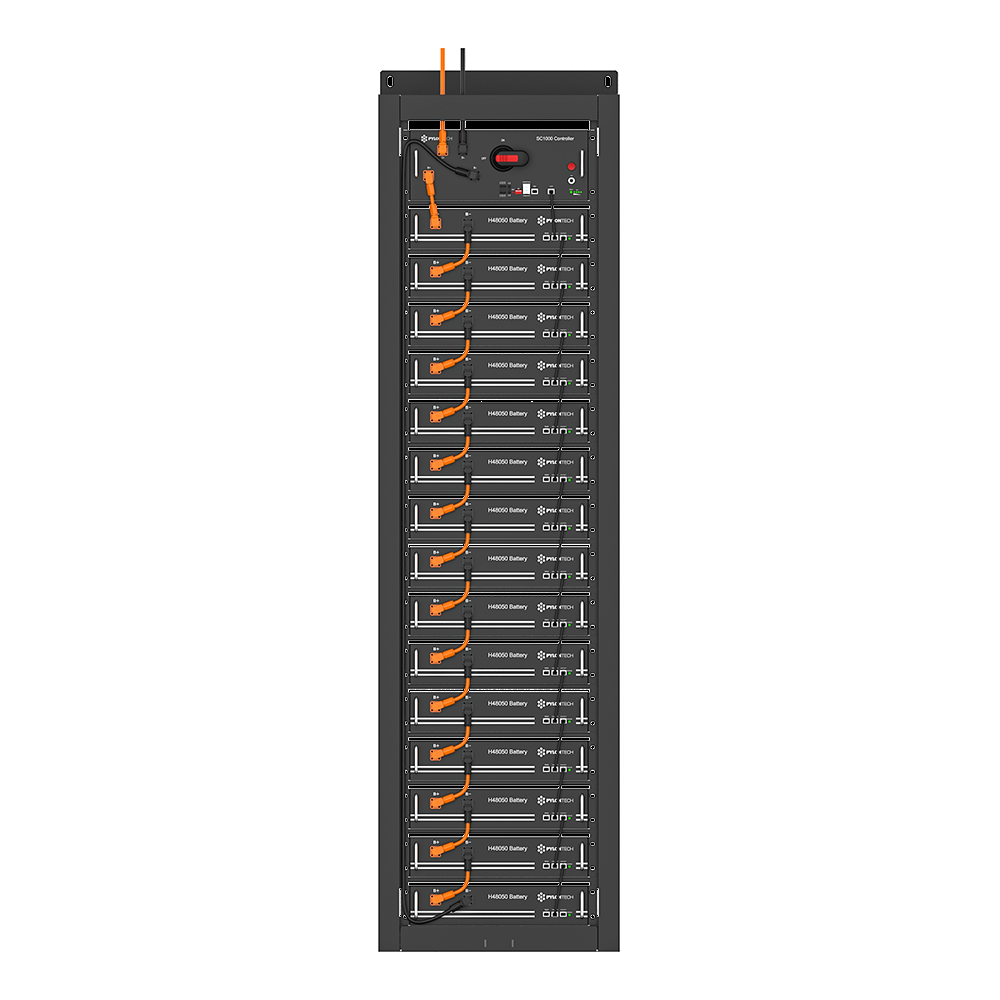

Pylontech PowerCube-H1 is a 36.0 kWh commercial high-voltage storage rack combining fifteen 2.4 kWh H48050 modules with the 1000 V / 100 A SC1000-100S master BMS controller in a full-height 2.15 m cabinet, engineered for heavy commercial peak shaving and 50–100 kW inverter pairing.
720.0 V High-Voltage Operating Ceiling (15 Modules)
Operates in the peak efficiency window of 50 kW to 100 kW commercial inverters, minimizing DC transmission losses.
100 A Continuous Power Throughput (72 kW DC)
Sustains heavy continuous discharge to handle industrial motor startups, cold storage, and commercial HVAC.
36.0 kWh Substantial Commercial Energy Capacity
Buffers massive midday solar generation to eliminate expensive peak-tariff grid electricity purchases.
Turnkey Full-Height Industrial Enclosure (2.15 m)
Heavy-duty 19-inch steel rack includes internal busbars, motorized DC switchgear, and diagnostic telemetry.
More product details
Operating commercial storage at 720 V nominal reduces internal current stress, keeping operating temperatures low and conversion efficiency high during continuous heavy industrial cycling.
- 225S series LFP cell string delivers maximum round-trip electrical efficiency on 50–100 kW commercial PCS units.
- 100 A continuous current rating delivers up to 72 kW continuous DC charge and discharge power.
- Real-time master BMS balancing maintains uniform voltage across all 15 internal modules.
PowerCube-H1 / H2
Compare different models
Scroll sideways to compare every model.
Complete indoor energy column with integrated 1000 V switchgear.
Housing fifteen high-voltage battery modules and the master BMS in a single 2.15 m industrial rack saves switchroom floor space and eliminates inter-cabinet cabling errors. Heavy-duty 19-inch steel cabinet (600 × 505 × 2150 mm) with pre-installed slide rails and transparent front door. Automated pre-charge circuit ramps DC bus voltage safely before main contactor closure. Integrated motorized DC circuit breaker provides sub-second short-circuit, overcurrent, and thermal isolation.
Holds 25 A as normal duty on the string
Standard duty is 10 A. Normal duty is 25 A. The fifteen-second peak is 50 A.
Holds 50 A for fifteen seconds
The listed 720 V string can pass 50 A for fifteen seconds. Continuous duty stays at 25 A.
Talks over Modbus RTU and CAN
The SC1000 head speaks Modbus RTU or CAN. The listed fill is fifteen H48050 bricks.
Technical data
Full-height industrial rack storage engineered for manufacturing plants, cold storage, and commercial microgrids.
36.0 kWh / 720 V high-voltage storage column for 50–100 kW commercial inverters.
Standing 2.15 m tall in a full-height industrial rack, the PowerCube-H1 stacks fifteen H48050 modules to achieve a 720.0 V nominal operating bus across a 652.5–810.0 V window. Controlled by the 1000 V SC1000-100S master BMS, it delivers up to 72 kW of continuous DC power for commercial peak shaving, demand charge reduction, and long-duration backup.
- Nominal Storage
- 36.00 kWh
- High-Voltage Bus
- 720.0 V
- High-Rate Throughput
- 100 A
- 2.15 m Cabinet
- Turnkey Rack
System
- Product type
- PowerCube-H1-48/zzzV (zzz = 240~864, in steps of 48)
- System energy
- 12 ~ 43.2 (2.4 × n, n = 5~18) kWh
- System voltage
- 240 ~ 864 (48 × n, n = 5~18) Vdc
- Modules, minimum
- 5 pcs
- Modules, maximum
- 18 pcs
Electrical
- Charge / discharge current, standard
- 10 A
- Charge / discharge current, normal
- 25 A
- Charge / discharge current, maximum
- 50 (max, 15 s) A
- Cell technology
- Li-ion (LFP)
- Charge upper voltage
- 54 × n (n = 5~18) Vdc
- Discharge lower voltage
- 43.5 × n (n = 5~18) Vdc
- Round-trip efficiency
- 96 (@0.5C) %
- Depth of discharge
- 95 %
Battery module
- Module
- H48050
- Module energy
- 2.4 kWh
- Module capacity
- 50 Ah
- Module voltage
- 48 Vdc
- Module dimensions
- 442 × 390 × 100 mm
- Controller
- SC1000-100
Physical
- Rack dimensions
- Rack 1: 600 × 505 × 2130 (n = 5~15), and Rack 2: 600 × 505 × 2130 (n = 16~18) mm
- Weight
- Rack 1: 77 + 24 × n (n = 5~15)Rack 2: 68 + 24 × n (n = 16~18) kg
- Controller dimensions
- 442 × 390 × 132 mm
Environment and life
- Ingress protection
- IP20
- Cooling
- Natural
- Operating temperature
- 0~50 °C
- Storage temperature
- -20~60 °C
- Humidity
- 5~95 %
- Cycle life
- 5,000 cycles
- Design life
- 15+ years
Communication and compliance
- Communication
- Modbus RTU / CAN
- Certification
- VDE2510-50, IEC62619, CE EMC, IEC62477-1, UL1973
- Transport certification
- UN38.3
- Short-circuit rating
- <4000 A
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech PowerCube-H1 (36 kWh, 15 x H48050 + SC1000-100) belongs in, what to verify before quoting, and when another model is the better pick.

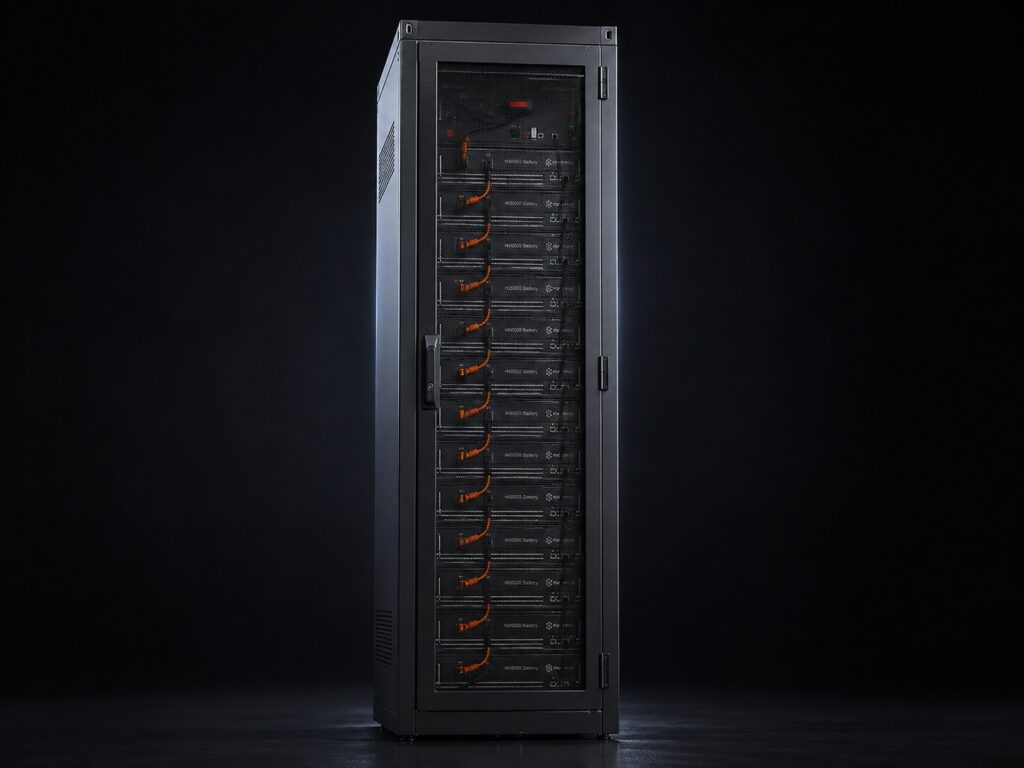

Manufacturing Plants & Cold Storage Facilities (30–60 kWp Solar)
Commercial buildings running heavy three-phase machinery seeking 35+ kWh of high-voltage storage paired with 50 kW inverters.
720 V nominal operating voltage matches commercial inverters directly, delivering 72 kW continuous DC power for peak shaving.
- BoundaryIf the facility requires higher storage capacity (50–60+ kWh) in the exact same 2.15 m cabinet footprint, step up to the PowerCube-H2 (using 74 Ah H48074 modules). ---
- If the facility requires higher storage capacity (50–60+ kWh) in the exact same 2.15 m cabinet footprint, step up to the PowerCube-H2 (using 74 Ah H48074 modules). ---
Documents
Pylontech PowerCube-H1 / H2 installation manual (EN)Product questions
What is included in the PowerCube-H1 complete rack kit?
1x 2.15 m rack cabinet + 1x SC1000-100S master controller + 15x H48050 battery modules. The kit arrives complete with the full-height 19-inch steel rack cabinet (600 × 505 × 2150 mm), 1x SC1000-100S (1000 V / 100 A) master controller, 15x H48050 (2.4 kWh) battery modules, and pre-fabricated high-voltage DC jumper cables.
