Pylontech Fidus Pro FB-L-5.12-EU
Pylontech Battery System

Pylontech Fidus Pro FB-L-5.12-EU

Pylontech FB-L-5.12-EU is a 5.12 kWh low-voltage 51.2 V LFP battery module delivering 100 A continuous discharge (5 kW power from a single unit) and 95% depth of discharge, engineered for modern residential hybrid inverters and off-grid power systems.

Trade price
Sign in for partner pricing Download datasheet
  • 100 A Continuous Power Output (5 kW): A single 5.12 kWh module delivers full 5 kW continuous power to run domestic heat pumps and appliances without current throttling.
  • 51.2 V Native 16S LFP Architecture, 16S series cell configuration delivers a stable 51.2 V nominal voltage for higher inverter conversion efficiency.
  • Clean Floor or Wall-Mount Chassis: Furniture-grade residential enclosure mounts neatly on technical room walls or stands directly on the floor with zero exposed wiring.
  • Parallel Scaling up to 80+ kWh: Connects in parallel with up to 16 modules using the LV-Hub-V2 to build large low-voltage residential storage banks.
4.86 kWh
Usable energy
5.12 kWh
Nominal energy
Manufacturer
Pylontech
Model code
FB-L-5.12-EU
Item no.
DLK-PYLONTECH-FIDUSPRO
Delivery
Germany delivery estimate: €85.00 to €205.00 · The final delivery charge is included in your Proforma.
Orderable · lead time confirmed after order

Plan with FB-L-5.12-EU

New system, extension or replacement? Linker Advisor starts from this model and asks only for what is still open (existing model, quantity, postcode, installation date).

  • Ingress protection IP65 / C5-M
  • Datasheet on file

Every figure here traces to the datasheet on file. Our engineers confirm grid code and configuration before you order, so what arrives matches what you're building.

  • GoodWe · SAJ · Pylontech · EcoFlow · Chint Pairings verified against the compatibility lists on file
  • Datasheet verified for this item
  • Within 24 h engineering response
  • MOQ 1 unit · EU delivery
  • Engineering-checked configurations
Furniture-grade 48 V residential storage engineered for high-power single-phase domestic electrification.

5.12 kWh / 51.2 V low-voltage LFP module with 100 A continuous discharge.

Designed for modern 48 V residential storage systems, the FB-L-5.12-EU delivers 5.12 kWh of LFP storage in an ultra-clean, floor-standing or wall-mounted chassis. It sustains 100 A continuous discharge (5 kW output) from a single unit with 95% DoD, providing high power density for domestic solar retrofits.

5.12kWh

Nominal Storage

51.2V

16S LFP Architecture

100A

Continuous Output

IP65

All-Weather Build

Get a quote in the Linker Planner

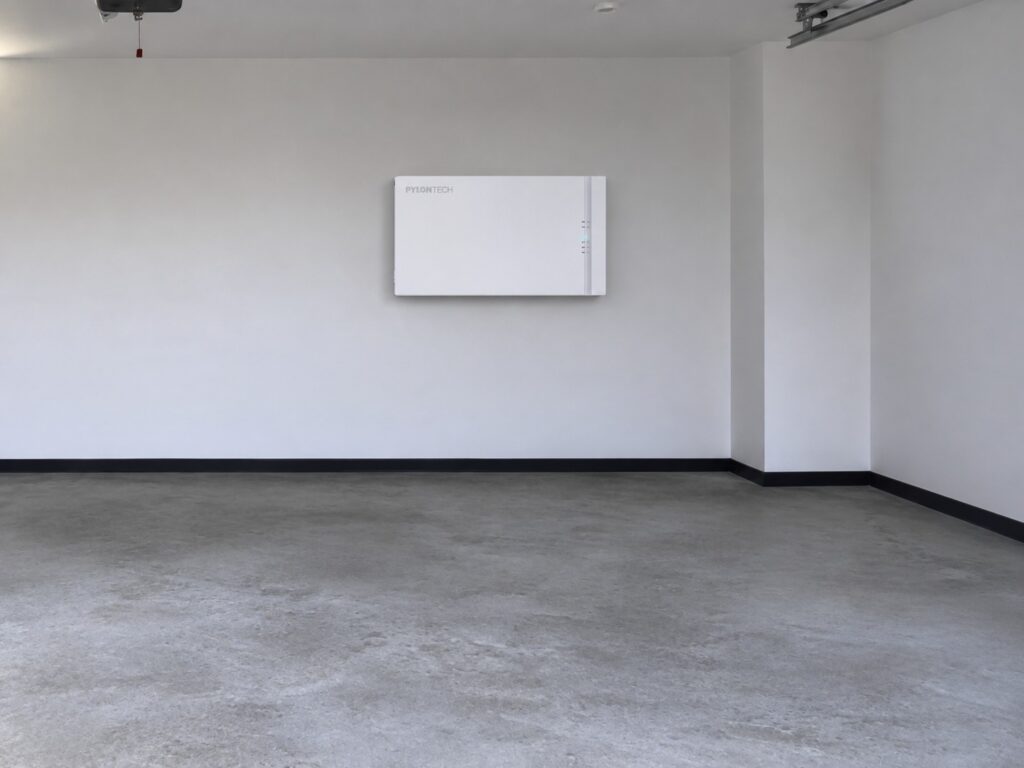

Driving 5 kW residential inverters from a single battery module.
FB-L-5.12 · 100 A CONTINUOUS · 5 KW DC

Driving 5 kW residential inverters from a single battery module.

Standard low-voltage batteries require connecting multiple modules in parallel to supply 5 kW. The FB-L-5.12 provides 100 A continuous output from a single unit.

16S series LFP cell string provides 51.2 V nominal (44.8–56.8 V operating range).
Delivers up to 5.12 kW continuous DC power into 48 V hybrid and off-grid inverters.
Internal pre-charge soft-start circuitry prevents inverter capacitor inrush tripping during startup.

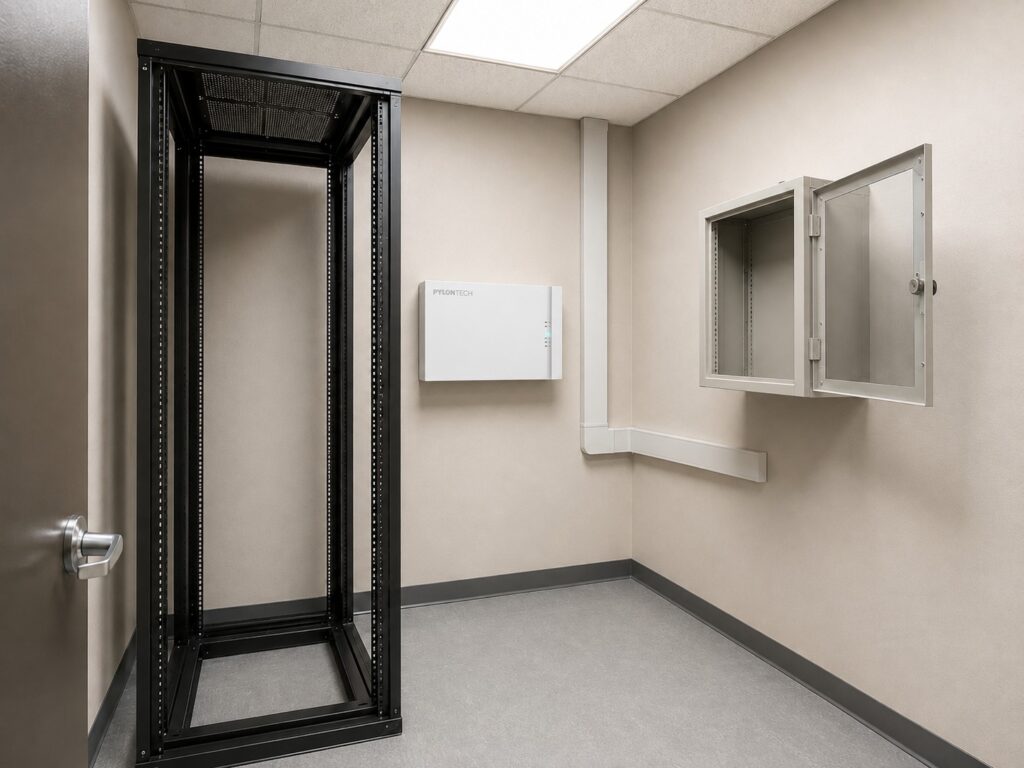

Clean domestic aesthetics with scalable multi-module parallel links.
FB-L-5.12 · 100 A CONTINUOUS · 5 KW DC

Clean domestic aesthetics with scalable multi-module parallel links.

Eliminating industrial server-rack aesthetics in residential spaces, the FB-L-5.12 features a sleek, powder-coated casing that mounts cleanly on garage walls.

Supports versatile wall-mount or floor-standing installation with integrated concealed cable channels.
Parallel link up to 16 units on a shared DC bus using the Pylontech LV-Hub-V2.
IP65 rated enclosure certified for unheated basements, technical utility rooms, and sheltered outdoor alcoves (-10 to +50 °C).
Project fit

Where this model fits.

Scenarios that show which projects the Pylontech Fidus Pro FB-L-5.12-EU belongs in, what to verify before quoting, and when another model is the better pick.

01
Project scenario

Modern 48 V Single-Phase Residential Solar Retrofits (5–15 kWh)

Modern 48 V Single-Phase Residential Solar Retrofits (5–15 kWh)

Single-family homes with 48 V hybrid or off-grid inverters seeking dense, furniture-grade low-voltage storage.

One module delivers 5 kW power; two modules deliver 10.24 kWh / 10 kW continuous throughput.

What Linker confirms with you
  • Confirm this model against the adjacent rating in the same family
Documentation

Specifications

Every value below traces to the FB-L-5.12-EU documentation on file, the table we work from when we check a design with you.

Cell chemistryLiFePO4 (LFP)
Nominal voltage51.2 V DC
Nominal / usable capacity5.12 kWh nominal / 4.86 kWh usable (95% DoD)
Charge / discharge voltageCharge 56-56.8 V; discharge 42.5-56.8 V
Max. continuous charge/discharge current100 A / 100 A (1C)
Peak charge/discharge current103-120 A for 2 minutes / 121-200 A for 15 seconds
Short-circuit current / duration< 1000 A / 1 ms
CommunicationCAN, RS485 (to the inverter)LED, Bluetooth and WiFi (optional) for interaction
Max. units per battery group20 (19 per group in multi-group setups with the LV-HUB-V2)
Max. parallel strings (groups)6
System scalability5 kWh to 583 kWh (1-114 modules)LV-HUB-V2 required for multi-group parallel connection
Inverter compatibility50+ popular inverter brands compatible (per Pylontechconfirm the model-specific approval list)
Working temperature-10 to 55 C (standard version)-20 to 55 C (self-heating version - heating activates between -20 C and -10 C, charge/discharge above -10 C) · storage -20 to 60 C
Ingress protection / anti-corrosionIP65 / C5-M
Humidity / altitude5-95% RH (non-condensing) / <= 4000 m
Cooling / protective classNatural cooling; protective class I
Dimensions / weight / mounting630 x 170 x 363 mm; 45 kg; wall, ground or rack mounted
Design life15 years @ 25 C
Cycle life8000 cycles @ 25 C (spec basis: 0.5C rate, SOC 5-95%)
Full datasheet (PDF) Ask an engineer

Documents

Pylontech Fidus Pro Residential Datasheet (EN-SD-260121)ENDownload
Missing a certificate or language version?Request a document
ProductPylontech Fidus Pro FB-L-5.12-EU

Complete the system

Balance-of-system and accessories paired with this model. Every pairing follows the compatibility list on file.

Recommended

Pick the rating

Fidus family. Same engineering, different size.

2 ratings Same series, same engineering. Your model is highlighted.
Pylontech Fidus Battery Plus FB-L-16 (16 kWh low-voltage battery) Log in for pricing
Pylontech Fidus Pro FB-L-5.12-EU This model Log in for pricing
Usable energy
16076 Wh
4.86 kWh
Nominal energy
16076 Wh
5.12 kWh

The columns read straight from the datasheets on file. What differs here is what actually differs.

Selection 1

Full 5.0 kW continuous DC power (51.2 V @ 100 A). A single module delivers 100 A continuous DC current ($51.2\text{ V} \times 100\text{ A} \approx 5.12\text{ kW}$), allowing it to power a standard 5 kVA inverter at 100% capacity without current throttling.
