Description
Driving 10 kVA low-voltage inverters from a single battery cabinet.

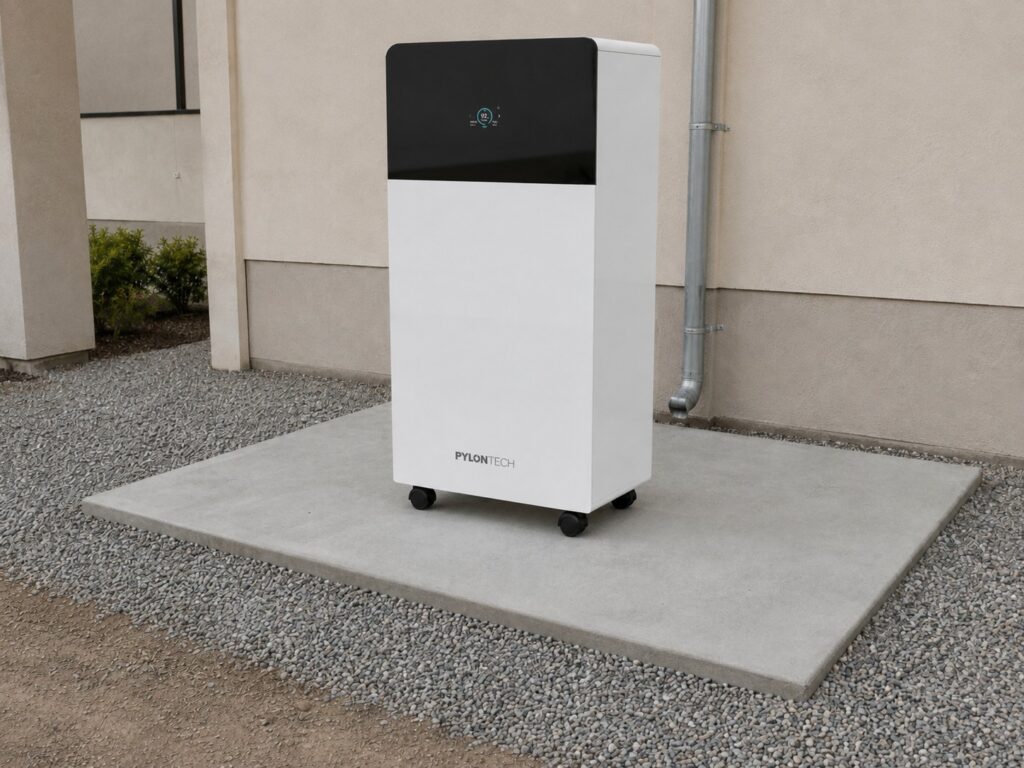

Pylontech FB-L-16 is a 16.07 kWh high-capacity low-voltage 51.2 V LFP battery cabinet delivering 200 A maximum continuous discharge (10 kW continuous power) with 100% depth of discharge, engineered for large single-phase residences and off-grid microgrids.
16.07 kWh High-Capacity Single Cabinet
Consolidates substantial low-voltage energy storage into a single furniture-grade floor cabinet, eliminating multi-battery rack clutter.
200 A Continuous Discharge (10 kW DC Output)
Drives large 8–10 kVA low-voltage off-grid and hybrid inverters at full capacity without thermal bottlenecking.
100% Full Usable Depth of Discharge
Premium cell chemistry allows utilizing the full 16.07 kWh rated capacity per cycle with high cycle longevity.
Parallel Scaling up to 6 Strings (96.4 kWh)
Connect up to 6 cabinets in parallel on a shared DC bus to build multi-day off-grid storage banks.
More product details
Supplying 8–10 kW continuous power on low-voltage 48 V systems requires massive current handling. The FB-L-16 incorporates heavy copper busbars and high-capacity cells to sustain 200 A continuous discharge.
- 16S series LFP cell string provides 51.2 V nominal (40.0–56.8 V operating range).
- Delivers up to 10.0 kW continuous DC power into 48 V hybrid and off-grid inverters.
- Internal pre-charge soft-start circuitry prevents inverter capacitor inrush tripping during startup.
Fidus
Compare different models
Scroll sideways to compare every model.
Clean domestic aesthetics with scalable multi-cabinet parallel links.

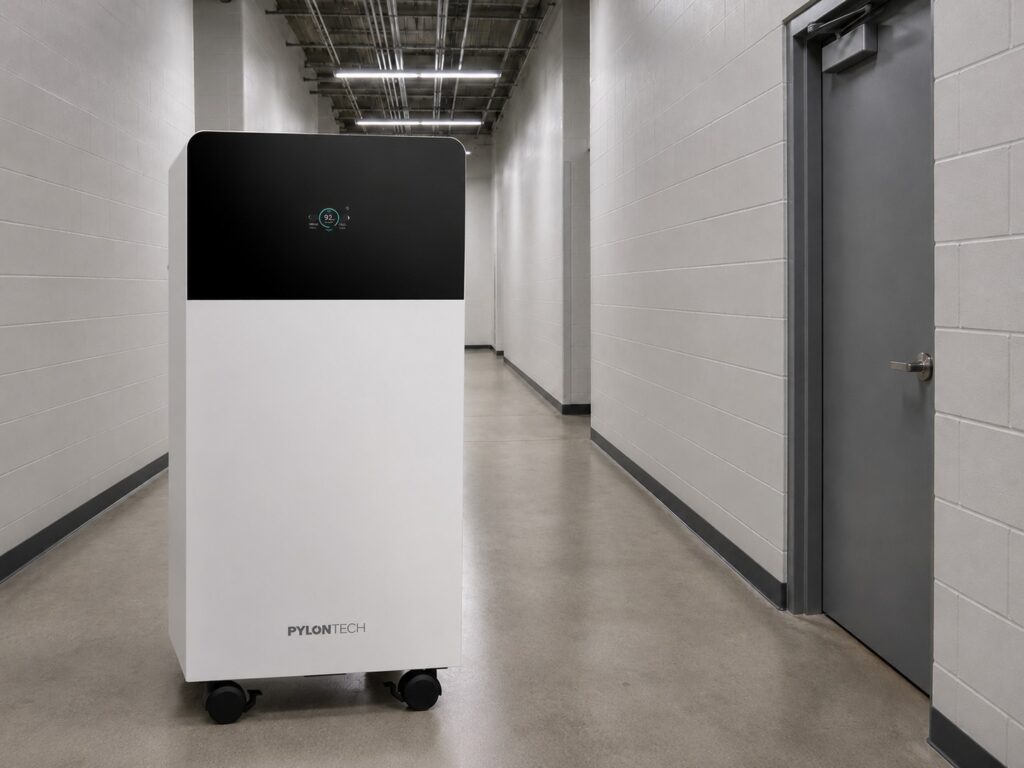

Consolidating 16.07 kWh into a single integrated floor cabinet eliminates the need for external server racks and dozens of inter-module jumper cables. Pre-wired internal DC busbars and master BMS streamline installation into a single 1.2 m tall cabinet. Parallel link up to 6 cabinets (96.4 kWh total) on a shared DC bus for large off-grid estates. IP65 rated enclosure certified for unheated basements, technical utility rooms, and sheltered outdoor alcoves (-10 to +50 °C).
Holds usable energy at full depth
Usable energy matches the label at 100 percent depth. The default floor is 5 percent and adjustable.
Talks over CAN and RS485
CAN and RS485 leave this cabinet. Bluetooth and WiFi sit with the front display.
Takes an optional aerosol module
An aerosol fire module is optional in this cabinet. Natural cooling sits in a class I case.
Technical data
Heavy-duty low-voltage energy storage engineered for high-power residential electrification and off-grid estates.
16.07 kWh / 51.2 V pre-packaged low-voltage battery cabinet with 200 A throughput.
Pre-packaged as a cohesive high-capacity storage cabinet, the FB-L-16 delivers 16.07 kWh of low-voltage LFP storage for large single-phase homes and off-grid estates. It provides up to 200 A continuous discharge throughput to effortlessly run variable-speed heat pumps, kitchen appliances, and whole-home domestic baselines.
- Single Cabinet
- 16.07 kWh
- 16S LFP Architecture
- 51.2 V
- Heavy Continuous Output
- 200 A
- All-Weather Build
- IP65
Battery
- Cell chemistry
- LiFePO4 (LFP)certified to IEC 62619 / IEC 63056 per Pylontech's datasheet
- Nominal voltage
- 51.2 V DC
- Nominal / usable capacity
- 16,076 Wh nominal = 16,076 Wh usable (100% DoDrated at 25 C, 0.2C discharge · default SOC floor 5%, adjustable)
- Charge / discharge voltage
- Charge 56-56.8 Vdischarge 42.5-57.6 V (documentation on file · the earlier datasheet revision printed 40-56.8 V)
- Max. continuous charge/discharge current
- 180 A / 200 A
- Peak charge/discharge current
- 300 A @ 15 s
Scaling & Communication
- Communication
- CAN, RS485 (to the inverter)display screen, Bluetooth and WiFi for interaction
- Max. units per battery group
- 16 (documentation on file for FB-L-16the earlier datasheet revision stated 20, and 19 per group in multi-group setups)
- Max. parallel strings (groups)
- 6
- Multi-group parallel hub
- LV-HUB-V2 required for parallel connection of multiple groupsit acts as the master
Environment & Enclosure
- Working temperature
- FB-L-16: charging 0 to 55 C, discharging -20 to 60 Cstorage -20 to 60 C. BMS limits current in extreme temperatures
- Ingress protection / anti-corrosion
- IP65 / C5-M
- Humidity / altitude
- 5-95% RH (non-condensing) / <= 4000 m
- Cooling / protective class
- Natural cooling; protective class I
- Fire extinguishing
- Aerosol (optional)
- Dimensions / weight / mounting
- 435 (W) x 240 (D) x 900 (H) mm120 kg (current page · earlier datasheet revision printed 130 kg) · wall-mounted or floor-standing
Lifetime
- Design life
- 15 years @ 25 C
- Cycle life
- 8000 cycles @ 25 C (spec basis: 0.2C charge/discharge, SOC range 5-95% per datasheet footnotes)
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech Fidus Battery Plus FB-L-16 (16 kWh low-voltage battery) belongs in, what to verify before quoting, and when another model is the better pick.
Large Single-Phase Electrified Residences & Off-Grid Estates (12–16 kWp Solar)
Properties using large 48 V inverters (such as Victron Quattro 8–10 kVA or Deye 8 kW) seeking high storage capacity in a single cabinet.
16.07 kWh single-cabinet capacity provides the depth and 200 A current needed to run heat pumps and kitchen loads without multi-rack clutter.
- Confirm this model against the adjacent rating in the same family
Documents
Pylontech Fidus Plus Residential Datasheet (EN-SD-250903)Product questions
What is the continuous discharge power capability of the FB-L-16 cabinet?
Full 10.0 kW continuous DC power (51.2 V @ 200 A). The cabinet's internal busbars and BMS are rated for 200 A maximum continuous discharge ($51.2\text{ V} \times 200\text{ A} \approx 10.2\text{ kW}$), allowing it to power large 8 kVA to 10 kVA low-voltage inverters under full load without current throttling.
System components
Recommended components
Pylontech LV-HUB-V2 parallel hub
Item number: DLK-PYLONTECH-LVHUB-V2
Required as the master device when connecting multiple FB-L-16 battery groups in parallel (per the datasheet footnote); single-group installations up to 16 units do not need it.
