Pylontech LV-HUB-V2 parallel hub (multi-group master for Fidus batteries)

The parallel hub for Pylontech's low-voltage Fidus batteries: required as the master device whenever multiple battery groups are connected in parallel (Fidus Battery Plus FB-L-16 and Fidus Pro FB-L-5.12-EU).

Enables multi-group parallel banks - up to 6 strings, up to 19 batteries per group
Acts as the bank master toward the inverter's CAN/RS485 BMS link
Named as required hardware in Pylontech's official Fidus datasheets

Manufacturer: Pylontech
Model code: LV-HUB-V2
Item no.: DLK-PYLONTECH-LVHUB-V2
Delivery: Delivery to Germany · EUR 14.90 at checkout

Orderable · lead time confirmed after order

Plan with LV-HUB-V2

New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.

Trade price

Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.

GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
Datasheets on file for every item
Within 24 h engineering response
MOQ 1 unit · EU delivery
Engineering-checked configurations

System logic

LV-HUB-V2, specified from the datasheet.

Every value on this page is transcribed from the manufacturer documentation on file.

Enables multi-group parallel banks - up to 6 strings, up to 19 batteries per group

Acts as the bank master toward the inverter's CAN/RS485 BMS link

Named as required hardware in Pylontech's official Fidus datasheets

In pictures

Inspect it before you spec it.

Official renders, installation photos and system panels for this model line.

Product

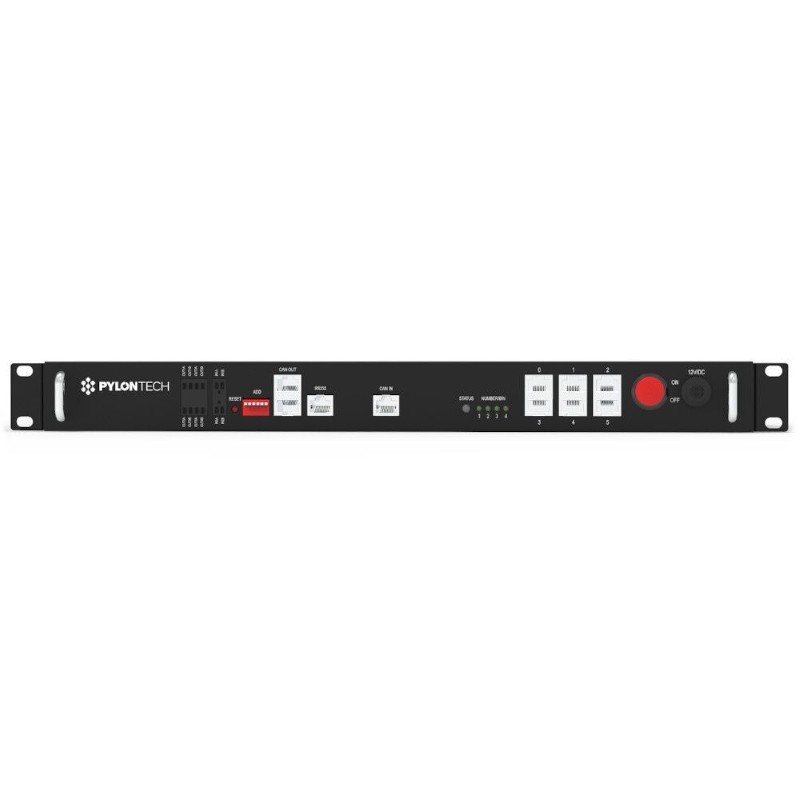

Official manufacturer product render

Documentation

Specifications

Every value exactly as published in the official LV-HUB-V2 documentation.

RoleParallel-connection master for multi-group Pylontech LV battery banks (Fidus Battery Plus, Fidus Pro)

Bank limits with hubUp to 19 batteries per groupbattery spec tables allow up to 6 parallel strings (groups)

ArchitectureParallel master for multiple low-voltage battery groups

Hub required fromThe second parallel battery group

Maximum parallel groups6

Batteries per group with hubUp to 19

Compatible family 1Pylontech Fidus Pro FB-L-5.12-EU

Compatible family 2Pylontech Fidus Battery Plus FB-L-16

Single Fidus Pro groupUp to 20 modules without the parallel hub

Single Fidus Plus groupUp to 16 modules without the parallel hub

System-side communicationCAN / RS485 BMS communication path

Energy storageNone — controller/hub only

Full datasheet (PDF) Ask an engineer

Product

Pick the rating

Fidus family. Same engineering, different size.

Show differences only

2 ratings Same series, same engineering — your model is highlighted.

Pylontech Fidus Battery Plus FB-L-16 (16 kWh low-voltage battery) Sign in for pricing

Pylontech Fidus Pro FB-L-5.12-EU Sign in for pricing

Every figure comes straight from the manufacturer's official datasheet.

Configuration 2

Only when the bank runs more than one battery group in parallel. Single-group banks connect to the inverter without a hub.

Without the hub: one group of Fidus Battery Plus (up to 16 units) or Fidus Pro (up to 20 units) links directly to the inverter.
With the hub: from the second group onward the LV-HUB-V2 is required and acts as the master; Pylontech's Fidus datasheets state up to 19 batteries per group.
Group count: the battery spec tables allow up to 6 parallel strings (groups).

Pylontech's datasheet footnotes allow up to 19 batteries per group and up to 6 parallel groups behind the hub.

Unit count: 6 groups x 19 batteries = 114 units maximum, simple arithmetic on Pylontech's two limits.
Energy example, Fidus Pro: at 5.12 kWh per FB-L-5.12-EU module, one full group is 19 x 5.12 kWh = 97.3 kWh.
Energy example, Fidus Battery Plus: at 16 kWh per FB-L-16 unit, one full group is 19 x 16 kWh = 304 kWh.
Sizing note: these are the datasheet ceilings; the workable bank size for a given inverter is confirmed in the system design.

Installation & wiring 1

The hub is the parallel-connection master of the bank: the battery groups parallel behind it, and it presents the bank to the inverter.

Comms: it acts as the bank master toward the inverter's CAN/RS485 BMS link.
Scope: it serves Pylontech's low-voltage Fidus batteries, the Fidus Battery Plus FB-L-16 (16 kWh) and the Fidus Pro FB-L-5.12-EU (5.12 kWh module).
Topology check: we confirm the exact wiring topology for your group count in the quote.

Availability & compliance 1

Pylontech documents the hub inside the Fidus battery datasheets rather than on its own sheet.

Documentation: both the Fidus Battery Plus and Fidus Pro datasheets state that the LV-HUB-V2 is required for multi-group parallel connection, acts as master, and that each group supports up to 19 batteries. A standalone LV-HUB-V2 datasheet was not found on Pylontech's public download portal at the time of writing.
Supply: we supply the hub together with the battery bank.
Paperwork: the applicable certificate set and the confirmed wiring topology are issued with the quote.
