Pylontech Fidus Pro FB-L-5.12-EU
Pylontech PV Hardware

Pylontech Fidus Pro FB-L-5.12-EU

Pylontech's new-generation low-voltage battery module: 5.12 kWh LFP at 51.2 V with 1C continuous power, stackable from a single module to 583 kWh across parallel groups - for homes, farms and small commercial storage.

  • 5.12 kWh per module with 1C continuous (100 A) and 2C / 15 s peak discharge
  • Scales from one module to 583 kWh (1-114 modules) across up to 6 parallel groups
  • Pylontech states 50+ compatible inverter brands; wall, ground or rack mounting
  • IP65 outdoor build; self-heating Pro version operates to -20 C - request a quote
4.86 kWh
Usable energy
Manufacturer
Pylontech
Model code
FB-L-5.12-EU
Item no.
DLK-PYLONTECH-FIDUSPRO
Delivery
Germany delivery estimate: EUR 85–205 · The final delivery charge is included in your Proforma.
Orderable · lead time confirmed after order

Plan with FB-L-5.12-EU

New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.

Trade price
Sign in for partner pricing Download datasheet

Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.

  • GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
  • Datasheets on file for every item
  • Within 24 h engineering response
  • MOQ 1 unit · EU delivery
  • Engineering-checked configurations
FB-L-5.12-EU, specified from the datasheet.
System logic

FB-L-5.12-EU, specified from the datasheet.

Every value on this page is transcribed from the manufacturer documentation on file.

5.12 kWh per module with 1C continuous (100 A) and 2C / 15 s peak discharge
Scales from one module to 583 kWh (1-114 modules) across up to 6 parallel groups
Pylontech states 50+ compatible inverter brands; wall, ground or rack mounting
In pictures

Inspect it before you spec it.

Official renders, installation photos and system panels for this model line.

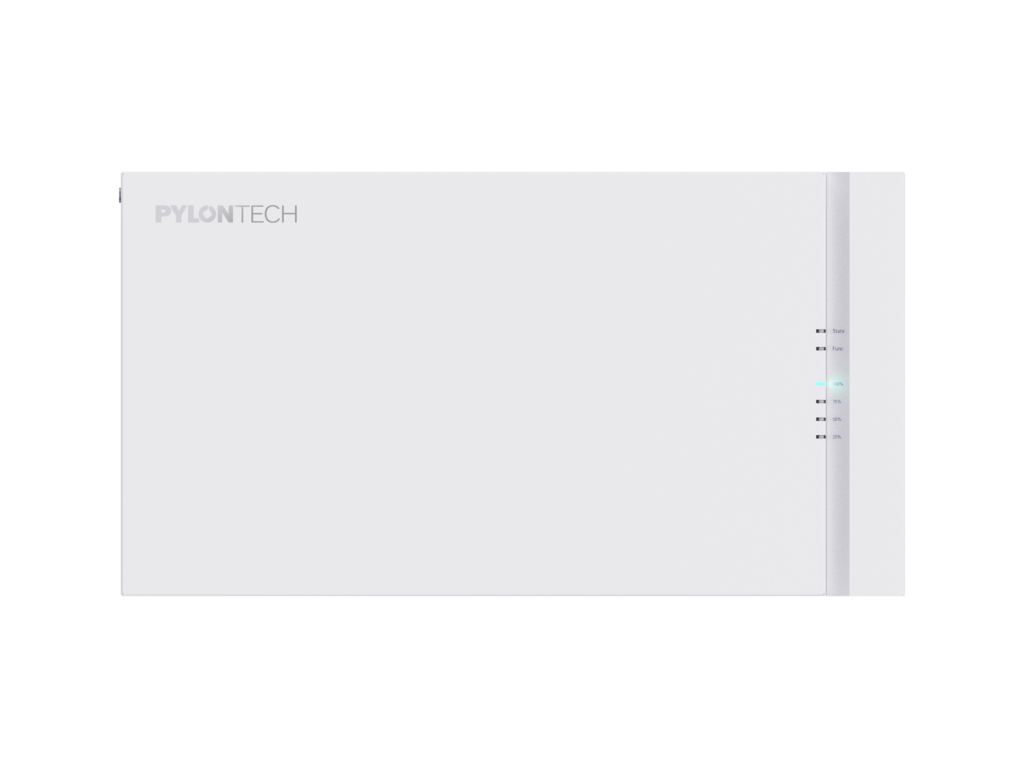

Official manufacturer product render
Product

Official manufacturer product render

Documentation

Specifications

Every value exactly as published in the official FB-L-5.12-EU documentation.

Cell chemistryLiFePO4 (LFP)
Nominal voltage51.2 V DC
Nominal / usable capacity5.12 kWh nominal / 4.86 kWh usable (95% DoD)
Charge / discharge voltageCharge 56-56.8 V; discharge 42.5-56.8 V
Max. continuous charge/discharge current100 A / 100 A (1C)
Peak charge/discharge current103-120 A for 2 minutes / 121-200 A for 15 seconds
Short-circuit current / duration< 1000 A / 1 ms
CommunicationCAN, RS485 (to the inverter)LED, Bluetooth and WiFi (optional) for interaction
Max. units per battery group20 (19 per group in multi-group setups with the LV-HUB-V2)
Max. parallel strings (groups)6
System scalability5 kWh to 583 kWh (1-114 modules)LV-HUB-V2 required for multi-group parallel connection
Inverter compatibility50+ popular inverter brands compatible (per Pylontechconfirm the model-specific approval list)
Working temperature-10 to 55 C (standard version)-20 to 55 C (self-heating version - heating activates between -20 C and -10 C, charge/discharge above -10 C) · storage -20 to 60 C
Ingress protection / anti-corrosionIP65 / C5-M
Humidity / altitude5-95% RH (non-condensing) / <= 4000 m
Cooling / protective classNatural cooling; protective class I
Dimensions / weight / mounting630 x 170 x 363 mm; 45 kg; wall, ground or rack mounted
Design life15 years @ 25 C
Cycle life8000 cycles @ 25 C (spec basis: 0.5C rate, SOC 5-95%)
Full datasheet (PDF) Ask an engineer
ProductPylontech Fidus Pro FB-L-5.12-EU

Complete the system

Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.

Recommended

Pick the rating

Fidus family. Same engineering, different size.

2 ratings Same series, same engineering — your model is highlighted.
Pylontech Fidus Battery Plus FB-L-16 (16 kWh low-voltage battery) Sign in for pricing
Pylontech Fidus Pro FB-L-5.12-EU This model Sign in for pricing
Usable energy
16076 Wh
4.86 kWh

Every figure comes straight from the manufacturer's official datasheet.

Availability & compliance 2

The FB-L-5.12-EU carries the following certifications.

  • Lithium-battery safety: IEC 62619 and IEC 63056
  • Storage-system safety: VDE 2510-50, the standard German installers look for on home batteries
  • Other: IEC 62477-1, UN38.3 transport testing, plus RoHS, REACH, WEEE and EMC/CE

Grid codes such as VDE-AR-N 4105 / EN 50549 apply to the inverter, not the DC-coupled battery: overall grid compliance comes from the hybrid inverter you pair it with.

Yes, German distribution carries it.

  • EFFEKTA Regeltechnik GmbH lists the Fidus PRO (FB-L-5.12-EU / -Pro) with German datasheet and manual and shows it in stock
  • Pylontech’s EU datasheet revision (EN-SD-260121) covers the EU model

We quote it as an RFQ item, request a quote for current pricing and lead time.

Configuration 3

From a single 5.12 kWh module up to 583 kWh (1-114 modules).

  • Single group: up to 20 modules standalone
  • Multiple groups: up to 6 strings, requiring the Pylontech LV-HUB-V2 as the parallel master, with up to 19 batteries per group

This makes the same module usable from a small home system to a small commercial storage bank, size the DC bus, fusing and inverter charge current to the bank and confirm the layout with the quote.

Pylontech promotes compatibility with 50+ popular inverter brands over the standard low-voltage CAN/RS485 BMS interfaces, the successor position to Pylontech’s US-series, which is the de-facto LV compatibility benchmark.

Approval is still model-specific: check that your hybrid or off-grid inverter’s battery list includes the Fidus Pro profile (firmware version matters), or ask us to verify for your project before ordering.

Two versions exist.

  • Standard version: -10 C to 55 C
  • Self-heating version: extends to -20 C; cell-level heating activates between -20 C and -10 C, with charging/discharging allowed above -10 C; the BMS limits current in extreme temperatures
  • Enclosure: IP65 with C5-M anti-corrosion, suits outdoor and coastal mounting

For unheated or outdoor German installations, specify the self-heating version.

Operation & warranty 1

The datasheet states a 15-year design life (25 C) and 8000 cycles (25 C, 0.5C, SOC 5-95%).

Pylontech has not published a model-specific warranty-retention figure for the Fidus Pro on the datasheet, warranty terms follow the manufacturer’s warranty policy for your market, so request the current warranty document with the quote and register the battery via Pylontech’s battery-registration service.
