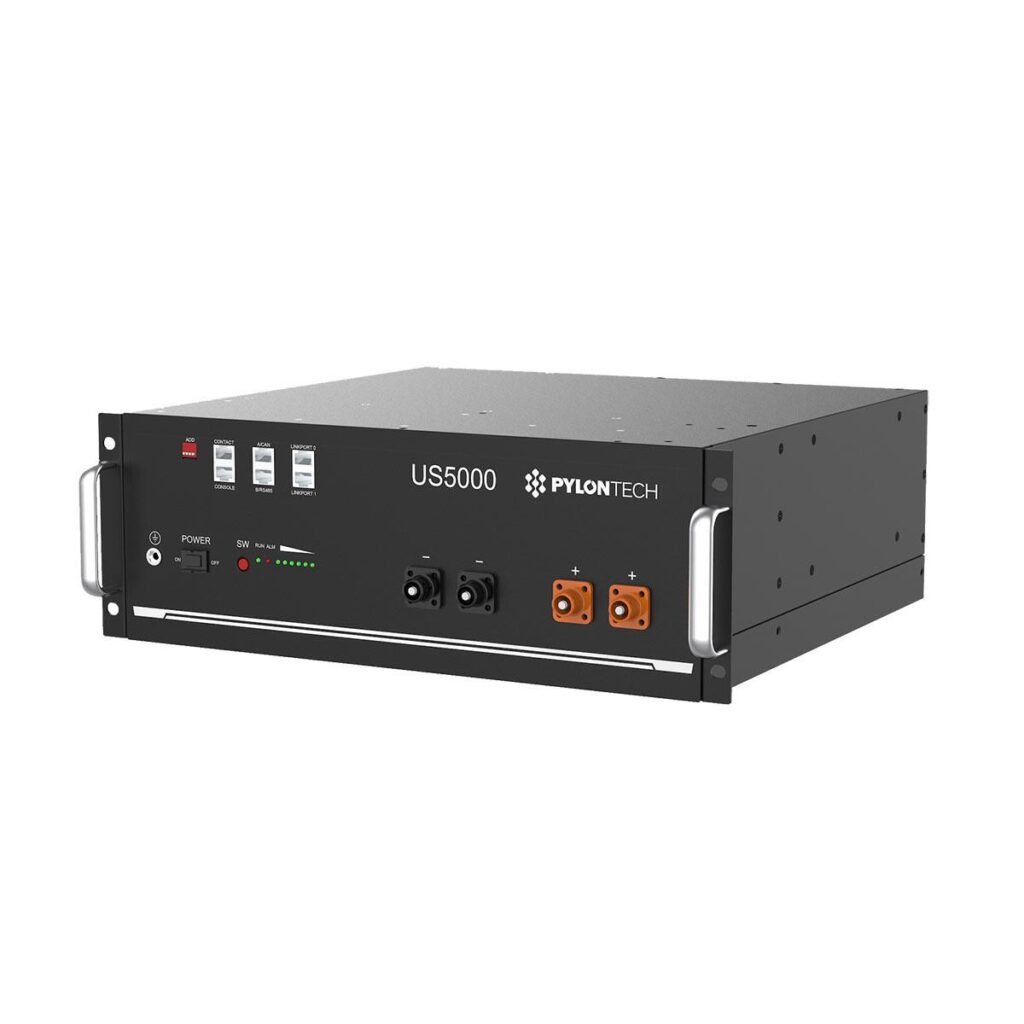

Pylontech US5000
Pylontech US5000 is a battery storage product in the de-linker PV catalog for installer and project procurement.
- 48V nominal, IP20 indoor rack format; LFP chemistry across every module size.
- Three capacity points on one rack format — US2000C (2.4 kWh), US3000C (3.55 kWh), US5000 (4.8 kWh).
- Stack multiple units to scale storage without changing chemistry or form factor.
- 4560 Wh
- Usable energy
- 4800 Wh
- Nominal energy
- 48 V
- Nominal voltage
- LiFePO4
- Cell chemistry
- Manufacturer
- Pylontech
- Model code
- US5000
- Item no.
- DLK-PYLONTECH-US5000
- Delivery
- Germany delivery estimate: EUR 85–205 · The final delivery charge is included in your Proforma.
Plan with US5000
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Numbers that survive the bank's site audit.
Every figure below comes from the manufacturer datasheet on file — the same document your lender's technical advisor will request.
Usable energy
Voltage
Ingress protection
Size it to the load. Grow it later.
Modular stacks scale with the project instead of forcing a day-one guess.
Capacity building block
4.8 kWh per unit. Sizing scales with the bank, not with a bigger box.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.

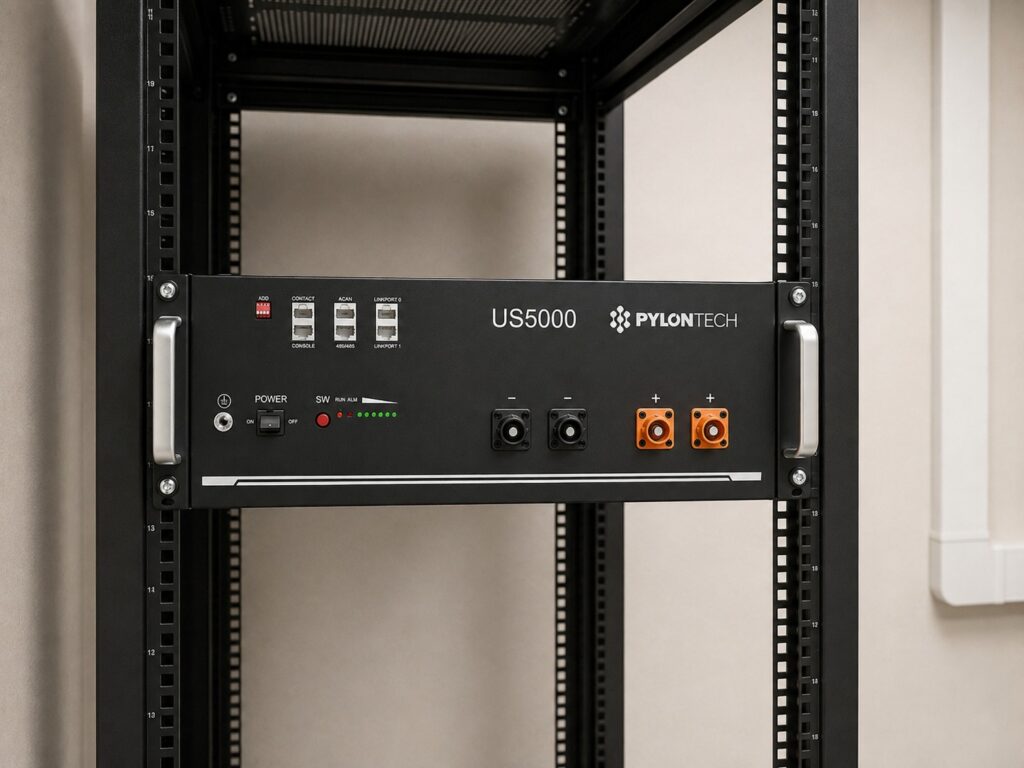

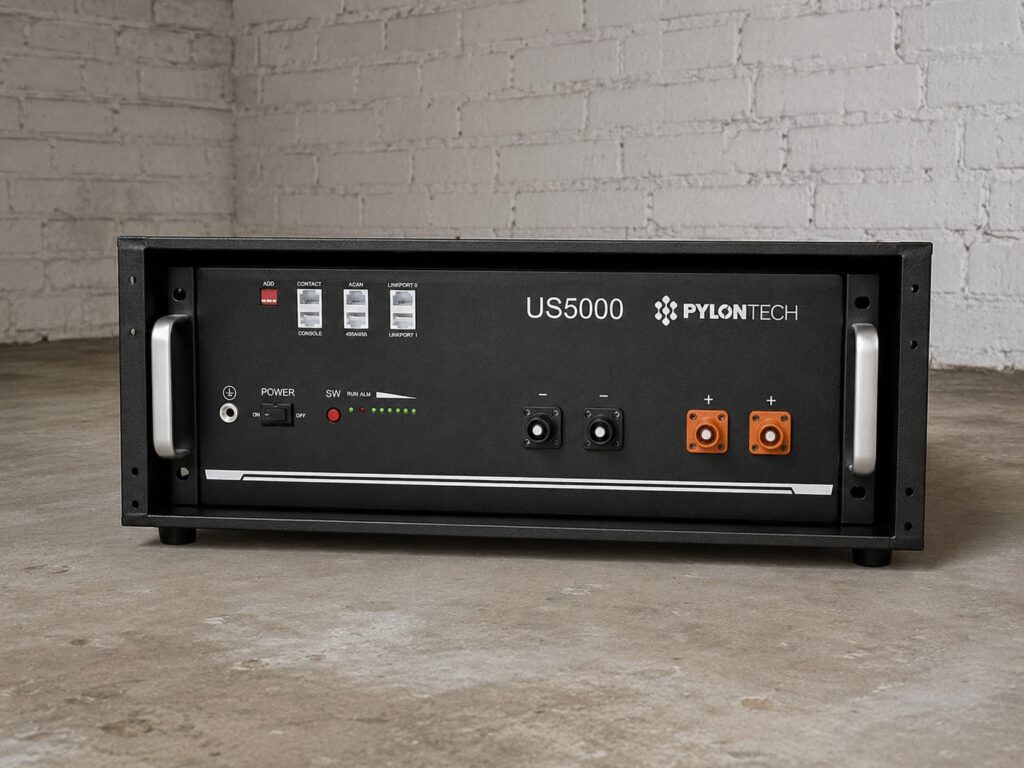

Pylontech US5000 front view

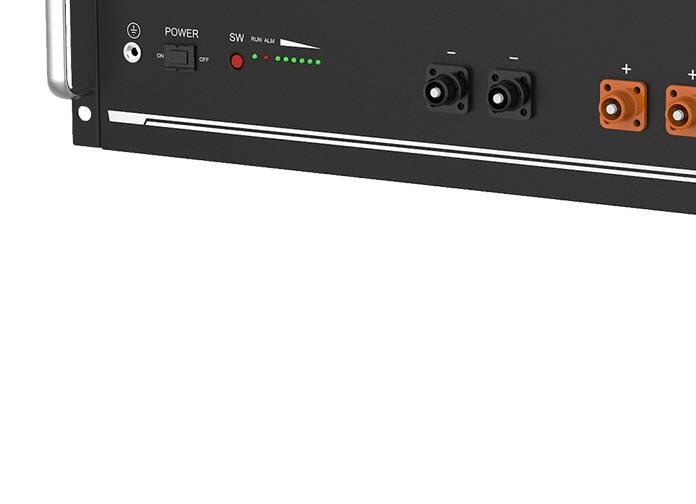

Pylontech US5000 front panel, manufacturer render detail crop
Specifications
Every value exactly as published in the official US5000 documentation.
Documents
Complete the system
Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.
Chint DTSU666 smart meter
- [1]Chint DTSU666 smart meter
Pick the rating
Pylontech family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 2
All three share one 48 V rack format and LFP chemistry; they differ only in usable capacity. Pick the module that divides cleanly into the target bank size.
- Capacity points: US2000C 2.4 kWh, US3000C 3.55 kWh, US5000 4.8 kWh usable per module.
- Scaling: stack multiple units to reach the target; for example 4 x 4.8 kWh = 19.2 kWh usable with US5000, or 4 x 3.55 kWh = 14.2 kWh with US3000C (simple arithmetic on the module ratings).
- Expansion limits: expansion limits are a compatibility-review item; confirm the maximum module count against the latest manufacturer documents during final technical approval.
They are 48 V nominal, low-voltage class modules, so the inverter needs a matching 48 V battery input. High-voltage battery inputs do not fit this series.
- Check first: inverter compatibility, usable capacity per module, expansion limits and enclosure rating; this is the compatibility checklist we apply at order review.
- BMS: the manufacturer BMS manages charge windows and protection, so verify the specific inverter model's battery compatibility before quoting the bank.
- Documents: use the latest Pylontech datasheet and manual, linked on the product page, for final technical approval.
Installation & wiring 1
No. The US series is rated IP20, an indoor rack format. Plan a dry indoor location or a suitable enclosure, and budget the grid-side metering the hybrid inverter needs.
- Enclosure: IP20 across US2000C, US3000C and US5000; the modules are not weatherproof.
- Metering: most hybrid inverters need a grid-side meter to enforce zero-export or self-consumption limits; we pair these banks with the Chint DTSU666 smart meter (DLK-CHINT-DTSU666) and a sized MBS KBU58 CT for the service's rated current.
- Format: one rack format across all three capacities, so the mounting plan does not change if the bank is re-sized later.
Availability & compliance 1
The product data on this page does not include a certificate or grid-code list for the US series. Confirm the certificate set for your target market with the quote.
- What is documented: LFP chemistry, 48 V nominal, LV voltage class and IP20 rating for all three modules.
- Where to check: the Pylontech datasheets linked on the page, including the US2000C+US3000C sheet and the US-series document, are the reference during final technical approval.
- With the quote: order support confirms the current certificate set for your market before you commit the design.
