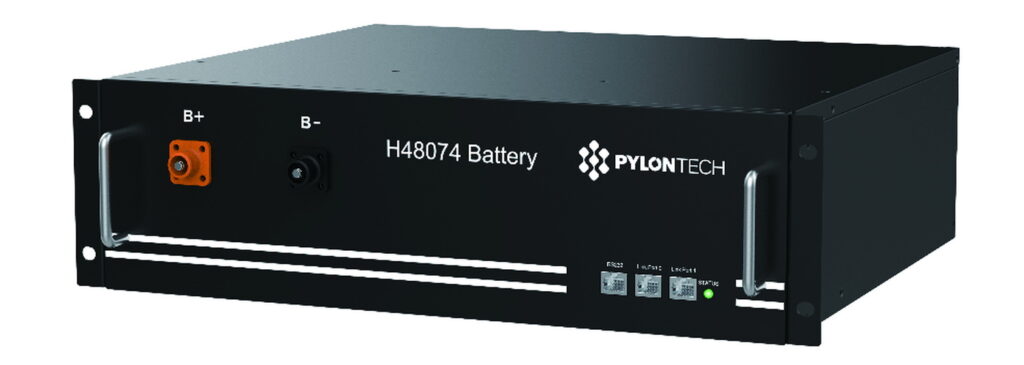

Pylontech H48074
Pylontech H48074 is a 48 V, 3.552 kWh LFP battery module for the PowerCube high-voltage rack systems.
- IP55-rated string, 0-50°C operating range, >8,000 cycles at 25°C, 95% depth of discharge.
- CANBUS/Modbus RTU comms; SC0500- and SC1000-series controllers manage the string — check each controller's own datasheet for its exact current and voltage rating.
- Stack size sets system voltage — 2 modules gives 96V, 7 modules gives 336V, up to 6 parallel strings.
- 3.552 kWh
- Nominal energy
- 48 V
- Nominal voltage
- Li-iron(LFP)
- Cell chemistry
- 37 A
- Max. charge current
- Manufacturer
- Pylontech
- Model code
- H48074
- Item no.
- DLK-PYLONTECH-H48074
- Delivery
- Germany delivery estimate: EUR 85–205 · The final delivery charge is included in your Proforma.
Plan with H48074
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations
Size it to the load. Grow it later.
Modular stacks scale with the project instead of forcing a day-one guess.
Module energy
3.552 kWh at 48 V nominal, 74 Ah, LFP cells.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.
Manufacturer imagery from the official documentation.
Manufacturer imagery from the official documentation.
Specifications
Every value exactly as published in the official H48074 documentation.
Documents
Complete the system
Balance-of-system and accessories paired with this model. Every pairing follows the manufacturer's official compatibility list.
Chint DTSU666 smart meter
- [1]Chint DTSU666 smart meter
Pylontech FH48074 module
- [1]Pylontech FH48074 module
Pick the rating
Pylontech family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
An X-series V2 string takes 2 to 10 modules behind one SC controller; H-series V2 racks are the 1000 V class for larger builds.
- H48050: 2.4 kWh, 48 V, 50 Ah per module; a full 10-module string is 10 x 2.4 kWh = 24 kWh, simple arithmetic.
- H48074: 3.552 kWh, 48 V, 74 Ah per module; a full string is 10 x 3.552 kWh = 35.52 kWh.
- Voltage class: X-series V2 strings sit in the 600 V class, H-series V2 racks in the 1000 V class, per Pylontech's operation manuals.
Every string needs exactly one SC-series control module for switching, protection and communication; in the V2 generation the master control module talks to the inverter directly, so no separate MBMS is required.
- SC0500-40S-V2: 60 to 600 Vdc window, 40 A maximum charge and discharge.
- SC0500-100S-V2: 60 to 600 Vdc, 80 A.
- SC1000-100S-V2: 200 to 1000 Vdc, 80 A, for the 1000 V class racks.
- Parallel: each parallel string carries its own controller; the V2 master coordinates the group.
No. Force H1/H2/H3 systems use FH-prefixed stack modules; H48050 and H48074 are rack modules for PowerCube V2 systems.
- Same rack, different capacity: H48050 is 1P15S with 15 cells; H48074 is 2P15S with 30 cells, per Pylontech's data.
- Controller match: both modules are managed by the SC0500-40S-V2, SC0500-100S-V2 and SC1000-100S-V2 controllers.
- Ordering: confirm the string composition and controller pairing for your voltage class with the quote.
Installation & wiring 1
All modules and controllers share a 442 x 390 mm footprint and mount indoors at IP20.
- Modules: H48050 is 100 mm high at 24 kg; H48074 is 132 mm high at 32 kg.
- Controllers: 87 to 132 mm high, 7 to 9 kg, 8 W self-consumption.
- Communication: Modbus RTU, CAN and LAN on the controller.
- Environment: modules operate 0 to 50 C (system charge window per the manual); controllers are rated -20 to +65 C.
Operation & warranty 1
Pylontech rates the V2 system at 5000 cycles on LFP cells with a 15+ year design life.
- Module duty: H48050 runs 10 A standard, 25 A normal, 50 A maximum; H48074 runs 14.8 A standard, 37 A normal, 74 A maximum.
- Controller limit: string current is capped by the controller, 40 A on the SC0500-40S-V2 and 80 A on the 100S controllers; the usable system current follows the battery modules in the string.
- Controller life: the SC modules are specified for 15+ years of operation.
Availability & compliance 1
Per Pylontech's documentation the modules are certified to IEC 62619, IEC 63056, VDE 2510-50 and IEC 62040-1, with CE (LVD and RED) marking and TUV certification.
- Transport: UN38.3 tested and shipped as UN 3090 lithium batteries.
- EMC and environment: IEC 61000 and EN 55022 EMC entries plus GB/T 2423 environmental testing appear on the certificate list.
- Project file: grid-connection certificates belong to the inverter side; confirm the complete certificate set for your project with the quote.
